6-1. Specifications
GX460_CANADA (OM60F29U)
Automatic transmission
*: The fluid capacity is a reference quantity. If replacement is necessary, contact
your Lexus dealer.
Fluid capacity*
Wi th
air-cooled type
ATF cooler
11.8 qt. (11.2 L, 9.9 Imp.qt.)
Without
air-cooled type
ATF cooler
11.6 qt. (11.0 L, 9.7 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio-
ration in shift quality, locking up of the transmission accompanied by vibration and,
ultimately, damage to the vehicle’s transmission.
GX460_CANADA.book Page 760 Thursday, February 4, 2010 11:54 AM

761
6-1. Specifications
6
Vehicle specifications
GX460_CANADA (OM60F29U)
Tr a n s f e r
*: “Toyota Genuine Transfer Gear oil LF” is filled in your Lexus vehicle at factoryfill. Use Lexus approved “Toyota Genuine Transfer Gear oil LF” or an equivalent
of matching quality to satisfy the above specification. Please contact your Lexus
dealer for further details.
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50 kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 45.0 lbf (200 N,20.4 kgf).
Oil capacity1.5 qt. (1.4 L, 1.2 Imp.qt.)
Oil type*To y o t a G e n u i n e Tr a n s f e r
Gear oil LF or equivalent
Recommended oil viscositySAE 75W
Pe d a l c l e a r a n c e*13.4 in. (86 mm) Min.
Pedal free play0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel*25  7 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
GX460_CANADA.book Page 761 Thursday, February 4, 2010 11:54 AM

762
6-1. Specifications
GX460_CANADA (OM60F29U)
Chassis lubrication
Steering
Tires and wheels
Propeller shafts
Spiders
Slide yokeLithium base chassis grease, NLGI No.2
Molybdenum-disulfide lithium base chassis
grease, NLGI No.2 or lithium base multipur-
pose grease, NLGI No.2
Free playLess than 1.18 in. (30 mm)
Power steering fluid typeAutomatic transmission fluid DEXRON® II
or III
Ti r e s i z eP265/60R18 109H
Tire inflation pressure
(Recommended cold tire inflation
pressure)
Driving under normal conditions Front:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Spare:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Wheel size18 × 7 1 /2 J
Wheel nut torque83 ft•lbf (112 N•m, 11.4 kgf•m)
GX460_CANADA.book Page 762 Thursday, February 4, 2010 11:54 AM

763
6-1. Specifications
6
Vehicle specifications
GX460_CANADA (OM60F29U)

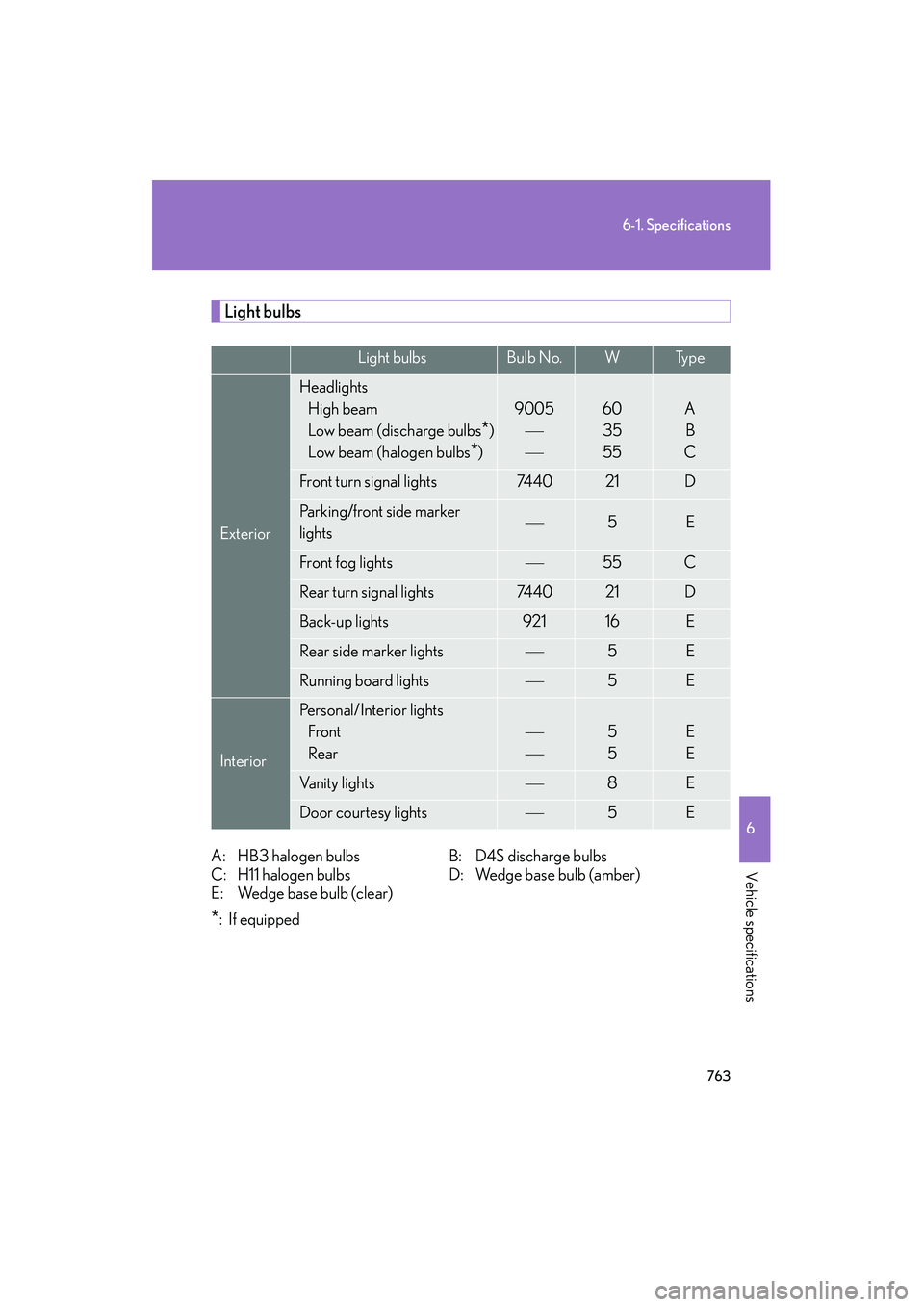

Light bulbs
A: HB3 halogen bulbsB: D4S discharge bulbs
C: H11 halogen bulbs D: Wedge base bulb (amber)
E: Wedge base bulb (clear)
*:If equipped
Light bulbsBulb No.WTy p e
Exterior
Headlights
High beam
Low beam (discharge bulbs
*)
Low beam (halogen bulbs
*)
9005 
6035
55A B
C
Front turn signal lights744021D
Parking/front side marker
lights5E
Front fog lights55C
Rear turn signal lights744021D
Back-up lights92116E
Rear side marker lights5E
Running board lights5E
Interior
Personal/Interior lights Front
Rear

5
5E
E
Vanity lights8E
Door courtesy lights5E
GX460_CANADA.book Page 763 Thursday, February 4, 2010 11:54 AM

764
6-1. Specifications
GX460_CANADA (OM60F29U)
Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
You must only use unleaded gasoline in your vehicle.
Select premium unleaded gasoline with an octane rating of 91 (Research
Octane Number 96) or higher required for optimum engine performance.
If 91 octane cannot be obtained, you may use unleaded gasoline with an
octane rating as low as 87 (Research Octane Number 91). Use of
unleaded gasoline with an octane rating lower than 91 may result in engine
knocking. Persistent knocking can lead to engine damage and should be
corrected by refueling with higher octane unleaded gasoline.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.
GX460_CANADA.book Page 764 Thursday, February 4, 2010 11:54 AM

765
6-1. Specifications
6
Vehicle specifications
GX460_CANADA (OM60F29U)
■Gasoline quality standards
●Automotive manufacturers in the U.S.A., Europe and Japan have developed a
specification for fuel quality called the World-Wide Fuel Charter (WWFC),
which is expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the U.S., category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
improves customer satisfaction through better performance.
■Recommendation of the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.
●All gasoline sold in the U.S.A. contains detergent additives to clean and/or keep
clean intake systems.
■Recommendation of the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Non-recommendation of the use of blended gasoline
●Lexus allows the use of oxygenate blended gasoline where the oxygenate con-
tent is up to 10 % ethanol or 15 % MTBE.
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower
than 87.
●Lexus does not recommend the use of gasoline containing methanol.
GX460_CANADA.book Page 765 Thursday, February 4, 2010 11:54 AM

766
6-1. Specifications
GX460_CANADA (OM60F29U)
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy clo-
pentadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoli ne that contains MMT. If fuel contain-
ing MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the inst rument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be dam-
aged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than the level
previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If poor driveability is encountered after using a different type of fuel (poor hot start-
ing, vaporization, engine knocking, etc.), discontinue the use of that type of fuel.
■When refueling with gasohole
Take care not to spill gasohol. It can damage your vehicle’s paint.
GX460_CANADA.book Page 766 Thursday, February 4, 2010 11:54 AM

767
6-1. Specifications
6
Vehicle specifications
GX460_CANADA (OM60F29U)
Tire information
Ty p i c a l t i r e s y m b o l s
Tire size(→ P. 7 7 0 )
DOT and Tire Identification Number (TIN) (→P. 76 9 )
Location of treadwear indicators (→ P. 6 2 7 )
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.
Radial tires or bias-ply tires
A radial tire has RADIAL on the sidewall. A tire not marked RADIAL is a
bias-ply tire.
