2010 Lexus GX460 Owner's Manual

544
3-7. Other interior features
GX460_CANADA (OM60F29U)
■The power outlet can be used when
The engine is running.
■The indicator light changes according to the maximum available capacity as fol-
lows:
■When the power outlet is in operation
The sound of the cooling fan may be heard from the right side of the luggage com-
partment. This is normal and does not indicate a malfunction.
■If the engine is started with the power outlet main switch on
The maximum capacity of the power supply may decrease to below the standard, or
may be cut off completely, even when the vehicle is stationary.
■The protection circuit may be activated to cut the power supply if any of the fol-
lowing conditions apply:
●The engine is started with the power outlet main switch on.
●Use of electrical appliances exceeding the maximum capacity is attempted.
●A sound may be heard when the protection circuit is activated. This is normal
and does not indicate a malfunction.
●Electrical appliances, which consume power exceeding 100 W, have been used
continuously for a long time period.
●The total power usage by all electrical features (headlights, air conditioning,
etc.) has exceeded the total vehicle maximum for an extended period of time.120 V AC/400 W
120 V AC/100 W
GX460_CANADA.book Page 544 Thursday, February 4, 2010 11:54 AM

545
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)
■If the protection circuit is activated and the power supply is cut, conduct the fol-
lowing procedure:Park the vehicle in a safe place, and then securely apply the parking brake.
Check and ensure that the shift lever is in P or N.
Make sure that the power consumption of the electric appliance is within
the maximum capacity of the power outlet and the appliance is not bro-
ken.
Press the power outlet main switch again.
When the cabin temperature is high, open the windows to cool the temperature
down. Once it reaches the normal temperature, turn the power outlet main switch
on again.
If the power supply does not resume even after the above procedure has been per-
formed, have the vehicle inspected by your Lexus dealer.
CAUTION
■Using a power outlet
Observe the following precautions to reduce the risk of injury.
●Use of the power outlet when it is wet with water or snow may result in electrical
shocks and is extremely dangerous. The power outlet must be thoroughly dried
before use.
●Do not allow children to use or play with the power outlet.
●Be careful not to get any part of your body caught in the power outlet lid.
●When using electrical appliances, strictly follow any cautions and notices written
on their labels and in the manufacturers’ instruction manuals.
●Do not modify, disassemble or repair the power outlet or its inverter in any way.
Doing so may result in unexpected malfunctions or accidents, which could cause
serious damage or injuries. Contact your Lexus dealer for any necessary repairs.
STEP1STEP1
STEP2STEP2
STEP1STEP3STEP3
STEP1STEP4STEP4
GX460_CANADA.book Page 545 Thursday, February 4, 2010 11:54 AM

546
3-7. Other interior features
GX460_CANADA (OM60F29U)
CAUTION
■To prevent injuries and accidents, secure all electric appliances before use and
do not use any appliances that may do any of the following:
●Distract the driver while driving, or hamper safe driving.
●Result in a fire or burn injuries due to the appliance rolling, falling or overheating
while driving.
●Emit steam while the windows of the cabin are closed.
■To prevent unexpected accidents, such as electric shocks, do not perform any of
the following actions:
●Using the power outlet for electric heaters while sleeping.
●Contaminating the power outlet with liquid substances or mud.
●Handling electrical appliance plugs at the power outlet with wet hands or feet.
●Inserting foreign objects into the power outlet.
●Using malfunctioning electric appliances.
●Inserting inappropriate or badly fitting plugs into the power outlet.
GX460_CANADA.book Page 546 Thursday, February 4, 2010 11:54 AM

547
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)

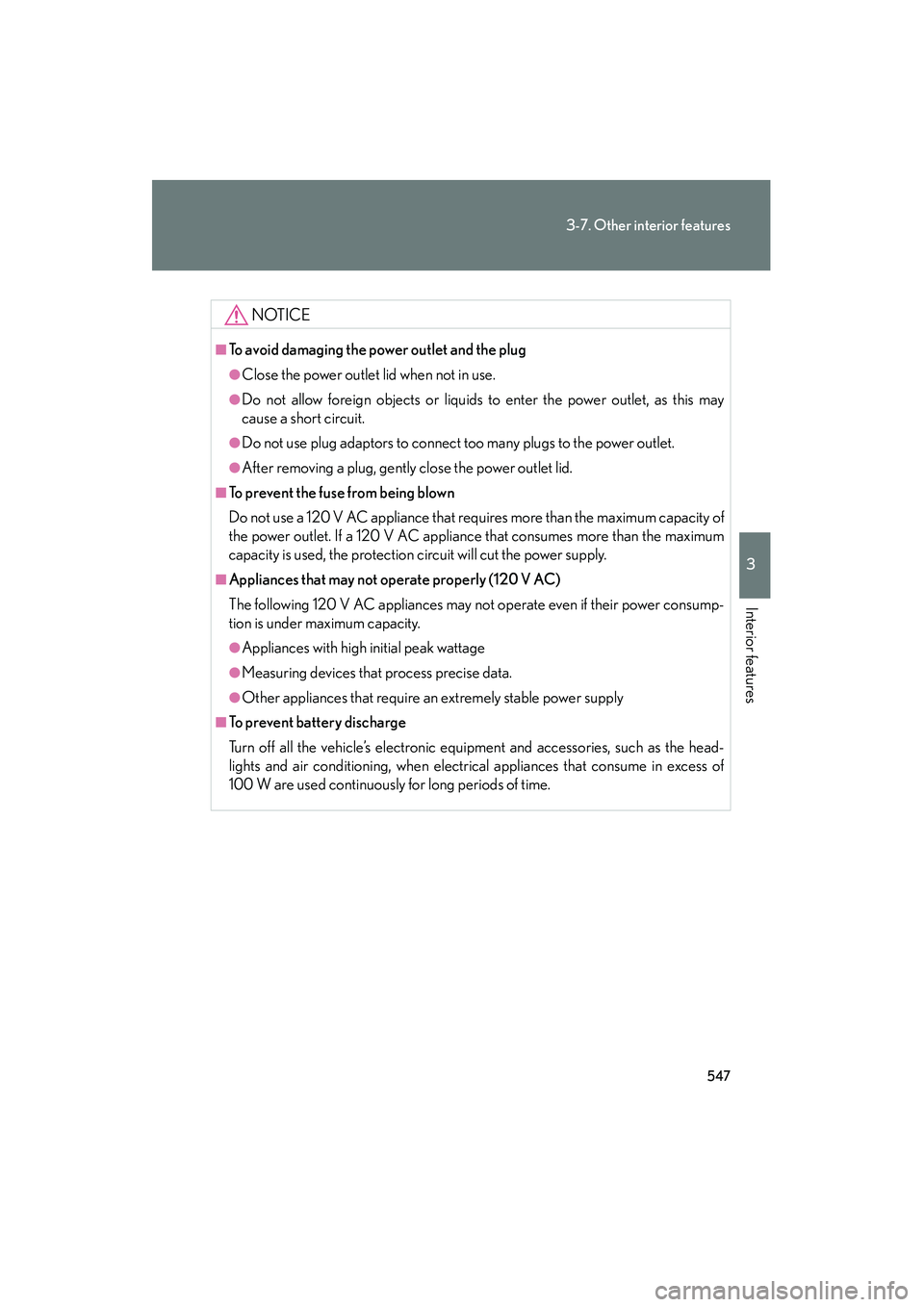

NOTICE
■To avoid damaging the power outlet and the plug
●Close the power outlet lid when not in use.
●Do not allow foreign objects or liquids to enter the power outlet, as this may
cause a short circuit.
●Do not use plug adaptors to connect too many plugs to the power outlet.
●After removing a plug, gently close the power outlet lid.
■To prevent the fuse from being blown
Do not use a 120 V AC appliance that requires more than the maximum capacity of
the power outlet. If a 120 V AC appliance that consumes more than the maximum
capacity is used, the protection circuit will cut the power supply.
■Appliances that may not operate properly (120 V AC)
The following 120 V AC appliances may not operate even if their power consump-
tion is under maximum capacity.
●Appliances with high initial peak wattage
●Measuring devices that process precise data.
●Other appliances that require an extremely stable power supply
■To prevent battery discharge
Turn off all the vehicle’s electronic equipment and accessories, such as the head-
lights and air conditioning, when electrical appliances that consume in excess of
100 W are used continuously for long periods of time.
GX460_CANADA.book Page 547 Thursday, February 4, 2010 11:54 AM

548
3-7. Other interior features
GX460_CANADA (OM60F29U)
NOTICE
■To prevent any damage caused by heat
●Do not use any electrical appliances that give off intense heat, such as toasters, in
any locations including the internal or external trim, seats and deck.
●Do not use any electrical appliances that are easily affected by vibration or heat
inside the vehicle. Vibration while driving, or the heat of the sun while parking,
may result in damage to those electrical appliances.
■If any electrical appliances are to be used while driving
Securely fasten both the appliances and their cables to prevent them from falling or
getting caught in any of the power train components.
■If the power outlet is loose when an electrical appliance plug is connected
Replace the outlet. Contact your Lexus dealer for any necessary replacements.
■If the power outlet gets dirty
Turn the main switch off and use a soft, clean cloth to wipe it gently. Do not use any
cleansing materials, such as organic solvents, wax, or compound cleaners, as these
may damage the power outlet or cause it to malfunction.
GX460_CANADA.book Page 548 Thursday, February 4, 2010 11:54 AM

549
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)
Heated steering wheel∗
∗: If equipped
■The heated steering wheel can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Timer
The heated steering wheel will automatically turn off after about 30 minutes.
■If the indicator light flashes
Press the button to turn the heated steering wheel off and then press the button
again. If the indicator light still flashes, a malfunction may be occurring. Turn the
heated steering wheel off and have the vehicle inspected by your Lexus dealer.
The heated steering wheel heats the leather portion of the steering wheel.
Turns the heater on/off
The indicator light comes on
when the heater is operating.
GX460_CANADA.book Page 549 Thursday, February 4, 2010 11:54 AM

550
3-7. Other interior features
GX460_CANADA (OM60F29U)
CAUTION
■Burns
Care should be taken to prevent injury if anyone in the following categories comes
in contact with the steering wheel when the heated steering wheel is on:
●Babies, small children, the elderly, the sick and the physically challenged
●Persons with sensitive skin
●Persons who are fatigued
●Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold
remedies, etc.)
NOTICE
■To prevent battery discharge
Turn the heater off when the engine is not running.
GX460_CANADA.book Page 550 Thursday, February 4, 2010 11:54 AM

551
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)
Seat heaters and ventilators
The seat heaters and ventilators heat the seats and maintain good airflow
by blowing air from the seats.
■Front seat heaters/ventilators
Turns the seat heater on
The indicator light comes on.
The higher the number of dots,
the warmer the seat becomes.
Blows air from the seat
The indicator light comes on.
The higher the number of dots,
the stronger the airflow
becomes.
GX460_CANADA.book Page 551 Thursday, February 4, 2010 11:54 AM
