2010 Lexus GX460 Owner's Manual

104
1-4. Opening and closing the windows and moon roof
GX460_CANADA (OM60F29U)

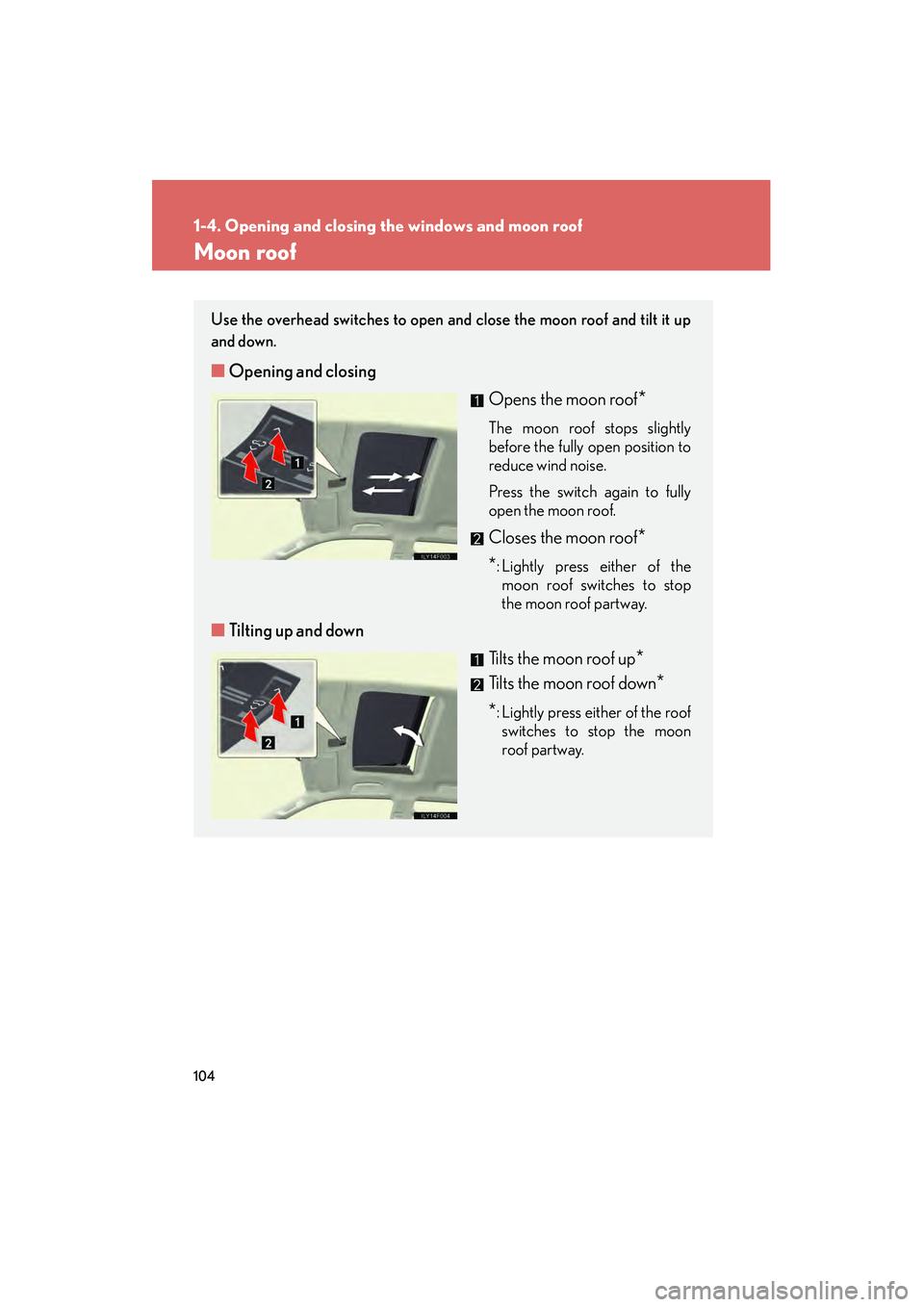

Moon roof
Use the overhead switches to open and close the moon roof and tilt it up
and down.
■Opening and closing
Opens the moon roof
*
The moon roof stops slightly
before the fully open position to
reduce wind noise.
Press the switch again to fully
open the moon roof.
Closes the moon roof*
*
: Lightly press either of the moon roof switches to stop
the moon roof partway.
■ Tilting up and down
Tilts the moon roof up
*
Tilts the moon roof down*
*
: Lightly press either of the roof switches to stop the moon
roof partway.
GX460_CANADA.book Page 104 Thursday, February 4, 2010 11:54 AM

105
1-4. Opening and closing the windows and moon roof
1
Before driving
GX460_CANADA (OM60F29U)
■The moon roof can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Operating the moon roof after turning the engine off
The moon roof can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is turned to ACCESSORY mode or turned off. It
cannot, however, be operated once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while the moon roof is
closing or tilting down, travel is stopped and the moon roof opens slightly.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.
■Door lock linked moon roof operation
The moon roof can be opened and closed using the mechanical key. (→ P. 7 3 8 )
GX460_CANADA.book Page 105 Thursday, February 4, 2010 11:54 AM

106
1-4. Opening and closing the windows and moon roof
GX460_CANADA (OM60F29U)
■Moon roof open reminder function
An alarm will sound when the driver’s door is opened with the moon roof not fully
closed and the “ENGINE START STOP” switch off.
■When the moon roof does not close normally
Perform the following procedure:
●If the moon roof closes but then re-opens slightlyStop the vehicle.
Press and hold “ ∨” on the .
*1
The moon roof will close, re-open and pause for approximately 10 sec-
onds.
*2 Then it will close again, tilt up and pause for approximately 1 sec-
ond. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.
STEP1
STEP2
STEP3
GX460_CANADA.book Page 106 Thursday, February 4, 2010 11:54 AM

107
1-4. Opening and closing the windows and moon roof
1
Before driving
GX460_CANADA (OM60F29U)
●If the moon roof tilts down but then tilts back upStop the vehicle.
Press and hold “ ∧” on the
*1 until the moon roof moves into the tilt
up position and stops.
Release “ ∧” on the once and then press and hold “ ∧” on the
again.
*1
The moon roof will pause for approximately 10 seconds in the tilt up posi-
tion.
*2 Then it will adjust slightly and pause for approximately 1 second.
Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.
*1: If the switch is released at the incorrect time, the procedure will have to be performed again from the beginning.
*2: If the switch is released after the above mentioned 10 second pause,
automatic operation will be disabled. In that case, press and hold “ ∨”
on the or “ ∧” on the and the moon roof will tilt up and
pause for approximately 1 second. Then it will tilt down, open and
close. Check to make sure that the moon roof is completely closed
and then release the switch.
If the moon roof does not fully close even after performing the above procedure
correctly, have the vehicle inspected by your Lexus dealer.
STEP1
STEP2
STEP3
STEP4
GX460_CANADA.book Page 107 Thursday, February 4, 2010 11:54 AM

108
1-4. Opening and closing the windows and moon roof
GX460_CANADA (OM60F29U)
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 7 8 3 )
CAUTION
■Opening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.
●Do not allow any passengers to put their hands or heads outside the vehicle while
it is moving.
●Do not sit on top of the moon roof.
■Closing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when the moon roof is being operated.
●Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the moon roof fully closes.
GX460_CANADA.book Page 108 Thursday, February 4, 2010 11:54 AM

109
1
Before driving
GX460_CANADA (OM60F29U)
1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
■Before refueling the vehicle
Turn the “ENGINE START STOP” switch off and ensure that all the
doors and windows are closed.
■ Opening the fuel tank cap
Press the opener to open the
fuel filler door.
Turn the fuel tank cap slowly to
open.
STEP1
STEP2
GX460_CANADA.book Page 109 Thursday, February 4, 2010 11:54 AM

110
1-5. Refueling
GX460_CANADA (OM60F29U)

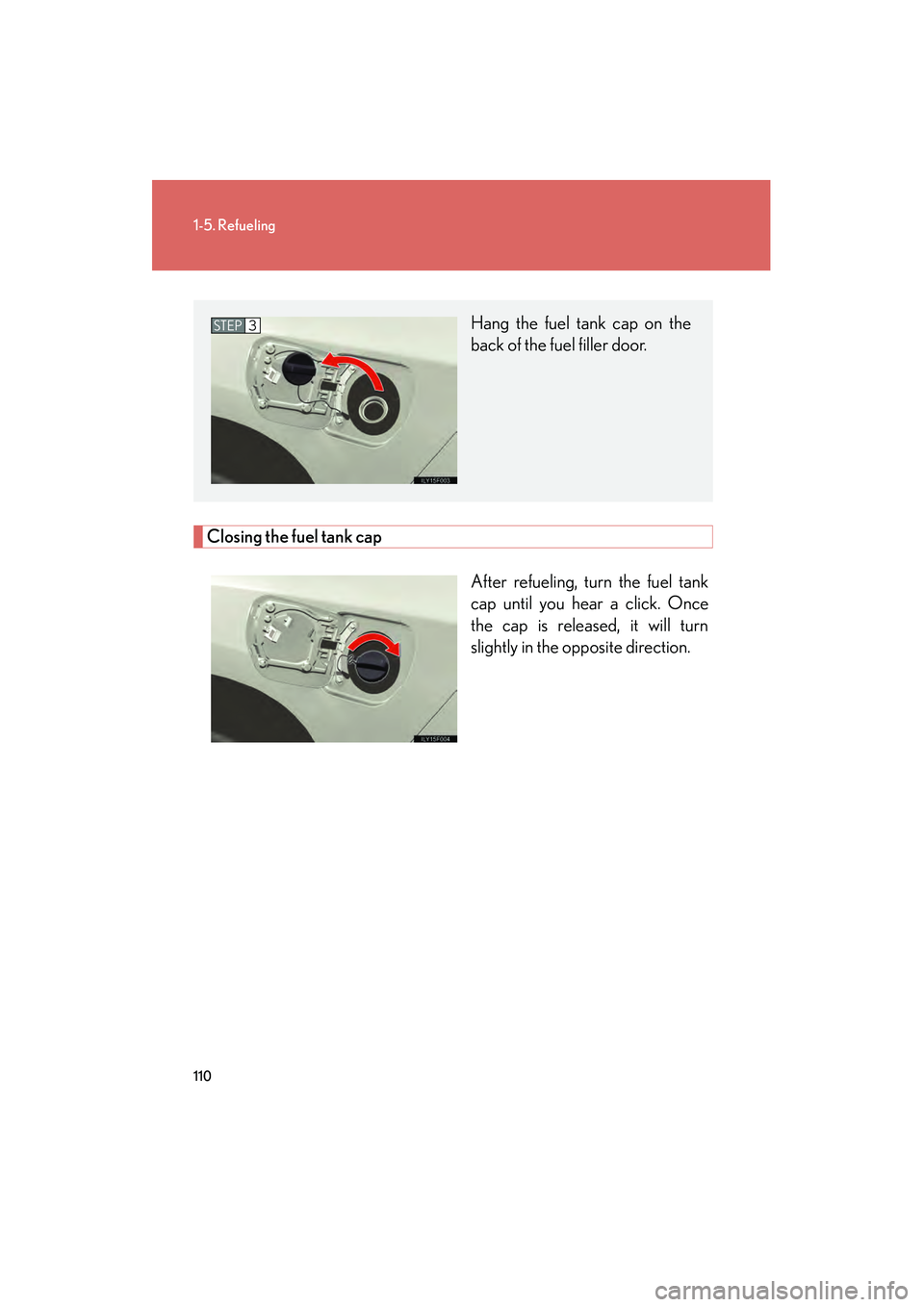

Closing the fuel tank capAfter refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Hang the fuel tank cap on the
back of the fuel filler door.STEP3
GX460_CANADA.book Page 110 Thursday, February 4, 2010 11:54 AM

111
1-5. Refueling
1
Before driving
GX460_CANADA (OM60F29U)

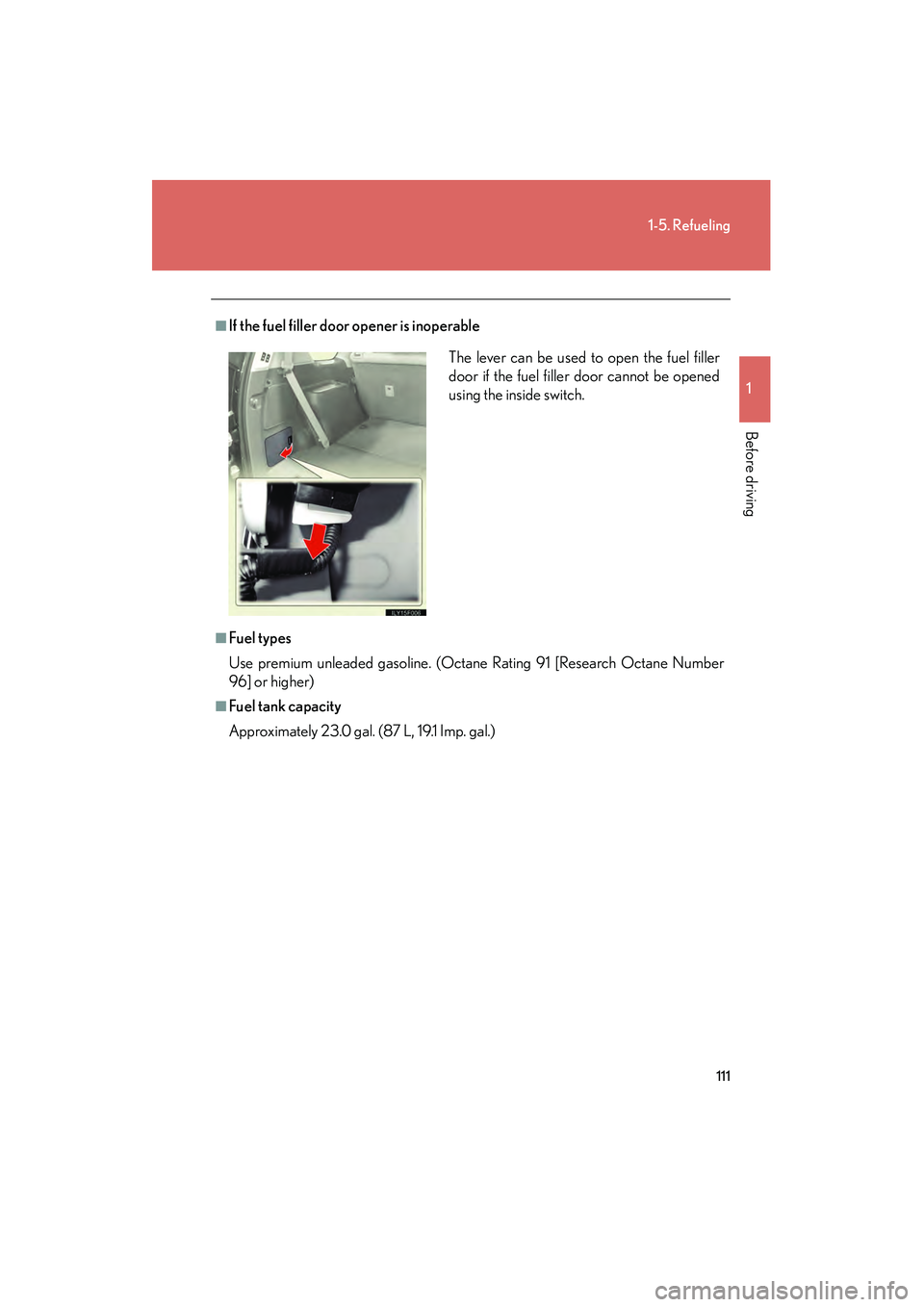

■If the fuel filler door opener is inoperable
■Fuel types
Use premium unleaded gasoline. (Octane Rating 91 [Research Octane Number
96] or higher)
■Fuel tank capacity
Approximately 23.0 gal. (87 L, 19.1 Imp. gal.)The lever can be used to open the fuel filler
door if the fuel filler door cannot be opened
using the inside switch.
