2010 INFINITI QX56 sensor

AUTOMATIC AIR CONDITIONER SYSTEMHAC-13
< FUNCTION DIAGNOSIS > [AUTOMATIC AIR CONDITIONER]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
AUTOMATIC AIR CONDITIONER SYSTEM

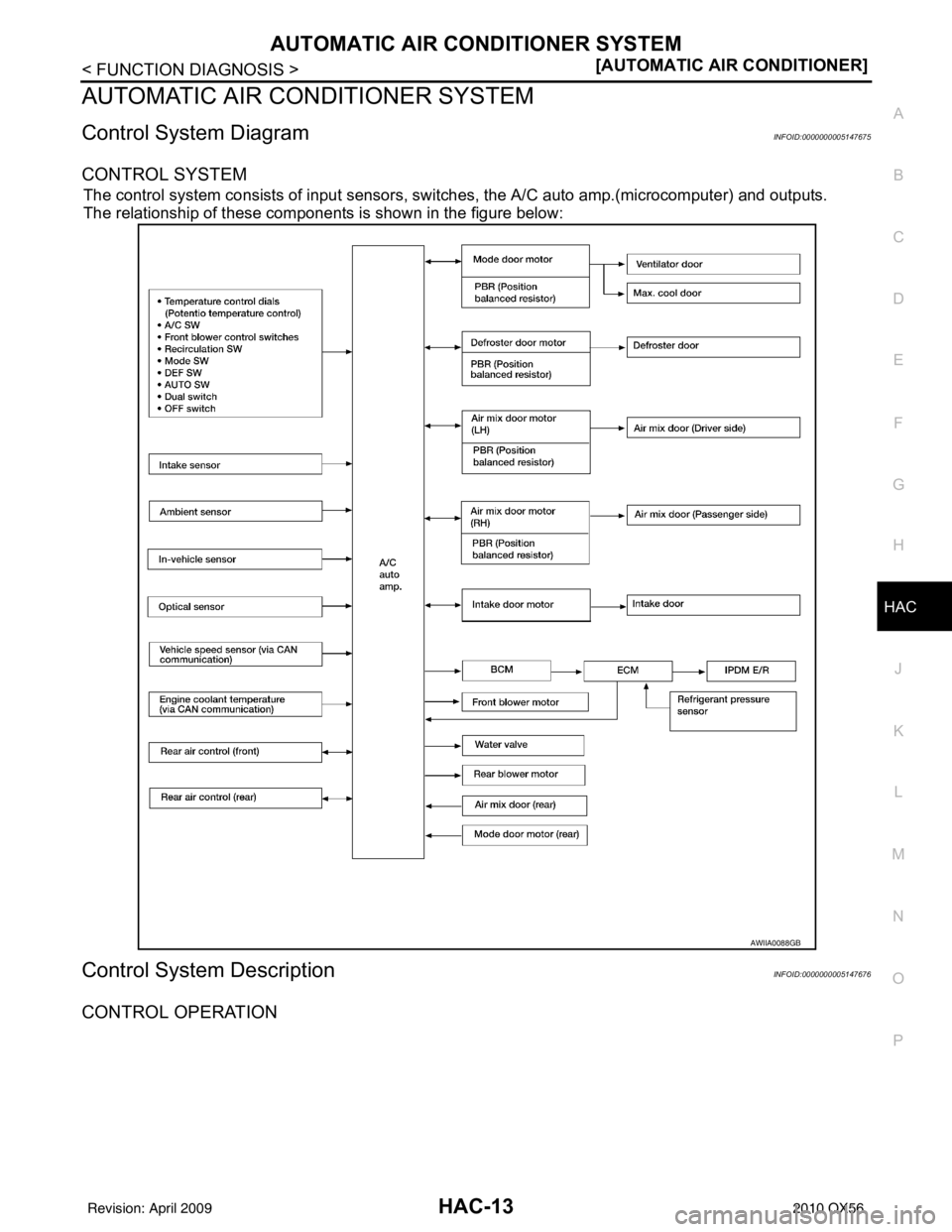

Control System DiagramINFOID:0000000005147675
CONTROL SYSTEM
The control system consists of input sensors, switches, the A/C auto amp.(microcomputer) and outputs.
The relationship of these components is shown in the figure below:
Control System DescriptionINFOID:0000000005147676
CONTROL OPERATION
AWIIA0088GB
Revision: April 20092010 QX56

AUTOMATIC AIR CONDITIONER SYSTEMHAC-15
< FUNCTION DIAGNOSIS > [AUTOMATIC AIR CONDITIONER]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
Rear Air Controls
REAR TEMPERATURE CONTROL DIAL (FRONT/REAR)
The temperature increases or dec reases the set temperature.
REAR MODE SWITCHES (FRONT/REAR)
Controls the air discharge outlets.
REAR BLOWER CONTROL DIAL (FRONT)
When the REAR CTRL switch is in the off (indicator off) the rear air control (front) controls the rear blower
motor speed regardless of the rear air control (rear) blow er control dial (rear) position. The rear air control
(front) controls the blower motor speed.
REAR BLOWER CONTROL DIAL (REAR)
When the REAR CTRL switch is in the on (indicator on) the rear air control (rear) controls the rear blower
motor speed regardless of the rear air control (front) blow er control dial (front) position. The rear air control
(rear) controls the blower motor speed.
MAGNET CLUTCH CONTROL
When A/C switch or DEF switch is pressed, A/ C auto amp. inputs compressor ON signal to BCM.
BCM sends compressor ON signal to ECM and A/C auto amp., via CAN communication line.
ECM judges whether compressor can be turned ON, based on each sensor status (refrigerant pressure sen-
sor signal, throttle angle sensor, etc.). If it judges compressor can be turned ON, it sends compressor ON sig-
nal to IPDM E/R, via CAN communication line.
AWIIA0082ZZ
1. Rear air control (front )2. Rear air control (rear)
AWIIA1069GB
Revision: April 20092010 QX56

HAC-20
< FUNCTION DIAGNOSIS >[AUTOMATIC AIR CONDITIONER]
DIAGNOSIS SYSTEM (HVAC)
DIAGNOSIS SYSTEM (HVAC)
CONSULT-III Function (HVAC)INFOID:0000000005147681
CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.
SELF-DIAGNOSIS
Display Item List
DATA MONITOR
Display Item List
Diagnostic mode
Description
SELF-DIAG RESULTS Displays A/C au to amp. self-diagnosis results.
DATA MONITOR Displays A/C auto amp. input/output data in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read. ECU PART NUMBER A/C auto amp. part number can be read.
DTC Description
Reference page
B2573 Battery voltage out of range CHG-8, "
Inspection Procedure"
B2578 In-vehicle sensor circuit out of range (low)
HAC-78, "In-Vehicle Sensor Diagnosis Procedure"B2579 In-vehicle sensor circuit out of range (high)
B257B Ambient sensor circuit short HAC-75, "
Ambient Sensor Diagnosis Procedure"B257C Ambient sensor circuit open
B257F Optical sensor (Driver) circuit open or short HAC-81, "
Optical Sensor Diagnosis Procedure".
B2580 Optical sensor (Passenger) circuit open or short
B2581 Intake sensor circuit short HAC-83, "
Intake Sensor Diagnosis Procedure"B2582 Intake sensor circuit open
U1000 CAN bus fault LAN-14, "
Trouble Diagnosis Flow Chart"
Monitor itemValue Contents
BATT VIA CAN "V" Displays battery voltage signal.
IGN VIA CAN "ON/OFF" Displays ignition switch signal.
DVR SUNLD SEN "w/m2" Displays optical sensor (driver) signal.
PAS SUNLD SEN "w/m2" Displays optical sensor (passenger) signal.
AMB TEMP SEN "° C" Displays ambient sensor signal.
EVAP TEMP SEN "° C" Displays intake sensor signal.
INCAR TMP SEN "° C" Displays in-vehicle sensor signal.
RR TEMPSET FR "V" Displays air mix door (front) set point signal.
RR TEMPSET RR "V" Displays air mix door (rear) set point signal.
MODE FDBCK "V" Displays mode door motor feedback signal.
DVR MIX FDBCK "V" Displays air mix door motor (driver) feedback signal.
PAS MIX FDBCK "V" Displays air mix door motor (passenger) feedback signal.
RR FDBCK "V" Displays air mix door motor (rear) feedback signal.
DEF FDBCK "V" Displays defroster door motor feedback signal.
Revision: April 20092010 QX56

SELF-DIAGNOSIS FUNCTIONHAC-23
< FUNCTION DIAGNOSIS > [AUTOMATIC AIR CONDITIONER]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
SELF-DIAGNOSIS FUNCTION
A/C Auto Amp. Self-DiagnosisINFOID:0000000005147684
A/C SYSTEM SELF-DI AGNOSIS FUNCTION
The self-diagnosis function is built into the A/C auto amp. to quickly locate the cause of malfunctions.
DESCRIPTION
The self-diagnostic system diagnoses sensors, CAN system, and battery voltage on A/C auto amp. Refer to
applicable sections (items) for details. Fault codes (if any are present) will be displayed in the ambient temper-
ature display area. Refer to HAC-24, "
A/C System Self-Diagnosis Code Chart".
SELF-DIAGNOSTIC MODE
NOTE:
Radio must be off.
1. On the A/C and AV switch assembly, press the "SETTING" but- ton and twist the volume knob clockwise and counterclockwise
until the Self-Diagnosis screen shows on the display.
2. Scroll down to "Confirmation/Adjustment" and press the "ENTER" button.
3. Scroll down to "Climate Control" and press the "ENTER" button.
4. The fan bars will flash on the display during the self-test, and then the fault codes will display in the ambient temperature area.
They will continue scrolling until diagnostic mode is exited.
5. Exit by pressing the "BACK" button on A/C and AV switch assembly until display returns to its normal operation screen.
HVAC system will be OFF.
The self-diagnostic system diagnoses sensors, CAN system, and battery voltage on A/C auto amp. Refer to
applicable sections (items) for details. Fault codes (if any are present) will be displayed in the ambient temper-
ature display area. Refer to HAC-24, "
A/C System Self-Diagnosis Code Chart".
A/C and AV Switch A ssembly Self-DiagnosisINFOID:0000000005147685
A/C and AV switch assembly self-diagnosis function
The ON/OFF operation (continuity) of each switch in the A/C and AV switch assembly can be checked.
Self-diagnosis mode
AWNIA0098ZZ
AWIIA0081ZZ
Revision: April 20092010 QX56

HAC-24
< FUNCTION DIAGNOSIS >[AUTOMATIC AIR CONDITIONER]
SELF-DIAGNOSIS FUNCTION
• Press the “BACK” switch and the “UP” switch within 10 seconds
after turning the ignition switch from OFF to ACC and hold them for
3 seconds or more. Then the buzzer sounds, all indicators of the
preset switch illuminate, and the self-diagnosis mode starts.
• The continuity of each switch and control dials (A/C and AV switch assembly only) at the ON position can be checked by pressing
each switch and turning each control dial. The buzzer sounds and
LED’s will illuminate if the switch is normal.
Finishing self-diagnosis mode
Self-diagnosis mode is canceled when turning the ignition switch OFF.
A/C System Self-Dia gnosis Code ChartINFOID:0000000005147686
SELF-DIAGNOSTIC CODE CHART
AWIIA0171GB
Code No. Reference page
03 Battery voltage out of range CHG-9, "
Diagnosis Procedure"
30 In-vehicle sensor circuit out of range (low)
HAC-78, "In-Vehicle Sensor Diagnosis Procedure"31 In-vehicle sensor circuit out of range (high)
40 Ambient sensor circuit shortHAC-75, "
Ambient Sensor Diagnosis Procedure"41 Ambient sensor circuit open
50 Optical sensor (Driver) circuit open or shortHAC-81, "
Optical Sensor Diagnosis Procedure"52 Optical sensor (Passenger) circuit open or short
56 Intake sensor circuit shortHAC-83, "
Intake Sensor Diagnosis Procedure"57 Intake sensor circuit open
80 CAN bus faultLAN-14, "
Trouble Diagnosis Flow Chart"
Revision: April 20092010 QX56

MODE DOOR MOTORHAC-25
< COMPONENT DIAGNOSIS > [AUTOMATIC AIR CONDITIONER]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
COMPONENT DIAGNOSIS
MODE DOOR MOTOR
System DescriptionINFOID:0000000005147687
SYSTEM DESCRIPTION
Component Parts
Mode door control system components are:
• A/C auto amp.
• A/C and AV switch assembly
• Mode door motor (front)
• PBR (built into mode door motor)
• In-vehicle sensor
• Ambient sensor
• Optical sensor
• Intake sensor
System Operation
The mode door position (vent, B/L, foot, D/F, and defrost) is set by the A/ C auto amp. by means of the mode
door motor (front). When a mode door position is sele cted on the A/C auto amp., voltage is applied to one cir-
cuit of the mode door motor (front) while ground is appli ed to the other circuit, causing the mode door motor
(front) to rotate. The direction of rotation is determined by which circuit has voltage applied to it, and which one
has ground applied to it. The A/C auto amp. monitors the mode door position by measuring the voltage signal
on the PBR circuit.
In AUTO mode the mode door position is set by the A/C auto amp. which determines the proper position
based on inputs from the in-vehicle sens or, ambient sensor, optical sensor, intake sensor, and the temperature
selected by the driver or passenger.
Mode Door Control Specification
COMPONENT DESCRIPTION
Mode Door Motor (Front)
AWIIA0092GB
AWIIA0093GB
Revision: April 20092010 QX56

HAC-30
< COMPONENT DIAGNOSIS >[AUTOMATIC AIR CONDITIONER]
AIR MIX DOOR MOTOR
AIR MIX DOOR MOTOR
System DescriptionINFOID:0000000005147690
SYSTEM DESCRIPTION
SYMPTOM:• Discharge air temperature does not change.
• Air mix door motor does not operate.
SYSTEM DESCRIPTION
Component Parts
Air mix door control system components are:• A/C auto amp.
• A/C and AV switch assembly
• Air mix door motors (driver, passenger, and rear)
• PBR (built-into air mix door motors)
• In-vehicle sensor
• Ambient sensor
• Optical sensor
• Intake sensor
System Operation
The A/C auto amp. receives data from the temperature
selected by the driver side, passenger side, and rear.
The A/C auto amp. then applies a voltage to one circuit of the appropriate air mix door motor, while ground is
applied to the other circuit, causing the appropriate air mix door motor to rotate. The direction of rotation is
determined by which circuit has voltage applied to it , and which one has ground applied to it. The A/C auto
amp. monitors the air mix door positions by measur ing the voltage signal on the PBR circuits of each door.
In AUTO mode the air mix, intake, mode door, and defrost door positions are set by the A/C auto amp. which
determines the proper position based on inputs from the in-vehicle sensor, ambient sensor, optical sensor,
intake sensor, and the temperature selected by the driver and front and rear passengers.
Subsequently, HOT/COLD or DEFROST/VENT or FR ESH/RECIRCULATION operation is selected. The new
door position data is returned to the A/C auto amp.
AWIIA0106GB
Revision: April 20092010 QX56

INTAKE DOOR MOTORHAC-39
< COMPONENT DIAGNOSIS > [AUTOMATIC AIR CONDITIONER]
C
D
E
F
G H
J
K L
M A
B
HAC
N
O P
INTAKE DOOR MOTOR
System DescriptionINFOID:0000000005147694
SYSTEM DESCRIPTION
SYMTOM:• Intake door motor does not operate normally.
• Intake door does not change.
SYSTEM DESCRIPTION
Component Parts
Intake door control system components are:• A/C auto amp.
• A/C and AV switch assembly
• Intake door motor (PRB built into the intake door motor)
• In-vehicle sensor
• Ambient sensor
• Optical sensor
• Intake sensor
System Operation
The intake door control determines the intake door position based on the position of the recirculation switch.
When the recirculation switch is depressed the intake door motor rotates closing off the fresh air inlet and
recirculating the cabin air. If the recirculation switch is depressed again, the intake door motor rotates in the
opposite direction, again allowing fresh air into the cabin.
In the AUTO mode, the A/C auto amp. determines the intake door position based on the ambient temperature,
the intake air temperature and the in-vehicle temperatur e. When the DEF, D/F, FLOOR or OFF switches are
pushed, the A/C auto amp. sets the intake door at the fresh position.
Intake Door Control Specification
AWIIA0144GB
AWIIA0145GB
Revision: April 20092010 QX56
