REAR DOOR TWEETERAV-97
< COMPONENT DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P

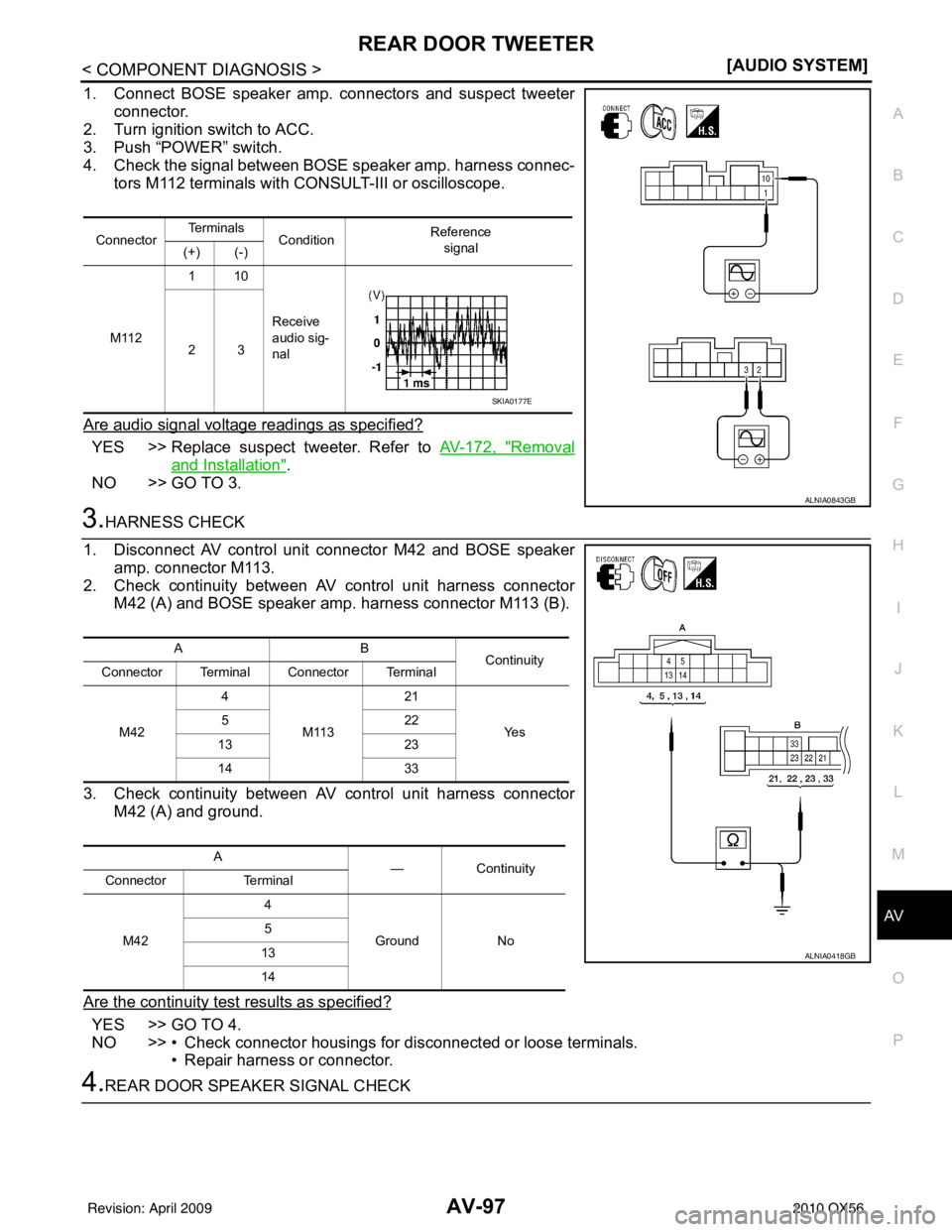

1. Connect BOSE speaker amp. connectors and suspect tweeter
connector.
2. Turn ignition switch to ACC.
3. Push “POWER” switch.
4. Check the signal between BOSE speaker amp. harness connec- tors M112 terminals with CONSULT-III or oscilloscope.
Are audio signal voltage readings as specified?
YES >> Replace suspect tweeter. Refer to AV-172, "Removal
and Installation".
NO >> GO TO 3.
3.HARNESS CHECK
1. Disconnect AV control unit connector M42 and BOSE speaker
amp. connector M113.
2. Check continuity between AV control unit harness connector
M42 (A) and BOSE speaker amp. harness connector M113 (B).
3. Check continuity between AV control unit harness connector M42 (A) and ground.
Are the continuity test results as specified?
YES >> GO TO 4.
NO >> • Check connector housings for disconnected or loose terminals. • Repair harness or connector.
4.REAR DOOR SPEAKER SIGNAL CHECK
Connector Te r m i n a l s
Condition Reference
signal
(+) (-)
M112 110
Receive
audio sig-
nal
23
ALNIA0843GB
SKIA0177E
AB

Continuity
Connector Terminal Connector Terminal
M42 4
M113 21
Ye s
52
2
13 23
14 33
A —Con tin uit y
Connector Terminal
M42 4
Ground No
5
13
14
ALNIA0418GB
Revision: April 20092010 QX56

AV-98
< COMPONENT DIAGNOSIS >[AUDIO SYSTEM]
REAR DOOR TWEETER
1. Connect AV control unit connector M42 and BOSE speaker
amp. connector M113.
2. Turn ignition switch to ACC.
3. Push “POWER” switch.
4. Check the signal between AV control unit harness connector M42 terminals with CONSULT-III or oscilloscope.
Is the audio signal voltage reading as specified?
YES >> Replace BOSE speaker amp. Refer to AV-182,
"Removal and Installation".
NO >> Replace AV control unit. Refer to AV-169, "
Removal and
Installation".
ConnectorTe r m i n a l s
Condition Reference
signal
(+) (-)
M42 45
Receive
audio sig-
nal
13 14
ALNIA0419GB
SKIA0177E
Revision: April 20092010 QX56

AV-100
< COMPONENT DIAGNOSIS >[AUDIO SYSTEM]
BACK DOOR SPEAKER
1. Connect BOSE speaker amp.
connectors and suspect speaker
connector.
2. Turn ignition switch to ACC.
3. Push “POWER” switch.
4. Check the signal between BOSE speaker amp. harness connec- tors M113 terminals with CONSULT-III or oscilloscope.
Are audio signal voltage readings as specified?
YES >> Replace suspect speaker. Refer to AV-176, "Removal
and Installation".
NO >> GO TO 3.
3.HARNESS CHECK
1. Disconnect AV control unit connector M42 and BOSE speaker amp. connector M113.
2. Check continuity between AV control unit harness connector
M42 (A) and BOSE speaker amp. harness connector M113 (B).
3. Check continuity between AV control unit harness connector M42 (A) and ground.
Are the continuity test results as specified?
YES >> GO TO 4.
NO >> • Check connector housings for disconnected or loose terminals. • Repair harness or connector.
4.REAR DOOR SPEAKER SIGNAL CHECK
Connector Te r m i n a l s
Condition Reference
signal
(+) (-)
M112 6 7
Receive
audio sig-
nal
M113 37 27
ALNIA0664GB
SKIA0177E
AB

Continuity
Connector Terminal Connector Terminal
M42 4
M113 21
Ye s
52
2
13 23
14 33
A —Contin u it y
Connector Terminal
M42 4
Ground No
5
13
14
ALNIA0418GB
Revision: April 20092010 QX56

AV
BACK DOOR SPEAKERAV-101
< COMPONENT DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
1. Connect AV control unit connector M42 and BOSE speaker amp. connector M113.
2. Turn ignition switch to ACC.
3. Push “POWER” switch.
4. Check the signal between AV control unit harness connector M42 terminals with CONSULT-III or oscilloscope.
Is the audio signal voltage reading as specified?
YES >> Replace BOSE speak er amp. Refer to AV-182,
"Removal and Installation".
NO >> Replace AV control unit. Refer to AV-169, "
Removal and
Installation".
ConnectorTe r m i n a l s
Condition Reference
signal
(+) (-)
M42 45
Receive
audio sig-
nal
13 14
ALNIA0419GB
SKIA0177E
Revision: April 20092010 QX56

AV
SUBWOOFERAV-103
< COMPONENT DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
1. Connect BOSE speaker amp. connector M112.
2. Turn ignition switch to ACC.
3. Push “POWER” switch.
4. Check voltage between subwoofer connector B72 terminal 4 and ground.
Are the voltage test results as specified?
YES >> GO TO 4.
NO >> Replace BOSE speaker amp. Refer to AV-182, "
Removal and Installation".
4.SUBWOOFER AUDIO SIGNAL CHECK
1. Connect BOSE speaker amp. connector M112 and subwoofer connector B72.
2. Turn ignition switch to ACC.
3. Push “POWER” switch.
4. Check the signal between BOSE speaker amp. harness connec- tor M112 terminals with CONSULT-III or oscilloscope.
Is the audio signal voltage as specified?
YES >> Replace subwoofer. Refer to AV-177, "Removal and Installation".
NO >> GO TO 5.
5.HARNESS CHECK
(+) (-) ACC
Connector Terminal
B72 4 Ground Battery voltage
ALNIA0364GB
Connector Te r m i n a l s
Condition Reference
signal
(+) (-)
M112 9 14 Receive au-
dio signal
ALNIA0366GB
SKIA0177E
Revision: April 20092010 QX56

AV-104
< COMPONENT DIAGNOSIS >[AUDIO SYSTEM]
SUBWOOFER
1. Disconnect AV control unit connector M42 and BOSE speaker
amp. connector M113.
2. Check continuity between AV control unit harness connector
M42 (A) and BOSE speaker amp. harness connector M113 (B).
3. Check continuity between AV control unit harness connector M42 (A) and ground.
Are the continuity test results as specified?
YES >> GO TO 6.
NO >> • Check connector housings for disconnected or loose terminals. • Repair harness or connector.
6.REAR DOOR SPEAKER SIGNAL CHECK
1. Connect AV control unit connector M42 and BOSE speaker amp. connector M113.
2. Turn ignition switch to ACC.
3. Push “POWER” switch.
4. Check the signal between AV control unit harness connector M42 terminals with CONSULT-III or oscilloscope.
Is the audio signal voltage reading as specified?
YES >> Replace BOSE speaker amp. Refer to AV-182,
"Removal and Installation".
NO >> Replace AV control unit. Refer to AV-169, "
Removal and
Installation".
AB
Continuity
Connector Terminal Connector Terminal
M42 4
M113 21
Ye s
52
2
13 23
14 33
A —Contin u it y
Connector Terminal
M42 4
Ground No
5
13
14
ALNIA0418GB
Connector Te r m i n a l s
Condition Reference
signal
(+) (-)
M42 45
Receive
audio sig-
nal
13 14
ALNIA0419GB
SKIA0177E
Revision: April 20092010 QX56

AV-106
< COMPONENT DIAGNOSIS >[AUDIO SYSTEM]
STEERING SWITCH
STEERING SWITCH
DescriptionINFOID:0000000005146341
When one of the steering wheel audio control switches
is pushed, the resistance in the steering wheel audio
control switch circuit changes depending on which button is pushed.
Diagnosis ProcedureINFOID:0000000005146342
Regarding Wiring Diagram information, refer to AV-116, "Wiring Diagram".
1.CHECK STEERING WHEEL AUDIO CONTROL SWITCH RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect steering wheel audio control switch connector M102.
3. Check resistance between steering switch connector terminals.
Do the steering wheel audio control switches check OK?
YES >> GO TO 2.
NO >> Replace steering wheel audio control switch. Refer to AV-179, "
Removal and Installation".
2.CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect AV control unit connector M42 and spiral cable con- nector M30.
3. Check continuity between AV control unit harness connector M42 (A) and spiral cable harness connector M30 (B).
4. Check continuity between AV c ontrol unit connector M42 (A) and ground.
Terminal Signal name ConditionResistance
(Ω)
(Approx.)
16 17 Seek (down)
Depress switch. 165
Volume (down) Depress VOL down switch. 487
Phone/Send Depress switch. 0
20 17 Seek (up)
Depress switch. 165
Volume (up) Depress VOL up switch. 487
Mode/End Depress switch. 0
WKIA4457E
AB

Continuity
Connector Terminal Connector Terminal
M42 6
M30 24
Ye s
15 31
16 32
A —Continuity
Connector Terminal
M42 6
Ground No
15
16
ALNIA0332GB
Revision: April 20092010 QX56

AV-108
< COMPONENT DIAGNOSIS >[AUDIO SYSTEM]
MICROPHONE SIGNAL CIRCUIT
MICROPHONE SIGNAL CIRCUIT
DescriptionINFOID:0000000005146343
Voice signals are transmitted from the microphone to the
AV control unit using the microphone signal circuits.
Diagnosis ProcedureINFOID:0000000005146344
Regarding Wiring Diagram information, refer to AV-116, "Wiring Diagram".
1.CHECK HARNESS BETWEEN AV CONTROL UNIT AND MICROPHONE
1. Turn ignition switch OFF.
2. Disconnect AV control unit connector and microphone connec- tor.
3. Check continuity between AV control unit harness connector M45 (A) and microphone harness connector R109 (B).
4. Check continuity between AV control unit harness connector M45 (A) and ground.
Are the continuity test results as specified?
YES >> GO TO 2.
NO >> Repair harness or connector.
2.CHECK MICROPHONE POWER SUPPLY
1. Connect AV control unit connector and microphone connector.
2. Turn ignition switch ON.
3. Check voltage between microphone harness connector R109 terminal 4 and ground.
Is voltage reading approx. 5 volts?
YES >> GO TO 3.
NO >> Replace AV control unit. Refer to AV-169, "
Removal and
Installation".
3.CHECK MICROPHONE SIGNAL
AB
Continuity
Connector Terminal Connector Terminal
M45 72
R109 1
Ye s
71 2
70 4
A —Con tin uit y
Connector Terminal
M45 70
GroundNo
71
72
AWLIA1603ZZ
4 - Ground : Approx. 5V
WKIA5796E
Revision: April 20092010 QX56
