2010 Hyundai H-100 Truck Owner's Manuals

1FEATURES OF YOUR HYUNDAI
56
B670E02A-AAT Temperature Control
Defrost-Level
Air is discharged through the wind- shield defroster nozzle, side defroster nozzle, side ventilator.
This control is used to adjust the degree of heating or cooling desired.
OHR028115
CoolWarm
HHR2087
B670B01A-AAT Fan Speed Control (Blower Control) This is used to turn the blower fan on or off and to select the fan speed. This blower fan speed, and thereforethe volume of air delivered from the system, may be controlled manually by setting the blower control betweenthe "1" and "4" positions. HHR2086

1
FEATURES OF YOUR HYUNDAI
57

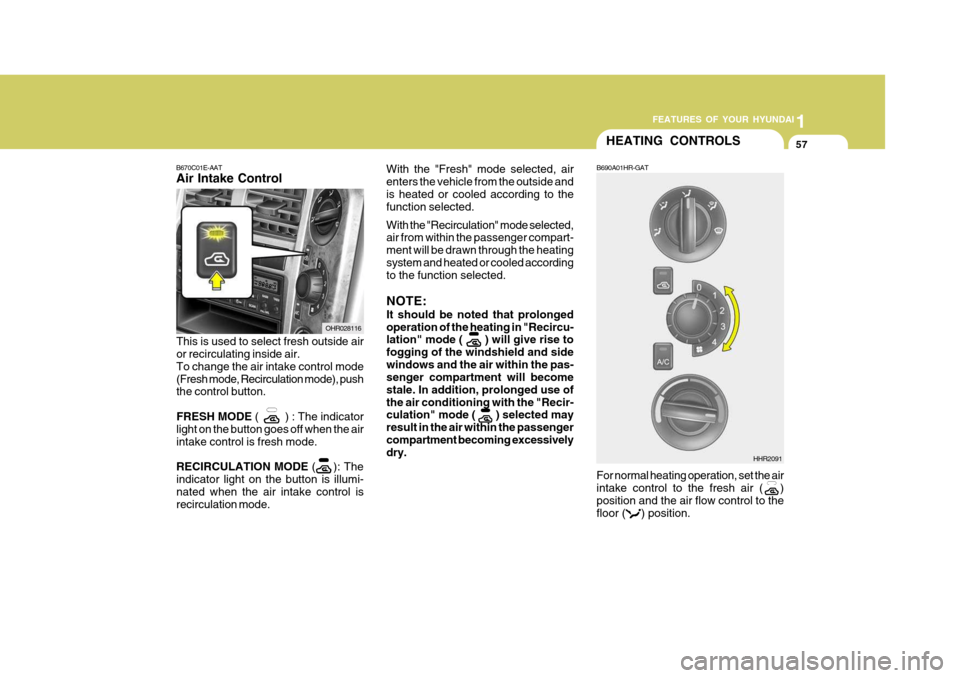

With the "Fresh" mode selected, air enters the vehicle from the outside andis heated or cooled according to the function selected. With the "Recirculation" mode selected, air from within the passenger compart- ment will be drawn through the heatingsystem and heated or cooled according to the function selected. NOTE: It should be noted that prolonged operation of the heating in "Recircu- lation" mode ( ) will give rise to fogging of the windshield and sidewindows and the air within the pas- senger compartment will become stale. In addition, prolonged use ofthe air conditioning with the "Recir- culation" mode ( ) selected may result in the air within the passengercompartment becoming excessively dry.
B670C01E-AAT Air Intake Control
This is used to select fresh outside air or recirculating inside air. To change the air intake control mode(Fresh mode, Recirculation mode), push the control button. FRESH MODE ( ) : The indicator
light on the button goes off when the air intake control is fresh mode. RECIRCULATION MODE ( ): The
indicator light on the button is illumi- nated when the air intake control is recirculation mode. OHR028116B690A01HR-GAT For normal heating operation, set the air intake control to the fresh air ( ) position and the air flow control to thefloor ( ) position.
HHR2091
HEATING CONTROLS

1FEATURES OF YOUR HYUNDAI
58BI-LEVEL HEATING
B700A01A-AAT
Your Hyundai is equipped with bi-level heating controls. This makes it pos- sible to have cooler air from the dash-board vents and warmer air from the floor outlets at the same time. To use this feature:
o Set the air intake control to the fresh air ( ) position.
o Set the air flow control at the bi-level
( ) position.
o Set the temperature control between
"Cool" and "Warm".
HHR2092
For faster heating, the air intake control should be set in the recirculate ( )position. If the windows fog up, set the air flow control to the defrost ( ) position and the air intake control to the fresh air ( ) position. For maximum heat, move the tempera- ture control to "Warm".

1
FEATURES OF YOUR HYUNDAI

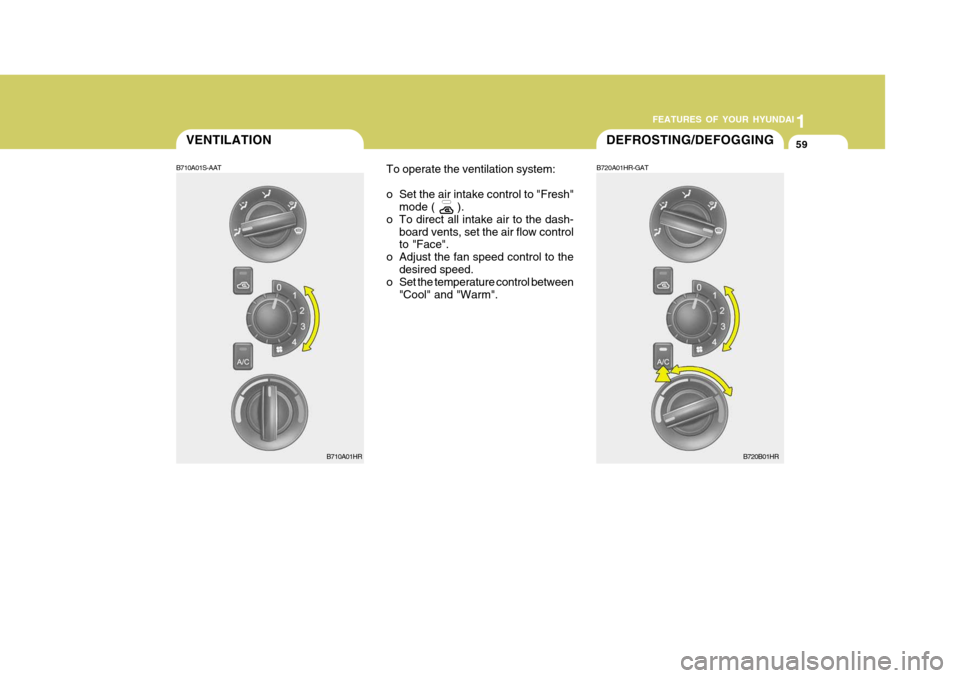

59DEFROSTING/DEFOGGINGVENTILATION
B720A01HR-GAT
B710A01S-AAT
To operate the ventilation system:
o Set the air intake control to "Fresh"
mode ( ).
o To direct all intake air to the dash-
board vents, set the air flow control to "Face".
o Adjust the fan speed control to the
desired speed.
o Set the temperature control between
"Cool" and "Warm".
B710A01HR B720B01HR

1FEATURES OF YOUR HYUNDAI
60
o Set the air flow control to the defrost
( ) position.
o If the vehicle is equipped with a air conditioning system, turn on the air conditioning switch.
o Set the air intake control to the fresh ( ) position.
o Set the fan speed control to position "3" or "4".
o Set the temperature control to warm. NOTE: When the A/C is operated continu- ously on the floor-defrost level ( ) or defrost level ( ), it may causefog to form on the exterior wind- shield. If this occurs, set the air flow control to the face level posi-tion ( ) and fan speed control to the low position.

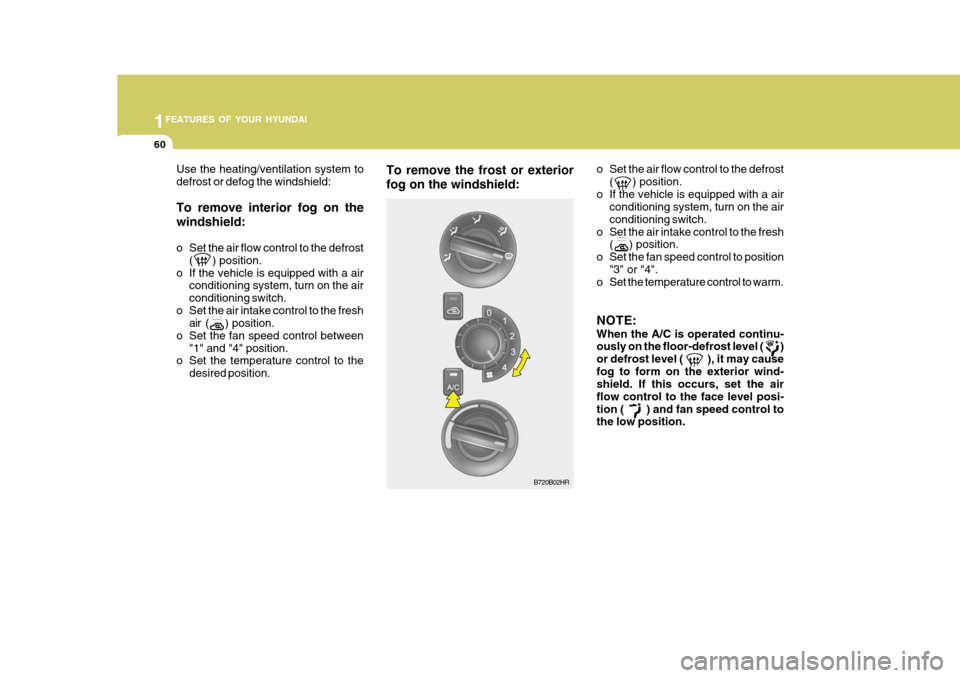

To remove the frost or exterior fog on the windshield:Use the heating/ventilation system to defrost or defog the windshield: To remove interior fog on the windshield:
o Set the air flow control to the defrost
( ) position.
o If the vehicle is equipped with a air conditioning system, turn on the air conditioning switch.
o Set the air intake control to the fresh air ( ) position.
o Set the fan speed control between "1" and "4" position.
o Set the temperature control to the
desired position.
B720B02HR

1
FEATURES OF YOUR HYUNDAI
61
B730A01L-AAT Operation Tips
o To keep dust or unpleasant fumes
from entering the car through the ventilation system, temporarily set the air intake control at "Recircula- tion (
)". Be sure to return the
control to "Fresh (
)" when the
irritation has passed to keep fresh air in the vehicle. This will help keep thedriver alert and comfortable.
o Air for the heating/cooling system is
drawn in through the grilles justahead of the windshield. Care should be taken that these are not blocked by leaves, snow, ice or other ob-structions.
o To prevent interior fog on the wind-
shield, set the air intake control tothe fresh air ( ) position, fan speed to the desired position, turn on the air conditioning system, and adjust tem-perature control to desired tempera- ture.

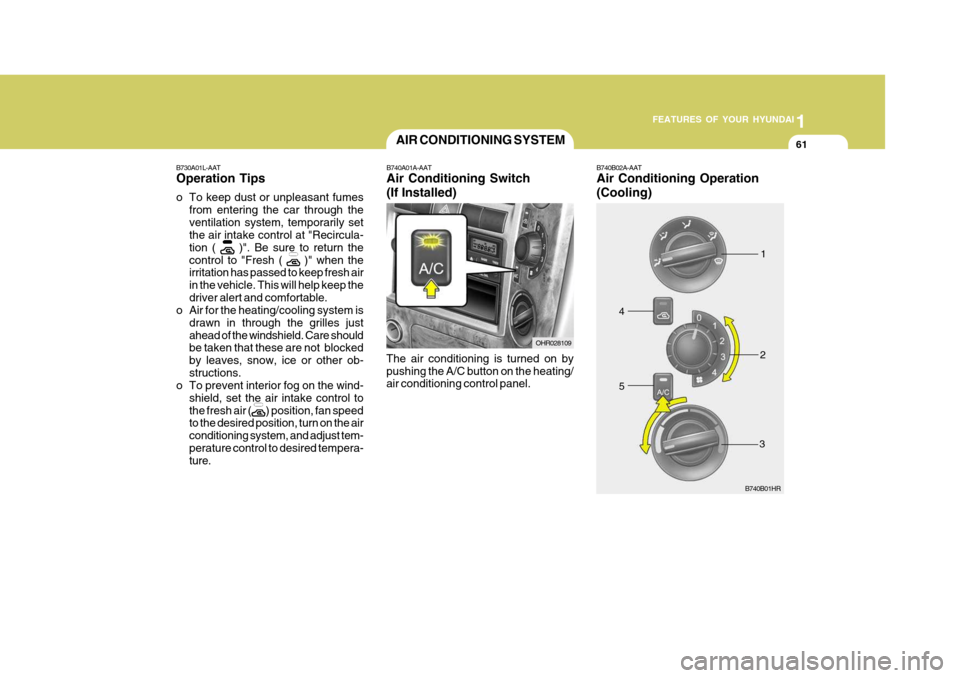

AIR CONDITIONING SYSTEM
OHR028109
B740A01A-AAT Air Conditioning Switch (If Installed)
The air conditioning is turned on by pushing the A/C button on the heating/ air conditioning control panel. B740B02A-AAT Air Conditioning Operation
(Cooling)
B740B01HR
1
2
3
4 5

1FEATURES OF YOUR HYUNDAI
62
1
2
3
4
5
For dehumidified heating:
o Turn on the fan control switch (2).
o Turn on the air conditioning switch
(5). The air conditioning indicatorlight should come on at the sametime.
o Set the air intake control (4) to the
fresh air ( ) position.
o Set the air flow control (1) to the face ( ) position.
o Adjust the fan control (2) to the de- sired speed.
o For more rapid action, set the fan at
one of the higher speeds.
o Adjust the temperature control (3) to provide the desired amount ofwarmth.B740C01A-AAT De-Humidified Heating

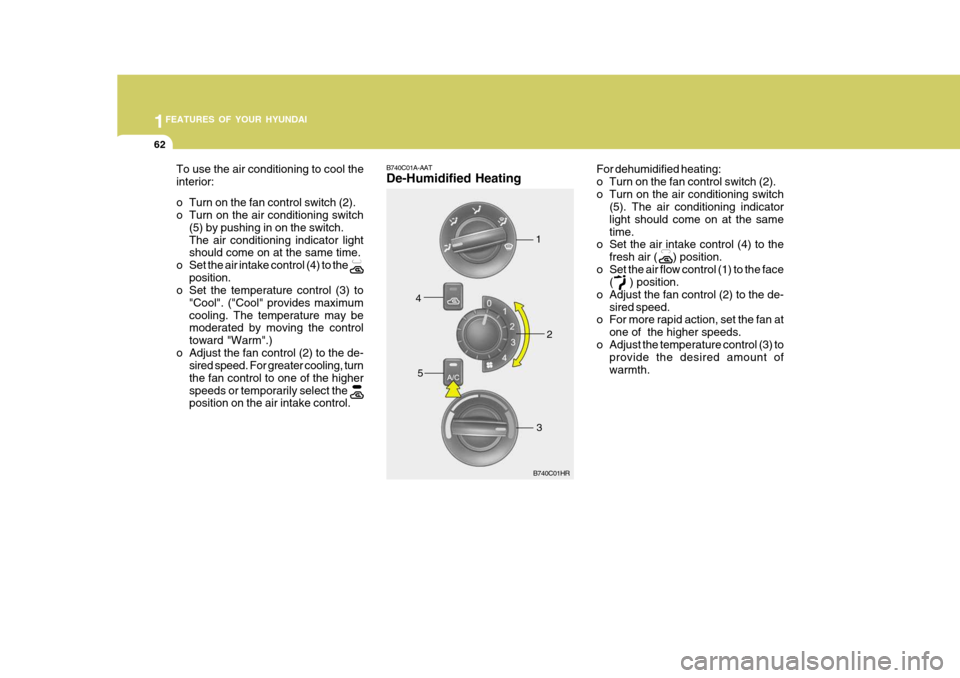

To use the air conditioning to cool the interior:
o Turn on the fan control switch (2).
o Turn on the air conditioning switch
(5) by pushing in on the switch. The air conditioning indicator light should come on at the same time.
o Set the air intake control (4) to the
position.
o Set the temperature control (3) to
"Cool". ("Cool" provides maximum cooling. The temperature may be moderated by moving the control toward "Warm".)
o Adjust the fan control (2) to the de- sired speed. For greater cooling, turnthe fan control to one of the higherspeeds or temporarily select the
position on the air intake control.
B740C01HR

1
FEATURES OF YOUR HYUNDAI

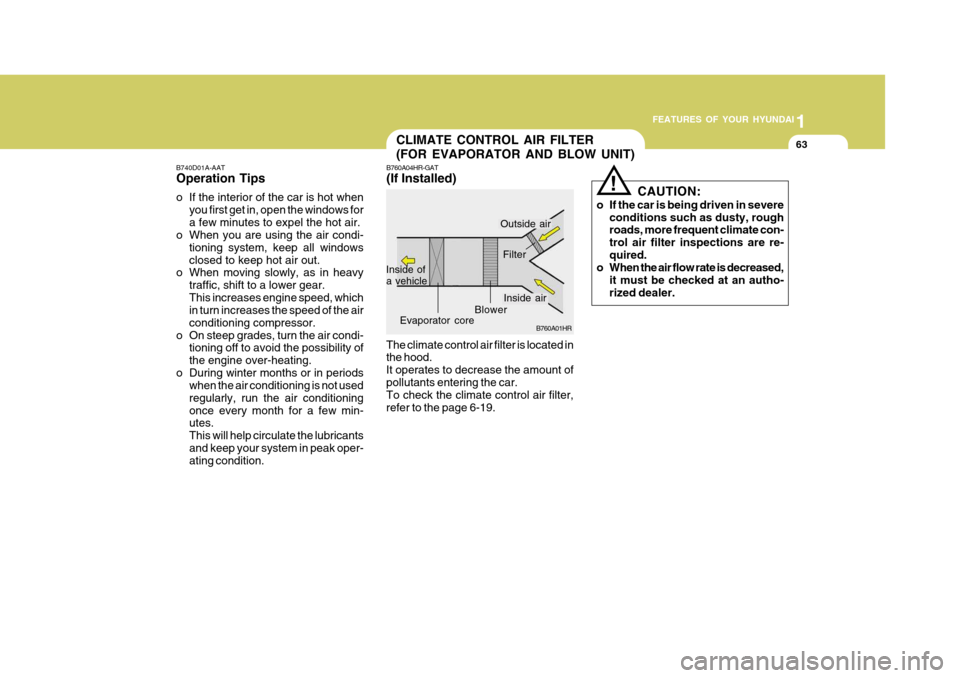

63CLIMATE CONTROL AIR FILTER
(FOR EVAPORATOR AND BLOW UNIT)
B760A01HR
Inside of a vehicle
Evaporator core Filter
Blower
The climate control air filter is located in the hood. It operates to decrease the amount ofpollutants entering the car. To check the climate control air filter, refer to the page 6-19. B760A04HR-GAT (If Installed)
B740D01A-AATOperation Tips
o If the interior of the car is hot when
you first get in, open the windows for a few minutes to expel the hot air.
o When you are using the air condi-
tioning system, keep all windowsclosed to keep hot air out.
o When moving slowly, as in heavy
traffic, shift to a lower gear.This increases engine speed, which in turn increases the speed of the air conditioning compressor.
o On steep grades, turn the air condi- tioning off to avoid the possibility ofthe engine over-heating.
o During winter months or in periods when the air conditioning is not usedregularly, run the air conditioningonce every month for a few min- utes. This will help circulate the lubricantsand keep your system in peak oper- ating condition.
! CAUTION:
o If the car is being driven in severe conditions such as dusty, rough roads, more frequent climate con- trol air filter inspections are re-quired.
o When the air flow rate is decreased,
it must be checked at an autho-rized dealer.
Outside air
Inside air
