2010 HONDA CIVIC HYBRID Owners Manual

This reduces the distance between
the restraint and the occupant’s head.
It also helps protect the occupants
against the likelihood of whiplash
and injuries to the neck and upper
spine.
The driver’s and f ront passenger’s
seats have active head restraints. If
the vehicle is struck severely f rom
the rear, the occupant properly
secured with the seat belt will be
pushed against the seat-back and the
head restraint will automatically
move forward.
To remove a head restraint f or
cleaning or repair, pull it up as f ar as
it will go. Push the release button,
then pull the restraint out of the seat-
back.
When reinstalling a head restraint,
put the legs back in place. Then
adjust it to the appropriate height
while pressing the release button.
Make sure the head restraint locks
in position when you reinstall it.
If the restraints do not return to their
normal position, or in the event of a
severe collision, have the vehicle
inspected by a Honda dealer. Af ter a collision, the activated
restraint should return to its normal
position.A ct ive Head Rest raint s
Removing t he Head Rest raint
Seats
94
Failure to reinstall the head
restraints can result in severe
injury during a crash.
Always replace the head
restraints before driving.
09/07/15 17:38:59 31SNC640_099
2010 Civic Hybrid

The lid of the console compartment
canbeusedasanarmrestbymoving
it f orward and backward. Make sure
the armrest is securely latched.
Make sure your passenger’s hands
and fingers are away from the
armrest bef ore moving it.
For a head restraint system to work
properly:
Do not hang any items on the head
restraints, or f rom the restraint
legs.
Do not place any object between
an occupant and the seat-back.
Install each restraint in its proper
location.
Only use genuine Honda
replacement head restraints. Armrest
Seats
Inst rument s and Cont rols
95
09/07/15 10:42:32 31SNC640_100
2010 Civic Hybrid

In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat’s temperature
drops.
In the LO setting, the heater runs
continuously. It does not cycle with
temperature changes.
Follow these precautions whenever
you use the seat heaters:If the engine is lef t idling f or an
extended period, do not use the
seat heaters even on the LO
setting. It can weaken the battery,
causing hard starting. Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
Push the front of the switch, HI, to
rapidly heat up the seat. Af ter the
seat reaches a comfortable
temperature, select LO by pushing
the back of the switch. This will keep
the seat warm.
Both f ront seats are equipped with
seat heaters. Because of the sensors
f or the side airbag cutof f system,
there is no heater in the passenger’s
seat-back. The ignition switch must
be in the ON (II) position to use the
heaters.
If equipped
Seat Heaters
96
Passenger’s
Seat
Driver’s
Seat
HEATERS
SEAT HEATER SWITCH
09/07/15 10:42:40 31SNC640_101
2010 Civic Hybrid

µµ
To open or close the
driver’s window, push or pull the
window switch firmly down or up to
the second detent, and release it.
The window will automatically go
down or up all the way. To stop the
window, pull or push the window
switch brief ly.
If the driver’s
window senses any obstacle while it
is closing automatically, it will
reverse direction, and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
bef ore closing it.
If the MAIN switch is OFF, the
passenger windows cannot be raised
or lowered. Keep the MAIN switch
off whenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the
windows unintentionally.
Turn the ignition switch to the ON
(II) position to raise or lower any
window. To open the window, push
the switch down and hold it. Release
the switch when you want to stop the
window. To close the window, pull
back on the switch and hold it.
Thewindowsoperateforupto10
minutes after you turn off the
ignition switch. Opening either f ront
door cancels this f unction. AUTO
AUTO REVERSE
Power Windows
Inst rument s and Cont rols
97
DRIVER’S WINDOW SWITCH
MAIN SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
09/07/15 10:42:46 31SNC640_102
2010 Civic Hybrid

Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns the
adjustment switch of f to keep your
settings.
Turn the ignition switch to the ON
(II) position.
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position. 3.
4.
1.
2.
Mirrors
Adjusting the Power Mirrors
98
ADJUSTMENT SWITCH
SELECTOR SWITCH
TAB
09/07/15 10:42:55 31SNC640_103
2010 Civic Hybrid

On Canadian models
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off. Pressing this button also
turns the rear window def ogger on
and off.To apply the parking brake, pull the
lever up f ully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is f ully released (see page ).
58
Heated Mirrors
Parking Brake
Mirrors, Parking Brake
Inst rument s and Cont rols
99
PARKING BRAKE LEVER
HEATED MIRROR BUTTON
Driving the vehicle with the parking
brake applied can damage the rear
brakes and hubs. A beeper will sound if
the vehicle is driven with the parking
brake on.
09/07/15 10:43:02 31SNC640_104
2010 Civic Hybrid

Î
Î

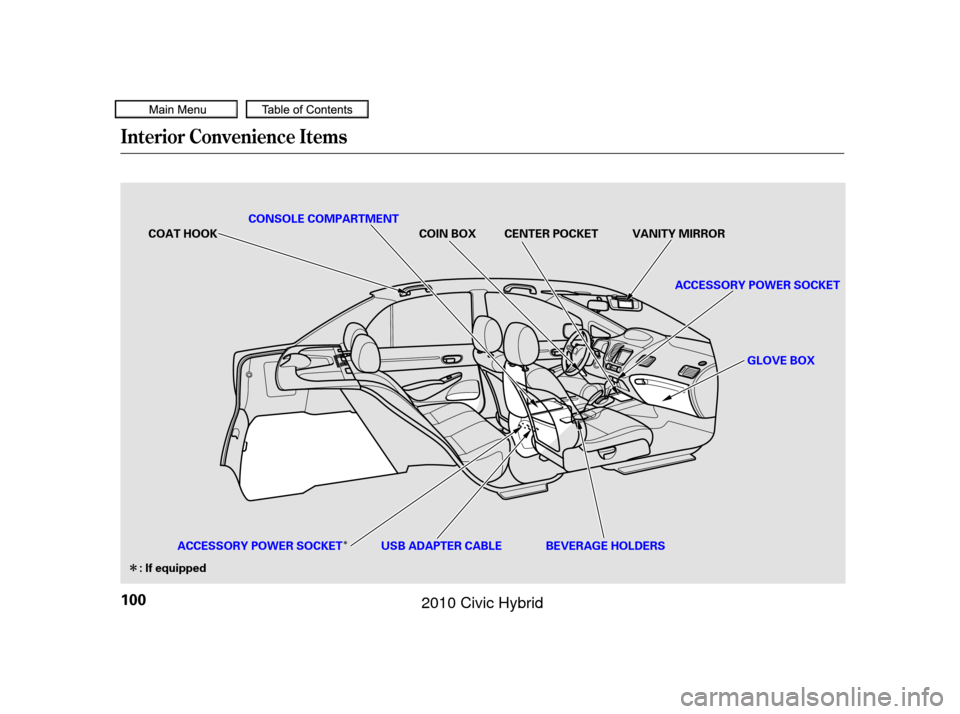

Interior Convenience Items
100
COIN BOX CENTER POCKETGLOVE BOX
VANITY MIRROR
ACCESSORY POWER SOCKET
CONSOLE COMPARTMENT
COAT HOOK
ACCESSORY POWER SOCKET
: If equipped USB ADAPTER CABLE BEVERAGE HOLDERS
09/07/15 10:43:06 31SNC640_105
2010 Civic Hybrid

Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Spilled liquids can
damage the upholstery, carpeting,
and electrical components in the
interior.To open the console compartment,
pull up on the lever, and lif t the lid.
To close, lower the lid, and push it
down until it latches.
Open the f ront beverage holder by
sliding its cover backward.
This socket is intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps). It will not power an
automotive type cigarette lighter
element.
To use an accessory power socket,
the ignition switch must be in the
ACCESSORY (I) or ON (II) position. Another accessory power socket is in
the center console compartment.
When more than one socket is being
used, the combined power rating of
the accessories should be 120 watts
or less (10 amps).
Open the glove box by pulling the
handle to the lef t. Close it with a f irm
push.
On models without navigation systemBeverage Holders
Console Compartment
A ccessory Power Socket Glove Box
Interior Convenience Items
Inst rument s and Cont rols
101
LEVER
CONSOLE COMPARTMENT
ACCESSORY
POWER SOCKET
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
09/07/15 10:43:16 31SNC640_106
