2010 GMC YUKON HYBRID Owners Manual

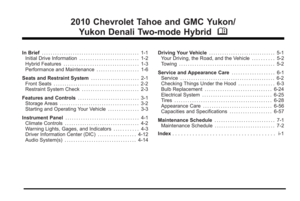

2010 Chevrolet Tahoe and GMC Yukon/Yukon Denali Two-mode Hybrid M
In Brief. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Initial Drive Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Hybrid Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Performance and Maintenance . . . . . . . . . . . . . . . . . . . 1-6
Seats and Restraint System . . . . . . . . . . . . . . . . . . . . . . 2-1
Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Restraint System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Features and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Storage Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Starting and Operating Your Vehicle . . . . . . . . . . . . . . 3-3
Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Climate Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Warning Lights, Gages, and Indicators . . . . . . . . . . . 4-3
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . 4-12
Audio System(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14 Driving Your Vehicle
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Your Driving, the Road, and the Vehicle . . . . . . . . . . 5-2
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Service and Appearance Care . . . . . . . . . . . . . . . . . . . 6-1
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Checking Things Under the Hood . . . . . . . . . . . . . . . . 6-3
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-24
Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-25
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-28
Appearance Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-56
Capacities and Specifications . . . . . . . . . . . . . . . . . . . 6-57
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i-1

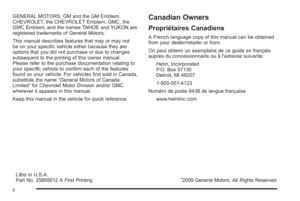

GENERAL MOTORS, GM and the GM Emblem,
CHEVROLET, the CHEVROLET Emblem, GMC, the
GMC Emblem, and the names TAHOE and YUKON are
registered trademarks of General Motors.
This manual describes features that may or may not
be on your specific vehicle either because they are
options that you did not purchase or due to changes
subsequent to the printing of this owner manual.
Please refer to the purchase documentation relating to
your specific vehicle to confirm each of the features
found on your vehicle. For vehicles first sold in Canada,
substitute the name“General Motors of Canada
Limited” for Chevrolet Motor Division and/or GMC
wherever it appears in this manual.
Keep this manual in the vehicle for quick reference.Canadian Owners
Propriétaires Canadiens
A French language copy of this manual can be obtained
from your dealer/retailer or from:
On peut obtenir un exemplaire de ce guide en français
auprès du concessionnaire ou à l'adresse suivante:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
Numéro de poste 6438 de langue française www.helminc.com
ii
Litho in U.S.A.
Part No. 25855012 A First Printing©2009 General Motors. All Rights Reserved.

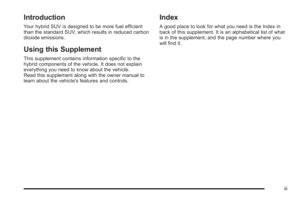

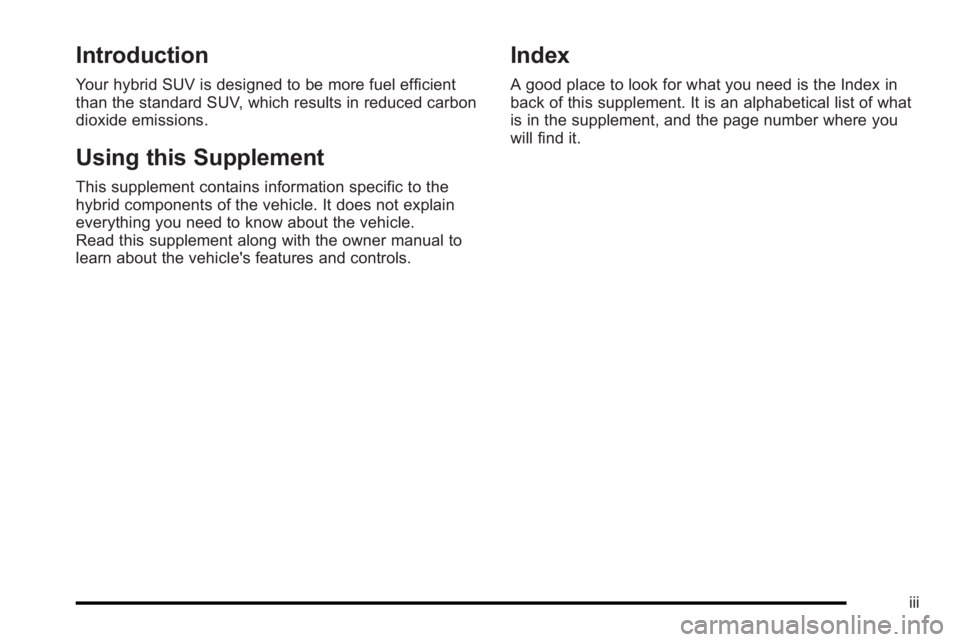

Introduction
Your hybrid SUV is designed to be more fuel efficient
than the standard SUV, which results in reduced carbon
dioxide emissions.
Using this Supplement
This supplement contains information specific to the
hybrid components of the vehicle. It does not explain
everything you need to know about the vehicle.
Read this supplement along with the owner manual to
learn about the vehicle's features and controls.
Index
A good place to look for what you need is the Index in
back of this supplement. It is an alphabetical list of what
is in the supplement, and the page number where you
will find it.
iii

2NOTES
iv

Section 1 In Brief
Initial Drive Information. . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Four-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Hybrid Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Hybrid Safety Information . . . . . . . . . . . . . . . . . . . . . . 1-3
Fuel Economy Gage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 Automatic Engine Start/Stop Feature . . . . . . . . . . . . 1-4
Regenerative Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Performance and Maintenance . . . . . . . . . . . . . . . . . . . .1-6
Tire Sealant and Compressor Kit . . . . . . . . . . . . . . . . 1-6
1-1

Initial Drive Information
Transmission
Range Selection Mode
The Range Selection Mode switch is located on the
shift lever. To enable the Range Selection feature,
move the column shift lever to the M (Manual) position.The current range will appear next to the M. This is the
highest attainable range with all lower gears accessible.
As an example, when 3 (Third) gear is selected, 1 (First)
through 3 (Third) gears are available.
Press the plus/minus buttons, located on the steering
column shift lever, to select the desired range of
gears for current driving conditions. See Automatic
Transmission Operation in the owner manual.
Cruise control can be used while the vehicle is in
Range Selection Mode.
Four-Wheel Drive
If the vehicle has four-wheel drive, you can send
the engine's driving power to all four wheels for
extra traction. Read the following before using
four-wheel drive.
1-2

Automatic Transfer Case
The transfer case knob is located to the left of the
instrument panel cluster. You can choose among
five driving settings:
2
m(Two-Wheel Drive High):This setting is used for
driving in most street and highway situations.
AUTO (Automatic Four-Wheel Drive) : This setting is
ideal for use when road surface traction conditions are
variable.
4
m(Four-Wheel Drive High): Use the four-wheel high
position when you need extra traction, such as on
snowy or icy roads or in most off-road situations. 4
n(Four-Wheel Drive Low) :
This setting delivers
extra torque. You might choose Four-Wheel Drive Low if
you are driving off-road in deep sand, deep mud, deep
snow, and while climbing or descending steep hills.
N (Neutral) : Shift the vehicle's transfer case to
N (Neutral) only when towing the vehicle. See
Recreational Vehicle Towing or Towing Your Vehicle
in the index of the Owner Manual.
See Four-Wheel Drive on page 3‑10.
Hybrid Features
Hybrid Safety Information
This vehicle has a standard 12-volt battery and a
high-voltage hybrid battery. Only a trained service
technician with the proper knowledge and tools should
inspect, test, or replace the hybrid battery. See your
dealer/retailer if the hybrid battery needs service.
The 12-volt battery cables, in the engine compartment,
are clearly labeled. In emergency situations, first
responders can cut those cables to disable the
high-voltage hybrid battery system.
1-3

Fuel Economy Gage
United StatesCanada
This gage shows when the vehicle is operating at a fuel
efficient point.
By modifying driving behavior to increase the economy
time during driving, fuel mileage will be improved.
See Fuel Economy Gage on page 4‑5.
Automatic Engine Start/Stop Feature
Start the engine as you would any other engine.
See“Starting the Engine” in the owner manual for more
information on starting. The hybrid system provides
very quiet engine starting. If pulling a trailer with trailer
brakes, see Towing a Trailer
on page 5‑8for more
information.
Auto Stop
The vehicle has an Auto Stop feature. After a
successful engine start, the engine may turn off and
operate in the Auto Stop mode.
Keep your foot firmly on the brake pedal until you are
ready for the vehicle to move.
Engine OFF and AUTO STOP modes are indicated on
the tachometer display. When the tachometer needle
indicates OFF, the engine is not running and will remain
off until the ignition key is placed in the START position
or a remote vehicle start is performed. When the
tachometer needle indicates AUTO STOP, the hybrid
system is on, the engine is not running, but may Auto
Start at any time without notice. See Tachometer
on
page 4‑4for more information.
1-4
