2010 GMC CANYON Owner's Manual

Reclining Seatbacks
Manual Reclining Seatbacks
{WARNING:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
do not want to. Adjust the driver’s seat only when
the vehicle is not moving.
{WARNING:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.If the seats have manual reclining seatbacks, the lever
used to operate them is located on the outboard
side of the seat(s).
To recline the seatback:
1. Lift the recline lever.
2. Move the seatback to the desired position, then
release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is
locked.
2-5

To return the seatback to an upright position:
1. Lift the lever fully without applying pressure to the
seatback and the seatback will return to the upright
position.
2. Push and pull on the seatback to make sure it is
locked.Power Reclining Seatbacks
If the seats have power
reclining seatbacks, use
the vertical power seat
control located on
the outboard side of
the seat.
•To recline the seatback, press the control toward
the rear of the vehicle.
•To raise the seatback, press the control toward the
front of the vehicle.
2-6

{WARNING:
Sitting in a reclined position when the vehicle is in
motion can be dangerous. Even when buckled up,
the safety belts cannot do their job when reclined
like this.
The shoulder belt cannot do its job because it will
not be against your body. Instead, it will be in front
of you. In a crash, you could go into it, receiving
neck or other injuries.
The lap belt cannot do its job either. In a crash,
the belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear the safety belt properly.Do not have a seatback reclined if the vehicle is
moving.
2-7

Head Restraints
The front seats may have adjustable head restraints.
If the vehicle has rear seats, they may have adjustable
head restraints.
Adjust the head restraint so that the top of the restraint
is at the same height as the top of the occupant’s
head. This position reduces the chance of a neck injury
in a crash.Pull up on the head
restraint to raise it.
To lower the head
restraint, press the button
located on top of the
seatback and push down
on the head restraint.
2-8

Seatback Latches
The vehicle may have front seatbacks that fold forward
for easy access to the rear seats or the storage area
behind the seats.
To fold the seatback
forward, push the lever
on the side of the seat
rearward and pull the
seatback forward.{WARNING:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
To return the seatback to the upright position, push the
seatback all the way back until it latches.
If the seatback was reclined before being folded
forward, it will return to the reclined position.
2-9

Rear Seats
Rear Seat Operation (Extended Cab)
If the vehicle has an
extended cab, there may
be forward folding seats in
the rear area.
To fold the rear seat cushion(s) from the stored position
to the sitting position, pull the front of the seat cushion
down completely.
The rear seat storage compartments must be closed
before folding the seat down. SeeRear Storage Area on
page 3-41.To store the seat:
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
1. Secure the safety belt buckle to the inboard side of
the seat with the hook and loop fastener (A), so that
it does not move when not in use.
2. Push the entire seat up until it is flush with the trim
panel.
2-10

Rear Seat Operation (Crew Cab)
The rear seatback(s) in the crew cab can be folded
forward.
Notice:Folding a rear seat with the safety belts still
fastened may cause damage to the seat or the safety
belts. Always unbuckle the safety belts and return
them to their normal stowed position before folding a
rear seat.
To fold the rear seatback(s) forward:
1. Disconnect the rear center safety belt latch from the
mini buckle by inserting the tip of the safety belt
tongue into the slot on the buckle. Let the belt retract.2. Pull the loop, located
on the outboard side of
the seatback, forward
until you hear a click.
3. Fold the seatback(s) forward.
2-11

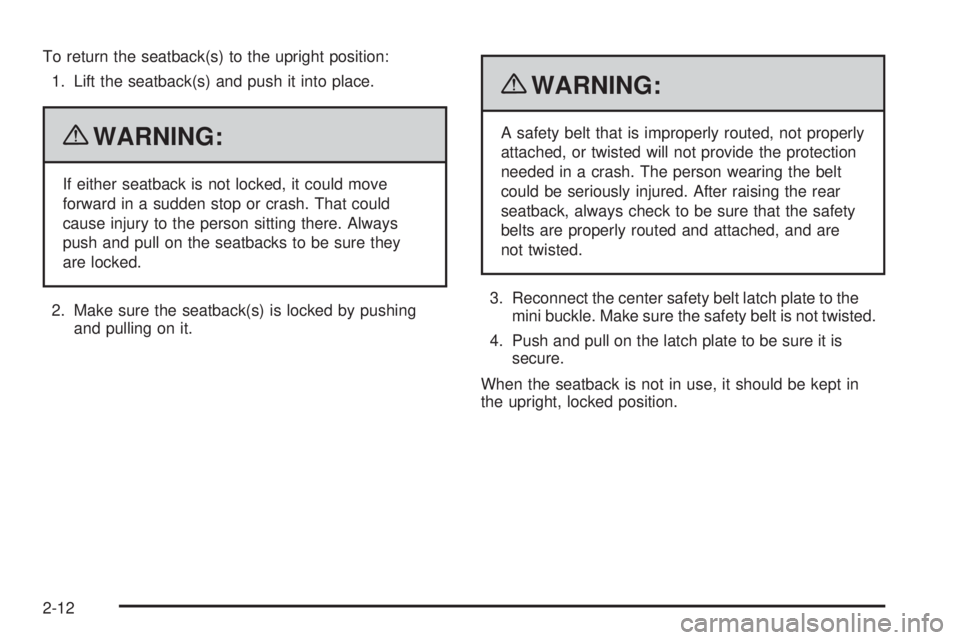

To return the seatback(s) to the upright position:
1. Lift the seatback(s) and push it into place.
{WARNING:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
2. Make sure the seatback(s) is locked by pushing
and pulling on it.
{WARNING:
A safety belt that is improperly routed, not properly
attached, or twisted will not provide the protection
needed in a crash. The person wearing the belt
could be seriously injured. After raising the rear
seatback, always check to be sure that the safety
belts are properly routed and attached, and are
not twisted.
3. Reconnect the center safety belt latch plate to the
mini buckle. Make sure the safety belt is not twisted.
4. Push and pull on the latch plate to be sure it is
secure.
When the seatback is not in use, it should be kept in
the upright, locked position.
2-12
