2010 GMC CANYON Owner's Manual

Engine Oil Life System
The engine oil life system calculates engine oil life
based on vehicle use and displays a DIC message when
it is necessary to change the engine oil and filter.
Resetting the Oil Life System
1. Turn the ignition to ON/RUN, with the engine off.
2. Press and release the stem in the lower center
of the instrument cluster until the OIL LIFE
message is displayed.
3. Once the alternating OIL LIFE and RESET
messages appear, press and hold the stem
until several beeps sound. This confirms that the oil
life system has been reset.
4. Turn the key to LOCK/OFF.
SeeEngine Oil Life System on page 6-18.
Driving for Better Fuel Economy
Driving habits can affect fuel mileage. Here are some
driving tips to get the best fuel economy possible.
•Avoid fast starts and accelerate smoothly.
•Brake gradually and avoid abrupt stops.
•Avoid idling the engine for long periods of time.
•When road and weather conditions are appropriate,
use cruise control, if equipped.
•Always follow posted speed limits or drive more
slowly when conditions require.
•Keep vehicle tires properly inflated.
•Combine several trips into a single trip.
•Replace the vehicle’s tires with the same
TPC Spec number molded into the tire’s sidewall
near the size.
•Follow recommended scheduled maintenance.
1-19

Roadside Assistance Program
U.S.:1-800-GMC-8782 (462-8782)
TTY Users:1-888-889-2438
Canada:1-800-268-6800
As the owner of a new GMC, you are automatically
enrolled in the Roadside Assistance program. This
program provides technically trained advisors who are
available 24 hours a day, 365 days a year, minor repair
information or towing arrangements.
Roadside Assistance and OnStar
If you have a current OnStar subscription, press the
OnStar button and the current GPS location will be sent
to an OnStar Advisor who will assess your problem,
contact Roadside Assistance, and relay exact location to
get you the help you need.
Online Owner Center
The Online Owner Center is a complimentary service
that includes online service reminders, vehicle
maintenance tips, online owner manual, special
privileges and more.
Sign up today at:www.gmownercenter.com/gmc
(U.S.) orwww.gm.ca(Canada).
OnStar®
OnStar®uses several innovative technologies and live
advisors to provide a wide range of safety, security,
navigation, diagnostics, and calling services.
Automatic Crash Response
In a crash, built in sensors can automatically alert an
OnStar advisor who is immediately connected to
the vehicle to see if you need help.
1-20

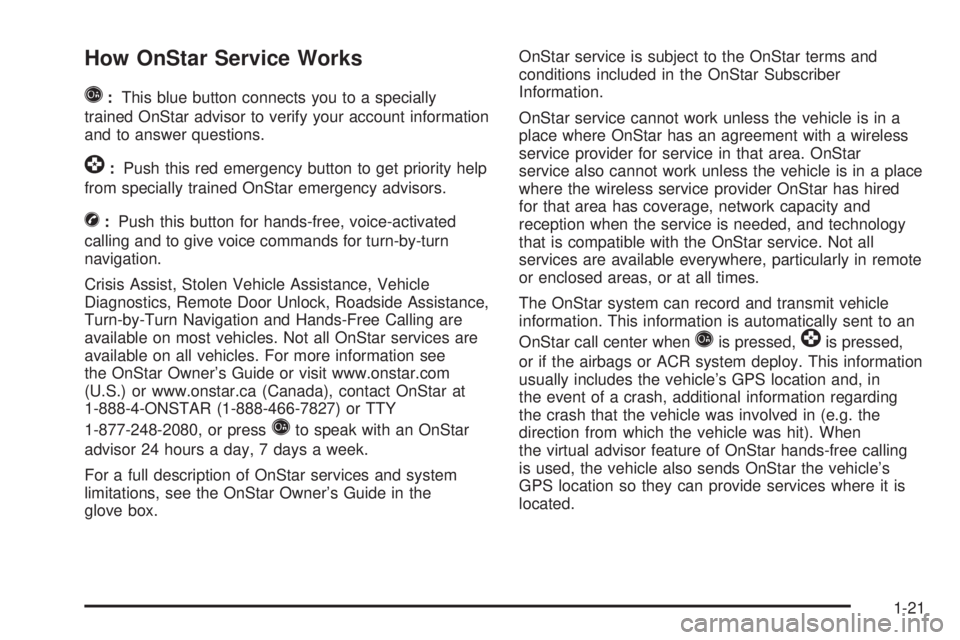

How OnStar Service Works
Q
:This blue button connects you to a specially
trained OnStar advisor to verify your account information
and to answer questions.
]:Push this red emergency button to get priority help
from specially trained OnStar emergency advisors.
X:Push this button for hands-free, voice-activated
calling and to give voice commands for turn-by-turn
navigation.
Crisis Assist, Stolen Vehicle Assistance, Vehicle
Diagnostics, Remote Door Unlock, Roadside Assistance,
Turn-by-Turn Navigation and Hands-Free Calling are
available on most vehicles. Not all OnStar services are
available on all vehicles. For more information see
the OnStar Owner’s Guide or visit www.onstar.com
(U.S.) or www.onstar.ca (Canada), contact OnStar at
1-888-4-ONSTAR (1-888-466-7827) or TTY
1-877-248-2080, or press
Qto speak with an OnStar
advisor 24 hours a day, 7 days a week.
For a full description of OnStar services and system
limitations, see the OnStar Owner’s Guide in the
glove box.OnStar service is subject to the OnStar terms and
conditions included in the OnStar Subscriber
Information.
OnStar service cannot work unless the vehicle is in a
place where OnStar has an agreement with a wireless
service provider for service in that area. OnStar
service also cannot work unless the vehicle is in a place
where the wireless service provider OnStar has hired
for that area has coverage, network capacity and
reception when the service is needed, and technology
that is compatible with the OnStar service. Not all
services are available everywhere, particularly in remote
or enclosed areas, or at all times.
The OnStar system can record and transmit vehicle
information. This information is automatically sent to an
OnStar call center when
Qis pressed,]is pressed,
or if the airbags or ACR system deploy. This information
usually includes the vehicle’s GPS location and, in
the event of a crash, additional information regarding
the crash that the vehicle was involved in (e.g. the
direction from which the vehicle was hit). When
the virtual advisor feature of OnStar hands-free calling
is used, the vehicle also sends OnStar the vehicle’s
GPS location so they can provide services where it is
located.
1-21

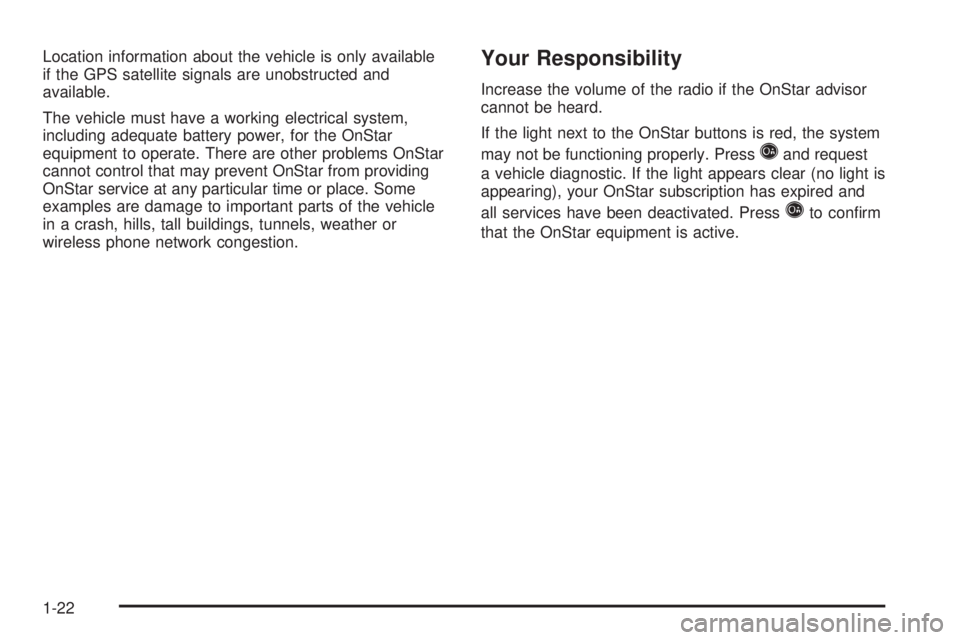

Location information about the vehicle is only available
if the GPS satellite signals are unobstructed and
available.
The vehicle must have a working electrical system,
including adequate battery power, for the OnStar
equipment to operate. There are other problems OnStar
cannot control that may prevent OnStar from providing
OnStar service at any particular time or place. Some
examples are damage to important parts of the vehicle
in a crash, hills, tall buildings, tunnels, weather or
wireless phone network congestion.Your Responsibility
Increase the volume of the radio if the OnStar advisor
cannot be heard.
If the light next to the OnStar buttons is red, the system
may not be functioning properly. Press
Qand request
a vehicle diagnostic. If the light appears clear (no light is
appearing), your OnStar subscription has expired and
all services have been deactivated. Press
Qto confirm
that the OnStar equipment is active.
1-22

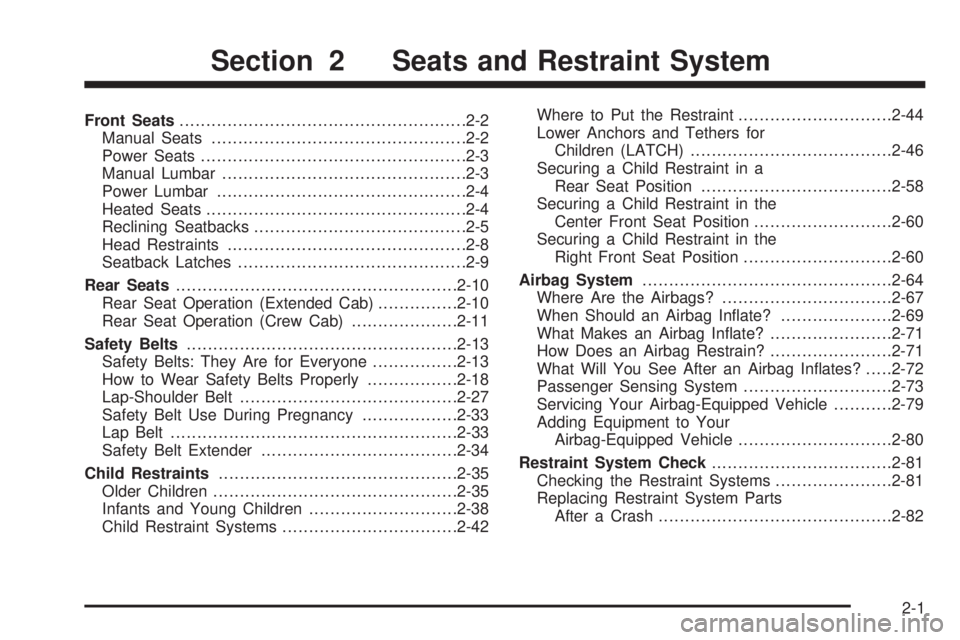

Front Seats......................................................2-2
Manual Seats................................................2-2
Power Seats..................................................2-3
Manual Lumbar..............................................2-3
Power Lumbar ...............................................2-4
Heated Seats.................................................2-4
Reclining Seatbacks........................................2-5
Head Restraints.............................................2-8
Seatback Latches...........................................2-9
Rear Seats.....................................................2-10
Rear Seat Operation (Extended Cab)...............2-10
Rear Seat Operation (Crew Cab)....................2-11
Safety Belts...................................................2-13
Safety Belts: They Are for Everyone................2-13
How to Wear Safety Belts Properly.................2-18
Lap-Shoulder Belt.........................................2-27
Safety Belt Use During Pregnancy..................2-33
Lap Belt......................................................2-33
Safety Belt Extender.....................................2-34
Child Restraints.............................................2-35
Older Children..............................................2-35
Infants and Young Children............................2-38
Child Restraint Systems.................................2-42Where to Put the Restraint.............................2-44
Lower Anchors and Tethers for
Children (LATCH)......................................2-46
Securing a Child Restraint in a
Rear Seat Position....................................2-58
Securing a Child Restraint in the
Center Front Seat Position..........................2-60
Securing a Child Restraint in the
Right Front Seat Position............................2-60
Airbag System...............................................2-64
Where Are the Airbags?................................2-67
When Should an Airbag Inflate?.....................2-69
What Makes an Airbag Inflate?.......................2-71
How Does an Airbag Restrain?......................
.2-71
What Will You See After an Airbag Inflates?.....2-72
Passenger Sensing System............................2-73
Servicing Your Airbag-Equipped Vehicle...........2-79
Adding Equipment to Your
Airbag-Equipped Vehicle.............................2-80
Restraint System Check..................................2-81
Checking the Restraint Systems......................2-81
Replacing Restraint System Parts
After a Crash............................................2-82
Section 2 Seats and Restraint System
2-1

Front Seats
Manual Seats
{WARNING:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
do not want to. Adjust the driver’s seat only when
the vehicle is not moving.If the vehicle has a manual seat, it can be moved
forward or rearward.
1. Lift the bar to unlock
the seat.
2. Slide the seat to the
desired position and
release the bar.
Try to move the seat with your body to be sure the seat
is locked in place.
2-2

Power Seats
If the vehicle has power
seats, the controls used to
operate them are located
on the outboard side of the
seats.
To adjust the seat:
•Move the seat forward or rearward by sliding the
horizontal control forward or rearward.
•Raise or lower the front part of the seat cushion
by moving the front of the horizontal control up
or down.
•Raise or lower the rear part of the seat cushion
by moving the rear of the horizontal control up
or down.
•Raise or lower the entire seat by moving the entire
horizontal control up or down.
•Use the vertical control to recline the seatback.
See “Power Reclining Seatbacks” underReclining
Seatbacks on page 2-5for more information.
Manual Lumbar
On vehicles with this
feature, the knob is
located on the outboard
side of the driver seat.
Turn the knob to increase or decrease lumbar support.
2-3

Power Lumbar
If the vehicle has this
feature, the control is
located on the outboard
side of the seat(s).
Press and hold the front of the control until you have
the desired lumbar support. To decrease lumbar
support, press and hold the rear of the control.
Heated Seats
If the vehicle has this
feature, the controls are
located on the outboard
side of the front seats.
This feature will heat the cushion and back of the seats.
Press HI to turn the heat to the high setting. Press
LO to turn the heat to the low setting. Put the switch in
the center position to turn the heat off.
The ignition must be on for the heated seat feature to
work. The seat will heat to the last setting if the ignition
has been turned off and then turned back on.
The passenger safety belt must be fastened for the
heated seat feature to work on the passenger seat.
2-4
