2010 CHRYSLER TOWN AND COUNTRY Owners Manual

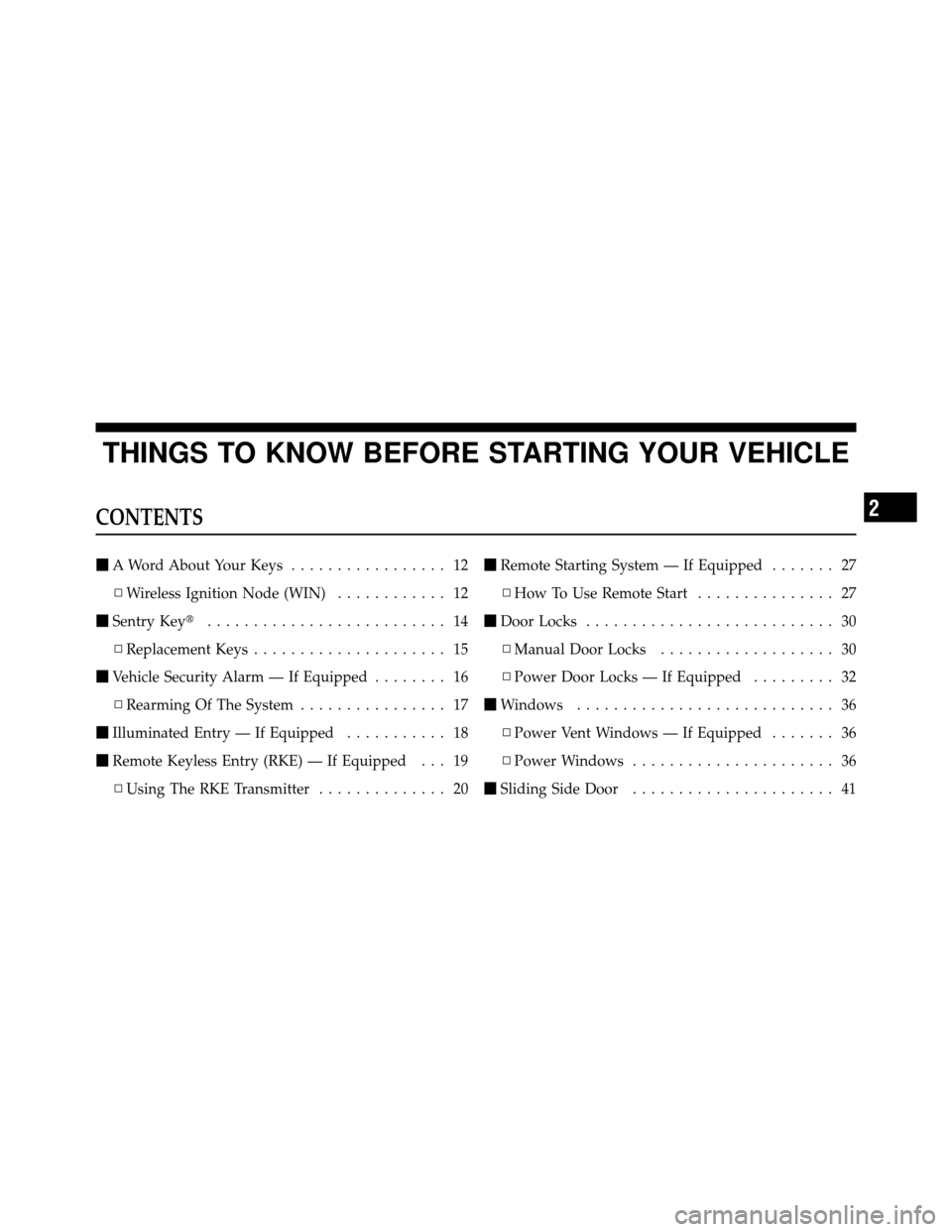

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys ................. 12
▫ Wireless Ignition Node (WIN) ............ 12
 Sentry Key .......................... 14
▫ Replacement Keys ..................... 15
 Vehicle Security Alarm — If Equipped ........ 16
▫ Rearming Of The System ................ 17
 Illuminated Entry — If Equipped ........... 18
 Remote Keyless Entry (RKE) — If Equipped . . . 19
▫ Using The RKE Transmitter .............. 20
Remote Starting System — If Equipped ....... 27
▫ How To Use Remote Start ............... 27
 Door Locks ........................... 30
▫ Manual Door Locks ................... 30
▫ Power Door Locks — If Equipped ......... 32
 Windows ............................ 36
▫ Power Vent Windows — If Equipped ....... 36
▫ Power Windows ...................... 36
 Sliding Side Door ...................... 41
2

▫Power Sliding Side Door — If Equipped ..... 42
▫ Sliding Side Door Child Protection Lock ..... 46
 Liftgate ............................. 48
▫ Power Liftgate — If Equipped ............ 49
 Occupant Restraints ..................... 52
▫ Lap/Shoulder Belts .................... 53
▫ Automatic Locking Retractors (ALR) Mode
— If Equipped ....................... 60
▫ Seat Belt Pretensioners — If Equipped ...... 61
▫ Supplemental Active Head Restraints (AHR)
— If Equipped ....................... 61
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 65
▫ Seat Belts And Pregnant Women .......... 67▫
Seat Belt Extender ..................... 67
▫ Supplemental Restraint System (SRS) -
Airbags ............................ 68
▫ Airbag System Components .............. 69
▫ Advanced Front Airbag Features .......... 70
▫ Airbag Deployment Sensors And Controls . . . 75
▫ Event Data Recorder (EDR) .............. 82
▫ Integrated Child Booster Seat — If Equipped . . 84
▫ Integrated Child Seat — If Equipped ....... 86
▫ Child Restraints ...................... 87
 Rear Seat Delete Feature (Commercial Vehicles
Only) — If Equipped ..................... 97
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Restraining Infants And Small Children With
Seat Delete Feature (Commercial Vehicles
Only) .............................. 98
 Engine Break-In Recommendations ......... 100
 Safety Tips .......................... 101
▫ Transporting Passengers ............... 101 ▫
Exhaust Gas ........................ 101
▫ Safety Checks You Should Make Inside The
Vehicle ............................ 102
▫ Periodic Safety Checks You Should Make
Outside The Vehicle .................. 104
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

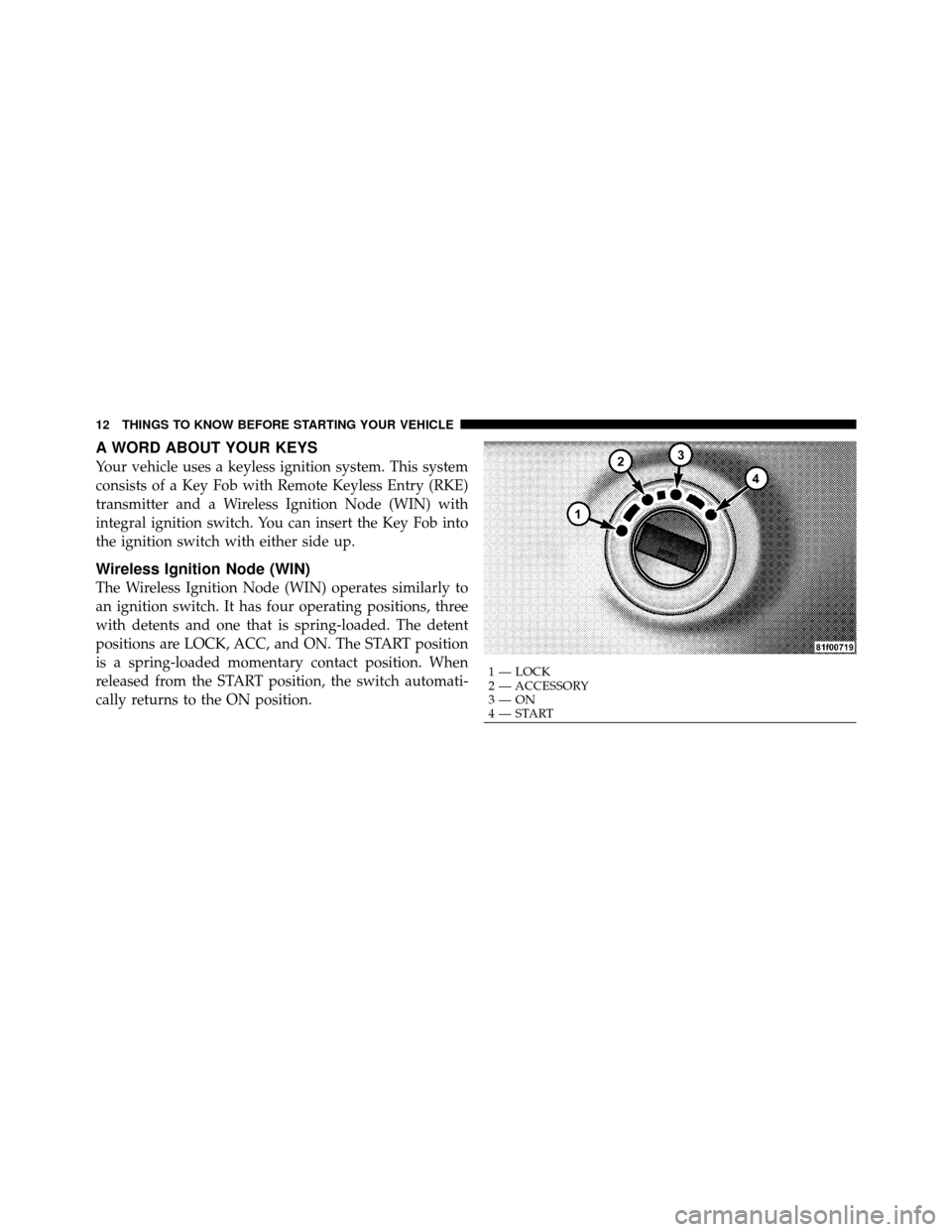

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Wireless Ignition Node (WIN) with
integral ignition switch. You can insert the Key Fob into
the ignition switch with either side up.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similarly to
an ignition switch. It has four operating positions, three
with detents and one that is spring-loaded. The detent
positions are LOCK, ACC, and ON. The START position
is a spring-loaded momentary contact position. When
released from the START position, the switch automati-
cally returns to the ON position.
1 — LOCK
2 — ACCESSORY
3—ON
4 — START
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

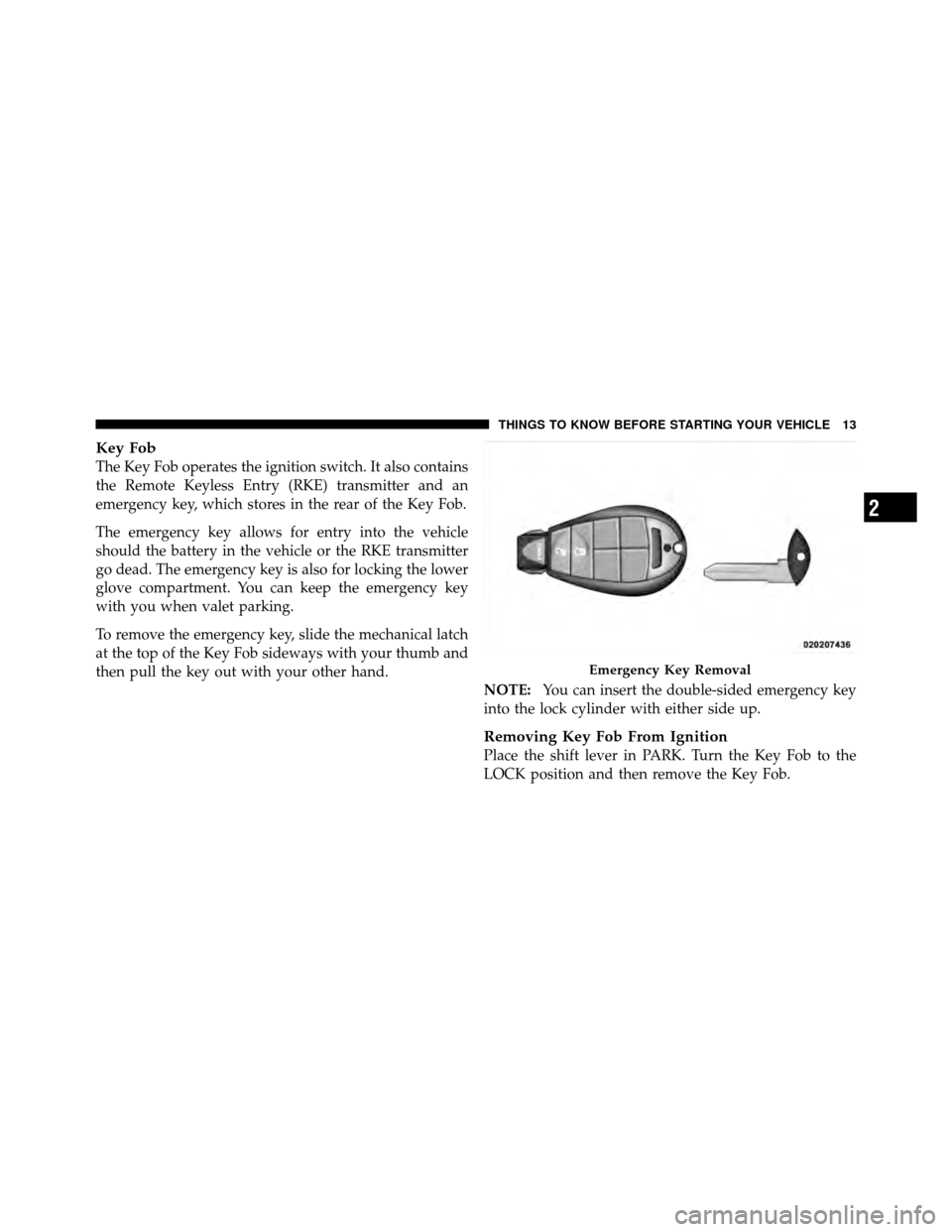

Key Fob
The Key Fob operates the ignition switch. It also contains
the Remote Keyless Entry (RKE) transmitter and an
emergency key, which stores in the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the RKE transmitter
go dead. The emergency key is also for locking the lower
glove compartment. You can keep the emergency key
with you when valet parking.
To remove the emergency key, slide the mechanical latch
at the top of the Key Fob sideways with your thumb and
then pull the key out with your other hand.NOTE:You can insert the double-sided emergency key
into the lock cylinder with either side up.
Removing Key Fob From Ignition
Place the shift lever in PARK. Turn the Key Fob to the
LOCK position and then remove the Key Fob.
Emergency Key Removal
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

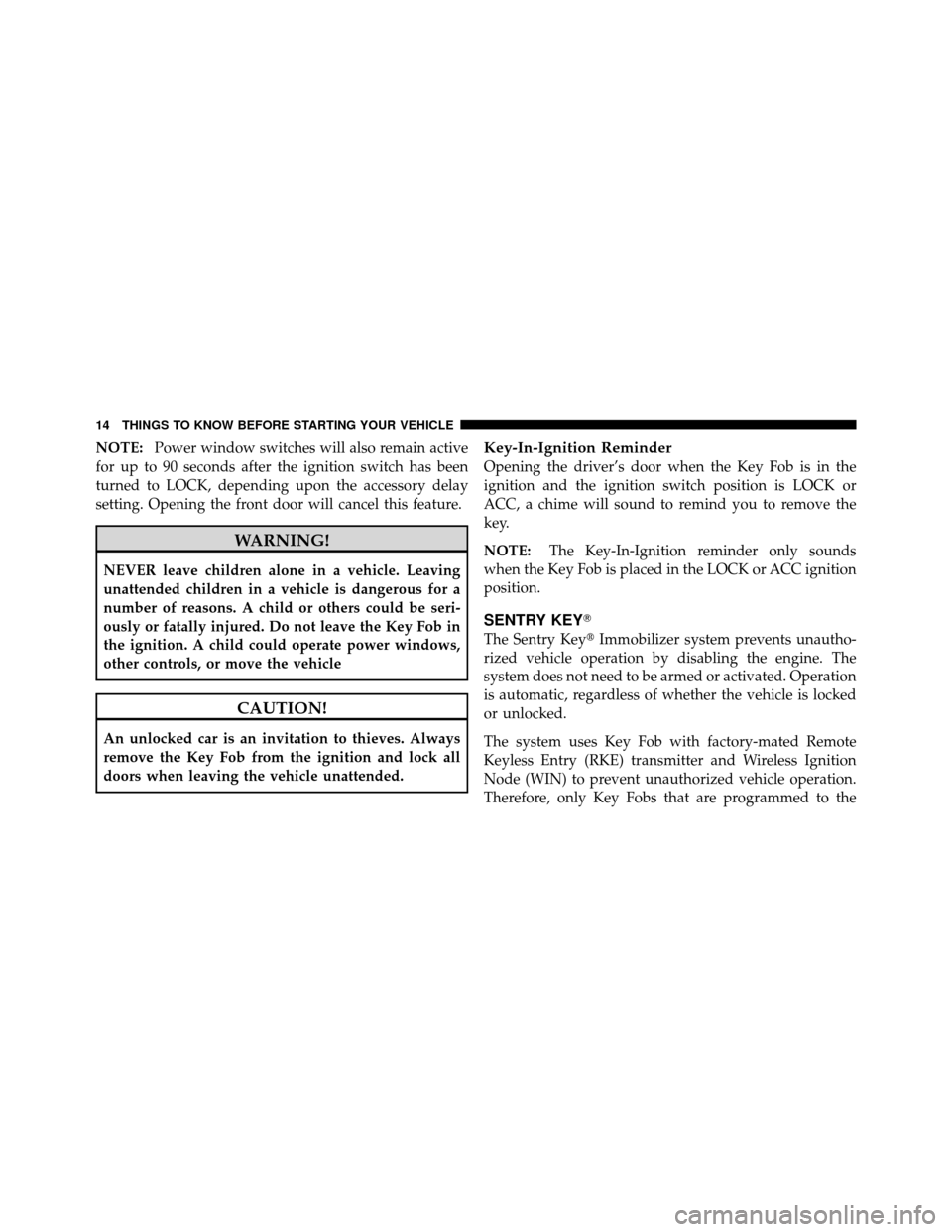

NOTE:Power window switches will also remain active
for up to 90 seconds after the ignition switch has been
turned to LOCK, depending upon the accessory delay
setting. Opening the front door will cancel this feature.
WARNING!
NEVER leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Do not leave the Key Fob in
the ignition. A child could operate power windows,
other controls, or move the vehicle
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the Key Fob from the ignition and lock all
doors when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the Key Fob is in the
ignition and the ignition switch position is LOCK or
ACC, a chime will sound to remind you to remove the
key.
NOTE: The Key-In-Ignition reminder only sounds
when the Key Fob is placed in the LOCK or ACC ignition
position.
SENTRY KEY
The Sentry Key Immobilizer system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses Key Fob with factory-mated Remote
Keyless Entry (RKE) transmitter and Wireless Ignition
Node (WIN) to prevent unauthorized vehicle operation.
Therefore, only Key Fobs that are programmed to the
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

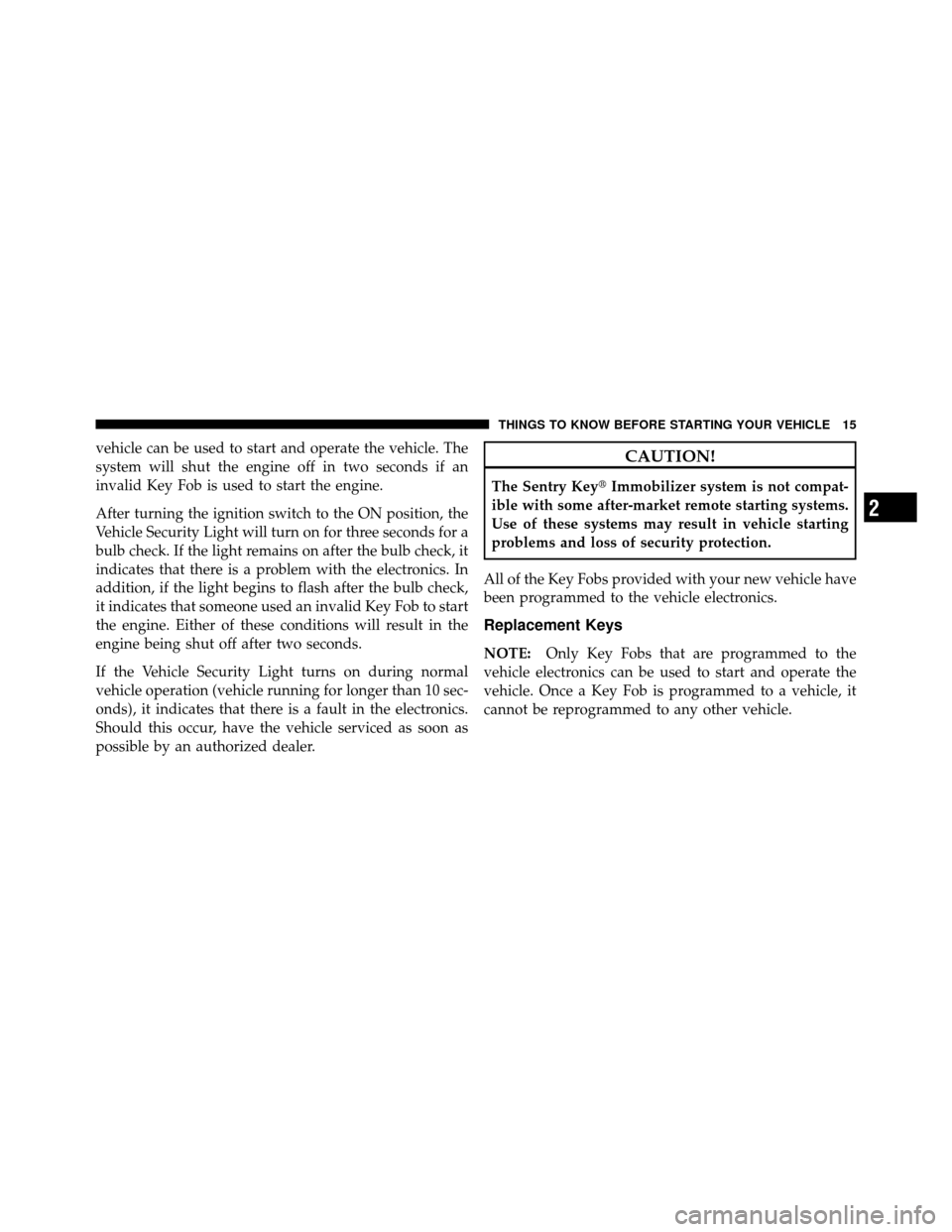

vehicle can be used to start and operate the vehicle. The
system will shut the engine off in two seconds if an
invalid Key Fob is used to start the engine.
After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In
addition, if the light begins to flash after the bulb check,
it indicates that someone used an invalid Key Fob to start
the engine. Either of these conditions will result in the
engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.CAUTION!
The Sentry KeyImmobilizer system is not compat-
ible with some after-market remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be reprogrammed to any other vehicle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
