2010 CHRYSLER TOWN AND COUNTRY Owners Manual

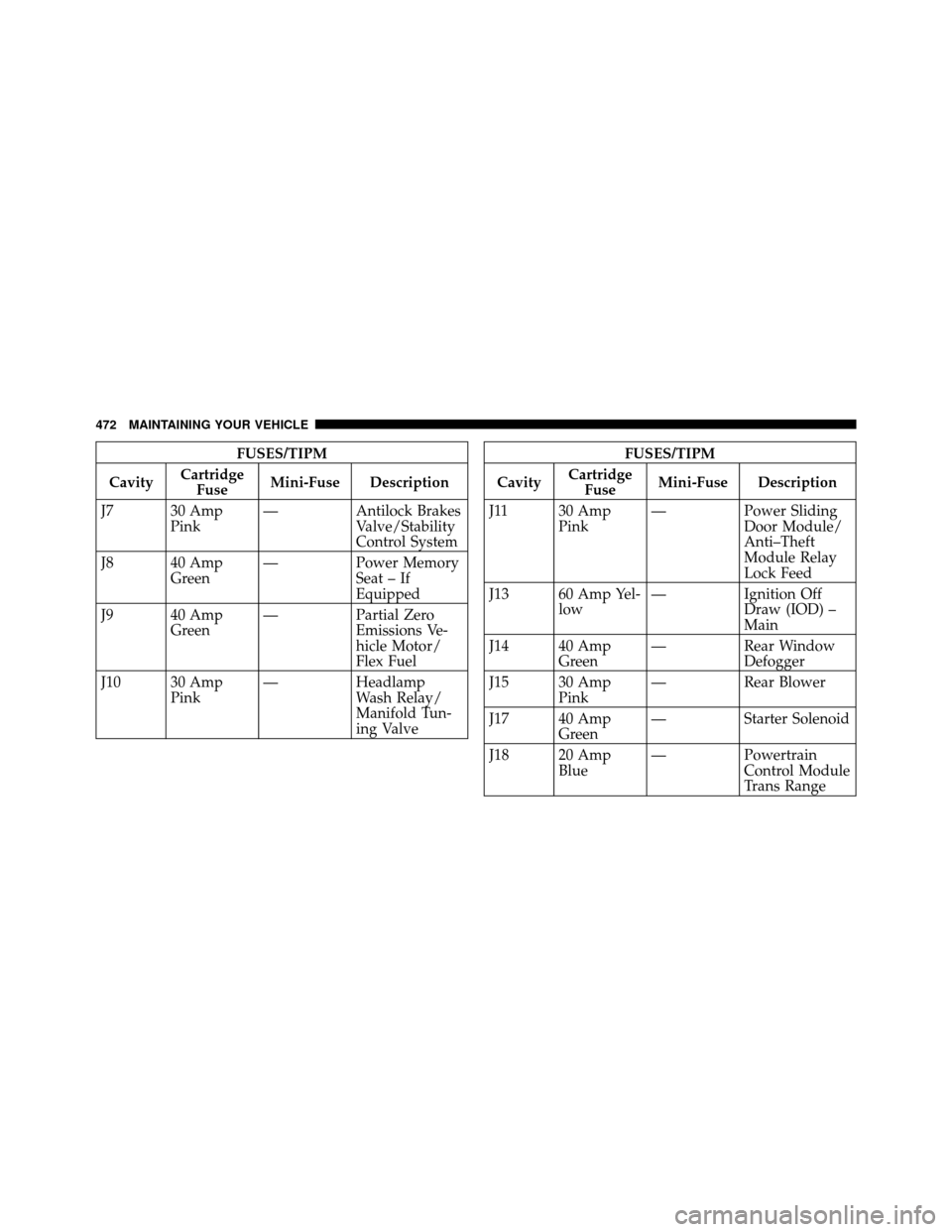

FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
J7 30 Amp Pink — Antilock Brakes
Valve/Stability
Control System
J8 40 Amp Green —
Power Memory
Seat – If
Equipped
J9 40 Amp Green —
Partial Zero
Emissions Ve-
hicle Motor/
Flex Fuel
J10 30 Amp Pink —
Headlamp
Wash Relay/
Manifold Tun-
ing ValveFUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
J11 30 Amp Pink — Power Sliding
Door Module/
Anti–Theft
Module Relay
Lock Feed
J13 60 Amp Yel- low —
Ignition Off
Draw (IOD) –
Main
J14 40 Amp Green —
Rear Window
Defogger
J15 30 Amp Pink —
Rear Blower
J17 40 Amp Green —
Starter Solenoid
J18 20 Amp Blue —
Powertrain
Control Module
Trans Range
472 MAINTAINING YOUR VEHICLE

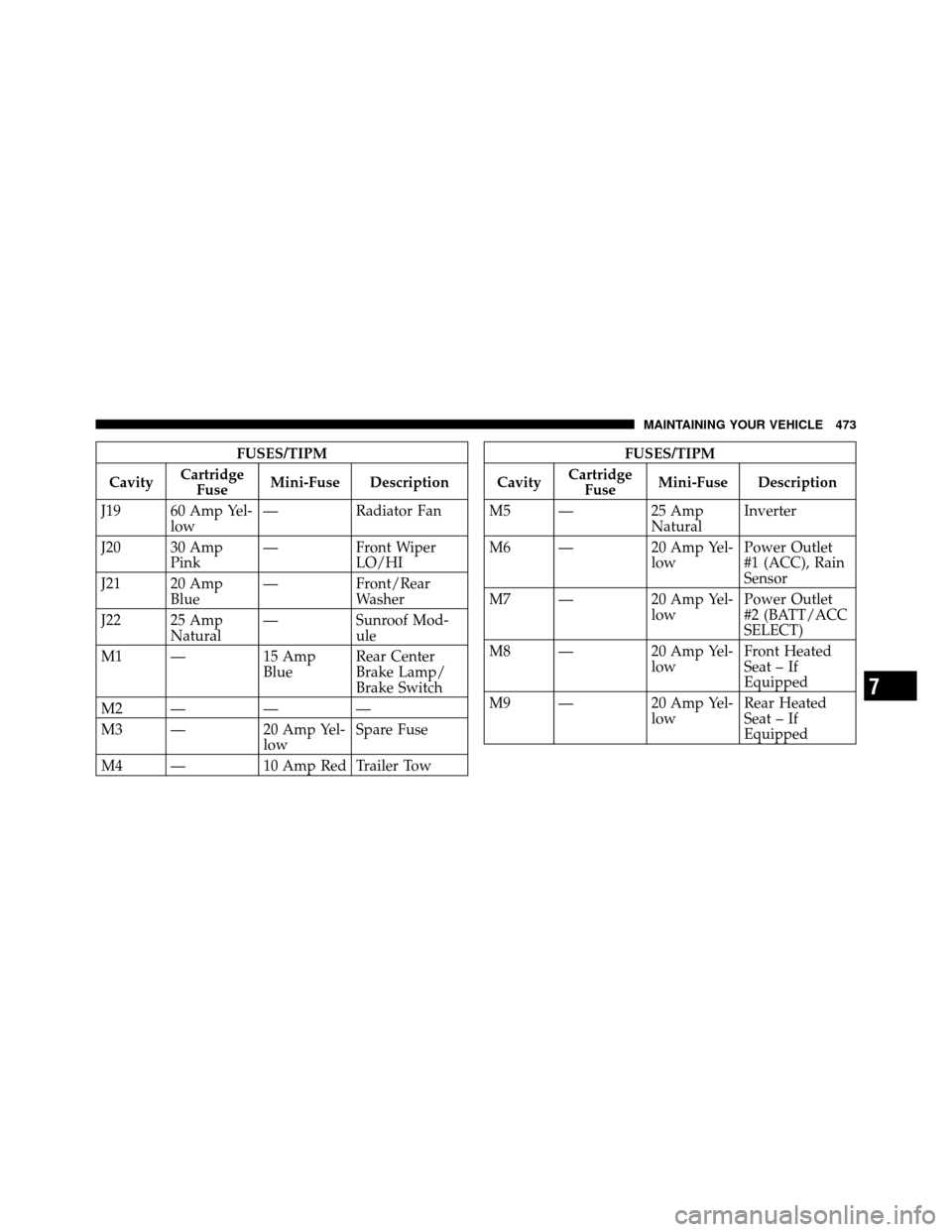

FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
J19 60 Amp Yel- low — Radiator Fan
J20 30 Amp Pink — Front Wiper
LO/HI
J21 20 Amp Blue —
Front/Rear
Washer
J22 25 Amp Natural —
Sunroof Mod-
ule
M1 — 15 Amp
BlueRear Center
Brake Lamp/
Brake Switch
M 2———
M3 — 20 Amp Yel-
lowSpare Fuse
M4 — 10 Amp Red Trailer TowFUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M5 — 25 Amp NaturalInverter
M6 — 20 Amp Yel-
lowPower Outlet
#1 (ACC), Rain
Sensor
M7 — 20 Amp Yel-
lowPower Outlet
#2 (BATT/ACC
SELECT)
M8 — 20 Amp Yel-
lowFront Heated
Seat – If
Equipped
M9 — 20 Amp Yel-
lowRear Heated
Seat – If
Equipped
7
MAINTAINING YOUR VEHICLE 473

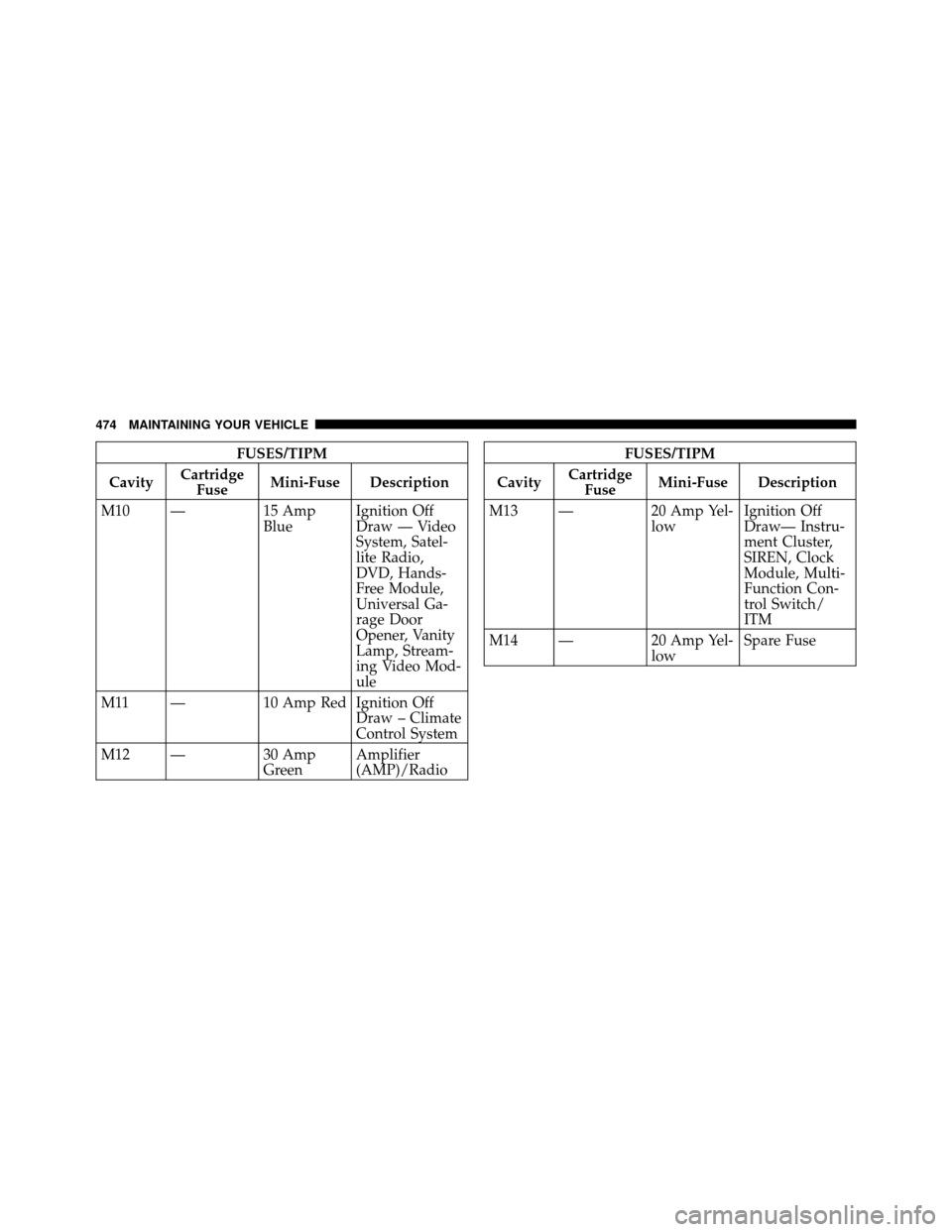

FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M10 — 15 Amp BlueIgnition Off
Draw — Video
System, Satel-
lite Radio,
DVD, Hands-
Free Module,
Universal Ga-
rage Door
Opener, Vanity
Lamp, Stream-
ing Video Mod-
ule
M11 — 10 Amp Red Ignition Off
Draw – Climate
Control System
M12 — 30 Amp
GreenAmplifier
(AMP)/RadioFUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M13 — 20 Amp Yel- lowIgnition Off
Draw— Instru-
ment Cluster,
SIREN, Clock
Module, Multi-
Function Con-
trol Switch/
ITM
M14 — 20 Amp Yel-
lowSpare Fuse
474 MAINTAINING YOUR VEHICLE

FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M15 — 20 Amp Yel- lowRear View Mir-
ror, Instrument
Cluster, Multi-
Function Con-
trol Switch, Tire
Pressure Moni-
tor, Glow Plug
Module – Ex-
port Diesel
Only, Assy-
Shifter (Hall
Effect), Acoustic
Noise Cancella-
tionFUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M16 — 10 Amp Red Airbag Module/
Occupant Clas-
sification Mod-
ule
M17 — 15 Amp BlueLeft Tail/
License/Park
Lamp, Running
Lamps
M18 — 15 Amp
BlueRight Tail/
Park/Run
Lamp
M19 — 25 Amp
NaturalAutomatic
Shutdown #1
and #2
7
MAINTAINING YOUR VEHICLE 475

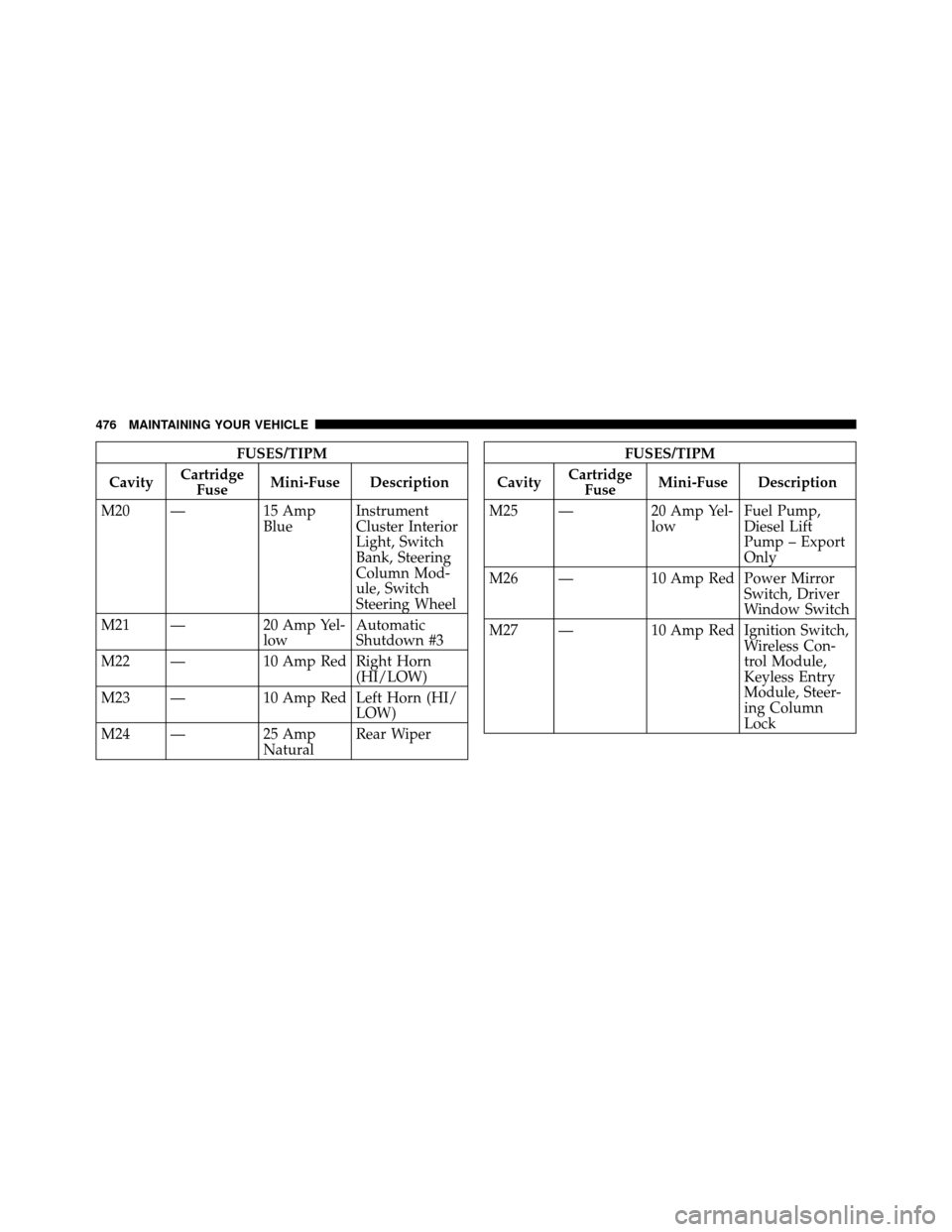

FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M20 — 15 Amp BlueInstrument
Cluster Interior
Light, Switch
Bank, Steering
Column Mod-
ule, Switch
Steering Wheel
M21 — 20 Amp Yel-
lowAutomatic
Shutdown #3
M22 — 10 Amp Red Right Horn
(HI/LOW)
M23 — 10 Amp Red Left Horn (HI/
LOW)
M24 — 25 Amp
NaturalRear WiperFUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M25 — 20 Amp Yel- lowFuel Pump,
Diesel Lift
Pump – Export
Only
M26 — 10 Amp Red Power Mirror
Switch, Driver
Window Switch
M27 — 10 Amp Red Ignition Switch,
Wireless Con-
trol Module,
Keyless Entry
Module, Steer-
ing Column
Lock
476 MAINTAINING YOUR VEHICLE

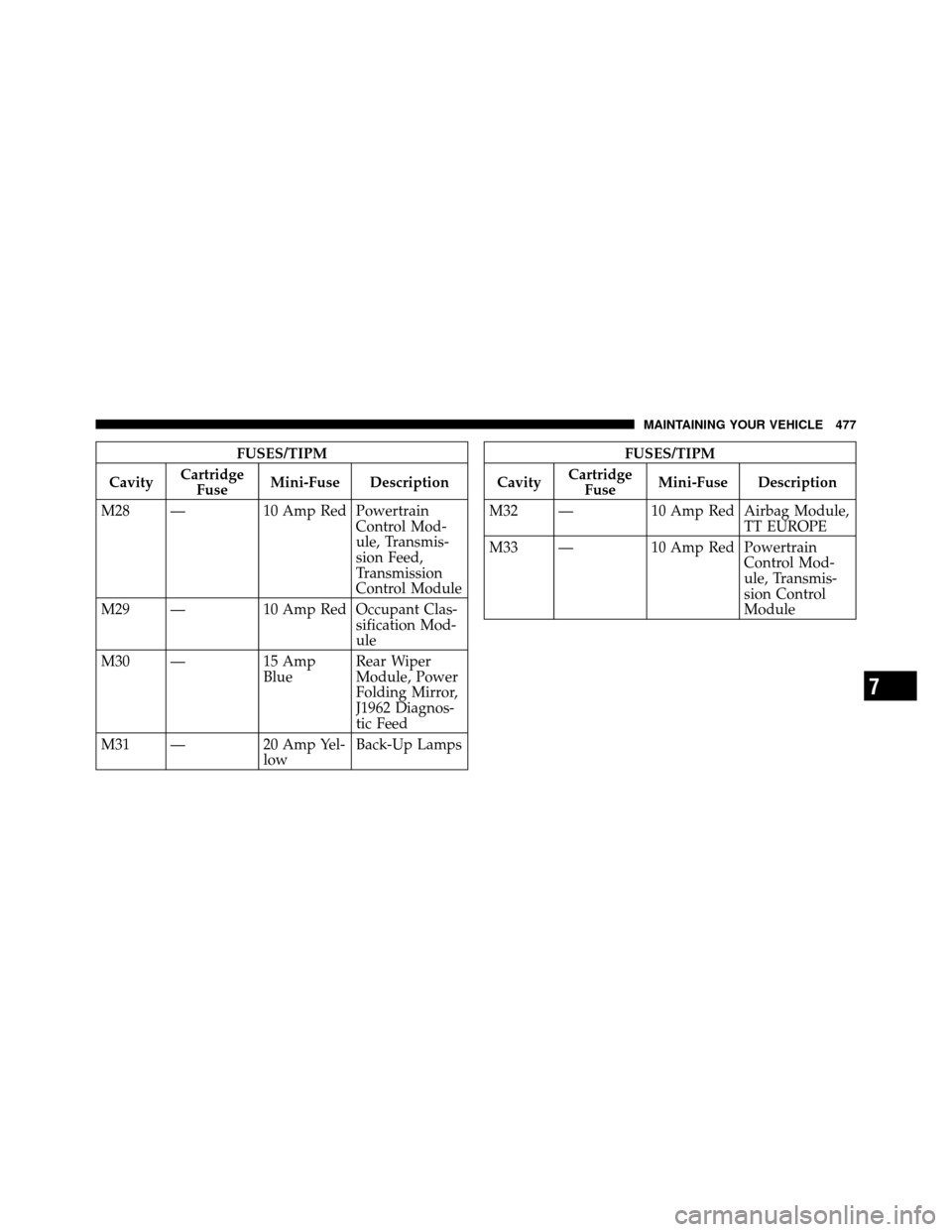

FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M28 — 10 Amp Red Powertrain Control Mod-
ule, Transmis-
sion Feed,
Transmission
Control Module
M29 — 10 Amp Red Occupant Clas- sification Mod-
ule
M30 — 15 Amp BlueRear Wiper
Module, Power
Folding Mirror,
J1962 Diagnos-
tic Feed
M31 — 20 Amp Yel-
lowBack-Up LampsFUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M32 — 10 Amp Red Airbag Module, TT EUROPE
M33 — 10 Amp Red Powertrain Control Mod-
ule, Transmis-
sion Control
Module
7
MAINTAINING YOUR VEHICLE 477

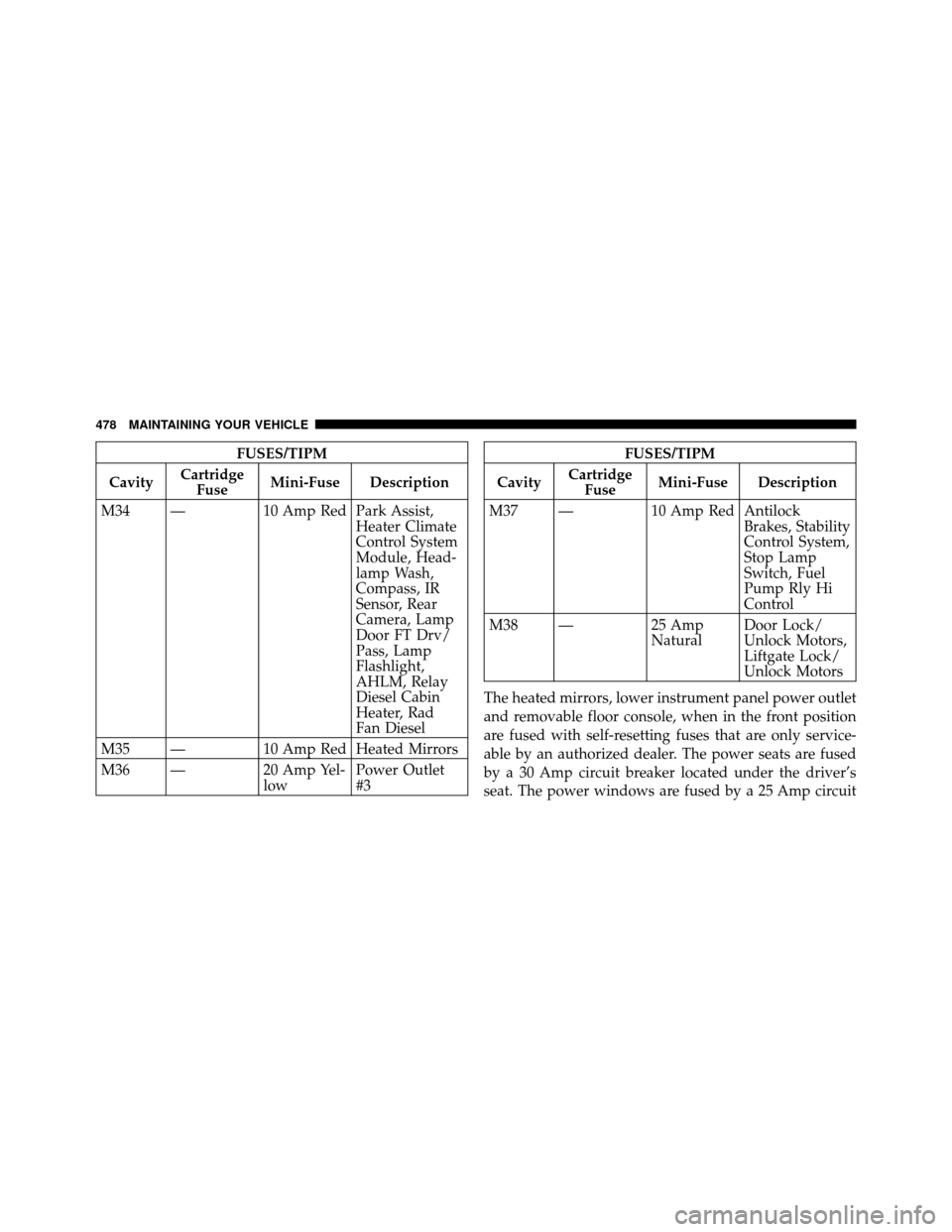

FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M34 — 10 Amp Red Park Assist, Heater Climate
Control System
Module, Head-
lamp Wash,
Compass, IR
Sensor, Rear
Camera, Lamp
Door FT Drv/
Pass, Lamp
Flashlight,
AHLM, Relay
Diesel Cabin
Heater, Rad
Fan Diesel
M35 — 10 Amp Red Heated Mirrors
M36 — 20 Amp Yel- lowPower Outlet
#3FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M37 — 10 Amp Red Antilock Brakes, Stability
Control System,
Stop Lamp
Switch, Fuel
Pump Rly Hi
Control
M38 — 25 Amp NaturalDoor Lock/
Unlock Motors,
Liftgate Lock/
Unlock Motors
The heated mirrors, lower instrument panel power outlet
and removable floor console, when in the front position
are fused with self-resetting fuses that are only service-
able by an authorized dealer. The power seats are fused
by a 30 Amp circuit breaker located under the driver’s
seat. The power windows are fused by a 25 Amp circuit
478 MAINTAINING YOUR VEHICLE

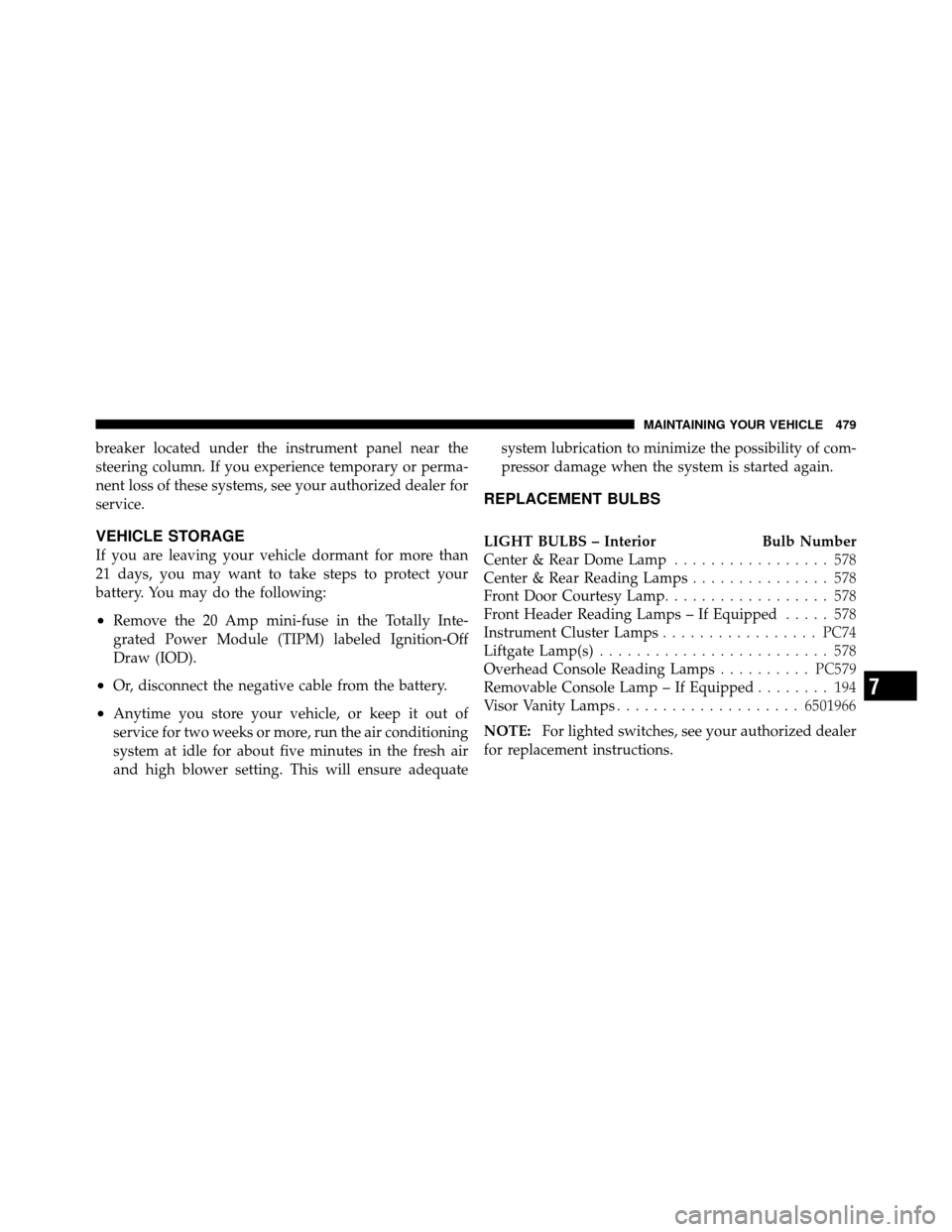

breaker located under the instrument panel near the
steering column. If you experience temporary or perma-
nent loss of these systems, see your authorized dealer for
service.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take steps to protect your
battery. You may do the following:
•Remove the 20 Amp mini-fuse in the Totally Inte-
grated Power Module (TIPM) labeled Ignition-Off
Draw (IOD).
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service for two weeks or more, run the air conditioning
system at idle for about five minutes in the fresh air
and high blower setting. This will ensure adequatesystem lubrication to minimize the possibility of com-
pressor damage when the system is started again.
REPLACEMENT BULBS
LIGHT BULBS – Interior
Bulb Number
Center & Rear Dome Lamp ................. 578
Center & Rear Reading Lamps ............... 578
Front Door Courtesy Lamp .................. 578
Front Header Reading Lamps – If Equipped ..... 578
Instrument Cluster Lamps .................PC74
Liftgate Lamp(s) ......................... 578
Overhead Console Reading Lamps ..........PC579
Removable Console Lamp – If Equipped ........ 194
Visor Vanity Lamps .................... 6501966
NOTE: For lighted switches, see your authorized dealer
for replacement instructions.
7
MAINTAINING YOUR VEHICLE 479
