2010 CHRYSLER TOWN AND COUNTRY Owners Manual

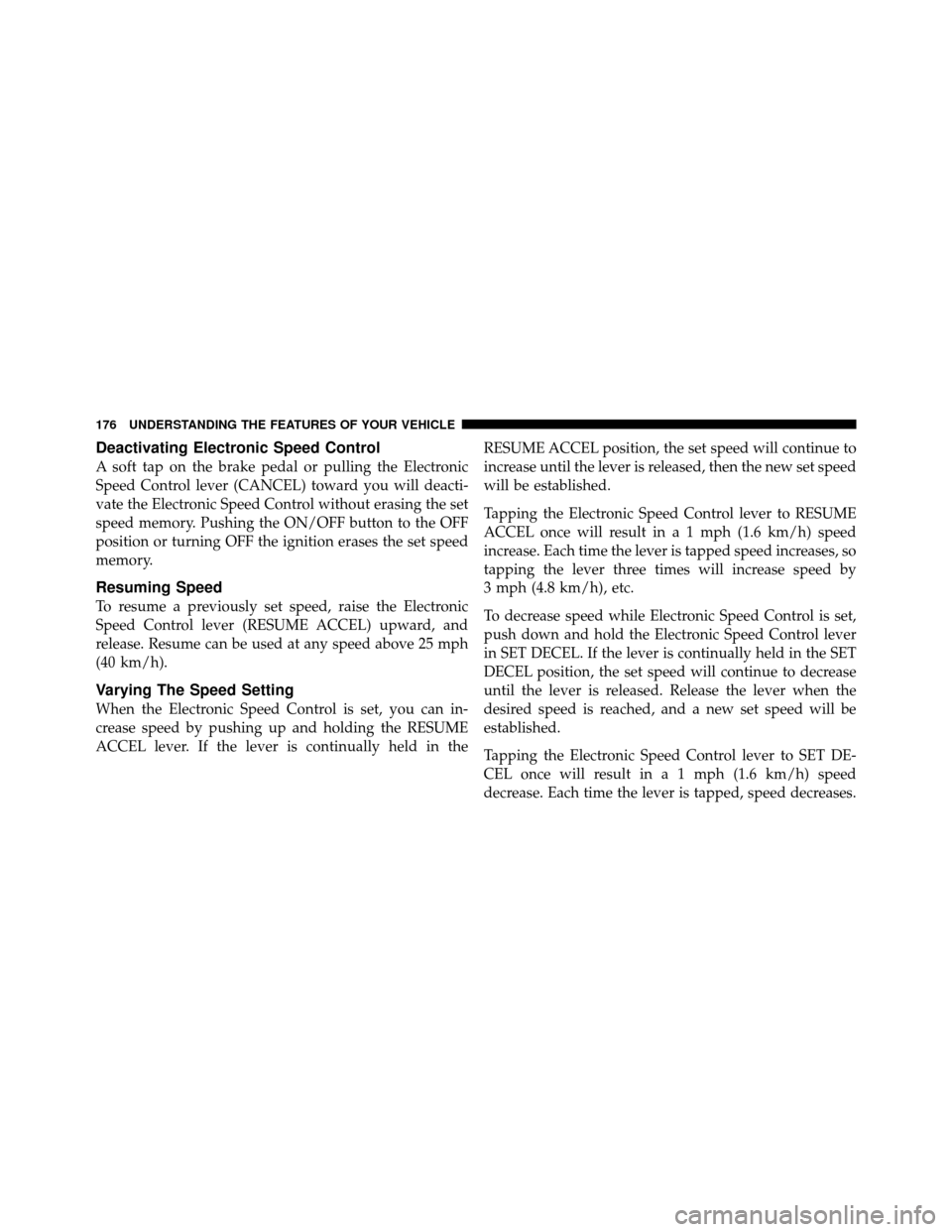

Deactivating Electronic Speed Control
A soft tap on the brake pedal or pulling the Electronic
Speed Control lever (CANCEL) toward you will deacti-
vate the Electronic Speed Control without erasing the set
speed memory. Pushing the ON/OFF button to the OFF
position or turning OFF the ignition erases the set speed
memory.
Resuming Speed
To resume a previously set speed, raise the Electronic
Speed Control lever (RESUME ACCEL) upward, and
release. Resume can be used at any speed above 25 mph
(40 km/h).
Varying The Speed Setting
When the Electronic Speed Control is set, you can in-
crease speed by pushing up and holding the RESUME
ACCEL lever. If the lever is continually held in theRESUME ACCEL position, the set speed will continue to
increase until the lever is released, then the new set speed
will be established.
Tapping the Electronic Speed Control lever to RESUME
ACCEL once will result in a 1 mph (1.6 km/h) speed
increase. Each time the lever is tapped speed increases, so
tapping the lever three times will increase speed by
3 mph (4.8 km/h), etc.
To decrease speed while Electronic Speed Control is set,
push down and hold the Electronic Speed Control lever
in SET DECEL. If the lever is continually held in the SET
DECEL position, the set speed will continue to decrease
until the lever is released. Release the lever when the
desired speed is reached, and a new set speed will be
established.
Tapping the Electronic Speed Control lever to SET DE-
CEL once will result in a 1 mph (1.6 km/h) speed
decrease. Each time the lever is tapped, speed decreases.
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Accelerating To Pass
Press the accelerator as you normally would. When the
pedal is released, the vehicle will return to the set speed.
NOTE:The Electronic Speed Control system maintains
speed up and down hills. A slight speed change on
moderate hills is normal.
Your vehicle may experience a downshift (automatic
transmissions only) while climbing uphill or descending
downhill. This downshift is necessary to maintain vehicle
set speed.
On steep hills, a greater speed loss or gain may occur, so
it may be preferable to drive without Electronic Speed
Control.WARNING!
Electronic Speed Control can be dangerous where the
system cannot maintain a constant speed. Your ve-
hicle could go too fast for the conditions, and you
could lose control. An accident could be the result.
Do not use Electronic Speed Control in heavy traffic
or on roads that are winding, icy, snow-covered, or
slippery.
PARKSENSE REAR PARK ASSIST — IF
EQUIPPED
The ParkSense Rear Park Assist system provides visual
and audible indications of the distance between the rear
fascia and the detected obstacle when backing up. Refer
to ParkSense System Usage Precautions for limitations
of this system and recommendations.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177

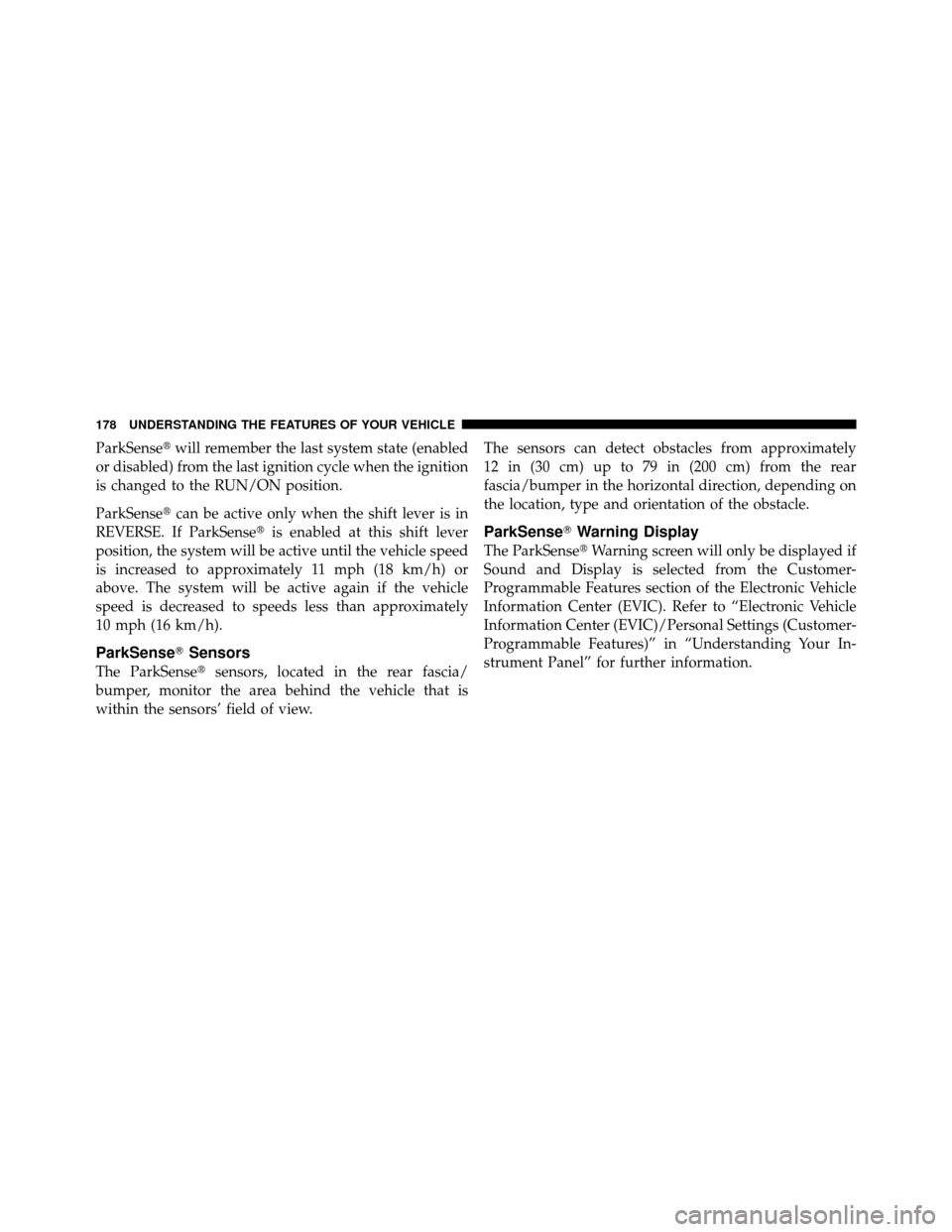

ParkSensewill remember the last system state (enabled
or disabled) from the last ignition cycle when the ignition
is changed to the RUN/ON position.
ParkSense can be active only when the shift lever is in
REVERSE. If ParkSense is enabled at this shift lever
position, the system will be active until the vehicle speed
is increased to approximately 11 mph (18 km/h) or
above. The system will be active again if the vehicle
speed is decreased to speeds less than approximately
10 mph (16 km/h).
ParkSense Sensors
The ParkSense sensors, located in the rear fascia/
bumper, monitor the area behind the vehicle that is
within the sensors’ field of view. The sensors can detect obstacles from approximately
12 in (30 cm) up to 79 in (200 cm) from the rear
fascia/bumper in the horizontal direction, depending on
the location, type and orientation of the obstacle.
ParkSense
Warning Display
The ParkSense Warning screen will only be displayed if
Sound and Display is selected from the Customer-
Programmable Features section of the Electronic Vehicle
Information Center (EVIC). Refer to “Electronic Vehicle
Information Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

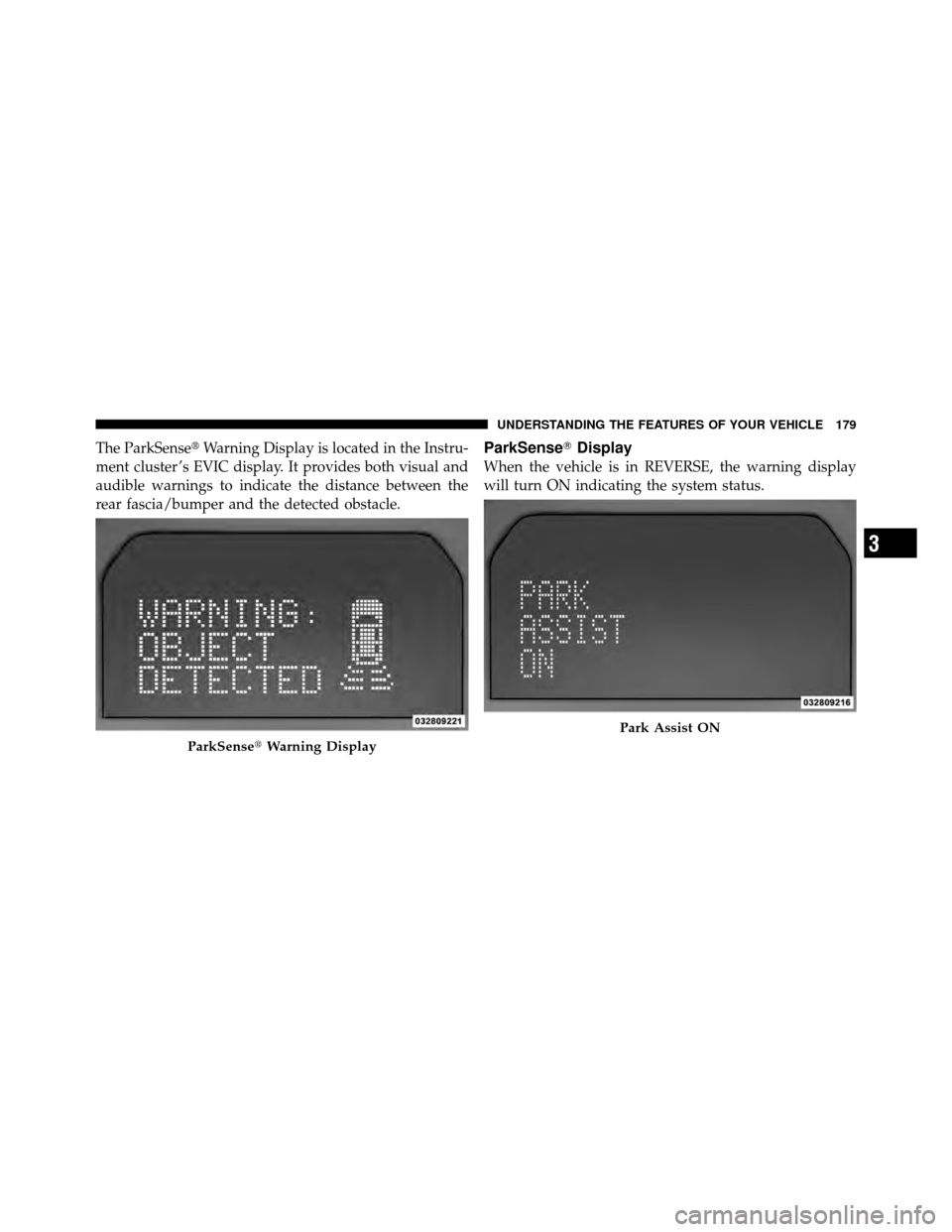

The ParkSenseWarning Display is located in the Instru-
ment cluster ’s EVIC display. It provides both visual and
audible warnings to indicate the distance between the
rear fascia/bumper and the detected obstacle.ParkSense Display
When the vehicle is in REVERSE, the warning display
will turn ON indicating the system status.
ParkSenseWarning Display
Park Assist ON
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179

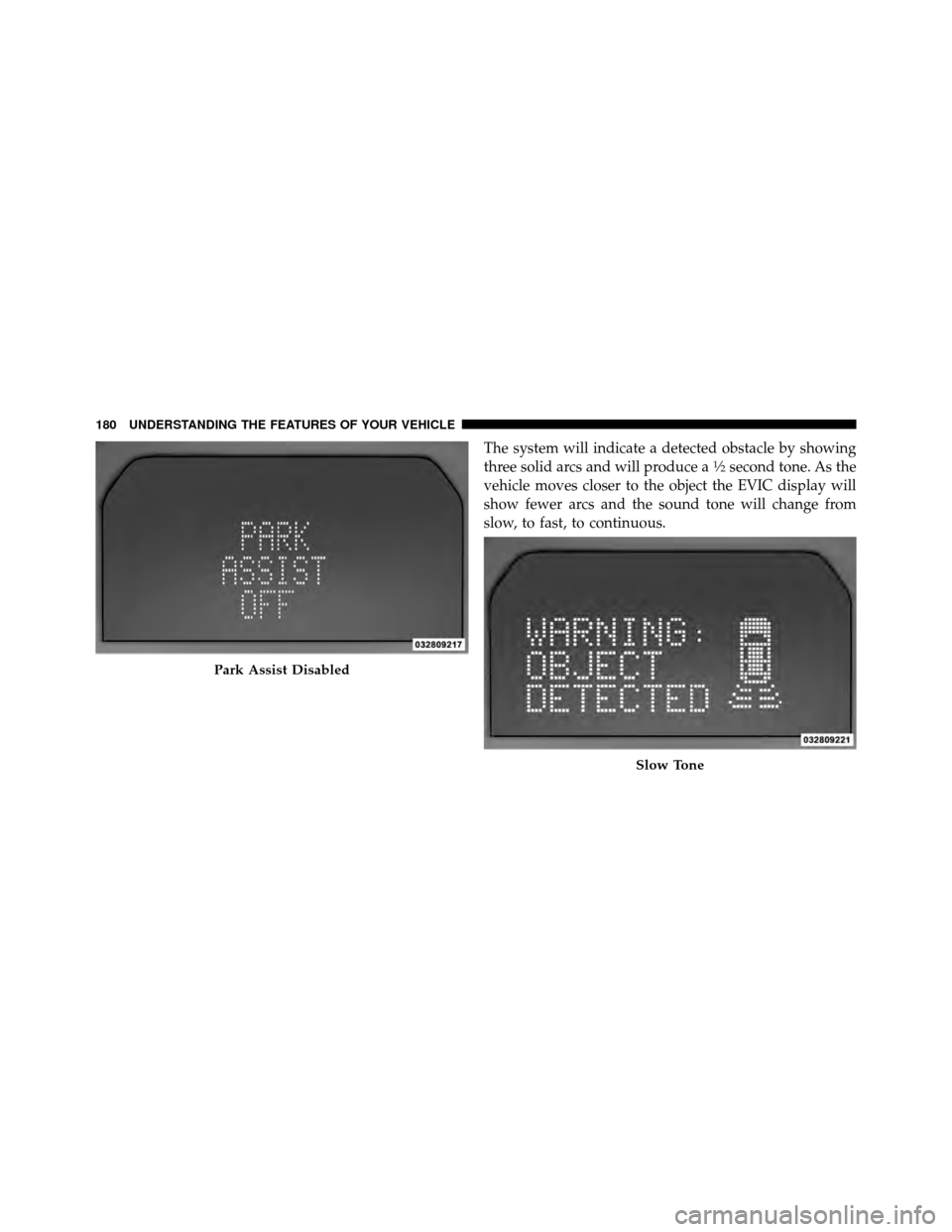

The system will indicate a detected obstacle by showing
three solid arcs and will produce a12second tone. As the
vehicle moves closer to the object the EVIC display will
show fewer arcs and the sound tone will change from
slow, to fast, to continuous.
Park Assist Disabled
Slow Tone
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

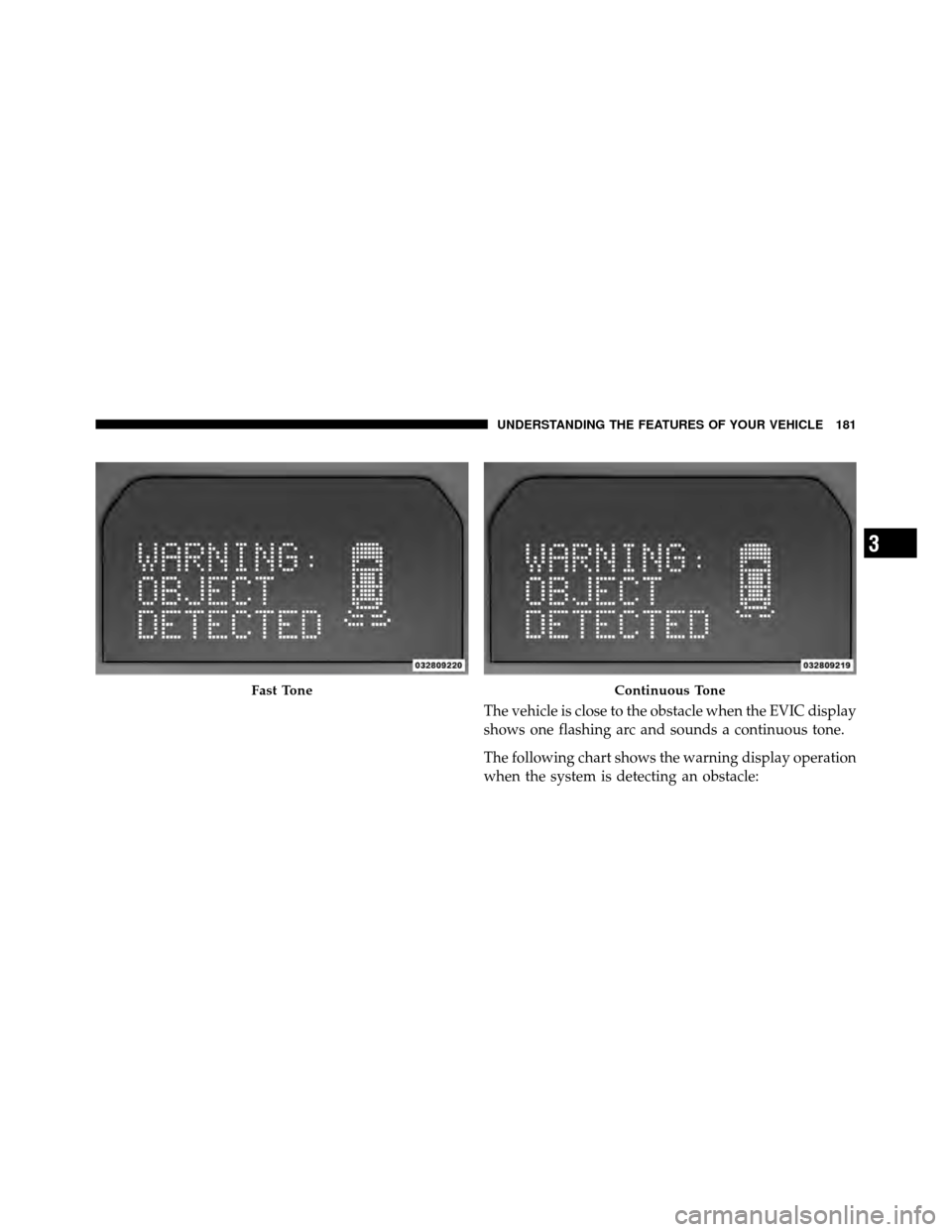

The vehicle is close to the obstacle when the EVIC display
shows one flashing arc and sounds a continuous tone.
The following chart shows the warning display operation
when the system is detecting an obstacle:
Fast ToneContinuous Tone
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181

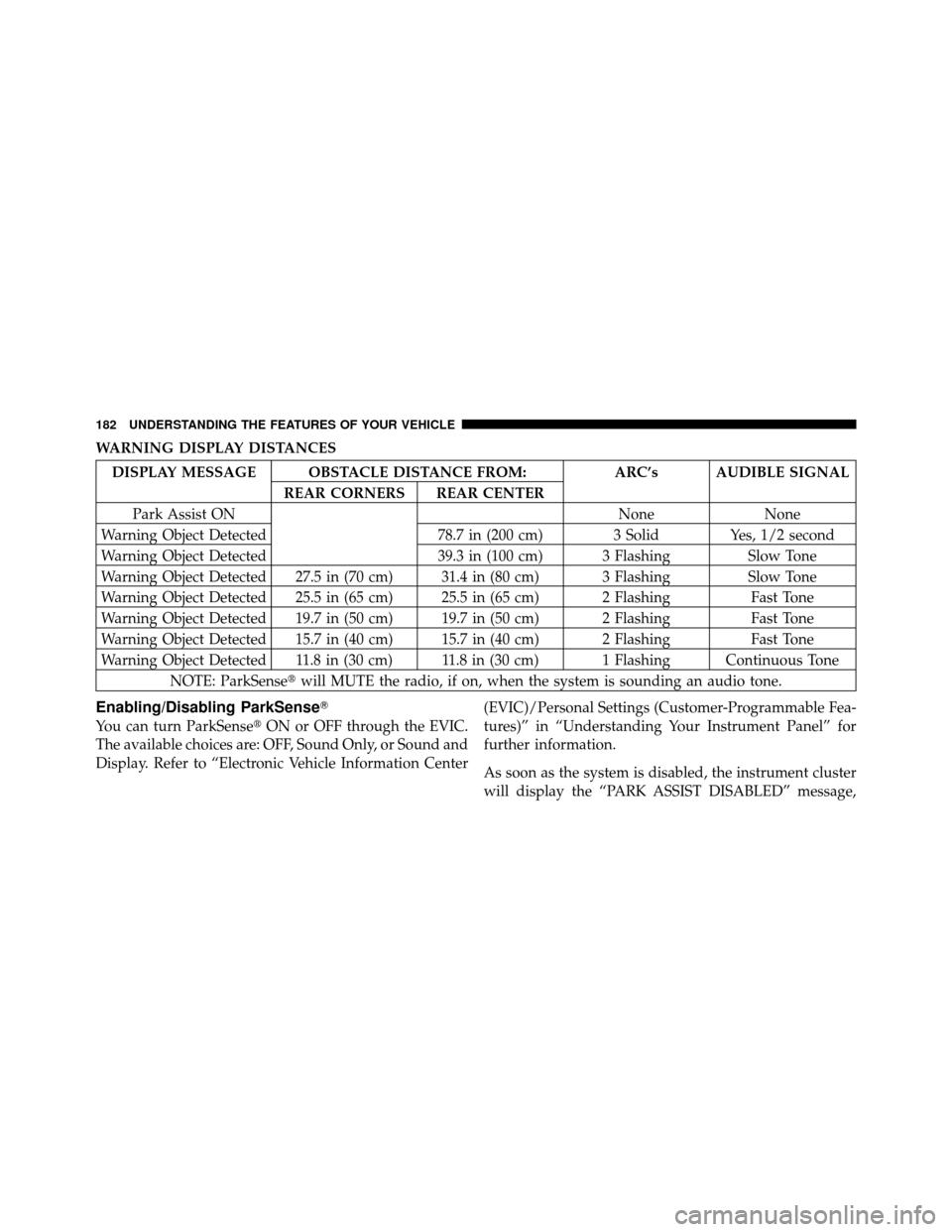

WARNING DISPLAY DISTANCES
DISPLAY MESSAGE OBSTACLE DISTANCE FROM:ARC’s AUDIBLE SIGNAL
REAR CORNERS REAR CENTER
Park Assist ON NoneNone
Warning Object Detected 78.7 in (200 cm) 3 Solid Yes, 1/2 second
Warning Object Detected 39.3 in (100 cm) 3 FlashingSlow Tone
Warning Object Detected 27.5 in (70 cm) 31.4 in (80 cm) 3 Flashing Slow Tone
Warning Object Detected 25.5 in (65 cm) 25.5 in (65 cm) 2 Flashing Fast Tone
Warning Object Detected 19.7 in (50 cm) 19.7 in (50 cm) 2 Flashing Fast Tone
Warning Object Detected 15.7 in (40 cm) 15.7 in (40 cm) 2 Flashing Fast Tone
Warning Object Detected 11.8 in (30 cm) 11.8 in (30 cm) 1 Flashing Continuous Tone NOTE: ParkSense will MUTE the radio, if on, when the system is sounding an audio tone.
Enabling/Disabling ParkSense
You can turn ParkSense ON or OFF through the EVIC.
The available choices are: OFF, Sound Only, or Sound and
Display. Refer to “Electronic Vehicle Information Center (EVIC)/Personal Settings (Customer-Programmable Fea-
tures)” in “Understanding Your Instrument Panel” for
further information.
As soon as the system is disabled, the instrument cluster
will display the “PARK ASSIST DISABLED” message,

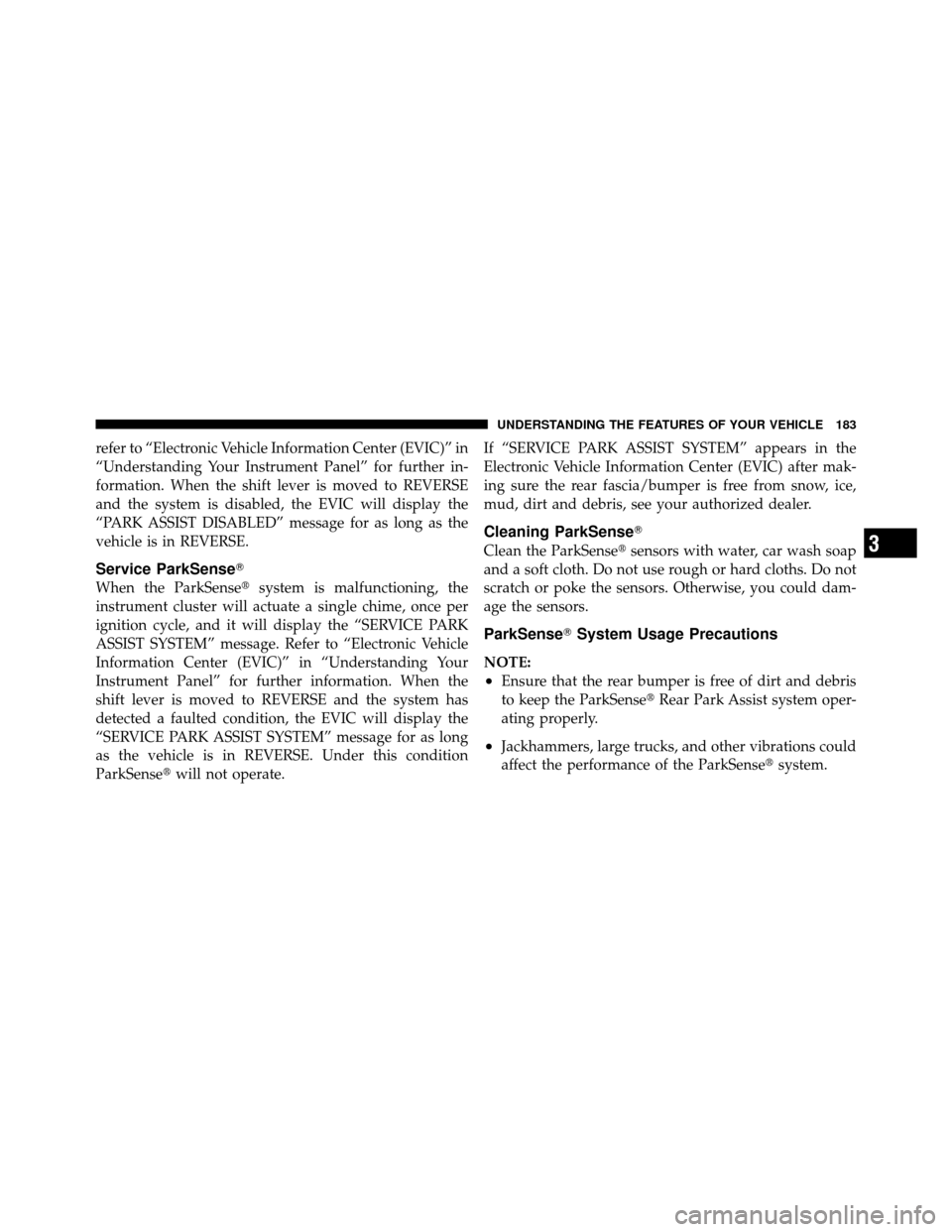

182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

refer to “Electronic Vehicle Information Center (EVIC)” in
“Understanding Your Instrument Panel” for further in-
formation. When the shift lever is moved to REVERSE
and the system is disabled, the EVIC will display the
“PARK ASSIST DISABLED” message for as long as the
vehicle is in REVERSE.
Service ParkSense
When the ParkSensesystem is malfunctioning, the
instrument cluster will actuate a single chime, once per
ignition cycle, and it will display the “SERVICE PARK
ASSIST SYSTEM” message. Refer to “Electronic Vehicle
Information Center (EVIC)” in “Understanding Your
Instrument Panel” for further information. When the
shift lever is moved to REVERSE and the system has
detected a faulted condition, the EVIC will display the
“SERVICE PARK ASSIST SYSTEM” message for as long
as the vehicle is in REVERSE. Under this condition
ParkSense will not operate. If “SERVICE PARK ASSIST SYSTEM” appears in the
Electronic Vehicle Information Center (EVIC) after mak-
ing sure the rear fascia/bumper is free from snow, ice,
mud, dirt and debris, see your authorized dealer.
Cleaning ParkSense
Clean the ParkSense
sensors with water, car wash soap
and a soft cloth. Do not use rough or hard cloths. Do not
scratch or poke the sensors. Otherwise, you could dam-
age the sensors.
ParkSense System Usage Precautions
NOTE:
•Ensure that the rear bumper is free of dirt and debris
to keep the ParkSense Rear Park Assist system oper-
ating properly.
•Jackhammers, large trucks, and other vibrations could
affect the performance of the ParkSense system.
3
