2010 CHRYSLER SEBRING Owners Manual

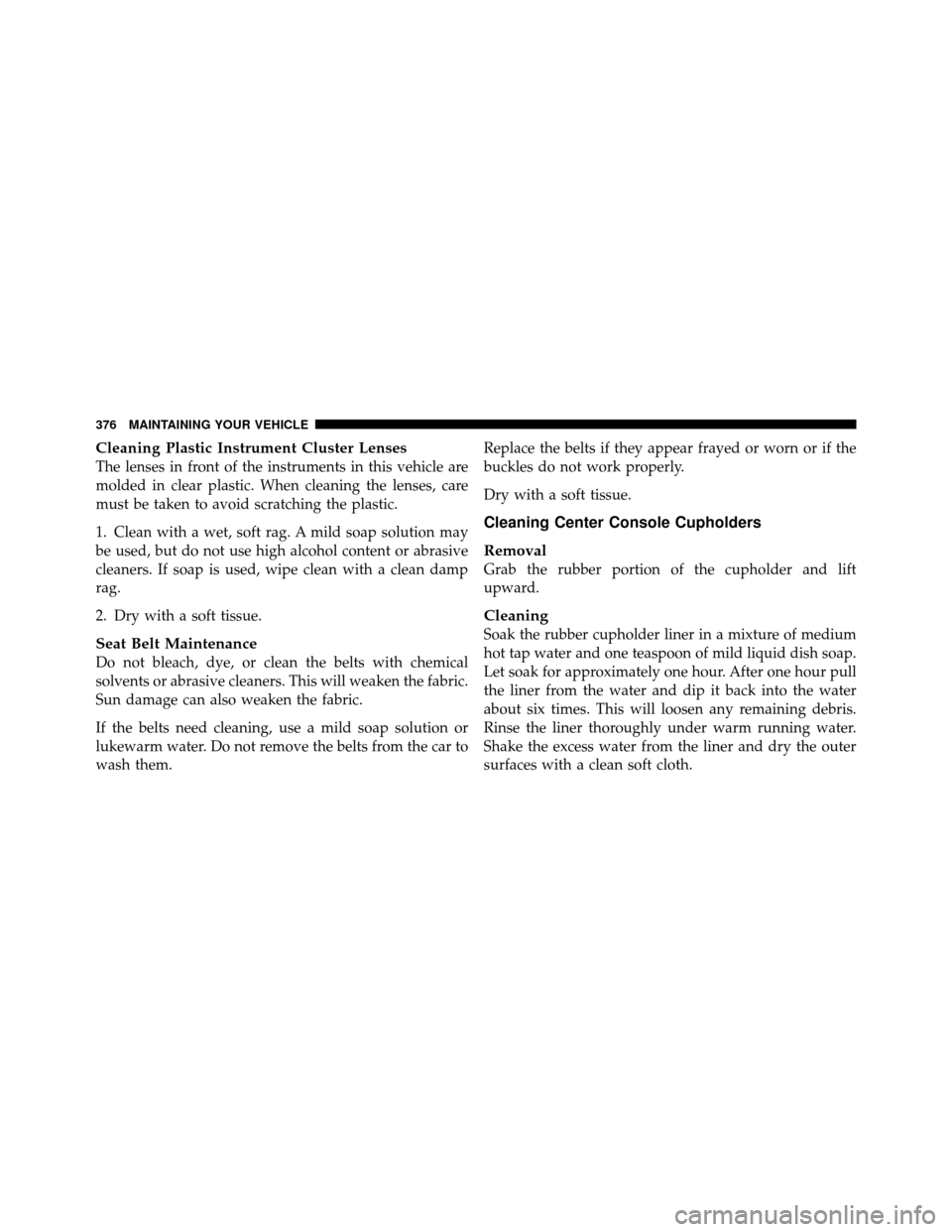

Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet, soft rag. A mild soap solution may
be used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Dry with a soft tissue.
Cleaning Center Console Cupholders
Removal
Grab the rubber portion of the cupholder and lift
upward.
Cleaning
Soak the rubber cupholder liner in a mixture of medium
hot tap water and one teaspoon of mild liquid dish soap.
Let soak for approximately one hour. After one hour pull
the liner from the water and dip it back into the water
about six times. This will loosen any remaining debris.
Rinse the liner thoroughly under warm running water.
Shake the excess water from the liner and dry the outer
surfaces with a clean soft cloth.
376 MAINTAINING YOUR VEHICLE

Installation
Align the liner in the cupholder and press down firmly.
FUSES
Totally Integrated Power Module (TIPM)
The TIPM is located in the engine compartment near the
air cleaner assembly. This center contains cartridge fuses
and mini fuses. A label that identifies each component
may be printed on the inside of the cover. Refer to the
graphic below for FUSES/TIPM location.
CavityCartridge
Fuse Mini
Fuse Description
1 40 Amp
Green —Power Top Module –
If Equipped
2— 20 Amp
Yellow AWD Module
Totally Integrated Power Module (TIPM)
7
MAINTAINING YOUR VEHICLE 377

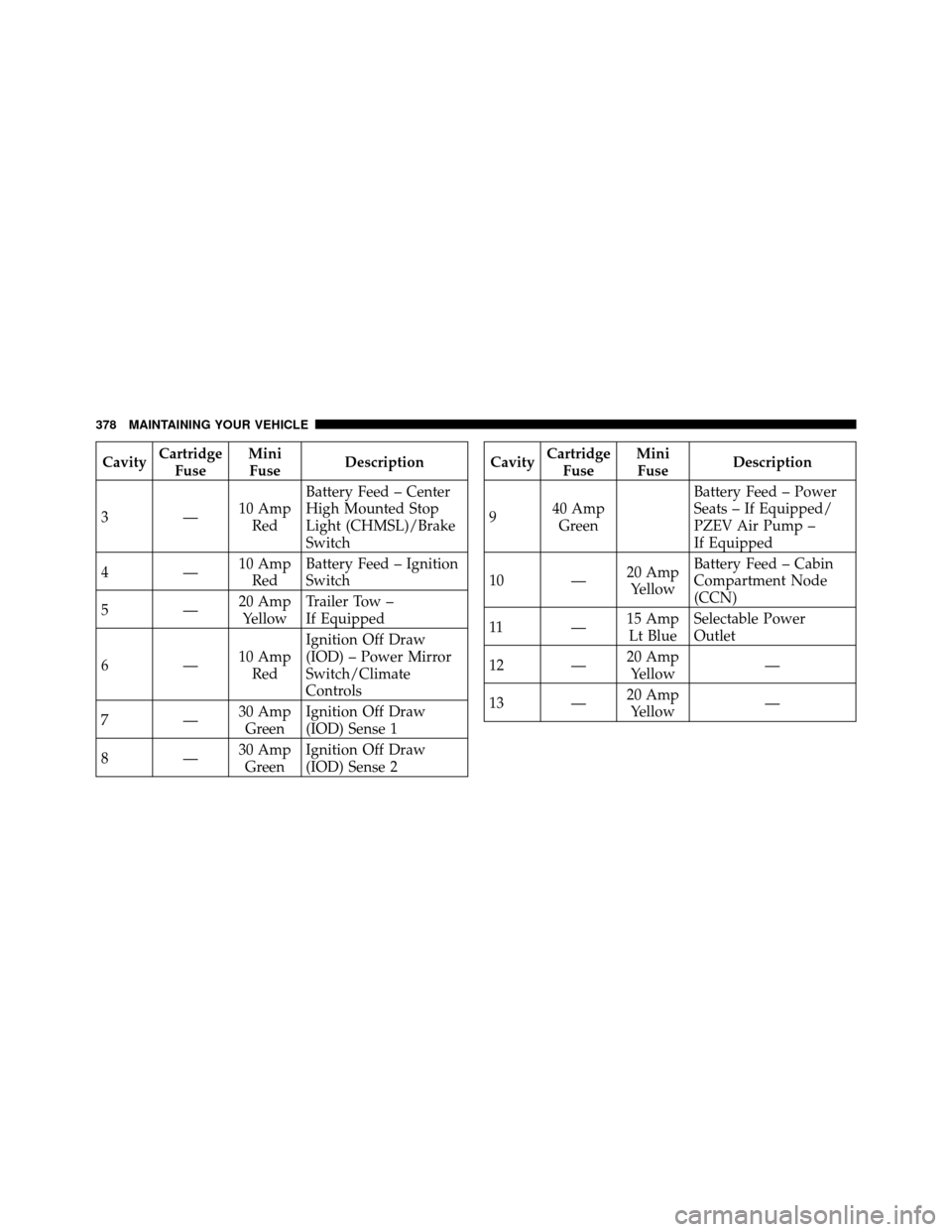

CavityCartridge
Fuse Mini
Fuse Description
3— 10 Amp
Red Battery Feed – Center
High Mounted Stop
Light (CHMSL)/Brake
Switch
4— 10 Amp
Red Battery Feed – Ignition
Switch
5— 20 Amp
Yellow Trailer Tow –
If Equipped
6— 10 Amp
Red Ignition Off Draw
(IOD) – Power Mirror
Switch/Climate
Controls
7— 30 Amp
Green Ignition Off Draw
(IOD) Sense 1
8— 30 Amp
Green Ignition Off Draw
(IOD) Sense 2Cavity
Cartridge
Fuse Mini
Fuse Description
9 40 Amp
Green Battery Feed – Power
Seats – If Equipped/
PZEV Air Pump –
If Equipped
10 — 20 Amp
Yellow Battery Feed – Cabin
Compartment Node
(CCN)
11 — 15 Amp
Lt Blue Selectable Power
Outlet
12 — 20 Amp
Yellow —
13 — 20 Amp
Yellow —
378 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse Mini
Fuse Description
14 — 10 Amp
Red Ignition Off Draw
(IOD) – Cabin
Compartment Node
(CCN)/Interior
Lighting
15 40 Amp
Green —Battery Feed –
Radiator Fan Relay
16 — 15 Amp
Lt. Blue IGN Run/ACC – Cigar
Lighter/PWR Sunroof
Mod
17 — 10 Amp
Red Ignition Off Draw
(IOD) – Wireless Con-
trol Module (WCM)/
Clock/Steering Control
Module (SCM)
18 40 Amp
Green —Battery Feed – Auto
Shutdown (ASD) RelayCavity Cartridge
Fuse Mini
Fuse Description
19 — 20 Amp
Yellow Ignition Off Draw
(IOD) – Power Amp
Feed2–IfEquipped
20 — 15 Amp
Lt. Blue Ignition Off Draw
(IOD) – Radio
21 — 10 Amp
Red —
22 — 10 Amp
Red Ignition Run – Climate
Controls/Hot Cup-
holder – If Equipped
23 — 15 Amp
Lt. Blue Auto Shutdown (ASD)
Relay Feed 3
24 — 25 Amp
Natural Battery Feed — PWR
Sunroof Feed
25 — 10 Amp
Red Ignition Run — Heated
Mirrors - If Equipped
7
MAINTAINING YOUR VEHICLE 379

CavityCartridge
Fuse Mini
Fuse Description
26 — 15 Amp
Lt. Blue Auto Shutdown (ASD)
Relay Feed 2
27 — 10 Amp
Red Ignition Run – Occu-
pant Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)
28 — 10 Amp
Red Ignition Run — Occu-
pant Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)
29 — — Hot Car
(No Fuse Required)
30 — 20 Amp
Yellow Ignition Run – Heated
Seats – If EquippedCavity
Cartridge
Fuse Mini
Fuse Description
31 — 10 Amp
Red —
32 30 Amp
Pink —Auto Shutdown (ASD)
Relay Feed 1
33 — 10 Amp
Red Battery Feed – Switch
Bank/Diagnostic Link
Connector/Powertrain
Control Module (PCM)
34 30 Amp
Pink —Battery Feed – Anti-
Lock Brakes (ABS)
Module – If Equipped/
Electronic Stability
Control (ESC) Module
– If Equipped
380 MAINTAINING YOUR VEHICLE

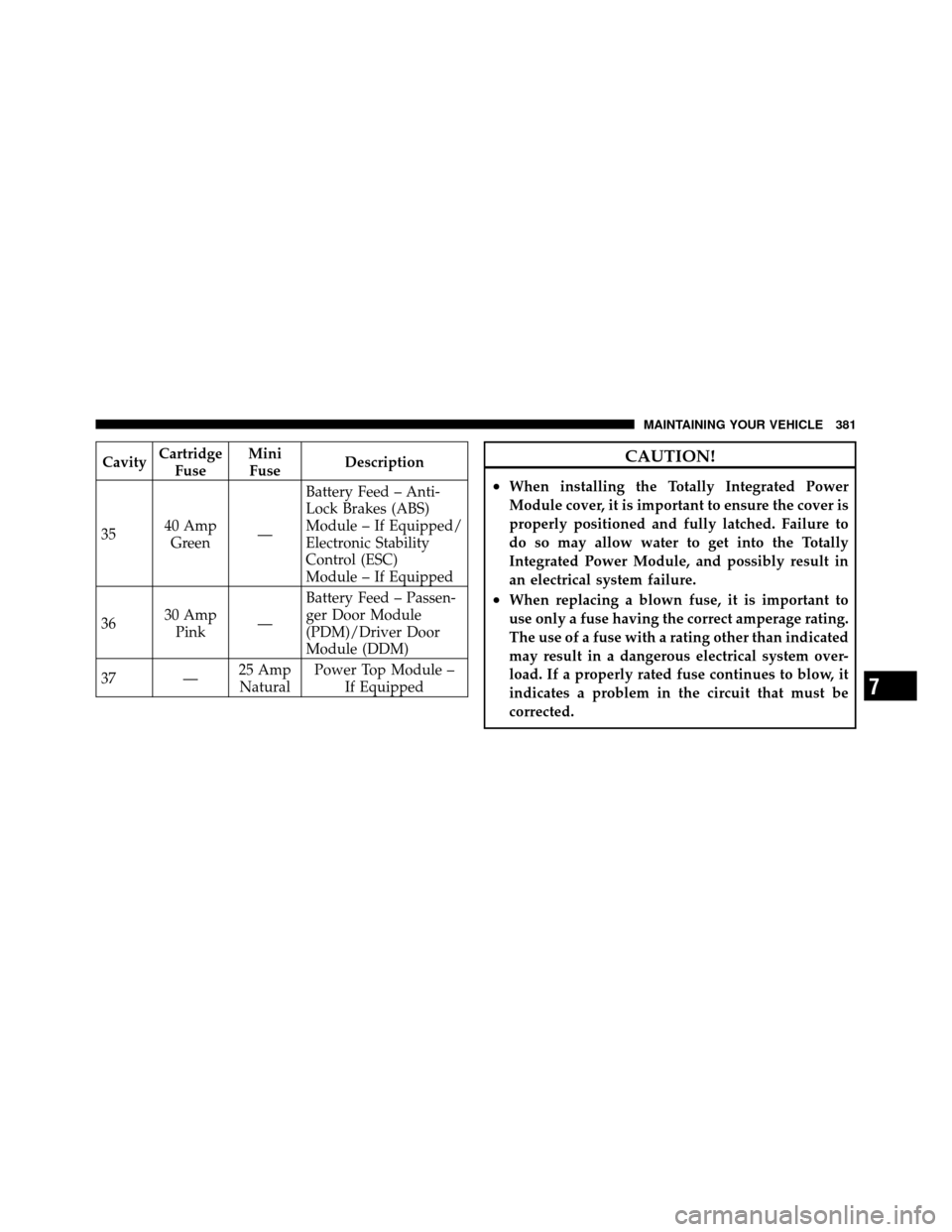

CavityCartridge
Fuse Mini
Fuse Description
35 40 Amp
Green —Battery Feed – Anti-
Lock Brakes (ABS)
Module – If Equipped/
Electronic Stability
Control (ESC)
Module – If Equipped
36 30 Amp
Pink —Battery Feed – Passen-
ger Door Module
(PDM)/Driver Door
Module (DDM)
37 — 25 Amp
Natural Power Top Module –
If EquippedCAUTION!
•When installing the Totally Integrated Power
Module cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the Totally
Integrated Power Module, and possibly result in
an electrical system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
7
MAINTAINING YOUR VEHICLE 381

VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Disconnect the negative cable from the battery.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.LIGHT BULBS – Interior
Bulb No.
Front Courtesy/Reading Lamp ..........578/W5W
Center Courtesy/Reading Lamp ..........578/W5W
Visor Vanity Lamp ...................... A6220
Glove Box Lamp ....................... A6220
Shift Indicator Lamp ................. IKLE14140
Rear Compartment (Trunk) Lamp ............. 579
NOTE: For lighted switches, see your authorized dealer
for replacement.
382 MAINTAINING YOUR VEHICLE

LIGHT BULBS – ExteriorBulb No.
Low Beam Headlamp ..................... H11
High Beam Headlamp .................... 9005
Front Park/Turn Signal/Side Marker Lamp ....3757A
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop
(CHMSL) Lamp ................... W16W (921)
Rear Tail/Stop Lamp ..................... 3157
Rear Turn Signal Lamp .................... 3157
Backup Lamp .......................... 3157
License Lamp .......................... W5W
Front Position Lamp ..................... W5W
BULB REPLACEMENT
Headlamp
1. Raise and prop open the hood. Locate the connector
behind the headlamp. NOTE:
It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the
lamp assembly and grasp the connector.
7
