The left latch opens to the top storage area.The lower bin can be accessed directly, without first
exposing the upper bin, by operating the right latch with
the armrest down.
The first storage bin can be used to hold smaller items.
The lower storage bin includes a molded-in coin holder,
room for CD’s, DVD’s, and a power outlet that allows a
cellular phone to recharge while concealed.
NOTE:
•A notch in the side of the console base under the
armrest will also allow use of cellular phone while still
plugged into the power outlet and with the armrest
latched down.
•The power outlet located inside the console can also
energize the cigar lighter in the available Smoker’s

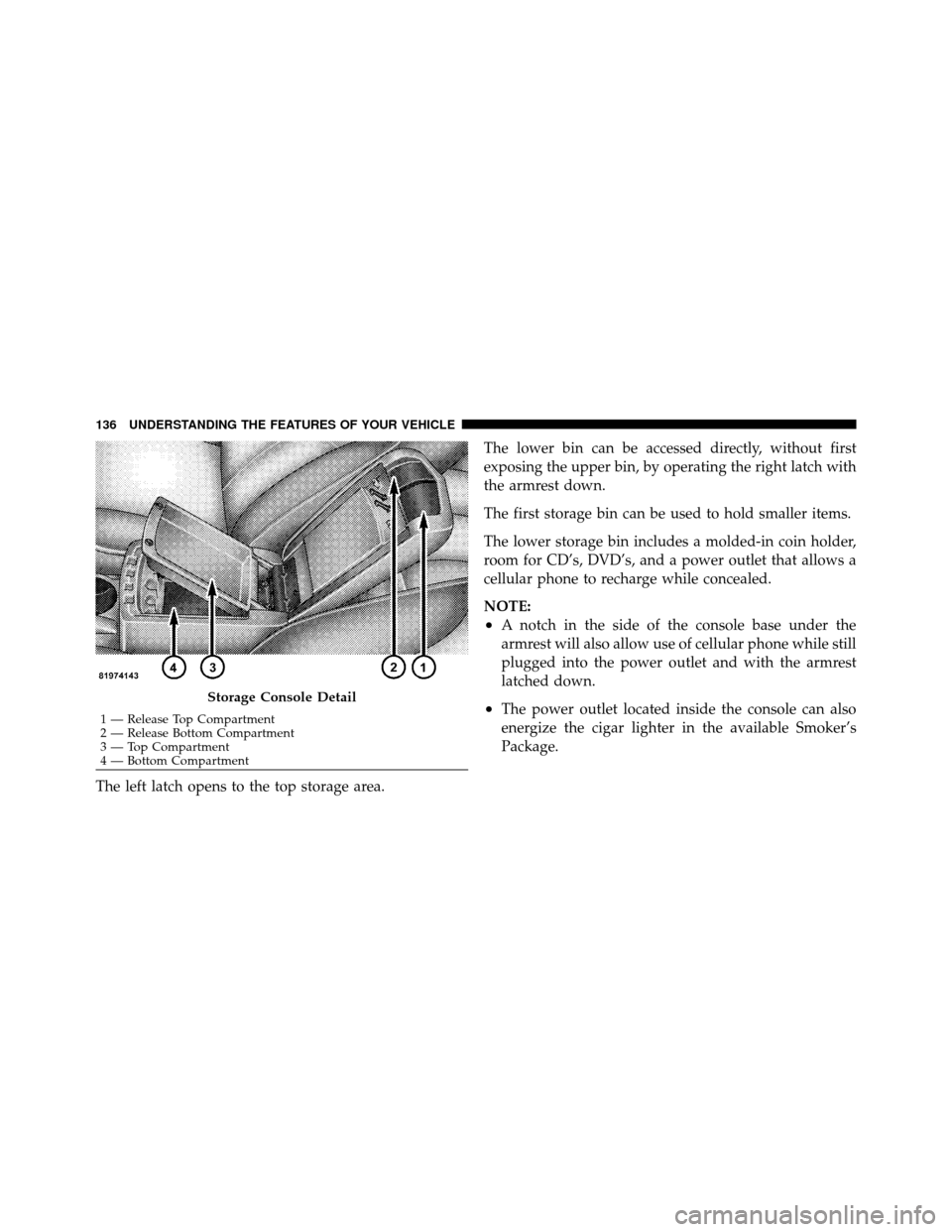

Package.Storage Console Detail
1 — Release Top Compartment
2 — Release Bottom Compartment
3 — Top Compartment
4 — Bottom Compartment
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Video Console — If Equipped
The optional Video Entertainment System (VES)™ in-
cludes the following components:
•The screen for a rear seat DVD player is stored under
the armrest.
•Remote Control
•Audio/Video RCA JacksRefer to “Video Entertainment System — If Equipped,”
in “Understanding Your Instrument Panel” for further
information.
Video Console
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137

REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located on the
climate control (Mode) knob. Press this button to
turn on the rear window defroster and the heated outside
mirrors (if equipped). An indicator in the button will
illuminate when the rear window defroster is on. The
rear window defroster automatically turns off after ap-
proximately 10 minutes. For an additional five minutes of
operation, press the button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 143
 Instrument Cluster .................... 144
 Instrument Cluster Descriptions ........... 145
 Electronic Vehicle Information Center (EVIC) –
If Equipped .......................... 158
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... 160
▫ Oil Change Required — If Equipped ...... 161
▫ Trip Functions ...................... 162
▫ Compass Display .................... 163 ▫
Personal Settings
(Customer-Programmable Features) ....... 166
 Setting The Analog Clock ................ 169
 Media Center 230 (REQ) — AM/FM Stereo
Radio And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) .................. 169
▫ Operating Instructions - Radio Mode ...... 170
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 178
▫ Notes On Playing MP3/WMA Files ....... 180
4

▫List Button
(Disc Mode For MP3/WMA Play) ......... 182
▫ Info Button
(Disc Mode For MP3/WMA Play) ......... 183
 Media Center 730N/430 (RER/REN/RBZ) —
AM/FM Stereo Radio And CD/DVD/HDD/
NAV — If Equipped .................... 185
▫ Operating Instructions — Voice Command
System — If Equipped ................. 185
▫ Operating Instructions —
Uconnect™ Phone — If Equipped ........ 185
▫ Clock Setting Procedure — RBZ Radio ..... 186
▫ Clock Setting Procedure —
RER/REN Radio ..................... 187
Media Center 130 (RES) — AM/FM Stereo
Radio With CD Player (MP3 AUX Jack) ....... 189
▫ Operating Instructions — Radio Mode ..... 190
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 193
▫ Notes On Playing MP3 Files ............ 195
▫ Operation Instructions - Auxiliary Mode .... 197
 Media Center 130 (RES/RSC) — AM/FM
Stereo Radio With CD Player (MP3 AUX Jack)
And Sirius Radio ...................... 198
▫ Operating Instructions — Radio Mode ..... 198
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 204
▫ Notes On Playing MP3 Files ............ 206
▫ List Button (CD Mode For MP3 Play) ...... 209
140 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Info Button (CD Mode For MP3 Play) ...... 209
▫ Operating Instructions - Uconnect™ Phone
(If Equipped) ....................... 210
 Uconnect™ Multimedia (Satellite Radio) —
If Equipped (REN/REQ/RER/RBZ/RES
Radios Only) ......................... 210
▫ System Activation .................... 211
▫ Electronic Serial Number/Sirius
Identification Number (ESN/SID) ......... 211
▫ Selecting Uconnect™ Multimedia (Satellite)
Mode ............................. 211
▫ Satellite Antenna ..................... 212
▫ Reception Quality .................... 212 ▫
Operating Instructions - Uconnect™
Multimedia (Satellite) Mode ............. 212
▫ Operating Instructions - Uconnect™ Phone
(If Equipped) ....................... 214
 Video Entertainment System (VES)™ —
If Equipped .......................... 214
 Remote Sound System Controls —
If Equipped .......................... 216
▫ Right-Hand Switch Functions ............ 217
▫ Left-Hand Switch Functions For Radio
Operation .......................... 217
▫ Left-Hand Switch Functions For Media
(i.e., CD) Operation ................... 218
4
UNDERSTANDING YOUR INSTRUMENT PANEL 141

CD/DVD Disc Maintenance .............. 218
 Radio Operation And Cellular Phones ....... 219
 Climate Controls ...................... 219
▫ Manual Heating And Air Conditioning ..... 219▫
Automatic Temperature Control (ATC) —
If Equipped ........................ 223
▫ Operating Tips ...................... 229
142 UNDERSTANDING YOUR INSTRUMENT PANEL

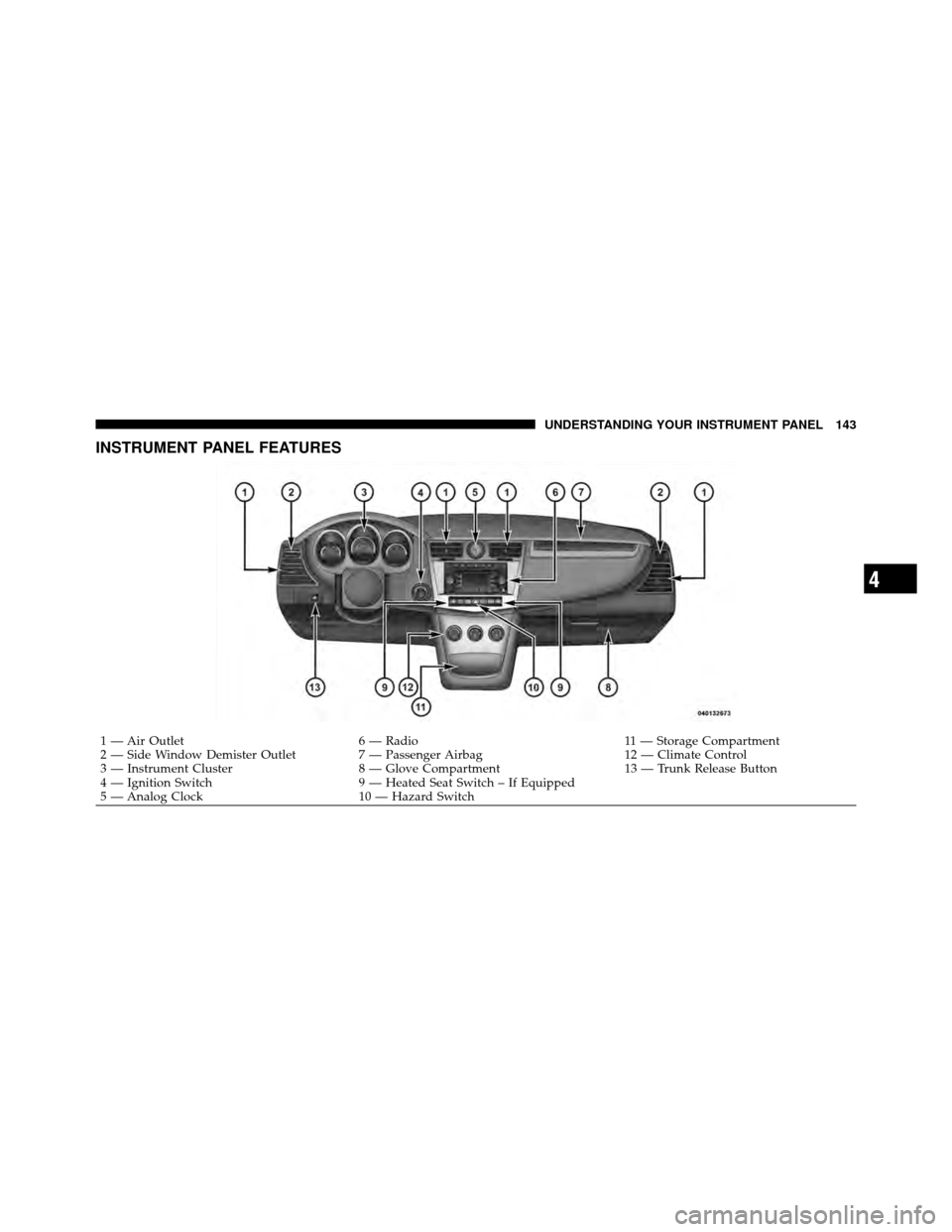

INSTRUMENT PANEL FEATURES
1 — Air Outlet6 — Radio 11 — Storage Compartment
2 — Side Window Demister Outlet 7 — Passenger Airbag 12 — Climate Control
3 — Instrument Cluster 8 — Glove Compartment 13 — Trunk Release Button
4 — Ignition Switch 9 — Heated Seat Switch – If Equipped
5 — Analog Clock 10 — Hazard Switch
4
