2010 CHRYSLER SEBRING Owners Manual

If you must use the accessories (wipers, defrosters, etc.)
while being towed, the key must be in the ON position,
not the ACC position. Make certain the transaxle remains
in NEUTRAL.
Towing Without The Ignition Key
Special care must be taken when the vehicle is towed
with the ignition in the LOCK position. Flatbed towing is
the preferred towing method. However, if a flatbed
towing vehicle is not available, a wheel lift towing
vehicle may be used. Rear towing is not recommended
with the front wheels on the ground, as transaxle damage
can result. If rear towing is the only alternative, a front
end dolly must be used. Proper towing equipment is
necessary to prevent damage to the vehicle.
Towing This Vehicle Behind Another Vehicle
Flat towing with all four wheels on the ground of
vehicles equipped with an automatic transmission, is
only permitted within the limitations described in this
section.
Towing This Vehicle Behind Another Vehicle With
A Tow Dolly
Rear towing is not recommended with the front wheels
on the ground, as transaxle damage can result. If rear
towing is the only alternative, a front end dolly must be
used. Proper towing equipment is necessary to prevent
damage to the vehicle.
336 WHAT TO DO IN EMERGENCIES

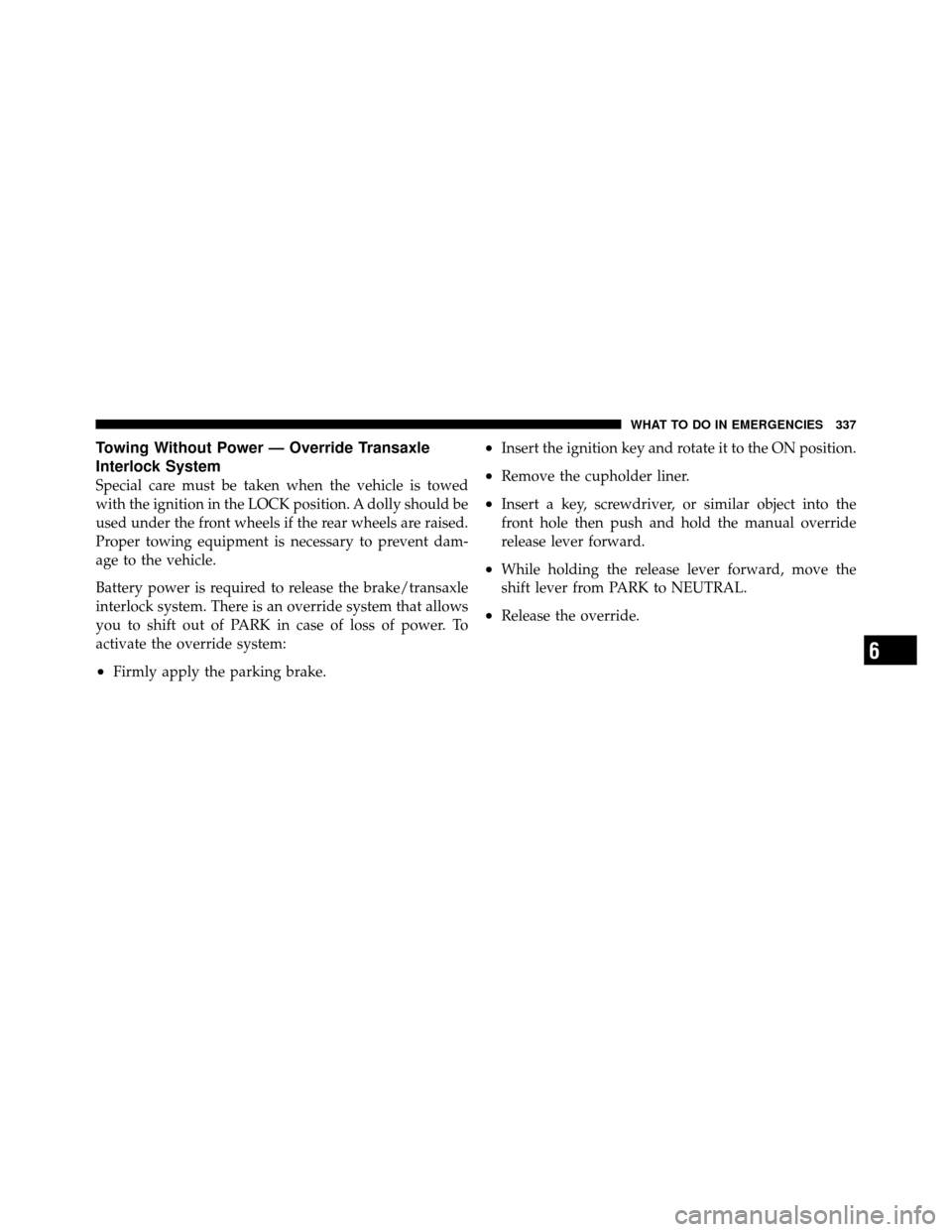

Towing Without Power — Override Transaxle
Interlock System
Special care must be taken when the vehicle is towed
with the ignition in the LOCK position. A dolly should be
used under the front wheels if the rear wheels are raised.
Proper towing equipment is necessary to prevent dam-
age to the vehicle.
Battery power is required to release the brake/transaxle
interlock system. There is an override system that allows
you to shift out of PARK in case of loss of power. To
activate the override system:
•Firmly apply the parking brake.
•Insert the ignition key and rotate it to the ON position.
•Remove the cupholder liner.
•Insert a key, screwdriver, or similar object into the
front hole then push and hold the manual override
release lever forward.
•While holding the release lever forward, move the
shift lever from PARK to NEUTRAL.
•Release the override.
6
WHAT TO DO IN EMERGENCIES 337

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 2.4L ............. 341
 Engine Compartment — 2.7L ............. 342
 Engine Compartment — 3.5L ............. 343
 Onboard Diagnostic System — OBD II ...... 344
▫ Loose Fuel Filler Cap Message ........... 344
 Emissions Inspection And Maintenance
Programs ............................ 345
 Replacement Parts ..................... 346
 Dealer Service ........................ 346
Maintenance Procedures ................. 347
▫ Engine Oil ......................... 348
▫ Engine Oil Filter ..................... 351
▫ Engine Air Cleaner Filter ............... 352
▫ Maintenance-Free Battery .............. 352
▫ Air Conditioner Maintenance ............ 354
▫ A/C Air Filter – If Equipped ............ 355
▫ Body Lubrication .................... 356
▫ Windshield Wiper Blades ............... 357
7

▫Adding Washer Fluid ................. 358
▫ Exhaust System ..................... 358
▫ Cooling System ..................... 361
▫ Brake System ....................... 366
▫ Automatic Transmission ............... 368
▫ Appearance Care And Protection From
Corrosion .......................... 371
▫ Cleaning Center Console Cupholders ...... 376
 Fuses .............................. 377
▫ Totally Integrated Power Module (TIPM) . . . 377
 Vehicle Storage ....................... 382
 Replacement Bulbs .................... 382
Bulb Replacement ..................... 383
▫ Headlamp ......................... 383
▫ Front Turn Signal/Parking Lamp ......... 385
▫ Front Fog Lamp ..................... 385
▫ Tail/Stop, Rear Turn Signal And Backup
Lamps ............................ 387
▫ License Plate Lamp ................... 390
▫ Center High-Mounted Stop Lamp
(CHMSL) .......................... 391
 Fluid Capacities ...................... 392
 Fluids, Lubricants, And Genuine Parts ....... 393
▫ Engine ............................ 393
▫ Chassis ........................... 394
340 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 2.4L
1 — Engine Coolant Reservoir7 — Air Cleaner Filter
2 — Power Steering Fluid Reservoir 8 — Engine Oil Fill
3 — Automatic Transmission Dipstick 9 — Coolant Pressure Cap
4 — Brake Fluid Reservoir 10 — Engine Oil Dipstick
5 — Integrated Power Module 11 — Washer Fluid Reservoir
6 — Power Distribution Center
7
MAINTAINING YOUR VEHICLE 341

ENGINE COMPARTMENT — 2.7L
1 — Engine Coolant Reservoir7 — Power Distribution Center
2 — Coolant Pressure Cap 8 — Air Cleaner Filter
3 — Power Steering Fluid Reservoir 9 — Engine Oil Dipstick
4 — Automatic Transmission Dipstick (Four-Speed Only) 10 — Engine Oil Fill
5 — Brake Fluid Reservoir 11 — Washer Fluid Reservoir
6 — Integrated Power Module
342 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 3.5L
1 — Engine Coolant Reservoir6 — Air Cleaner Filter
2 — Coolant Pressure Cap 7 — Engine Oil Dipstick
3 — Power Steering Fluid Reservoir 8 — Engine Oil Fill
4 — Brake Fluid Reservoir 9 — Washer Fluid Reservoir
5 — Totally Integrated Power Module (TIPM)
7
MAINTAINING YOUR VEHICLE 343
