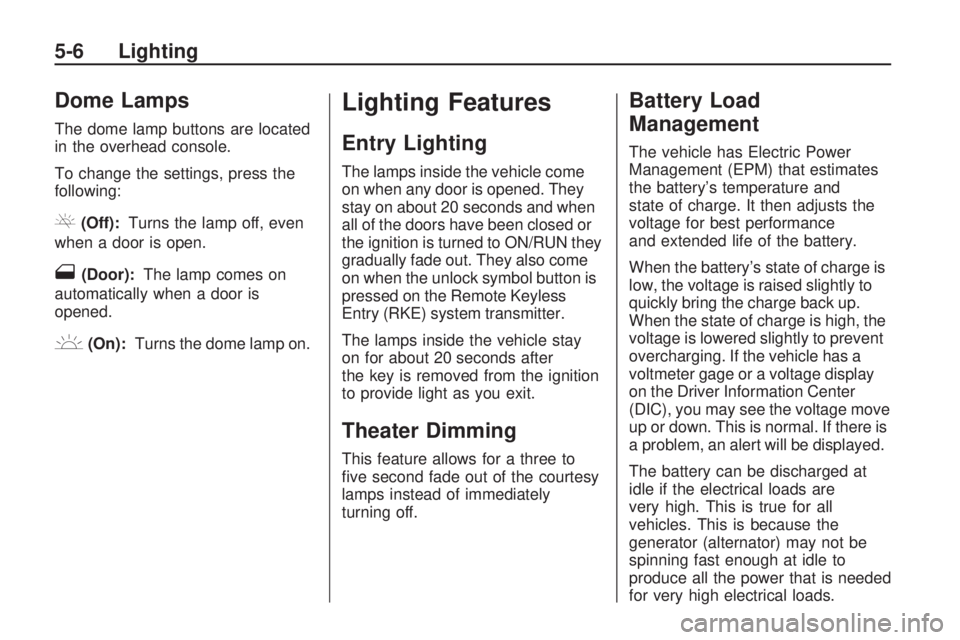

Dome Lamps
The dome lamp buttons are located
in the overhead console.
To change the settings, press the
following:
((Off):Turns the lamp off, even
when a door is open.
1(Door):The lamp comes on
automatically when a door is
opened.
'(On):Turns the dome lamp on.
Lighting Features
Entry Lighting
The lamps inside the vehicle come
on when any door is opened. They
stay on about 20 seconds and when
all of the doors have been closed or
the ignition is turned to ON/RUN they
gradually fade out. They also come
on when the unlock symbol button is
pressed on the Remote Keyless
Entry (RKE) system transmitter.
The lamps inside the vehicle stay
on for about 20 seconds after
the key is removed from the ignition
to provide light as you exit.
Theater Dimming
This feature allows for a three to
five second fade out of the courtesy
lamps instead of immediately
turning off.
Battery Load
Management
The vehicle has Electric Power
Management (EPM) that estimates
the battery’s temperature and
state of charge. It then adjusts the
voltage for best performance
and extended life of the battery.
When the battery’s state of charge is
low, the voltage is raised slightly to
quickly bring the charge back up.
When the state of charge is high, the
voltage is lowered slightly to prevent
overcharging. If the vehicle has a
voltmeter gage or a voltage display
on the Driver Information Center
(DIC), you may see the voltage move
up or down. This is normal. If there is
a problem, an alert will be displayed.
The battery can be discharged at
idle if the electrical loads are
very high. This is true for all
vehicles. This is because the
generator (alternator) may not be
spinning fast enough at idle to
produce all the power that is needed
for very high electrical loads.
5-6 Lighting
