2010 AUDI S8 technical data

_________________________________________ A_ d_v _ a_ n_ c_e _d _ P_ a_ rk_ in_ g =- S -.:.y_s _t _e _ m ___ _
If you press a fu nction bu tto n on t he M MI termina l, the v is u a l display
dis appea rs. Manu ally sw itchin g th e par king assist on ag ain via the
p,qA
switch s hows th e visual image on the MMI display again . Further
info rmation regarding the MMI term inal is in cl uded in the MMI user's
ma nual.
Rear-view camera (rear view)
The rear-view camera picture~ page 166, fig . 183 appears on the
MM I d is play as a mir ror im age. The re ar-view came ra pic ture has
or ientat ion lines and mar ked surfaces projected into i t as an a id to
the par king process ~
page 164. The red line in the picture
~ pag e 164, fig. 179 or~ page 164, fig. 1 80 indicates the coll is ion
area . You s houl d sto p bac kin g up, prefera bly befo re yo u reac h this
poin t~ & -
lf your vehicle is close to an obstacle , th e visual d istance d isplay also
appe ars in th e pic t ur e fr om t he re ar -view camera. This s uperim posed
display is intended to help d isplay the re levant cr itical ve hicle area .
If the visual dis play is shown on the MMI display and you press the
co ntr ol bu tton wi th the
Rear view funct ion ~ page 161 , fig. 178, the
pict ure from t he rear -view came ra is disp laye d.
If the pic ture from t he re ar-view camera is sh own and yo u pre ss the
cont rol button with the
Graphic f unction~ page 166 , fig. 183, t he
visual displ ay is s hown.
Th e p icture from th e re ar-v iew ca mera can b e sw itche d off o n the
MM I dis play ~
page 173 . The acoust ic distance warning remains
a cti ve.
If you press a function b utton on the MMI term ina l, the rear-v iew
c amera picture d is app ears. The rear -view came ra pictur e re a ppears
the next time you pa rk . But the picture from the rear-view camera can
also be show n ag a in on the MMI display by manua lly switc hing off
and on wi th t he
p,,1 A swi tch. Fu rther in fo rm ation r egard ing the M MI
terminal is incl uded i n th e MM I user 's manual.
Controls and equip ­
ment Safety first
& WARNING
•
Sensors have dead spaces in which objects cannot be detected .
Be especially careful to check for small children and animals
before backing up. Small children and animals will not always be
detected by the sensors .
• The Audi parking system is not a substitute for being careful
and alert when backing up. Be especially careful during parking
and similar maneuvers . Always watch where you are driving and
make sure that nothing is in the way.
• Remember that low obstacles which have already been
signaled may pass below the system's sensing zone when the
vehicle is backing up. The fact that the signal stops does not mean
that you have cleared the obstacle. When the signal stops, impact is imminent . Objects such as trailer hitches, chains, narrow posts
or fences covered by a thin layer of paint may not always be
detected by the sy stem. They can still damage your vehicle
without warning.
• Always make sure that the volume and frequency of the chimes
is adjusted so that you can easily hear the acoustic distance signal
even if the radio is playing, the air-conditioner blower is on High
or there is a high level of outside no ise.
- Check the settings whenever someone else has driven the
vehicle before you.
• Improper reliance on the Audi parking system can cause colli­
sions and serious personal injury.
-Never rely only on parking assist when backing up.
- Always che ck rear view mirrors to make sure it i s safe to back
up.
[ i ] Tips
• The rear -view came ra pict ure is avai lab le as soon as the M MI
D ispl ay or the MMI i s swi tched o n, or the s tart -up ph ase is comple ted. _,.
Vehicle care Technical data

_________________________________________ A_ d_v _a_ n_ c_e _d _ P_ a_ r _k_ , _· n_ g=- S-=- y_s _t _e _m __ ....JIJII
& WARNING
• The rear-view cam era has blind spots, in which objects cannot
be detected. Be especiall y carefu l to check for small children and
animal s before backing up . Small childr en and animals will not
always be detected by the sensor s.
• The Audi parking system is not a subst itute for being careful
and alert when ba cking up. Be e specially careful dur ing parking
and similar maneuvers . Always watch where you are driving and
make sure that nothing is in the way.
• Remember that low obstacles which have already been
s ignaled may pass below the system 's sensing zone when the
vehicle is back ing up . Th e fact that the signal stop s does not mean
that you have cleared the obstacle . When the signal stops , impact
is imminent . Objects su ch as trailer hitches, chains, narrow posts
or fences covered by a thin la yer of paint may not always be
detected by the system. They c an still damage your vehicle
without warning.
• Alway s make sure that the volume and frequency of the chimes
is adjusted so th at you can eas ily hear the acoustic distance s ignal
even if the radio is playing, the air-conditioner blower is on High
or there is a high level of outside noise .
- Che ck the setting s whenever someone el se has driven the
vehicle befo re you.
• Improper reliance on the Aud i parking system can caus e colli­
sions and seriou s per sonal injury.
- Never rely only on parking assist when changing ba cking up.
- Alway s check re ar view mirrors to make sure it is safe to back
up.
[ i ) Tips
• Before parking with the rear-view camera, the Adaptive A ir
S uspension stan dard or au tomatic mo de must be swit ched on
=> page 18.
Cont rols a nd e quip ­
m en t
Vehicle OP-eration
• The rear-view camera pict ure is avai lab le as soon as the MMI
Display or the MMI is sw itched on , or the sta rt-u p ph ase is completed .
• In or der for the rear-view camera to function p roper ly, the came ra
lens =>
page 16 1, fig. 176 mus t be kept clean , a nd free o f snow and
ice . Please follow t he addit ional notes on =>
page 174 .
• The c ame ra cover age angle change s when the t runk lid is o pen.
The refore, the rear-v iew camera pict ure is displayed without orienta ­
t ion lines and w ithout blu e surfaces.
• Obse rve and fo llow the notes on towing mode on=>
page 171. •
Applies to ve hicles: w it h Advanced Pa rking System w ith rear view camera
Rear -view camera coverage area
0
Vehicle care
I)
Fig. 18 1 Top vie w:
R ear-v iew came ra
c o ve rage a re a
Fi g. 182 Side view :
Cov ered ar ea @ and
u nc overed are a@ of
th e re ar -vi ew c am era ..
Do-it-yourselt service iTechnical data

_______________________________________ ..:.A ..:. d=...::. v..=a :.:n..:..: c::.: e=. d=-..: P:....= a..:.r .:.:k ..:..:in :....:.2 9~ S ::.:l: y..:s :.:t :.:e :.:m..:....:...__Jffl11
@ and @ Orange orientation lin es
The orientation lines change d irect ion with the steer ing wheel angle .
T hese lines identify the direction of t ravel the rear of the ve hicle
would be taking, driving in reverse gea r with the current stee ring
w heel ang le .
The dynamic orientation lines are provided with markers @. These
ma rkers are each pla ced at a d ista nce of app rox . 3 ft (1 m) from o ne
another. Th rough these markers, the distance to an obstacle can be
es tim ated .
© Redline
The dista nce between your rear b umpe r© and the red line is approx­
imate ly 16 inches (40 cm)=>& . Here, at the latest, you should stop
ba ckin g up =>
page 170 .
© Rear bumper
The rear bumpe r of your ve hicle also appea rs in the MM I Display, for
better or ientation.
& WARNING
Please note that objects not tou ching the ground can appear to be
further away than they really are (for example, the bumper of a
parked vehicle, a trailer hit ch , or the rear of a truck). In this case,
you should not use the guide help line s to measure di stance -
danger of accident!
0 Note
In the MMI D isplay, the direction of travel of the vehicle rear is shown
depe nd ing on the stee ring whee l angle . T he ve hicle front swi ngs out
more than the vehicle rear.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
(I) Tips
• In order for the rear-view came ra to func tion p roperly, the came ra
lens =>
page 161, fig. 176 must be kept clean, and free of snow and
i c e. Please follow t he addit ional no tes on =>
page 174 .
• T he positions of the orientat ion lines /surfaces are displaced up
or dow n if the par king p ro cess is car ried ou t with the rea r-view
camera in Adaptive Air Suspension=>
page 18 dynamic or lift mode.
Th erefore, the ac curacy is red uced. •
App lies to veh icl es : w it h A dvance d Park ing Sys tem w ith rea r view ca mera
Parking mode 2
"P arking mode 2" ca n be used as aid when (parallel)
parking on the side of the road , for e xample .
Vehicle care
Fig. 185 MMI Di spl ay:
Blue su rface aligned
with targeted p arking
s p ot ...
Do-it-yourselt service iTechnical data

_________________________________________ A_ d_v _ a_ n_ c_e _d _ P_ a_ rk_ in_ g =- S -.:.y_s _t _e _ m ___ _
& WARNING (co ntinued )
you should not use the guide help lines to measure distance -
danger of accident!
0 Note
I n the MM I Dis p lay, the direction o f travel o f the ve hicle re ar is rep re ­
sented depend ing on the steeri ng wheel angle. The vehicle front
swi ngs ou t mo re than t he ve hicle re ar.
[ i ] Tips
• In or der f or the rear -v iew camera to function prope rly, the camera
lens~
page 161, fig. 176 must be kept clean, and free of snow and
ice. Please follow the ad ditiona l notes on~
page 174 .
• The positions of the orientatio n lines/ surfaces are displaced up
or down if the par king process is carr ie d out wi th t he rear -view
camera in Adapt ive A ir Suspension=> page 18 dynamic or lift mode.
Th erefo re, t he acc uracy is reduced. •
Controls and equip ­
ment Safety first
Special parking situations
App
lies to vehicles: w ith Advanced Parking System w ith rear v iew camera
Parking next to obstacles
W hen parking next to an obstacle, en ough distance must
left on th e side.
Fig. 187 Top view:
P a rk ing ne xt t o a br ic k
wall
With "pa rking mode 2", yo u can park very close ly to a sidewa lk cur b
with your vehicle~
page 164, fig. 180.
However, whe n pa rking next to an obstacle, s uch as a brick wa ll, a
large r side dis ta nce mus t be se lec ted in order to pr even t collision
damage to the ve hicle. Pos ition the lo ng side of the marked b lue
su rfa ce so th a t there is eno ugh dis ta nce from the cu rb; the surface
must not touc h the curb~ fig. 187 .
Also, the turning process has to occur considerab ly sooner. Th is
me ans th at t he cor respond ing blue curve d line~
p age 168, fig . 186
must not to uch the c urb, but should rather be at a distance far
en ough fr om the cur b~ & .
& WARNING
• Keep plenty of distance from an obstacle, so that your outside
mi rror or a corner of your vehicle does not collide with any obsta-
cle s -danger of accident!
~
Vehicle care Technical data

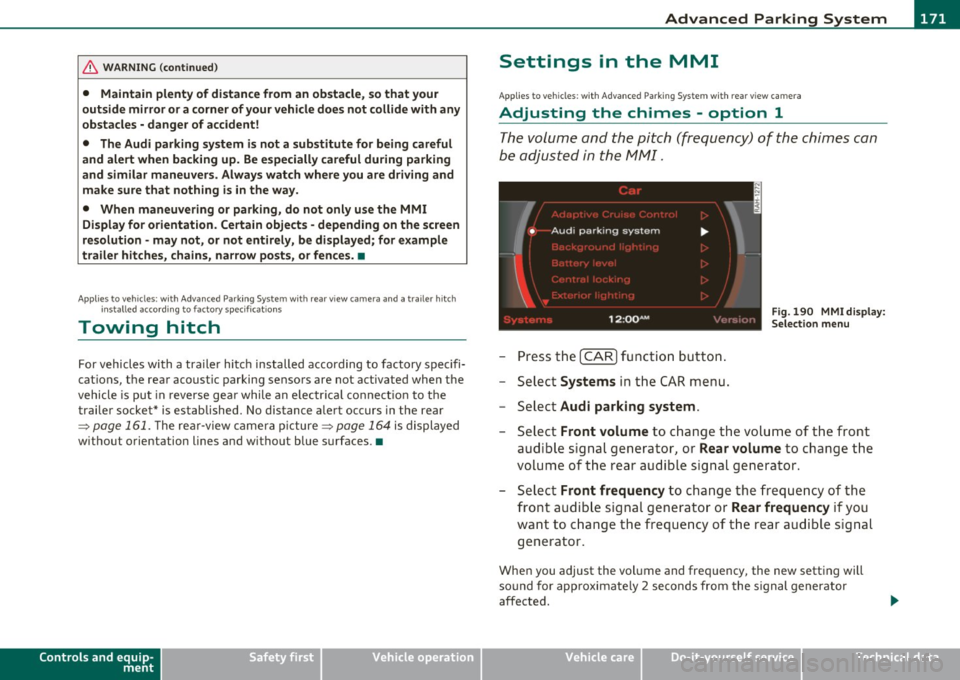

Advanced Parking System -
---------------=---:.--
& WARNING (co ntinued )
• Maintain plenty of di stance from an obstacle , so that your
outside mirror or a corner of your vehicle does not collide with any
obstacle s -danger of accident!
• The Audi parking system is not a substitute for being careful
and alert when backing up. Be e specially careful during parking
and similar maneuvers . Always watch where you are driving and
make sure that nothing is in the
w ay.
• When maneuvering or parking, do not only u se the MMI
Di splay for orientation. Certain obje cts -depending on the s creen
resolution -may not , or not entirely, be di splayed; for e xample
trailer hitches , chains , na rrow posts, or fences. •
Applies to vehicles: with Advanced Park ing System w ith rear view camera and a trailer h itch
i nstalled acco rding to fact ory spec ificat ion s
Towing hitch
For vehicles with a tra ile r hitc h installed according to factory spec ifi­
cat ions, the rear acoust ic parking senso rs are not activated when the
vehicle is pu t in r everse gear while an e lec trica l connec tion to t he
trai ler socket* is established. No distance ale rt occurs in the rear
~ page 161. T he re ar-view camera picture ~ page 164 is di splayed
without o rientation lines and without blue surfaces .•
Controls and equip ­
ment Safety first
Settings in the MMI
App
lies to vehicles: w ith Advanced Parking System w ith rear view camera
Adjusting the chimes -option 1
The volume and the pitch (frequency) of the chimes can
be adjusted in th e MM I.
Fig. 190 MM I di sp lay :
Selec tion menu
-Press th e [ C A R] fu nctio n bu tto n.
- Selec t
Systems in th e CAR me nu.
- Select
Audi parking system .
-Select Front volume to c hange t he volu me of t he fro nt
aud ible signal generator , or
Rear volume to change t he
volume of t he rea r aud ible s ignal genera tor.
- Selec t
Front frequency to change the freq uen cy of th e
front audib le s ignal gener ato r or
Rear frequency if you
wa nt to c hange t he freque ncy of t he rear a udible s ig nal
generato r.
When you adjust the vol ume and freq uency, the new setti ng will
so und for app roxim ate ly 2 s econds from the s ignal generator
affected.
Vehicle care Technical data

_______________________________________ .!.A~d~v~a!!n~c~e=-d~P~a~r~k~i n~gL=S~y~s~t~e:.!m~--
& WARNING
Always make sure that the volume and frequency of the chimes is
adjusted so that you can easily hear the acou sti c di stance signal
e ven if the radio is playing, the air-conditioner blower is on High
or there i s a high level of outside noise . Check the settings when­
e ver someone else has driven the vehicle before you. •
Applies to veh icles: wit h Adva nced Pa rk in g S yste m w it h re ar vi ew camera
Switching the visual display/rear-view
camera on and off
T he visual display and rear -view camera are pres et in the
fv1 fv1I.
Fig . 193 MMI di spl ay :
visual display of
di stanc e to a d ete ct ed
o bstacle
S ele ct : F unct ion button !C AR]> Systems > Audi parking
system
> Display APS > Graphic, Rear View , automatic o r
off.
Th e re ar-view c amera and th e vi su al displ ay can be us ed sepa rately o r
in combination for park ing .
W hen you switch manually to the rear-view came ra via t he control
bu tton w ith the
Rear View function=> fig. 193 , the cont rol button
with the
Graphic function appears . You can switch back and forth
be tween the rea r-view came ra and v is ua l par king ass ist at any time
Controls and equip ­
ment Safety first
via the displayed co
ntrol button function . The presett ings i n the MMI
are ret ained .
"Graphic" setting
If you have set the Graphic fun ction, the v isu al display will be
displayed in the MMI display by defau lt upon activation of the parking
ass ist system => fig . 193.
" Rear View" setting
If you have se t the Rear View fu nction, t he p icture from the rea r-view
came ra =>
page 166 , fig. 184 wi ll be displayed when driv ing back­
w ar d and forwar d w henever the park ing assist system is ac tiv at ed.
"Automatic" setting
If you have se t the automatic function, the pi ctu re from t he rea r-view
camera will automatic ally be d isp layed when reverse ge ar is engaged
and t he visu al di spla y w ill be disp laye d on t he M MI di sp lay w hen you
dr ive forward .
"Off" setting
If you have set the off function, both the rea r-view came ra and the
vi su al di sp lay w ill be de acti vated. The a cous tic par king a ss ist remain s
act ive.
[ i ] Tips
If you change the settings in the MMI, the new se ttings do not
become ac tive unti l the pa rk ing ass ist is swi tched o n aga in .•
Safety tips
App lies to ve hicles : w it h Ad vanced Pa rkin g System w it h rear v iew c amera
Acoustic parking system error message
If you hea r a con tinuous tone for severa l seconds while the front a nd
back park ing assist wit h visual display is act ivate d and the L ED in the ...
Vehicle care Technical data

Advanced Parking System -
---------------=---:.--
& WARNING (co ntinued )
a dirty or defective lens) , the rear-view camera must not be used
for aid
in maneuvering -danger of a ccident!
• The rear-view camera generates two -dimensional images. For
this reason, plea se note that recesses in the ground and
p rotruding parts on anothe r vehicle , or protruding objects fi xed to
the ground , will be more difficult or impo ssible to recognize on
the MMI Display, due to the m issing spacial depth.
• If the position and the installation angle of the camera has
changed, for example, after a rear end coll ision, do not continue
to us e the system for safety reason s. Have it che cked by an autho­
r ized Audi dealer or qual ified workshop.
• Only use the rear-view camera when the rear lid is fully closed .
M ake sure that objects mounted on the rear are not obscu ring the
c amera view.
• Remove ice , preferably with de -icing spray.
0 Note
• N ever use warm or hot water to remove snow or ice from the rear­
view came ra lens -d anger of cra ck fo rmat ion on the le ns!
• When cleaning the lens, never use care prod ucts with an abrasive
effect.
[I) Tips
Th e positions of the or ie ntat io n lines/ s urfa ces a re displaced up o r
down if the par king p rocess is carried out with the rear-view came ra
in Adap tive Air Susp en sion~
page 18 dynam ic or lift mode. There­
fore, the accuracy is reduced. •
Controls and equip ­
ment Safety first
Vehicle care Technical data

____________________________________________ A_ d_a_ p ,_ t_iv _ e_ A _ i_ r _ S_ u_s_, p __ e_n _ s_ i _o_ n __ ffllll
Chassis Controls
Four different driving modes can be set by the driver .
The automatic control processes are speed- and time-dependent . For
example, it is not poss ible to raise the suspension to the lift mode
above certain speeds .
When a speed of about 75 mph (120 km/h) is exceeded for more than 30 seconds, the vehicle is automatically lowered approximately 1
inch (25 mm) to a level suitable for highway speeds, except in the
standard mode . Road ho ldi ng is opt imized as a result of the lowe r
center of gravity and fue l consumption is reduced as a result of
reduced wind resistance.
Level adjustment
lift
automatic
dynamic
automatic Ground clearance
about 5. 7 inches (145 mm)
about
4. 7 inches (120 mm)
about 4. 7 inches (120 mm)
about 3.9 inches (100 mm)
Select the automatic mode if you prefer a suspension setting empha­
sizing comfort. Damping characteristics emphasizing comfort are
selected in this mode .
• Lowering : When a speed of about 75 mph (120 km/h) is exceeded
for more than 30 seconds, the vehicle is automatically lowered by about 1 inch (25 mm).
• Raising: The vehicle is automatically ra ised aga in if the speed falls
below about 44 mph (70 km/h) for a period of 120 seconds. The
vehicle is ra ised immediately when speed falls below about 22 mph
(35 km/h).
dynamic
Select the sport mode if you prefer a sporty suspension setting . In
this mode, the vehicle is lowered wh ile it is st ill stationary and sporty
Controls and equip ­
ment Safety first
damping characteristics are selected
. The warning light c.::> in the
instrument cluster will come on for a few seconds just to remind you
of the reduced ground clearance.
If you switch off the engine whi le the vehicle is in the dynamic mode
and then switch on the ignition once aga in, the
c.::> warning light will
also come on again for a few seconds.
• Lowering : When a speed of about 75 mph (120 km/h) is exceeded
for more than 30 seconds, the vehicle is automatically lowered by an
additional 0.2 in (5 mm) .
• Raising: The vehicle is automatically raised again if the speed falls
below about 44 mph (70 km/h) for a period of 120 seconds. The
vehicle is ra ised immediately when speed falls below about 22 mph
(35 km/h).
standard
Select the standard mode if you desire a suspension sett ing with a
special emphasis on comfort . In the standard mode there is
no
lower ing of the s uspens ion. Even at high speeds, the vehicle stays at
the same level. Damping characteristics with a decided emphasis on
comfort are selected in this mode.
lift
Select the lift mode when you have to travel over poor sections of
road (e .g . trails) . In the lift mode, the vehicle is raised by 1 inch (25
mm) compared to normal level while it is still stationary and damping
characterist ics are adjusted to emphasize comfort .
The lift mode can be activated only at speeds below 50 mph (80 km/h). When a speed of about 62 mph (100 km/h) is exceeded, the
system automatica lly leaves lift mode and the mode set previously
(standard, automatic, dynamic) is activated again .•
Vehicle care Technical data
