Airbag system -----------------=--=---
& WARNING (co ntinued )
• Airbag work most effectively when used with properly worn
safety belts .
• Therefore, always wear your safety belts and make sure that
everybody in your vehicle is properly restrained .
& WARNING
A person on the front passenger seat, especially infants and small
children, will receive serious injuries and can even be killed by
being too close to the airbag when it inflates .
• Although the Advanced Airbag System in your vehicle is
designed to turn off the front passenger airbag if an infant or a
small child is on the front pa ssenger seat, nobody can absolutely
guarantee that deployment under these special conditions is
impossible in all conceivable situations that may happen during
the useful life of your vehicle.
• The Advanced Airbag Sy stem can deploy in accordance with the
" low risk " option under the U .S. Federal Standard if a child that is
heavier than the typical one-year old child is on the front
pas senger seat and the other condition s for airbag deployment
are met.
• Accident statistics have shown that children are generally safer
in the rear seat area than in the front seating position.
• For their own safety, all children, especially 12 years and
younger, should alway s ride in the back properly re strained for
their age and size. •
Advanced front airbag system
Your vehicle is equipped with a front Advanced Airbag System in
compliance wi th Uni ted States Feder al Motor Vehicle Safe ty Standar d
208 as app licab le at the time your vehicle was manufactured.
Controls and equip­
ment Safety first Vehicle operation
T
he front Advanced A irbag System supp lements the safety belts to
prov ide add itional p rote ction for the dr ive r's and fr ont pa ssenge r's
heads a nd upper bodies in fro ntal crashes. The airbags inflate on ly in
fronta l im pacts w he n the vehicle dece le ration is high enoug h.
Th e front Adv anced Airbag Sys te m f or the fron t se at oc cupan ts is no t
a s ubstitute for your safety be lts. Rathe r, it is part o f the overa ll occu­
p a nt res tra in t system in y our ve hicl e. Alway s remembe r th at the
airbag system can on ly help to protect you, if yo u are s itting upr ight,
we aring yo ur sa fety be lt and wear ing it prope rly. This i s why you and
your passengers must always be p roperly restra ined, not just beca use
t he law requires you to be.
The Adva nce d A irbag System in your vehicl e has b een cert ified to
meet the " low ris k" requirements fo r 3 and 6 year-old c hildren on the
p as senge r side an d very sma ll adults on the d river side. The low r isk
deployment criter ia a re intended to he lp red uce the risk of in jury
t hroug h in ter action wi th the fr ont air bag t hat can oc cur, fo r exam ple,
by being too close to the steering wheel and instr ument panel when
t he ai rbag inf lates.
I n addit ion, the system has bee n certified to comply wi th t he
"sup pression" requirements of the Safety Sta nda rd, to turn
off the
front airbag for infants 12 mont hs old and you nger w ho are
restra ined o n the front passenger seat in child restraints that are
listed i n the Standard::::>
pag e 233, "Child restraints a nd Advanced
Airbags".
"Supp ression" re quires the fron t airb ag on the passenger side to be
t urn ed
off if:
• a ch ild up to about one yea r of age is restrained on the front
passenger s eat in one o f the re ar-fa cing o r forwar d-fac ing infant
restra ints listed i n Federal Moto r Vehicle Safety Stan dard 208 with
w hich the A dvanc ed Air bag System in y our ve hicle w as certi fied . For a
list ing of the child rest raints t hat were used to ce rtify your vehicle's
co mplia nce wi th th e US Safety St and ard
=> page 2 33,
• weight less than a thresho ld level stored in the contro l unit is
de te cted on t he fr ont passenge r sea t.
Vehicle care Do-it-yourself service Technical data

Airbag system Ill
----------------=--=---
& WARNING (co ntinued )
PASSENGER AIR BAG OFF light does not come on and stay on,
imm ediately ins tall the rear-facing child seat in a rear seating
position and have the a irbag system inspected by your Audi
dealer .
& WARNING
If, in exceptional circumstances, you mu st install a forward-facing
c hild restraint on the front passenger 's seat:
• Always make sure the forward-facing seat has been designed
and cert ified by its manufacturer for use on a front seat with a
pa ssenger front and side airbag .
• Never put the forward-facing child re straint up against or very
near the instrument panel.
• Alway s move the passenger seat into it s rearmost po sition in
the seat's fore and aft adjustment range, as far away from the
airbag as possible , befo re installing the forward-facing child
restraint. The backrest must be adjusted to an upright pos ition.
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the time whenever the ignition is switched on .•
Advanced Airbag System components
The front passenger seat i n your veh icle has a lot of very important
parts o f th e A dva nced A irbag System in it. These parts include t he
we ight-sens ing mat, sensors, wiring, bracke ts, and more . The func­
ti on of the system in the front p assenger seat is chec ke d by the e lec ­
tr on ic contro l u ni t whe n the ig ni tion is on . T he contro l unit monitors
the Advanced Airbag System and turns the airbag indicator light on
when a mal function in the system compone nts is detected. The func­
tion of the a irbag indicator light is described in g reater detail be low.
Be ca u se the fron t passenge r seat con tains import ant parts of the
Advanced Ai rbag System, you must take care to prevent it from being
Controls and equip­
ment Safety first Vehicle operation
damaged
. Damage to the seat may prevent t he Adva nced A irbag for
t he fro nt pa ssenge r se at from d oin g its jo b in a cra sh.
The front Advanced Airbag System consists of the
following:
• Cras h sensors in the front of the vehicle t hat measure vehicle
acc ele rat ion/d ece le rat ion to prov ide info rma tion t o the Adv anced
Airbag System about t he severity of the crash .
• An e lec tron ic con trol uni t, w ith i ntegr ated cr ash sen sors fo r front
and side impacts. The contro l unit "dec ides" w het her to fire the front
air bag s base d on th e inf ormati on re ceived from t he cr ash sensors.
T he control unit also "decides" whether the saf ety b elt pret ensio ners
sh ould be ac tiva ted.
• An Advanced Airbag with gas generator for the dr ive r inside the
stee ring w hee l hub .
• An Advanced Airbag with gas generator inside the inst rument
p ane l for the fron t passenge r.
• A weig ht-sensing mat under the upholste ry padd ing of the front
passenge r seat cushi on th at m easures the tota l we ig ht on t he seat.
The informat ion registe red is se nt co ntinuo us ly to the electronic
contr ol un it to r egulat e dep lo ym en t of th e fr ont Adv anced A irbag on
the passenger side .
• An a irbag moni to ring system a nd ind icator light in the inst rume nt
cl uster =>
page 217.
• The PASSENGER AIR BAG OFF light comes on an d stays o n in the
center o f the instr ument panel =>
page 218, fig. 215 an d tells you
whe n the fr ont Ad van ced Air bag on the p assenge r sid e has bee n
t ur ned off.
• A senso r bel ow th e saf ety b elt la tch fo r the front s eat pa ss e ng er
to meas ure the tension on the safety be lt . Th e tens io n on the safety
bel t an d t he we ight regi stered by the we ig ht- se ns ing mat he lp t he
cont rol un it "dec ide" whether the front airbag fo r th e front
pa ssenger se at sh o uld be tur ned o ff o r no t =>
p age 20 8, "Ch ild
restraints on t he front seat -some important thi ngs to know". ...
Vehicle care Do-it-yourself service Technical data

If the electronic control unit reg isters a crash of medium severity, the
first stage of the airbag deploys follo wed by the second stage at a
much later t ime in the crash sequence -regardless of whether the
safety belt is being used or not. In higher severity crashes as regis­
tered by the electronic control unit, both the first and second stages
deploy almost at the same time .
On the passenger side, regardless of safety belt use, the airbag will
be turned off if the weight on the passenger seat is less than the
amount programmed in the electronic control unit. The front airbag
on the passenger side w ill also be turned off if one of the child seats
that has been certified under Federal Motor Vehicle Safety Standard
208 has been recognized on the seat . The
PASSENGER AIR BAG OFF
light comes on and stays on to tell you when the front Advanced
Airbag on the passenger side has been turned off~
page 208, "Child
restraints on the front seat -some important things to know".
& WARNING
To reduce the risk of injury when an airbag inflates, always wear
safety belts properly .
• If you are unrestrained, leaning forward, sitting sideways or
out of position in any way, your risk of injury is much higher.
• You will also receive serious injuries and could even be killed if
you are up against the airbag or too close to it when it inflates -
even with an Advanced Airbag~
page 206. •
Safety first Vehicle OP-eration
Airbag system
More important things to know about front
airbags
Fig. 214 Inflated
front airbags
Safety belts are important to help keep front seat occupants in the
proper seated position so that airbags can unfold properly and
prov ide supplemental protection in a frontal collision.
Th e front airbags are designed to provide additiona l protection for
the chest and face of the driver and the front seat passenger when:
• safety belts are worn properly ,
• the seats have been positioned so that the occupant is properly
seated as far as possible from the airbag ,
• and the head restraints have been properly adjusted .
Because airbags inflate in the blink of an eye with great force, things
you have on your lap o r have placed on the seat could become
dangerous projectiles, and be pushed into you if the airbag inflates .
When an airbag deploys, fine dust is released. This is normal and is
not caused by a fire in the vehicle. This dust is made up mostly of a
powder used to lubricate the airbags as they deploy . It could irritate
skin .
It is important to remember that while the supplemental airbag
system is desig ned to reduce the likelihood of serious injur ies, other
injuries, for example swell ing, bruising and m inor abrasions, can also
happen when airbags inflate. Airbags do not protect the arms or the •
Vehicle care Do-it-yourselt service iTechnical data

_______________________________________________ A_ ir_ b_ a_,,,g '--- s.:.y _s _t_ e _ m ___ lffll
& WARNING (co nti nued )
• Never recline the front p assenger 's seat to transport objects.
It em s can also move into the area of the side airbag or the front
airbag during braking or in a sudden maneuver. Objects near the
airbag s can become projectiles and cause injury, particularly when
the seat is reclined.
& WARNING
The fine dust created when airbag s deploy can cause breathing
problem s for people with a hi story of asthma or other breathing
conditions .
• To reduce the risk of br eathing problems, those with asthma or
other re spiratory conditions should get fre sh air right away b y
getting out of the vehicle
or opening windows or doors .
• If you are
in a collision in which airbags deploy , wa sh your
hands and face with mild soap and water before eating.
• Be careful not to get the dust into your eyes, or into any cuts or
scratches.
• If the residue should get into your eyes, flush them with
water .•

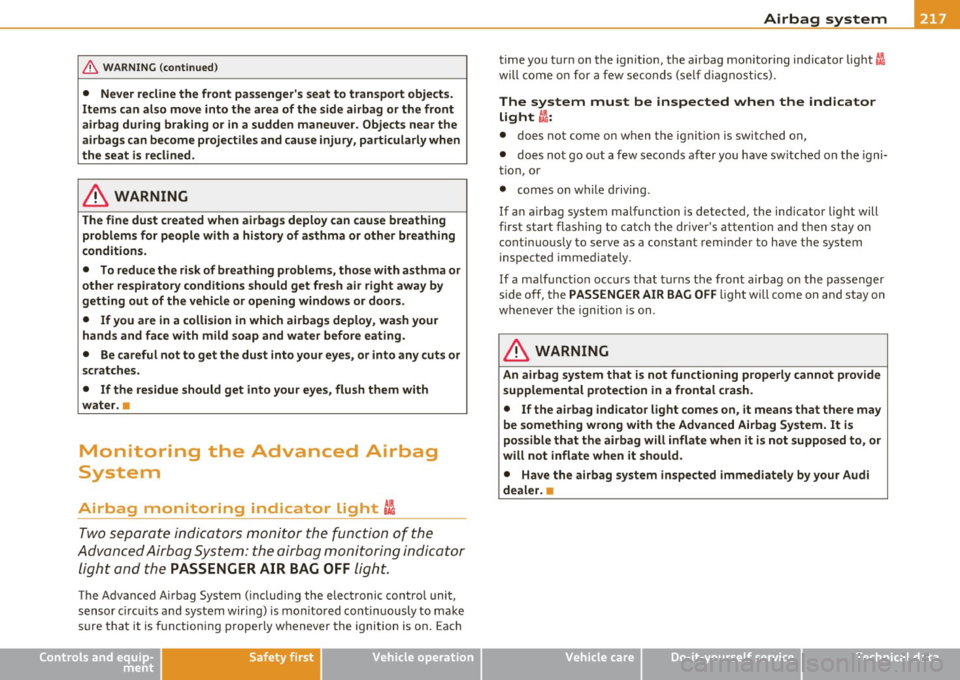

Monitoring the Advanced Airbag
System
Airbag monitoring indicator light~~
Two sep arate indic ato rs m onito r the fu nctio n of the
Adva nce d A irbag Syst em: the ai rbag monito ring in di cator
light and the
PASSENGER AIR BAG OFF light.
The Advanced A irbag System ( including the elect ronic contro l unit,
senso r cir cuits and syst em wi ring) is monitored co ntinu ously to make
sure that it is f unction ing p roperly w henever the ignition is on. Eac h
Controls and equip­
ment Safety first Vehicle operation
time you t
urn on the ign ition , the airbag mo nitoring ind icator lig ht ti
w ill come on fo r a few seconds (se lf di agnos tics).
The system must be inspected when the indicator light ~:
• does not come on when t he ignit ion is switched on,
• does not go out a few seconds after you hav e switched on the igni­
tion, or
• comes o n wh ile d riving.
If an a irbag system malfunction is detected, the ind icator light will
fir st s tar t flashing to ca tch t he dr ive r's a tten tion and then st ay on
cont inuous ly to serve as a constant rem inder to have the system
inspec ted immed ia tely .
If a ma lfunct io n occ urs t hat t urns the front a irbag on the passenger
side o ff, the
PASSENGER AIR BAG OFF li ght will come on and stay on
w henever the igni tion is on .
& WARNING
An airbag system that is not functioning properly cannot provide
supplemental protection in a frontal crash.
• If the airbag ind icator light comes on, it means that there may
be something wrong with the Advanced Airbag System. It is
possible that the airbag will inflate when it is not supposed to, or
will not inflate when it should .
• Have the airbag system inspected immediately by your Audi
dealer. •
Vehicle care Do-it-yourself service Technical data

_______________________________________________ A_ ir_ b_ a_,,,g '--- s.:.y _s _t_ e _ m ___ _
weight-sens ing mat to measure mo re weig ht than is actually on t he
se at.
If the PASSENGER AIR BAG OFF light still does not come on and
does not stay on cont in uou sly (when the ignition is sw itched on),
• t ake the child re st raint o ff the fr ont pa ssenge r seat and in stall i t
prope rly at one of t he rear seat pos itions. Have t he a irbag system
i n sp ec ted by you r A udi d eal er i mmedi ately.
• move the child to a rear seat posit io n and make sure that the child
is prop erly restra ined in a chi ld restr aint t hat is a ppropr iate f or its
size and age .
Th e
PASSENGER AIR BAG OFF light sho uld NOT come on when t he
ign ition is on and an adult is sitt ing in a proper seating pos it io n on the
front passenge r seat. If the
PASSENGER AIR BAG OFF light comes on
and stays on or flashes for abou t 5 seco nds w hile driving, under these
circumstances, make sure that:
• t he adult on t he fr on t p asse nger sea t is prope rly se ate d on the
center of the seat cushion with his or her back up against the backrest
and the bac krest is not recline d=> page 188, "Proper occ upant
seating posit ions",
• t he adult is n ot tak ing weig ht off t he se at by h olding on to t he
passenger assist handle above the fro nt passenger doo r or
s u pp orting their weight on the armrest,
• the safety belt is be ing properly worn and t hat there is not a lot of
s la ck in t he safe ty be lt webb ing ,
• accessory seat cove rs or cushions o r othe r th ings that may cause
an in cor rect re adin g or impress io n o n the weight -sen sing m at under
the upholstery of the seat have been removed from the front
pas senge r sea t,
• a safety be lt extender has not been left in the safety belt latch fo r
t he fr ont p asse n ge r se at.
In addition to the
PASSENGER AIR BAG OFF light in t he center of the
instrument pa nel, the message
PASSENGER AIR BAG OFF or
PASSENGER AIR BAG ON w ill b riefly appear in th e inst rume nt clus ter
Controls and equip­
ment Safety first Vehicle operation
display. This
is to inform the dr iver of the current front passenger
a ir bag s tatus. •
Important safety instructions on
monitoring the Advanced Airbag System
& WARNING
An airbag system that is not functioning properly cannot provide
supplemental protection in a frontal crash.
• If the airbag indicator light comes on, it means that there may
be something wrong with the Advanced Airbag System. It is possible that the airbag will inflate when it is not supposed to, or
will not inflate when it should .
• Have the airbag system inspected immediately by your Audi
dealer.
& WARNING
If the front airbag inflates, a child without a child restraint, or in
a rearward-facing child safety seat, or in a forward-facing child
restraint that has not been properly installed will be seriously
injured and can be killed .
• Even though your vehicle i s equipped with an Advanced Airbag
System, make certain that all children, especially 12 years and
younger , always ride on the back seat properly restrained for their
age and size .
• Always install forward or rear-facing child seats on the rear
seat -even with an Advanced Airbag System .
• If you must install a rearward-facing child seat on the front
passenger seat because of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not appear and stay on,
immediately install the rear-facing child seat in a rear seating
Vehicle care Do-it-yourself service Technical data

______________________________________________ ___:.A:::::.:.: ir:....: b~ a~g !....= s:ly '..:s~ t~ e~ m~ ---
& WARNING (co ntinued )
• Always make sure that the side airbag can inflate without
interference:
-Never install se at covers or replacement upholstery over the
front seatbacks that have not been specifically approved by
Audi .
- Never use additional seat cushions that cover the areas
where the side airbags inflate .
- Damage to the original seat covers or to the seam in the area
of the side airbag module must always be repaired immedi­
ately by an authorized Audi dealer.
• The airbag sy stem can be activated only once. After an airbag
has inflated, it must be replaced by an authorized Audi dealer or
qualified technician who has the technical information , training
and special equipment necessary.
• The airbag sy stem can be deployed only onc e. After an airbag
has been deployed, it must be replaced w ith new replacement
parts de signed and approved es pecially for your Audi model
version . Replacement of complete airbag systems or airbag
components must be performed by qualified workshops only.
Make sure that any airbag service action is entered in your Audi
Warranty
& Maintenance booklet under AIRBAG REPLACEMENT
RECORD.
• For safety reasons in severe accidents, the alternator and
starter are separated from the vehicle battery with a pyrotechni c
circuit interrupter .
- Work on the pyrotechnic circu it interrupter must only be
performed by a qualified dealer -risk of an a ccident!
- If the vehicle or the circu it interrupter is scrapped, all appli­
cable safety precautions must be followed .
Controls and equip­ ment Safety first Vehicle operation
<£' For the sake of the environment
U
ndeployed airbag modules and pretens io ners mig ht be classified as
Perch lorate Material -sp ec ial handling may a pply, see
www.d ts c. ca.gov/ha za rdouswaste/pe rchlorate . W he n t he vehicle or
parts of the restraint system including airbag modules and safety
bel ts wi th prete nsio ners are scra pped, all applica ble laws an d regula­
tions m ust be observed. Your authorized Aud i dea ler is familiar with
t hese requireme nts and we recommend tha t you have you r dealer
perform this service for you. •
Other things that can affect Advanced
Airbag performance
Chang ing the ve hicle's suspension system can change the way that
t he Adv anced Airbag System pe rforms in a crash . For example, using
tire-r im combinations not approved by Aud i, lower ing t he veh icle,
c hang ing the st iffness o f the suspe nsio n, incl uding the s prings,
s u spension str uts, shoc k absorbe rs etc. can change the forces that
are meas ured by the airb ag sensors and sen t to the ele ctron ic con trol
uni t. Some suspension changes ca n, for examp le, increase the force
levels measu red by t he sensors and ma ke the airbag sys tem dep loy in
crashes in which it wou ld not deploy if the changes had not bee n
made . Other kin ds of c hanges may re duce the force levels meas ured
by the senso rs and p revent the airbag from dep loyi ng when it should .
The sensors in the safety belt buckle for the d river and front
p assenger se at tell the e le ct ro nic co ntro l mo dule if the sa fe ty belt is
latc hed or not . If the safety be lt is be ing used, the fron t airbag w ill
dep loy at a s ligh tly hig her ra te o f ve hicl e decelerat io n t han if the
safety belt is not be ing us ed. T he refo re, in a part icular collis io n, it is
poss ible that an a irbag wi ll not deploy at a seating posit ion where the
safety belt is being used but wi ll inflate at the posi tion whe re the
safety belt is not bei ng used. It is important that not hing interfere
w ith the s afe ty be lt bu ckles so t hat th e sensor s can sen d the correct
information about safety belt use to the electronic contro l unit. ..
Vehicle care Do-it-yourself service Technical data

should always wear your safety belt, not just because the law requires
you to do so=>
page 197 , "General notes".
The safety belt buckle for the driver and front seat passenger have
switches that tell the airbag control module if the safety be lt is being
used or not.
If the safety belt is being used, the knee airbag will
dep loy at a s lightly higher rate of deceleration than if the be lt is not
being used. Therefore, in a particular collision, it is possible that an
airbag will not deploy at a seating position where the safety be lt is
being used but will inflate at the position where the safety belt is not
being used.
Remember too, airbags will deploy only once and only in certain kinds
of accidents -your safety belts are always there to offer protection in
those accidents in which airbags are not supposed to deploy or when
t hey have already deployed, for example when you r vehicle strikes or
is struck by another after the first collision.
Thi s is just one of the reasons why an airbag is not a substitute for the
safety belt . The airbag system works most effectively when used with
the safety belts. Therefore, always wear your safety belts correctly.
It is im portant to remembe r th at while the supplemental airbag
system is designed to reduce the likelihood of serious injur ies, other
injuries, for example, swe lling, bruis ing, and minor abrasions can
also be assoc iated with airbags.
The knee airbag system basically consists of:
• The electronic contro l module
• Two inflatable airbags (airbag and gas gene rator), one for the
driver and one for the front passenger
• The airbag indicator light in the instrument panel
The knee airbag system will not deploy:
• when the ignition is turned off
• in front-end collisions when the deceleration measured by the
control unit is too low
• in s ide collisions
• in rear-end collisions
Safety first Vehicle OP-eration
Airbag system
• in rollovers
• in the even t of a system ma lfunction (warning/ indicator lig ht ill u­
minated) =>
page 17.
& WARNING
• Safety belts and the airbag system can only provide protection
when occupants are in the proper seating position =>
page 215.
• If the airbag indicator light comes when the vehicle is being
used, have the system inspected immediately by your authorized
Audi dealer. The airbag may not work properly when the vehicle
acceleration in a side collision is high enough to deploy the airbag.
See also =>
page 17. •
How knee airbags work
The risk of injury to the leg area is reduced by fully
deployed knee airbags.
Fig. 217 Inflated
airbags protecting in a
frontal collision
The knee airbag system has been designed so that the airbags for the
dr iver and front passenger are dep loyed in certa in but not all frontal
collisions.
If the front airbags deploy, the knee airbags also deploy in frontal
collisions above a certain sever ity.
jll-
Vehicle care Do-it-yourselt service Technical data

Side airbags
Description of side airbags
The airbag system can provide supplemental protection
to properly restrained occupants .
Fig. 218 Side airbag
locat ion in the driver's
seat
The side airbags are located in the sides of the front seat backrests
=> fig. 218 and the rear backrest facing the doors. They are identified
by the word "AIRBAG" .
The side airbag system basically consists of:
• the electronic control module and external s ide impact sensors
• the two side airbags located in the sides of the front backrests
• two rear side airbags
• the airbag warning light in the instrument cluster.
Th e airbag system is mo nitored electronically to make certain that it
is funct ion ing properly at all times. Each time you turn on the igni­
tion, the airbag system indicator light wi ll come on for a few seconds
(self diagnostics).
The side airbag system supplements the safety belts and can help to
reduce the risk of injury to the driver's, front and rear passenger's
upper torso on the side of the vehicle that is struck in a side collision.
The air bag deploys on ly in s ide impacts and only when the vehicle
acceleration registered by the contro l unit is high enough. If this rate
Safety first Vehicle OP-eration
Airbag system
is below the reference value programmed into the control unit, the
side airbags will no t be triggered, even though the car may be badly
damaged as a result of the collision . It is not poss ible to define an
airbag triggering range that wi ll cover every possib le angle of impact,
since the circumstances will vary considerably between one collision
and another . Important factors include, for example, the nature
(hard or soft) of the impacting object, the angle of impact, vehicle
speed, etc.=>
page 226, "Important safety instructions on the s ide
airbag system".
Aside from their normal safety function, safety belts work to help keep the driver or front passenger in position in the event of a side
co llision so that the side airbags can provide protection .
The airbag system is
not a substitute for your safety belt. Rather, it is
part of the overall occupant restraint system in your veh icle. Always
remember that the side airbag system can only help to protect you if
you are wearing yo ur safety belt and wearing it properly. This is
another reason why you should always wear your safety belts, not just
because the law requires you to do so=>
page 197, "Genera l notes".
It is important to remember that while the supp lemental side airbag
system is designed to reduce the likelihood of serious injuries, other
injuries, for example, swelling, bruising, and minor abrasions can
also be associated with deployed side airbags. Remember too, side
airbags will dep loy only once and only in certain kinds of accidents -
your safety belts are always there to offer protection.
Vehicle damage, repair costs or even the lack of vehicle damage are
not necessarily an indication of over-sensitive or failed a irbag activa­
tion. In some collisions, both front and side airbags may inflate .
Remember too, that airbags will deploy only once and on ly in certain
kinds of collisions -your safety belts are always there to offer protec­
tion in those accidents in wh ich airbags are not supposed to deploy o r
when they have already deployed.
The side airbag system will not deploy:
• when the ignition is turned off
• in side collisions when the acceleration measured by the sensor is
toolow
~
Vehicle care Do-it-yourselt service iTechnical data
