2010 Abarth Grande Punto Owner handbook (in English)

GRANDEPUNTOABARTH
The data contained in this publication is intended merely as a guide. Fiat reserves the right to modify the models and
versions described in this booklet at any time for technical and commercial reasons.
If you have any further questions please consult your Abarthdealer.
Printed in recycled paper without chlorine.
OWNER HANDBOOK
ENGLISH
PUNTO ABARTH GB 18-07-2007 12:15 Pagina 1

Dear Customer,
Thank you for selecting Abarth and congratulations on your choice of a Grande Punto Abarth.
We have written this handbook to help you get to know all your new Grande Punto Abarth features and use it in the best possible
way.
You should read it right through before taking the road for the first time.
You will find information, tips and important warnings regarding the driving of your car to help you derive the maximum from your
Grande Punto Abarth technological features.
You are recommended to read carefully the warnings and indications, marked with the respective symbols, at the end of the page:
personal safety;
the car’s wellbeing;
environmental protection.
The enclosed Warranty Booklet lists the services that Abarth offers to its Customers:
❒the Warranty Certificate with terms and conditions for maintaining its validity
❒the range of additional services available to Abarth Customers.
Best regards and good motoring!
This Owner Handbook describes all Grande Punto Abarth versions.
As a consequence, you should consider only the information which is related to the engine
and bodywork version of the car you purchased.

MUST BE READ!

K
REFUELLING
Only refuel with unleaded petrol with octane rating (RON) not less than 95 conforming to the European specifica-
tion EN 228.
ENGINE STARTING
Make sure that the handbrake is engaged; set the gearshift lever to neutral; fully depress the clutch without pressing
the accelerator, then turn the ignition key toAVV and release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
While working, the catalyst develops a very high temperature. Do not park the car over grass, dry leaves, pine nee-
dles or any other inflammable materials: risk of fire.
RESPECTING THE ENVIRONMENT
The car is fitted with a system that allows continuous diagnosis of the components correlated with emissions to en-
sure better respect for the environment.

ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical accessories (that will gradually drain the battery), visit a Abarth
Dealership. They can calculate the overall electrical requirement and check that the car’s electric system can sup-
port the required load.
CODE card
Keep the code card in a safe place, not in the car. You should always keep the electronic card code written on the
CODE card with you.
SCHEDULED SERVICING
Correct maintenance of the car is essential for ensuring it stays in tip-top condition and safeguards its safety fea-
tures, its environmental friendliness and low running costs for a long time to come.
THE OWNER’S MANUAL CONTAINS…
… information, tips and important warnings regarding the safe, correct driving of your car, and its maintenance. Pay
particular attention to the symbols
"(personal safety) #(environmental protection) !(the car’s wellbeing).


4
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLSDASHBOARD ...................................................................... 5
SYMBOLS ............................................................................... 7

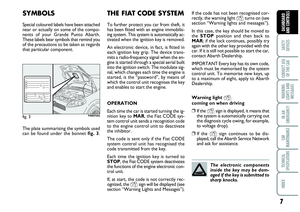

THE FIAT CODE SYSTEM.................................................. 7
THE KEYS .............................................................................. 8
ALARM ................................................................................... 11
IGNITION DEVICE .............................................................. 12
INSTRUMENT PANEL ........................................................ 13
INSTRUMENTS..................................................................... 14
RECONFIGURABLE MULTIFUNCTION DISPLAY .... 16
TRIP COMPUTER ................................................................ 25
FRONT SEATS ..................................................................... 28
REAR SEATS .......................................................................... 29
HEAD RESTRAINTS............................................................. 30
STEERING WHEEL .............................................................. 31
REARVIEW MIRRORS......................................................... 31
CLIMATE CONTROL.......................................................... 33
MANUAL CLIMATE CONTROL SYSTEM .................... 34

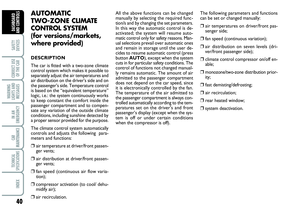

AUTOMATIC TWO-ZONE CLIMATE
CONTROL SYSTEM ........................................................... 40
EXTERNAL LIGHTS............................................................. 47
WINDOW WASHING....................................................... 49
CRUISE CONTROL ............................................................ 52CEILING LIGHTS.................................................................. 54
CONTROLS ........................................................................... 55
FUEL CUT-OFF SWITCH .................................................. 57
INTERIOR FITTINGS........................................................... 58
SKY-DOME SUNROOF ..................................................... 62
DOORS .................................................................................. 64
POWER WINDOWS/WINDOW WINDERS .............. 66
BOOT ...................................................................................... 68
BONNET................................................................................. 71
ROOF RACK/SKI RACK .................................................... 73
HEADLIGHTS........................................................................ 74
ABS SYSTEM ......................................................................... 76

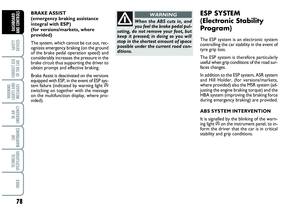

ESP SYSTEM .......................................................................... 78
EOBD SYSTEM ..................................................................... 83
TYRE PRESSURE MONITORING SYSTEM - T.P.M.S. . 84
SPORT BOOST..................................................................... 87
WIRING FOR NAVIGATION SYSTEM ......................... 88
ACCESSORIES PURCHASED BY THE OWNER .......... 88
AT THE FILLING STATION ............................................. 89
PROTECTING THE ENVIRONMENT............................. 90
D D
A A
S S
H H
B B
O O
A A
R R
D D

A A
N N
D D

C C
O O
N N
T T
R R
O O
L L
S S

DASHBOARD
LEFT HAND DRIVE VERSION
The presence and the position of the instruments and warning lights may vary according to the versions.
1. Side adjustable air vents - 2.Side fixed air vents - 3.Left steering column stalk: external lights - 4.Instrument panel - 5.Right
steering column stalk: windscreen, rear window wiper and trip computer controls - 6.Dashboard controls -7.Wiring for naviga-
tion system (MY PORT) - 8.Central adjustable air vents - 9.Upper fixed air vent - 10.Front passenger’s air bag - 11.Glovebox -
12.Sound system - 13.Climate controls - 14.Ignition switch - 15.Driver’s air bag - 16.Steering wheel adjusting lever - 17.Con-
trol plate: front fog lights/rear fog lights/headlight aiming device/reconfigurable multifunction display
5
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0M095Abfig. 1

6
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
RIGHT HAND DRIVE VERSION
The presence and the position of the instruments and warning lights may vary according to the versions.
1. Side adjustable air vents - 2.Side fixed air vents - 3.Left steering column stalk: external lights - 4.Instrument panel - 5.Right
steering column stalk: windscreen, rear window wiper and trip computer controls - 6.Dashboard controls -7.Wiring for naviga-
tion system (MY PORT) - 8.Central adjustable air vents - 9.Upper fixed air vent - 10.Front passenger’s air bag - 11.Glovebox -
12.Sound system - 13.Climate controls - 14.Ignition switch - 15.Driver’s air bag - 16.Steering wheel adjusting lever - 17.Con-
trol plate: front fog lights/rear fog lights/headlight aiming device/reconfigurable multifunction display
F0M082Abfig. 2
