2010.5 Citroen C4 PICASSO DAG Owner's Manual

XI
197
P R A C T I C A L I N F O R M A T I O N
Fuses in the engine
compartment
Access to the fuses

 Detach and remove the cover.

After any operation, carefully refi t
the cover. If the cover is not cor-
rectly positioned or not properly
closed, this could cause serious
problems on your vehicle. For the
same reason, take care not to spill
any liquid in the fusebox.
All work on the maxi-fuses,
which are located in these
fuseboxes and which give
extra protection, must be carried
out by a CITROËN dealer.

XI
198
P R A C T I C A L I N F O R M A T I O N

Fuse N° Rating
Functions

F1 20 A Engine management

F2 15 A Horn

F3 10 A Screenwash pump

F4 20 A Headlamp wash pump

F5 15 A Engine components

F6 10 A Xenon dual-function directional headlamps, automatic headla
mp height adjustment, clutch
switch, protection switch box (BCP)

F7 10 A Automatic gearbox, engine coolant level switch, power steering

F8 25 A Starter motor

F9 10 A Stop lamp switch

F10 30 A Engine components

F11 40 A Rear blower

F12 30 A Screen wipe

F13 40 A Built-in Systems Interface (BSI)

F14 30 A Air pump, heat exchange saver

F15 10 A Right-hand main beam

F16 10 A Left-hand main beam

F17 15 A Left-hand dipped beam

F18 15 A Right-hand dipped beam

F19 15 A Engine components

F20 10 A Engine components

F21 5 A Cooling fan relay
Table of fuses

XI
199
P R A C T I C A L I N F O R M A T I O N
Fuses on the battery
After any operation, carefully refi t
the cover. If the cover is not cor-
rectly positioned or not properly
closed, this could cause serious
problems on your vehicle. For the
same reason, take care not to spill
any liquid in the fusebox.
Table of fuses
Access to the fuses

 Detach and remove the cover.
Fuses F1 to F6 are located on
the small board, clipped verti-
cally on the battery fusebox. Fuses
F7 to F12 are midi-
fuses. All work on these
fuses must be carried out
by a CITROËN dealer.

Fuse N° Rating
Functions

F1 5 A Automatic gearbox actuator

F2 5 A Stop switch

F3 5 A Battery charge estimation ECU

F4 20 A ESP supply

F5 5 A ESP supply

F6 20 A ECU for 6-speed electronic gearbox/automatic gearbox

XI
200
P R A C T I C A L I N F O R M A T I O N
BATTERY
Procedure for charging your battery
when it is fl at or for starting the en-
gine using another battery. Access to the battery
The battery is located under the
bonnet.
To gain access to it:

 open the bonnet using the interi-
or release lever, then the exterior
safety catch,

 secure the bonnet stay,

 remove the plastic cover to gain
access to the two terminals,

 unclip the fusebox to remove the
battery, if necessary.
Do not force the lever as tighten-
ing will not be possible of the clip is
positioned incorrectly.
Start the procedure again.
Disconnecting/Reconnecting
the cables

The presence of this label,
in particular with the Stop
& Start system, indicates
the use of a 12 V lead-acid
battery with special technology
and specifi cation, for which the in-
volvement of a CITROËN dealer is
required when replacing or discon-
necting the battery.
Failure to observe this recommen-
dation may cause premature wear
of the battery.
After refi tting the battery, the Stop
& Start system will only be active
after a continuous period of immo-
bilisation of the vehicle, a period
which depends on the climatic con-
ditions and the state of charge of
the battery (up to about 8 hours).
 Raise the locking lever 1 fully.

 Position the open clip of the ca-
ble on the positive (+) terminal of
the battery.

 Press vertically on the clip 2 to
position it correctly against the
battery.

 Tighten the clip by lowering the
lever 1 .

XI
201
P R A C T I C A L I N F O R M A T I O N

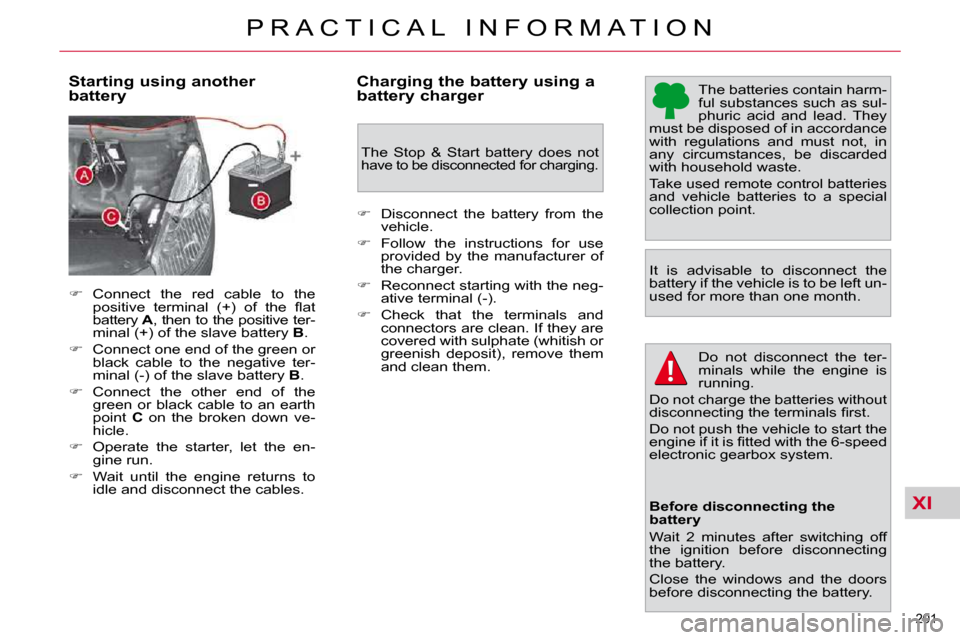

Starting using another
battery Charging the battery using a
battery charger
The batteries contain harm-
ful substances such as sul-
phuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in
any circumstances, be discarded
with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month.
Do not disconnect the ter-
minals while the engine is
running.
Do not charge the batteries without
disconnecting the terminals fi rst.
Do not push the vehicle to start the
engine if it is fi tted with the 6-speed
electronic gearbox system.
Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
The Stop & Start battery does not
have to be disconnected for charging.

 Disconnect the battery from the
vehicle.

 Follow the instructions for use
provided by the manufacturer of
the charger.

 Reconnect starting with the neg-
ative terminal (-).

 Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
greenish deposit), remove them
and clean them.

 Connect the red cable to the
positive terminal (+) of the fl at
battery A , then to the positive ter-
minal (+) of the slave battery B .

 Connect one end of the green or
black cable to the negative ter-
minal (-) of the slave battery B .

 Connect the other end of the
green or black cable to an earth
point C on the broken down ve-
hicle.

 Operate the starter, let the en-
gine run.

 Wait until the engine returns to
idle and disconnect the cables.

XI
202
P R A C T I C A L I N F O R M A T I O N
ENERGY ECONOMY MODE
System which manages the duration
of use of certain functions to conserve
a suffi cient level of charge in the
battery.
After the engine has stopped, you can
still use functions such as the audio
and telematics system, windscreen
wipers, dipped beam headlamps,
courtesy lamps, etc. for a maximum
combined duration of thirty minutes.
Switching to economy mode
Once this period has elapsed, a
message appears on the multi-func-
tion screen indicating that the vehi-
cle has switched to economy mode
and the active functions are put on
standby.
If a telephone call is being made at
this time:
- it will be maintained for 10 minu-tes with your Audio system or
MyWay hands-free system
- it will be maintained for 10 minu- tes with the NaviDrive, then it will
transfer to your telephone de-
pending on its model. Exiting economy mode
These functions are reactivated au-
tomatically next time the vehicle is
started.
To resume the use of these functions
immediately, start the engine and let
it run for at least 5 minutes.
A fl at battery prevents the
engine from starting (refer
to the corresponding para-
graph).
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if slight diffi culties
are encountered following this oper-
ation, contact a CITROËN dealer.
Referring to the corresponding sec-
tion, you must yourself reinitialise:
- the remote control key,
- the one-touch electric windows,
- the panoramic sunroof blind,
- the settings of the multifunction
screen,
- the radio pre-set stations,
- the GPS satellite navigation system. This period may be reduced con-
siderably if the battery is not fully
charged.

XI
202
P R A C T I C A L I N F O R M A T I O N
ENERGY ECONOMY MODE
System which manages the duration
of use of certain functions to conserve
a suffi cient level of charge in the
battery.
After the engine has stopped, you can
still use functions such as the audio
and telematics system, windscreen
wipers, dipped beam headlamps,
courtesy lamps, etc. for a maximum
combined duration of thirty minutes.
Switching to economy mode
Once this period has elapsed, a
message appears on the multi-func-
tion screen indicating that the vehi-
cle has switched to economy mode
and the active functions are put on
standby.
If a telephone call is being made at
this time:
- it will be maintained for 10 minu-tes with your Audio system or
MyWay hands-free system
- it will be maintained for 10 minu- tes with the NaviDrive, then it will
transfer to your telephone de-
pending on its model. Exiting economy mode
These functions are reactivated au-
tomatically next time the vehicle is
started.
To resume the use of these functions
immediately, start the engine and let
it run for at least 5 minutes.
A fl at battery prevents the
engine from starting (refer
to the corresponding para-
graph).
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if slight diffi culties
are encountered following this oper-
ation, contact a CITROËN dealer.
Referring to the corresponding sec-
tion, you must yourself reinitialise:
- the remote control key,
- the one-touch electric windows,
- the panoramic sunroof blind,
- the settings of the multifunction
screen,
- the radio pre-set stations,
- the GPS satellite navigation system. This period may be reduced con-
siderably if the battery is not fully
charged.

XI
203
P R A C T I C A L I N F O R M A T I O N
TOWING THE VEHICLE
Procedure for having your vehicle
towed or for towing another vehicle
using a removable towing eye.
Access to the tools
According to equipment, the towing
eye is installed in the storage fl ap
under the second row passenger
footwell or under the boot fl oor.
To gain access to it:

 open one of the rear doors or the
boot (according to equipment),

 open the fl ap or raise the fl oor
(according to equipment),

 remove the towing eye from the
holder. Towing your vehicle

 On the front bumper, unclip the
cover by pressing at the top left
and pulling at the right.

 Screw the towing eye in fully.

 Install the towing bar.

 Switch on the hazard warning
lamps on the towed vehicle.

 Place the gear lever in neutral
(position N on the electronic
gearbox or automatic gearbox). Towing another vehicle

 On the rear bumper, unclip the
cover by pressing at the bottom
at pulling at the top.

 Screw the towing eye in fully.

 Install the towing bar.

 Switch on the hazard warning
lamps on the towed vehicle.
Failure to observe this condition
could result in damage to certain
braking components and the ab-
sence of braking assistance the
next time the engine is started. When towing with all four wheels
on the ground, always use a towing
bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
