Operation
38
EJU31821
Fuel and oil EJU37162Fuel
WARNING
EWJ00282

Gasoline and gasoline vapors are ex-
tremely flammable. To avoid fires and
explosions and to reduce the risk of in-
jury when refueling, follow these in-
structions.

Gasoline is poisonous and can cause in-
jury or death. Handle gasoline with care.
Never siphon gasoline by mouth. If you
should swallow some gasoline, inhale a
lot of gasoline vapor, or get some gaso-
line in your eyes, see your doctor imme-
diately. If gasoline spills on your skin,
wash with soap and water. If gasoline
spills on your clothing, change your
clothes.
NOTICE
ECJ00321

Do not use leaded gasoline. Leaded gas-
oline can seriously damage the engine.

Avoid getting water and contaminants in
the fuel tank. Contaminated fuel can
cause poor performance and engine
damage. Use only fresh gasoline that
has been stored in clean containers.
Gasohol
There are two types of gasohol: gasohol con-
taining ethanol and that containing methanol.
Gasohol containing ethanol can be used if
ethanol content does not exceed 10% and thefuel meets the minimum octane ratings. E-85
is a fuel blend containing 85% ethanol and
therefore must not be used in this watercraft.
All ethanol blends containing more than 10%
ethanol can cause fuel system damage or en-
gine performance problems.
Yamaha does not recommend gasohol con-
taining methanol because it can cause fuel
system damage and engine performance
problems.
To fill the fuel tank:
(1) Before refueling, turn off the engine. Do
not stand or sit on the watercraft. Never
refuel while smoking, or while in the vicin-
ity of sparks, open flames, or other sourc-
es of ignition.
(2) Place the watercraft in a well-ventilated
area and in a horizontal position.
(3) Remove the seat, and then check the fuel
level. (See page 23 for seat removal and
installation procedures.)
(4) Remove the fuel tank filler cap, and then
slowly add fuel to the fuel tank. Stop filling
when the fuel level reaches approximate-
ly 50 mm (2 in) from the top of the fuel
tank. Do not overfill the fuel tank. Be-
cause fuel expands when it heats up,
heat from the engine or the sun can
cause fuel to spill out of the fuel tank. Do
not leave the watercraft with a full tank in
direct sunlight.
Recommended fuel:
Regular unleaded gasoline with a mini-
mum octane rating of
86
(Pump octane number) = (R + M)/2
90 (Research octane number)
UF2L70E0.book Page 38 Thursday, June 19, 2008 8:38 AM

Operation
39
(5) Wipe up any spilled fuel immediately.
(6) Install the fuel tank filler cap. Make sure
that the fuel tank filler cap is securely
closed before operating the watercraft.
(7) Install the seat. Make sure that the seat is
securely installed before operating the
watercraft.

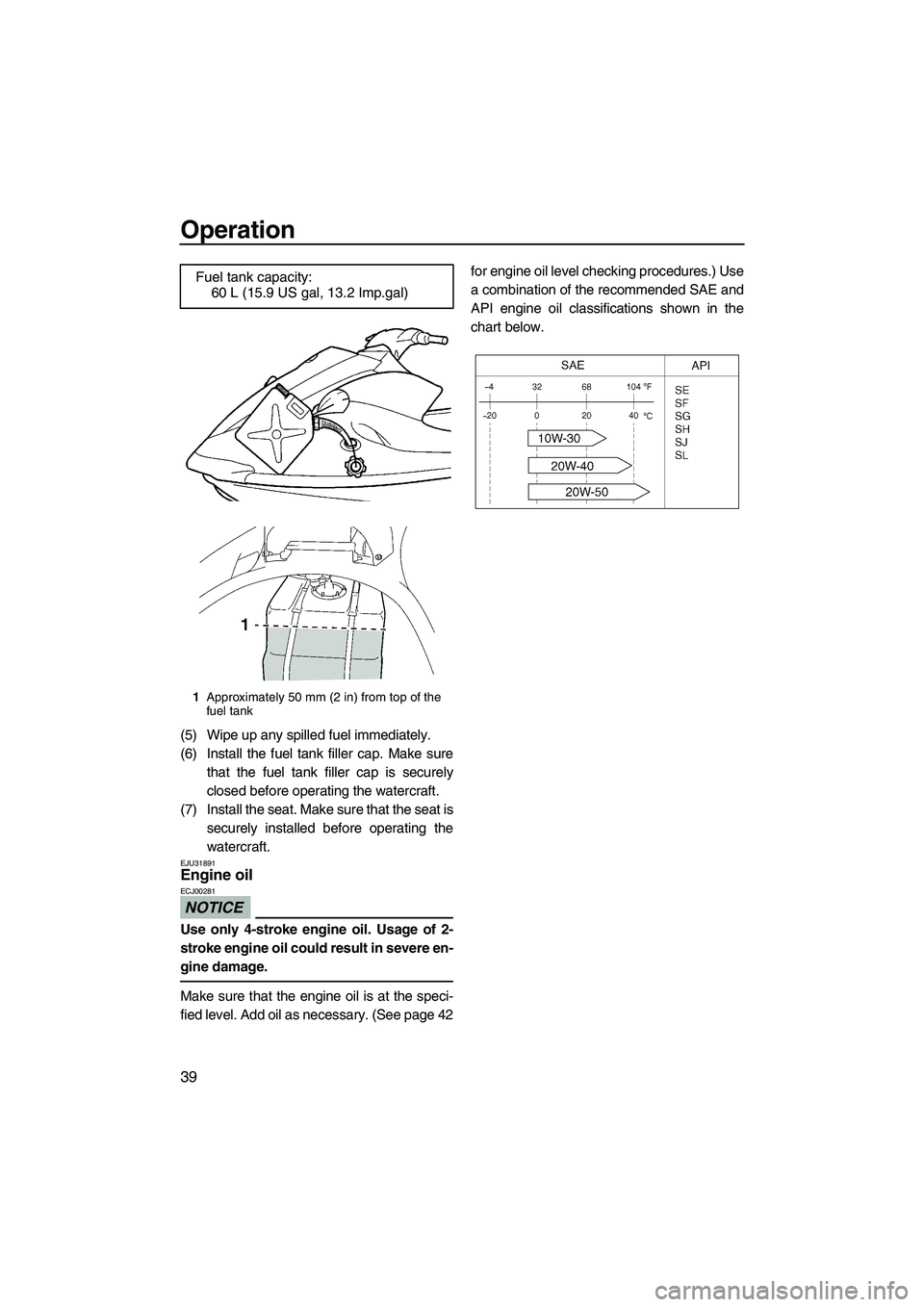

EJU31891Engine oil
NOTICE
ECJ00281
Use only 4-stroke engine oil. Usage of 2-
stroke engine oil could result in severe en-
gine damage.
Make sure that the engine oil is at the speci-
fied level. Add oil as necessary. (See page 42for engine oil level checking procedures.) Use
a combination of the recommended SAE and
API engine oil classifications shown in the
chart below. Fuel tank capacity:
60 L (15.9 US gal, 13.2 Imp.gal)
1Approximately 50 mm (2 in) from top of the
fuel tank
UF2L70E0.book Page 39 Thursday, June 19, 2008 8:38 AM

Operation
40
EJU31980
Pre-operation checks EJU31991Pre-operation check list
Before operating this watercraft, perform the checks in the following check list.
WARNING
EWJ00411
Failure to inspect or maintain the watercraft properly increases the possibility of an ac-
cident or damage to the watercraft. Do not operate the watercraft if you find any prob-
lem. If a problem cannot be corrected by the procedures provided in this manual, have
the watercraft inspected by a Yamaha dealer.
ITEM ROUTINE PAGE
BEFORE LAUNCH OR OPERATION
Engine compartmentRemove the seat to ventilate the engine compart-
ment. Check for fuel vapors and loose electrical con-
nections.42
BilgeCheck for water and fuel and drain if necessary. 43
Stern drain plugsCheck for proper installation. 44
Throttle leverCheck that the throttle lever springs back smoothly. 45
Steering systemCheck for proper operation. 45
Shift lever and reverse gate
(VX Deluxe/VX Cruiser)Check for proper operation. 45
Fuel and oilCheck the fuel and oil levels and replenish if neces-
sary.
Check the hoses and tanks for leakage.42, 42
Water separatorCheck for water and drain if necessary. 43
BatteryCheck the electrolyte level and battery condition. 44
HoodCheck that the hood is securely closed. 23
SeatCheck that the seat is securely installed. 23
Hull and deckCheck the hull and deck for cracks and other dam-
age.42
Jet intakeCheck for debris and remove if necessary. 46
Fire extinguisherCheck the condition and replace if necessary. 44
Engine shut-off cord (lan-
yard)Check the condition and replace if frayed or broken. 46
SwitchesCheck the start switch, engine stop switch, and en-
gine shut-off switch for proper operation.46
AFTER LAUNCH
Cooling water pilot outletCheck that water is discharged while the engine is
running and the watercraft is in the water.47
Multifunction information
centerCheck for warning indications and proper operation. 47
UF2L70E0.book Page 40 Thursday, June 19, 2008 8:38 AM

Operation
42
EJU32280Pre-operation check points EJU32311Engine compartment
WARNING
EWJ00460
Failure to ventilate the engine compart-
ment could result in a fire or explosion. Do
not start the engine if there is a fuel leak or
a loose electrical connection.
Ventilate the engine compartment before
each use.
To ventilate the engine compartment, remove
the seat. (See page 23 for seat removal and
installation procedures.) Leave the engine
compartment open for a few minutes to allow
any fuel vapors to escape.
While the engine compartment is open, check
for loose electrical connections.
EJU32350Hull and deck
Check the hull and deck for cracks and other
damage. If any damage is found, have a
Yamaha dealer repair the watercraft.
EJU32391Fuel level
Make sure that there is sufficient fuel in the
fuel tank before each use.
Also, check the fuel system for leakage,
cracks, and malfunctions. (See page 68 for
check points and correct procedures.)(1) Remove the fuel tank filler cap to release
any pressure that might have built up in
the fuel tank.
(2) Remove the seat. (See page 23 for seat
removal and installation procedures.)
(3) Check the fuel level in the fuel tank and
replenish if necessary. (See page 38 for
filling procedures.)
(4) Install the fuel tank filler cap and the seat.
EJU32401Engine oil level
Check the engine oil level before each use.
WARNING
EWJ00340
Engine oil is extremely hot immediately af-
ter the engine is turned off. Coming in con-
tact with or getting any engine oil on your
clothes could result in burns.
NOTICE
ECJ00391

Do not run the engine with too much or
not enough oil in the oil tank, otherwise
the engine could be damaged.

Make sure that debris and water do not
enter the oil tank filler hole. Debris and
water in the engine oil can cause serious
engine damage.

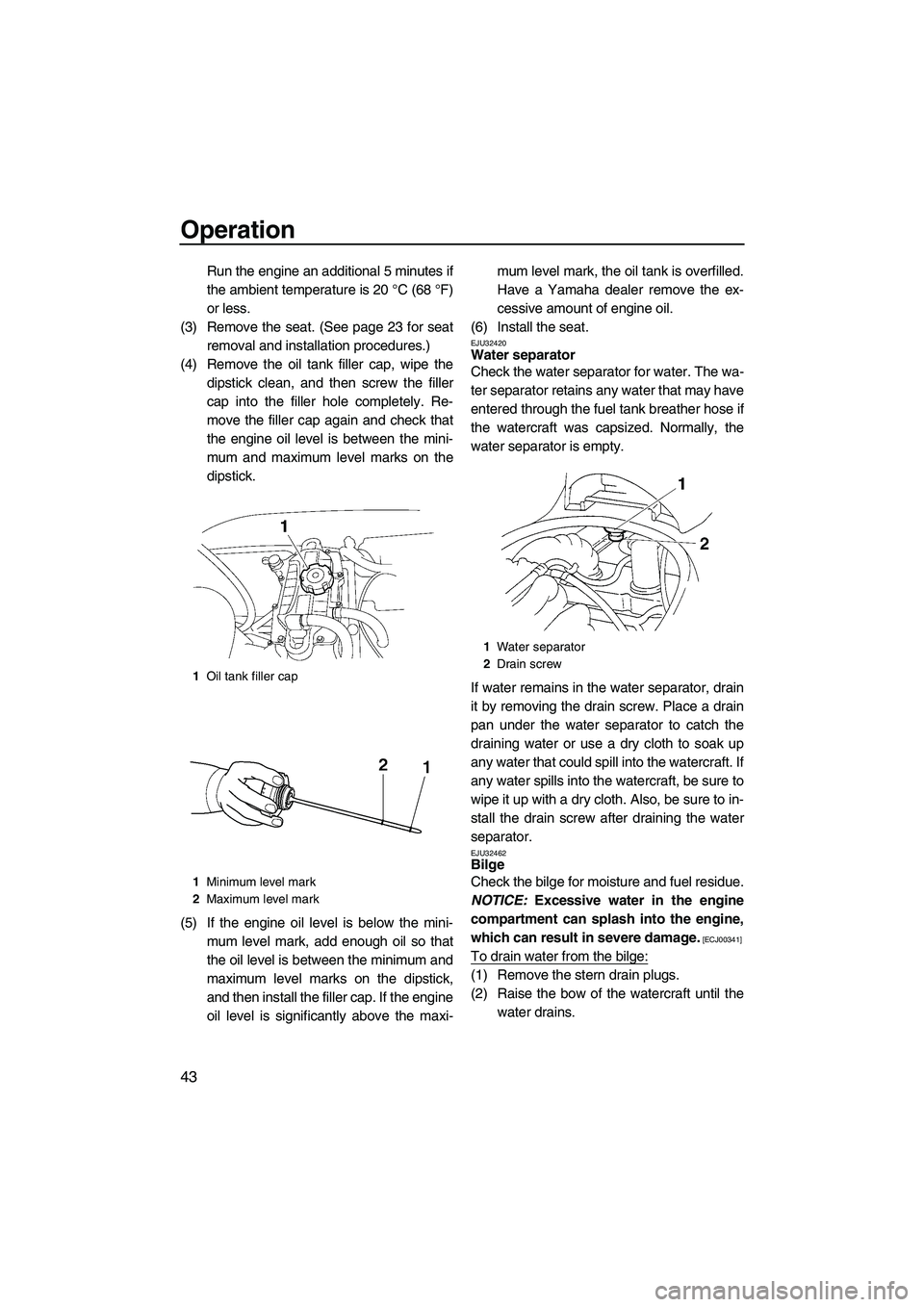

To check the engine oil level:
(1) Place the watercraft in a horizontal posi-
tion or launch the watercraft, and then
start the engine. NOTICE: When check-
ing the engine oil level on land, supply
water to the cooling water passages.
(See page 62 for procedures on sup-
plying water.)
[ECJ01020]
TIP:
When checking the engine oil level on water,
moor the watercraft so that it will not drift
away.
(2) Run the engine at trolling speed for 6 min-
utes or more, and then stop the engine.
UF2L70E0.book Page 42 Thursday, June 19, 2008 8:38 AM

Operation
43
Run the engine an additional 5 minutes if
the ambient temperature is 20 °C (68 °F)
or less.
(3) Remove the seat. (See page 23 for seat
removal and installation procedures.)
(4) Remove the oil tank filler cap, wipe the
dipstick clean, and then screw the filler
cap into the filler hole completely. Re-
move the filler cap again and check that
the engine oil level is between the mini-
mum and maximum level marks on the
dipstick.
(5) If the engine oil level is below the mini-
mum level mark, add enough oil so that
the oil level is between the minimum and
maximum level marks on the dipstick,
and then install the filler cap. If the engine
oil level is significantly above the maxi-mum level mark, the oil tank is overfilled.
Have a Yamaha dealer remove the ex-
cessive amount of engine oil.
(6) Install the seat.
EJU32420Water separator
Check the water separator for water. The wa-
ter separator retains any water that may have
entered through the fuel tank breather hose if
the watercraft was capsized. Normally, the
water separator is empty.
If water remains in the water separator, drain
it by removing the drain screw. Place a drain
pan under the water separator to catch the
draining water or use a dry cloth to soak up
any water that could spill into the watercraft. If
any water spills into the watercraft, be sure to
wipe it up with a dry cloth. Also, be sure to in-
stall the drain screw after draining the water
separator.
EJU32462Bilge
Check the bilge for moisture and fuel residue.
NOTICE: Excessive water in the engine
compartment can splash into the engine,
which can result in severe damage.
[ECJ00341]
To drain water from the bilge:
(1) Remove the stern drain plugs.
(2) Raise the bow of the watercraft until the
water drains.
1Oil tank filler cap
1Minimum level mark
2Maximum level mark
1Water separator
2Drain screw
UF2L70E0.book Page 43 Thursday, June 19, 2008 8:38 AM

Operation
44
(3) After the water has drained, wipe the
bilge with dry rags to make sure that it is
thoroughly dry.
(4) Install the stern drain plugs. NOTICE:
Before installing the stern drain plugs,
clean the drain plug threads to remove
any foreign materials, such as dirt or
sand. Otherwise, the stern drain plugs
could be damaged, allowing water to
enter the engine compartment. Make
sure that the stern drain plugs are
tightened securely before launching
the watercraft. Otherwise, water may
flood the engine compartment and
cause the watercraft to submerge.
[ECJ00361]
EJU32472
Stern drain plugs
Check the stern drain plugs for proper instal-
lation.
EJU32482Battery
Check the battery electrolyte level and check
that the battery has sufficient power to start
the engine easily. WARNING! Never operate
the watercraft if the battery does not have
sufficient power to start the engine or if it
shows any other signs of decreased pow-
er. Loss of battery power may leave you
stranded.
[EWJ01240]
Recharge the battery or replace it if it is not in
good condition. (See page 72 for battery re-
charging procedures.)
Also, check that the battery leads are tight-
ened securely and that there is no corrosion
on the battery terminals. Check that the
breather hose is securely connected to the
battery and that it is not pinched. WARNING!
Fire or explosion could result if the breath-
er hose is damaged, obstructed, or not
connected properly.
[EWJ00451]
Make sure that the battery is securely held in
place.
EJU32541Fire extinguisher
Check that there is a full fire extinguisher on
board.
The fire extinguisher holder and cover are lo-
cated in the front storage compartment.
1Positive (+) battery terminal: Red lead
2Negative (–) battery terminal: Black lead
3Breather hose
UF2L70E0.book Page 44 Thursday, June 19, 2008 8:38 AM

Operation
46
Make sure that the reverse gate goes down
completely when the shift lever is pulled up.
Also, make sure that the reverse gate goes up
completely when the shift lever is pushed
down.
EJU32651Jet intake
Carefully check the jet intake for weeds, de-
bris, or anything else that might restrict the in-
take of water. If the jet intake is clogged, clean
it. (See page 78 for jet intake cleaning proce-
dures.)
If the watercraft is operated while the jet in-
take is clogged, cavitation could occur, reduc-
ing jet thrust, and possibly damaging the jet
pump. In some cases, the engine may over-
heat because of lack of cooling water, anddamage to the engine could result. Cooling
water is fed to the engine by the jet pump.
EJU32661Engine shut-off cord (lanyard)
Check that the engine shut-off cord (lanyard)
is not frayed or broken. If the cord is dam-
aged, replace it. WARNING! Never try to re-
pair the engine shut-off cord (lanyard) or
tie it together. The engine shut-off cord
(lanyard) may not pull free when the oper-
ator falls off, allowing the watercraft to
continue to run and cause an accident.
[EWJ01220]
EJU32671
Switches
NOTICE
ECJ00410
Do not run the engine for more than 15
seconds when checking the switches on
land without supplying water, otherwise
the engine could overheat.
UF2L70E0.book Page 46 Thursday, June 19, 2008 8:38 AM

Operation
47
Check the start switch, the engine stop
switch, and the engine shut-off switch for
proper operation.
Push the start switch to start the engine. As
soon as the engine starts running, push the
engine stop switch to verify that the engine
stops immediately. Restart the engine, and
then pull the engine shut-off cord (lanyard) to
remove the clip from the engine shut-off
switch to verify that the engine stops immedi-
ately. (See pages 25 to 26 for information on
proper operation of the start switch, the en-
gine stop switch, and the engine shut-off
switch.)
EJU32680Cooling water pilot outlet
Check that water comes out from the cooling
water pilot outlet while the engine is runningand the watercraft is in the water. (See page
26 for more information.)
EJU32711Multifunction information center
Check the multifunction information center for
proper operation while the watercraft is in the
water. (See page 31 for information on proper
operation of the multifunction information cen-
ter.)
1Start switch
2Engine stop switch
3Engine shut-off switch
4Clip
5Engine shut-off cord (lanyard)
UF2L70E0.book Page 47 Thursday, June 19, 2008 8:38 AM
