2009 YAMAHA FX HO CRUISER Owners Manual

Features and functions
42

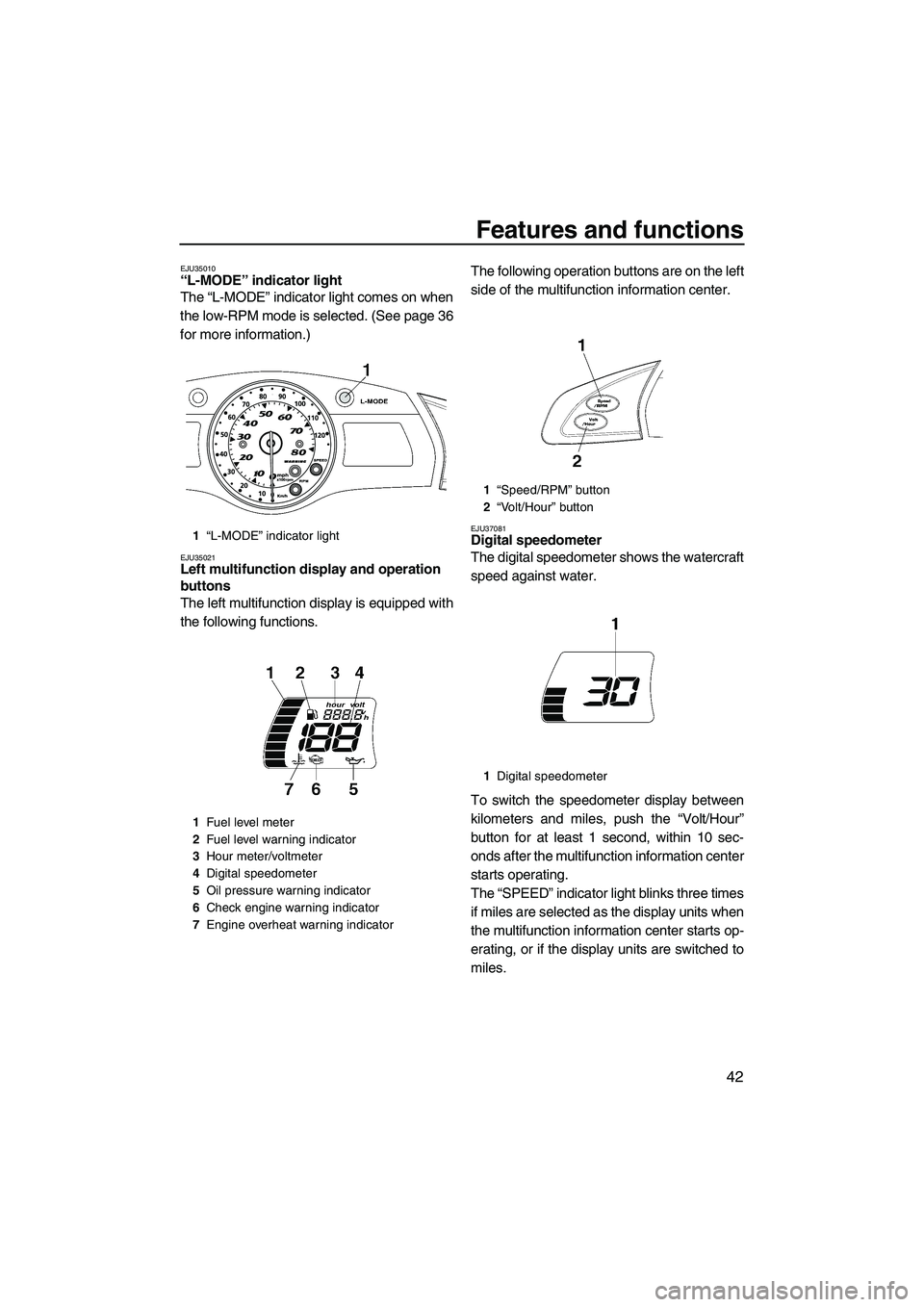

EJU35010“L-MODE” indicator light
The “L-MODE” indicator light comes on when
the low-RPM mode is selected. (See page 36
for more information.)
EJU35021Left multifunction display and operation
buttons
The left multifunction display is equipped with
the following functions.The following operation buttons are on the left
side of the multifunction information center.
EJU37081Digital speedometer
The digital speedometer shows the watercraft
speed against water.
To switch the speedometer display between
kilometers and miles, push the “Volt/Hour”
button for at least 1 second, within 10 sec-
onds after the multifunction information center
starts operating.
The “SPEED” indicator light blinks three times
if miles are selected as the display units when
the multifunction information center starts op-
erating, or if the display units are switched to
miles.1“L-MODE” indicator light
1Fuel level meter
2Fuel level warning indicator
3Hour meter/voltmeter
4Digital speedometer
5Oil pressure warning indicator
6Check engine warning indicator
7Engine overheat warning indicator
1“Speed/RPM” button
2“Volt/Hour” button
1Digital speedometer
UF2H70E0.book Page 42 Thursday, January 15, 2009 10:49 AM

Features and functions
43

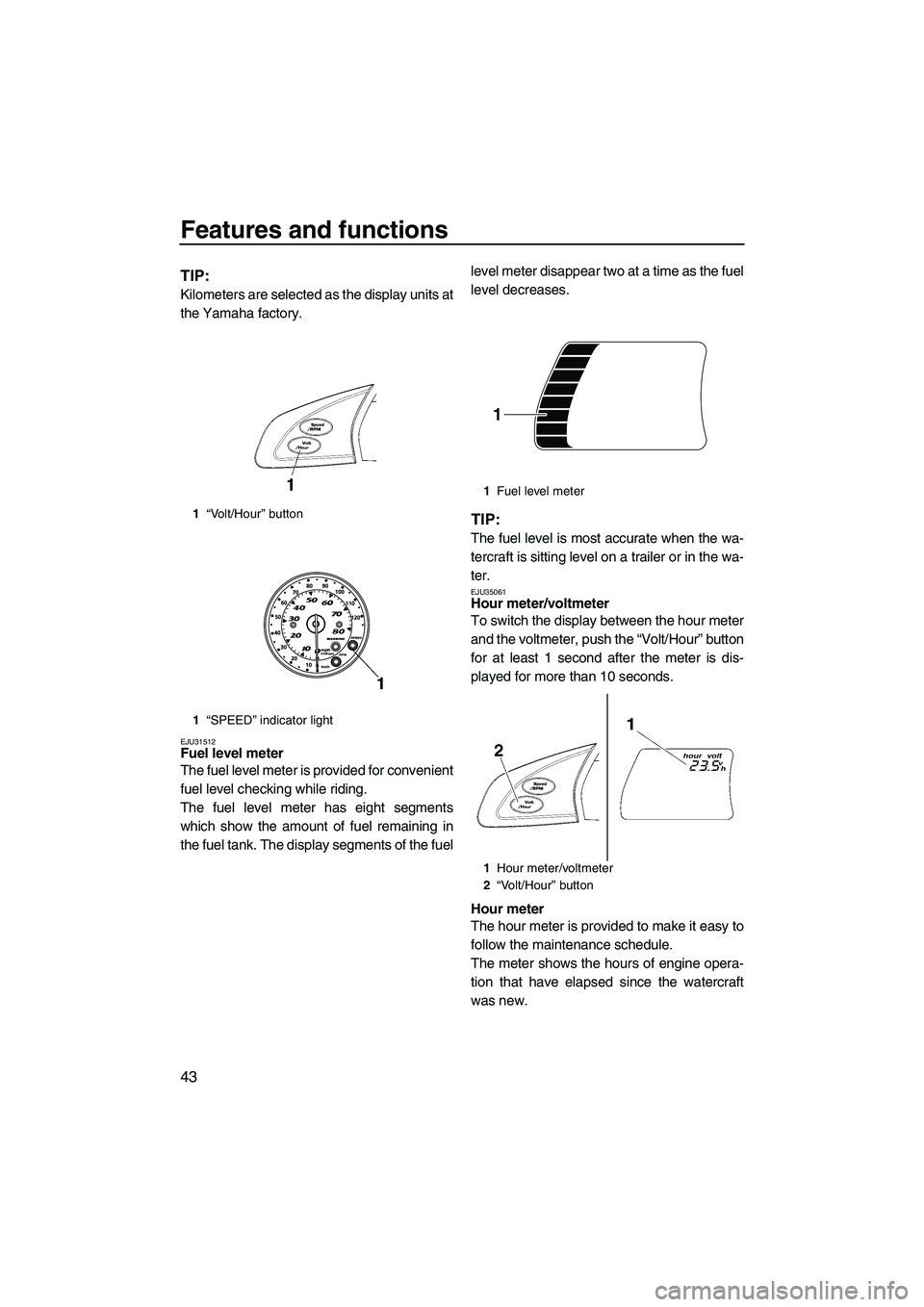

TIP:
Kilometers are selected as the display units at
the Yamaha factory.
EJU31512Fuel level meter
The fuel level meter is provided for convenient
fuel level checking while riding.
The fuel level meter has eight segments
which show the amount of fuel remaining in
the fuel tank. The display segments of the fuellevel meter disappear two at a time as the fuel
level decreases.
TIP:
The fuel level is most accurate when the wa-
tercraft is sitting level on a trailer or in the wa-
ter.
EJU35061Hour meter/voltmeter
To switch the display between the hour meter
and the voltmeter, push the “Volt/Hour” button
for at least 1 second after the meter is dis-
played for more than 10 seconds.
Hour meter
The hour meter is provided to make it easy to
follow the maintenance schedule.
The meter shows the hours of engine opera-
tion that have elapsed since the watercraft
was new.
1“Volt/Hour” button
1“SPEED” indicator light
1Fuel level meter
1Hour meter/voltmeter
2“Volt/Hour” button
1
UF2H70E0.book Page 43 Thursday, January 15, 2009 10:49 AM

Features and functions
44

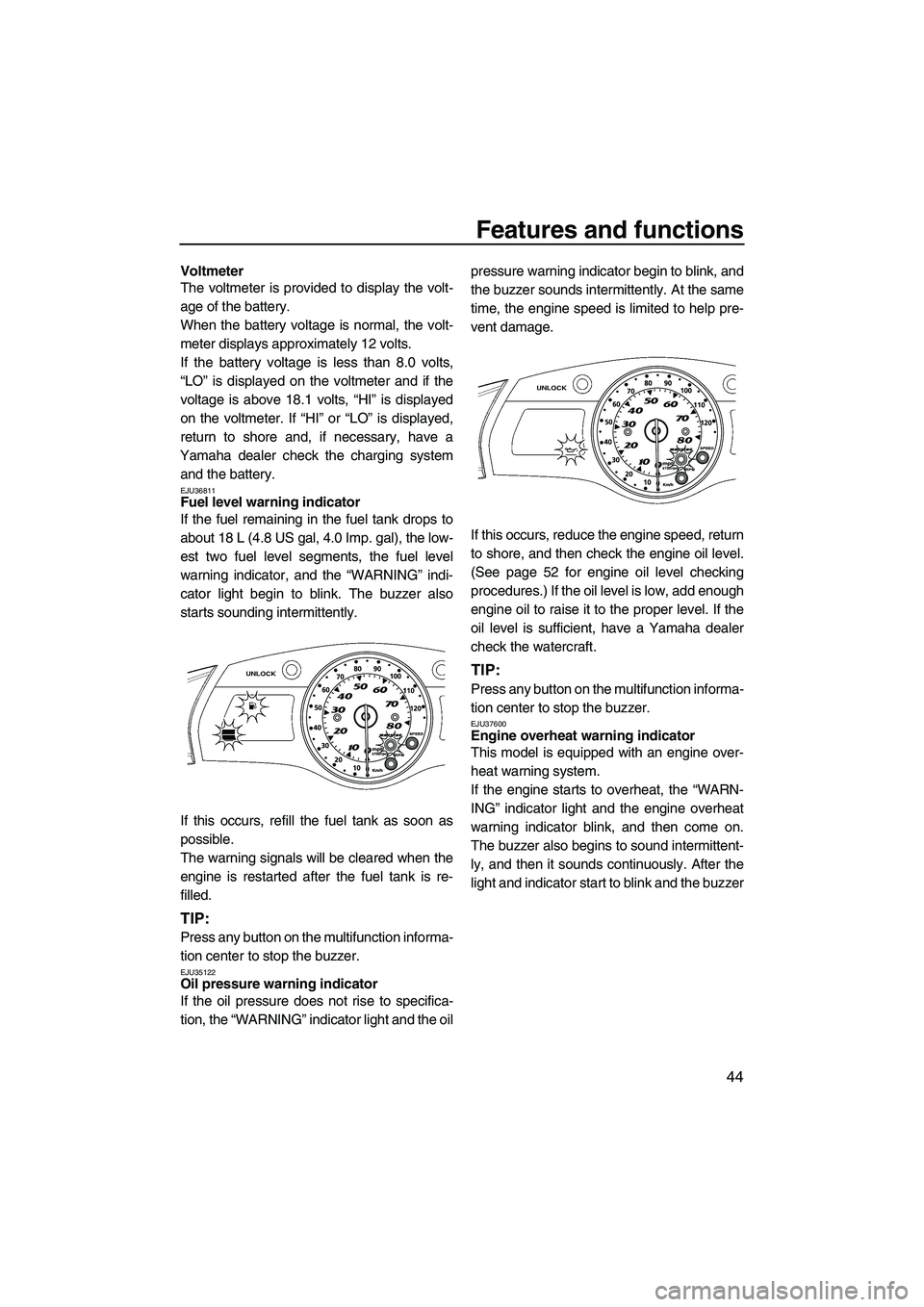

Voltmeter
The voltmeter is provided to display the volt-
age of the battery.
When the battery voltage is normal, the volt-
meter displays approximately 12 volts.
If the battery voltage is less than 8.0 volts,
“LO” is displayed on the voltmeter and if the
voltage is above 18.1 volts, “HI” is displayed
on the voltmeter. If “HI” or “LO” is displayed,
return to shore and, if necessary, have a
Yamaha dealer check the charging system
and the battery.
EJU36811Fuel level warning indicator
If the fuel remaining in the fuel tank drops to
about 18 L (4.8 US gal, 4.0 Imp. gal), the low-
est two fuel level segments, the fuel level
warning indicator, and the “WARNING” indi-
cator light begin to blink. The buzzer also
starts sounding intermittently.
If this occurs, refill the fuel tank as soon as
possible.
The warning signals will be cleared when the
engine is restarted after the fuel tank is re-
filled.
TIP:
Press any button on the multifunction informa-
tion center to stop the buzzer.
EJU35122Oil pressure warning indicator
If the oil pressure does not rise to specifica-
tion, the “WARNING” indicator light and the oilpressure warning indicator begin to blink, and
the buzzer sounds intermittently. At the same
time, the engine speed is limited to help pre-
vent damage.
If this occurs, reduce the engine speed, return
to shore, and then check the engine oil level.
(See page 52 for engine oil level checking
procedures.) If the oil level is low, add enough
engine oil to raise it to the proper level. If the
oil level is sufficient, have a Yamaha dealer
check the watercraft.
TIP:
Press any button on the multifunction informa-
tion center to stop the buzzer.
EJU37600Engine overheat warning indicator
This model is equipped with an engine over-
heat warning system.
If the engine starts to overheat, the “WARN-
ING” indicator light and the engine overheat
warning indicator blink, and then come on.
The buzzer also begins to sound intermittent-
ly, and then it sounds continuously. After the
light and indicator start to blink and the buzzer
UF2H70E0.book Page 44 Thursday, January 15, 2009 10:49 AM

Features and functions
45

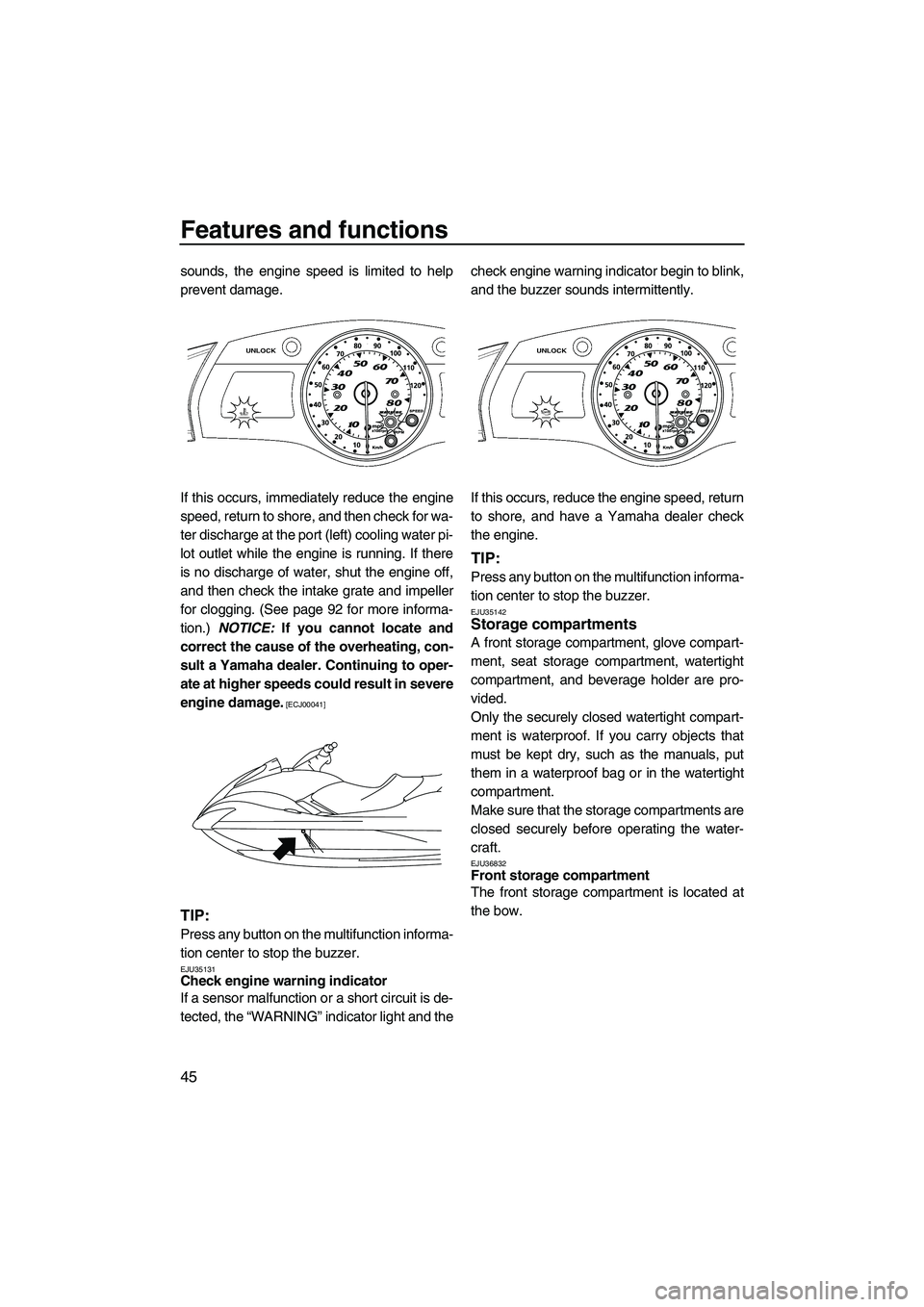

sounds, the engine speed is limited to help
prevent damage.
If this occurs, immediately reduce the engine
speed, return to shore, and then check for wa-
ter discharge at the port (left) cooling water pi-
lot outlet while the engine is running. If there
is no discharge of water, shut the engine off,
and then check the intake grate and impeller
for clogging. (See page 92 for more informa-
tion.) NOTICE: If you cannot locate and
correct the cause of the overheating, con-
sult a Yamaha dealer. Continuing to oper-
ate at higher speeds could result in severe
engine damage.
[ECJ00041]
TIP:
Press any button on the multifunction informa-
tion center to stop the buzzer.
EJU35131Check engine warning indicator
If a sensor malfunction or a short circuit is de-
tected, the “WARNING” indicator light and thecheck engine warning indicator begin to blink,
and the buzzer sounds intermittently.
If this occurs, reduce the engine speed, return
to shore, and have a Yamaha dealer check
the engine.
TIP:
Press any button on the multifunction informa-
tion center to stop the buzzer.
EJU35142Storage compartments
A front storage compartment, glove compart-
ment, seat storage compartment, watertight
compartment, and beverage holder are pro-
vided.
Only the securely closed watertight compart-
ment is waterproof. If you carry objects that
must be kept dry, such as the manuals, put
them in a waterproof bag or in the watertight
compartment.
Make sure that the storage compartments are
closed securely before operating the water-
craft.
EJU36832Front storage compartment
The front storage compartment is located at
the bow.
UF2H70E0.book Page 45 Thursday, January 15, 2009 10:49 AM

Features and functions
46

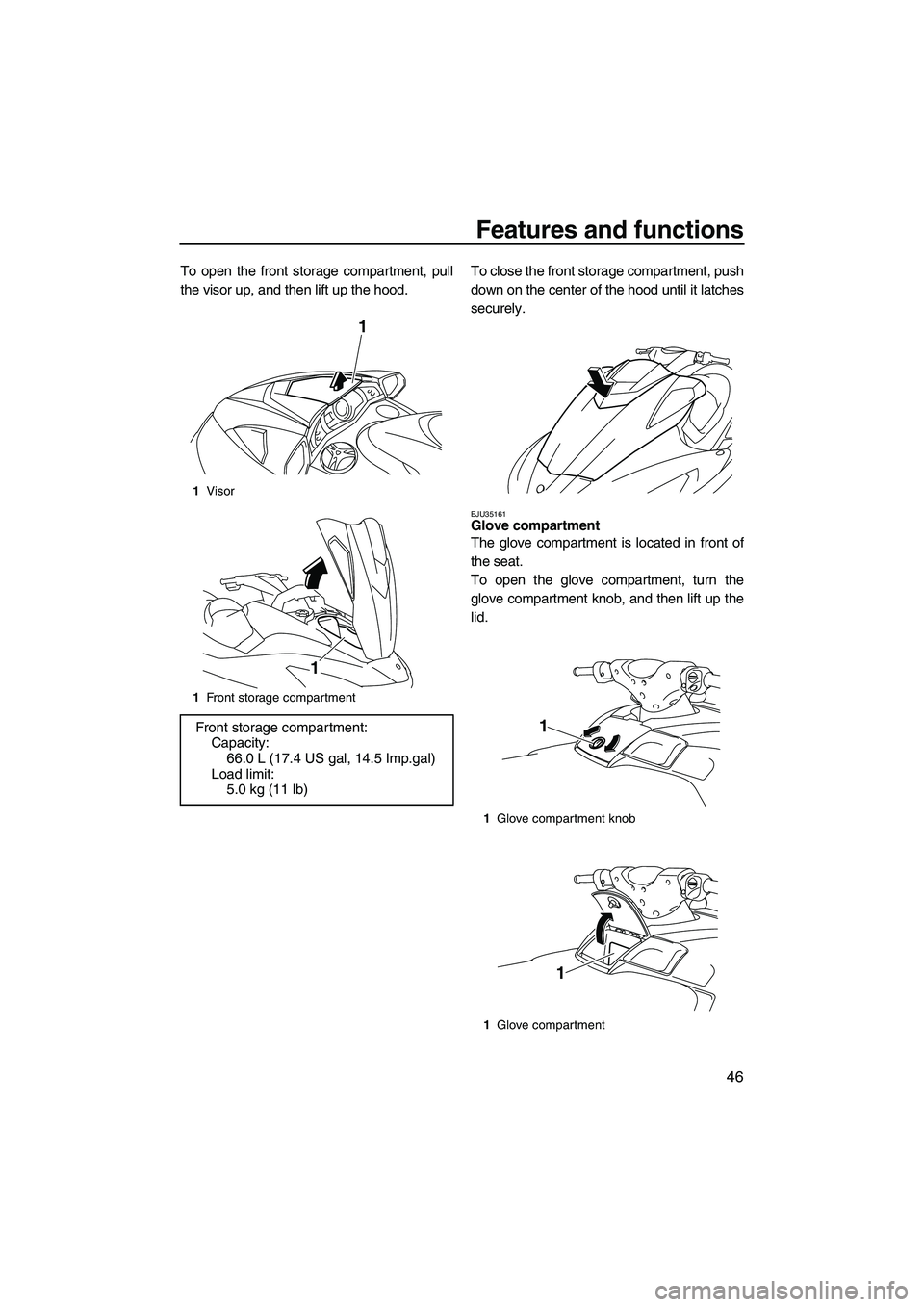

To open the front storage compartment, pull
the visor up, and then lift up the hood.To close the front storage compartment, push
down on the center of the hood until it latches
securely.
EJU35161Glove compartment
The glove compartment is located in front of
the seat.
To open the glove compartment, turn the
glove compartment knob, and then lift up the
lid.
1Visor
1Front storage compartment
Front storage compartment:
Capacity:
66.0 L (17.4 US gal, 14.5 Imp.gal)
Load limit:
5.0 kg (11 lb)
1
1
1Glove compartment knob
1Glove compartment
1
1
UF2H70E0.book Page 46 Thursday, January 15, 2009 10:49 AM

Features and functions
47
To close the glove compartment, lower the lid,
and then turn the glove compartment knob to
lock the lid in place.
EJU31760Seat storage compartment
The seat storage compartment is located un-
der the rear seat.
To open the seat storage compartment, re-
move the rear seat. (See page 25 for rear seat
removal and installation procedures.)
EJU35171Beverage holder
The beverage holder is located on the star-
board (right) side of the watercraft.
Do not place beverages in the beverage hold-
er when operating the watercraft.
EJU35184Watertight compartment
The watertight compartment is located on the
port (left) side of the watercraft.
To open the watertight compartment, turn the
cap counterclockwise.
To close the watertight compartment, turn the
cap clockwise until it stops. Glove compartment:
Capacity:
5.9 L (1.6 US gal, 1.3 Imp.gal)
Load limit:
1.0 kg (2 lb)
1Seat storage compartment
Seat storage compartment:
Capacity:
15.0 L (4.0 US gal, 3.3 Imp.gal)
Load limit:
9.0 kg (20 lb)
1Beverage holder
1Watertight compartment cap
2Watertight compartment
Watertight compartment:
Capacity:
2.7 L (0.7 US gal, 0.6 Imp. gal)
Load limit:
1.0 kg (2.2 lb)
1
1
2
UF2H70E0.book Page 47 Thursday, January 15, 2009 10:49 AM

Operation
48
EJU31821

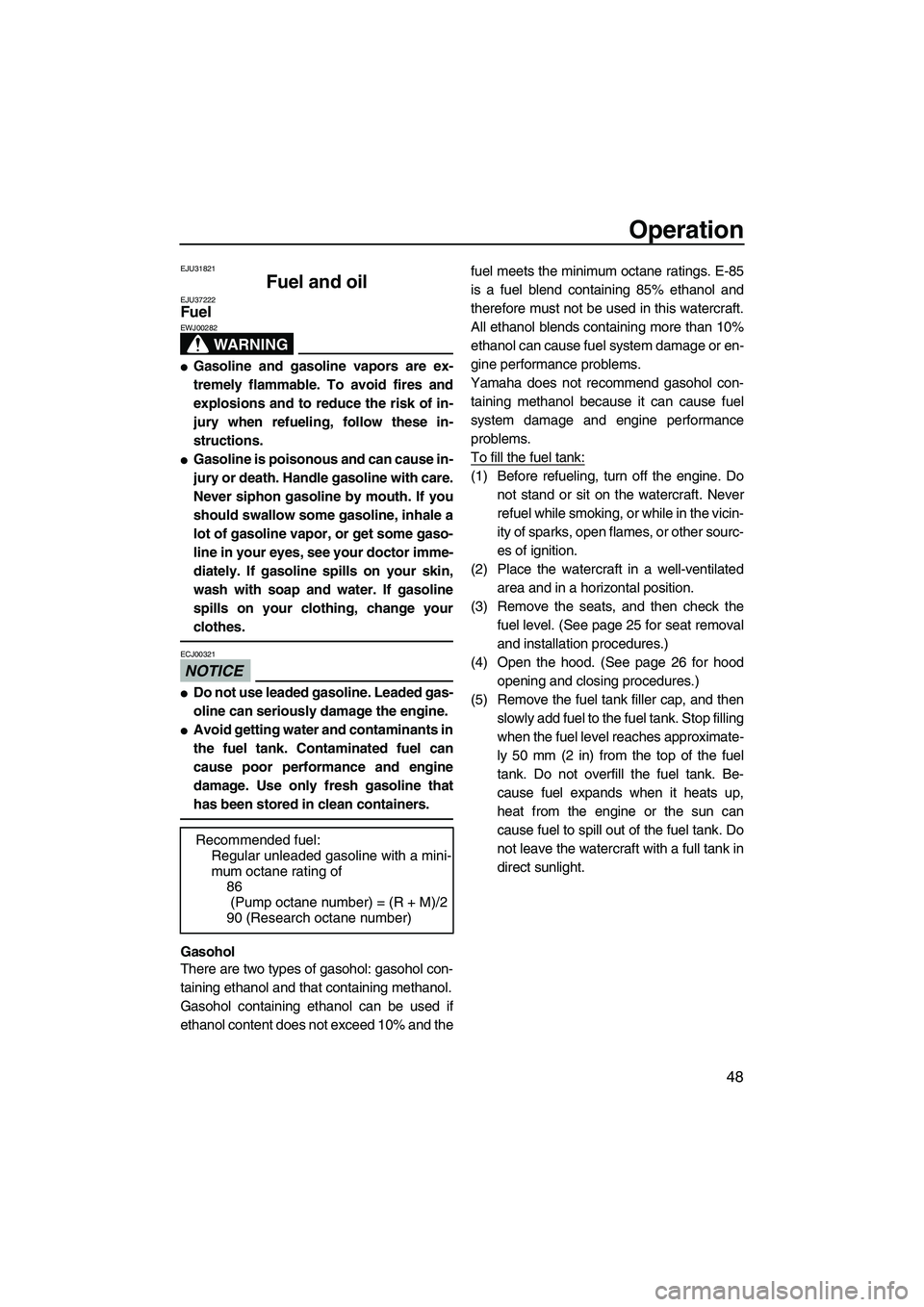

Fuel and oil EJU37222Fuel
WARNING
EWJ00282

Gasoline and gasoline vapors are ex-
tremely flammable. To avoid fires and
explosions and to reduce the risk of in-
jury when refueling, follow these in-
structions.

Gasoline is poisonous and can cause in-
jury or death. Handle gasoline with care.
Never siphon gasoline by mouth. If you
should swallow some gasoline, inhale a
lot of gasoline vapor, or get some gaso-
line in your eyes, see your doctor imme-
diately. If gasoline spills on your skin,
wash with soap and water. If gasoline
spills on your clothing, change your
clothes.
NOTICE
ECJ00321

Do not use leaded gasoline. Leaded gas-
oline can seriously damage the engine.

Avoid getting water and contaminants in
the fuel tank. Contaminated fuel can
cause poor performance and engine
damage. Use only fresh gasoline that
has been stored in clean containers.
Gasohol
There are two types of gasohol: gasohol con-
taining ethanol and that containing methanol.
Gasohol containing ethanol can be used if
ethanol content does not exceed 10% and thefuel meets the minimum octane ratings. E-85
is a fuel blend containing 85% ethanol and
therefore must not be used in this watercraft.
All ethanol blends containing more than 10%
ethanol can cause fuel system damage or en-
gine performance problems.
Yamaha does not recommend gasohol con-
taining methanol because it can cause fuel
system damage and engine performance
problems.
To fill the fuel tank:
(1) Before refueling, turn off the engine. Do
not stand or sit on the watercraft. Never
refuel while smoking, or while in the vicin-
ity of sparks, open flames, or other sourc-
es of ignition.
(2) Place the watercraft in a well-ventilated
area and in a horizontal position.
(3) Remove the seats, and then check the
fuel level. (See page 25 for seat removal
and installation procedures.)
(4) Open the hood. (See page 26 for hood
opening and closing procedures.)
(5) Remove the fuel tank filler cap, and then
slowly add fuel to the fuel tank. Stop filling
when the fuel level reaches approximate-
ly 50 mm (2 in) from the top of the fuel
tank. Do not overfill the fuel tank. Be-
cause fuel expands when it heats up,
heat from the engine or the sun can
cause fuel to spill out of the fuel tank. Do
not leave the watercraft with a full tank in
direct sunlight. Recommended fuel:
Regular unleaded gasoline with a mini-
mum octane rating of
86
(Pump octane number) = (R + M)/2
90 (Research octane number)
UF2H70E0.book Page 48 Thursday, January 15, 2009 10:49 AM

Operation
49

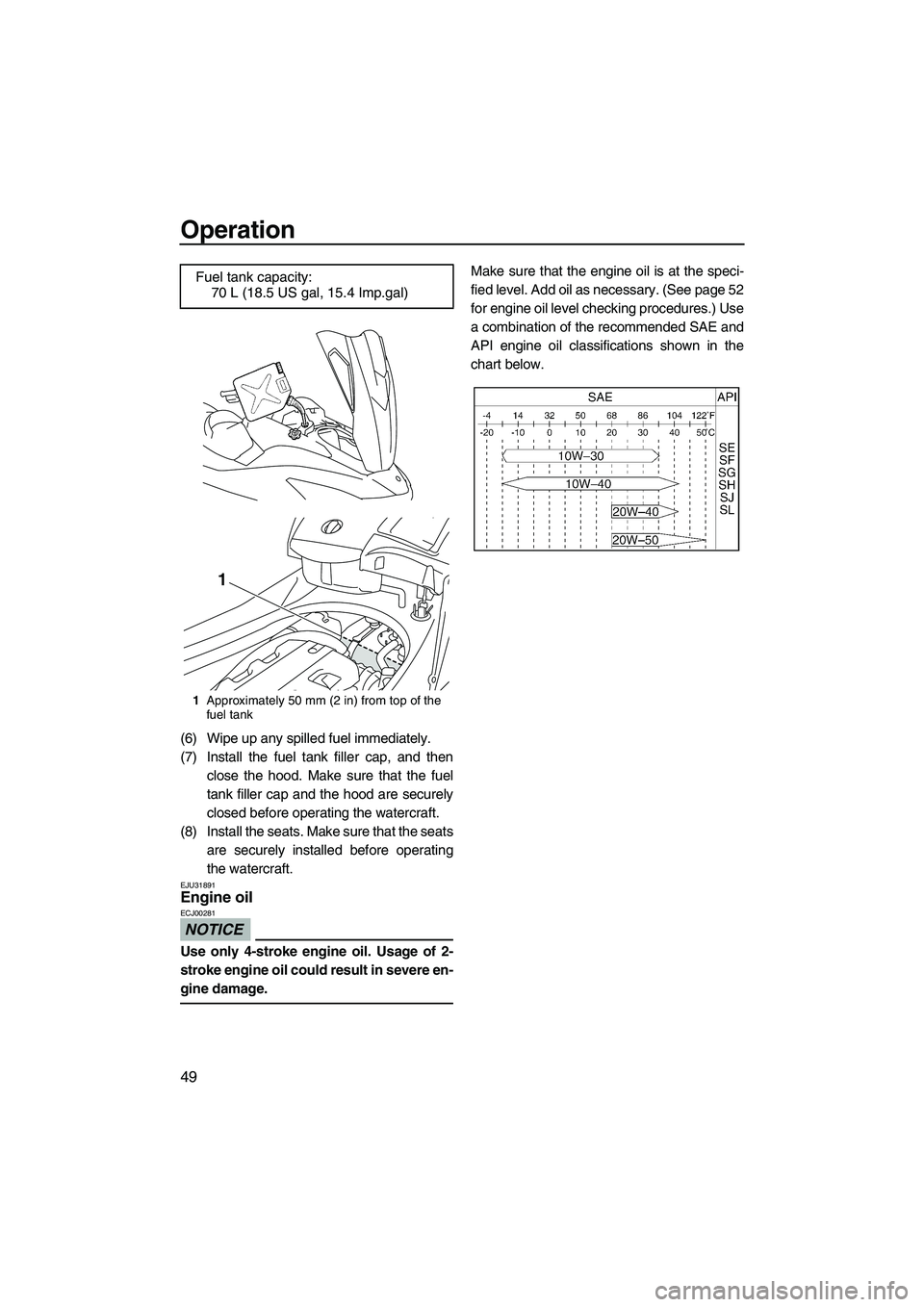

(6) Wipe up any spilled fuel immediately.
(7) Install the fuel tank filler cap, and then
close the hood. Make sure that the fuel
tank filler cap and the hood are securely
closed before operating the watercraft.
(8) Install the seats. Make sure that the seats
are securely installed before operating
the watercraft.
EJU31891Engine oil
NOTICE
ECJ00281
Use only 4-stroke engine oil. Usage of 2-
stroke engine oil could result in severe en-
gine damage.
Make sure that the engine oil is at the speci-
fied level. Add oil as necessary. (See page 52
for engine oil level checking procedures.) Use
a combination of the recommended SAE and
API engine oil classifications shown in the
chart below. Fuel tank capacity:
70 L (18.5 US gal, 15.4 Imp.gal)
1Approximately 50 mm (2 in) from top of the
fuel tank
1
UF2H70E0.book Page 49 Thursday, January 15, 2009 10:49 AM
