2009 YAMAHA FX HO CRUISER Owners Manual

Maintenance and care
82
(5) Install the front and rear handlebar cov-
ers as shown in the illustration, and then
install the ten screws.
EJU37610Cleaning and adjusting the spark
plugs
WARNING
EWJ00350
Be careful not to damage the insulator
when removing or installing a spark plug.
A damaged insulator could allow sparks to
escape, which could result in a fire or ex-
plosion.
The spark plug is an important engine compo-
nent and is easy to inspect. The condition of
the spark plug can indicate something about
the condition of the engine. For example, if
one spark plug has a distinctly different color,
the engine could require servicing. Do not at-
tempt to diagnose any problems yourself.
Have a Yamaha dealer service the watercraft.Remove and inspect the spark plugs periodi-
cally; heat and deposits will cause the spark
plugs to slowly break down and erode. If elec-
trode erosion becomes excessive, or if carbon
and other deposits are excessive, replace the
spark plug with the specified plug.
To remove a spark plug:
(1) Remove the seats. (See page 25 for seat
removal and installation procedures.)
(2) Open the plastic tie that is securing the
breather hose.
TIP:
Be careful not to drop the plastic tie into the
engine compartment.
Specified spark plug:
LFR6A
1Breather hose
2Plastic tie
2 1
UF2H70E0.book Page 82 Thursday, January 15, 2009 10:49 AM

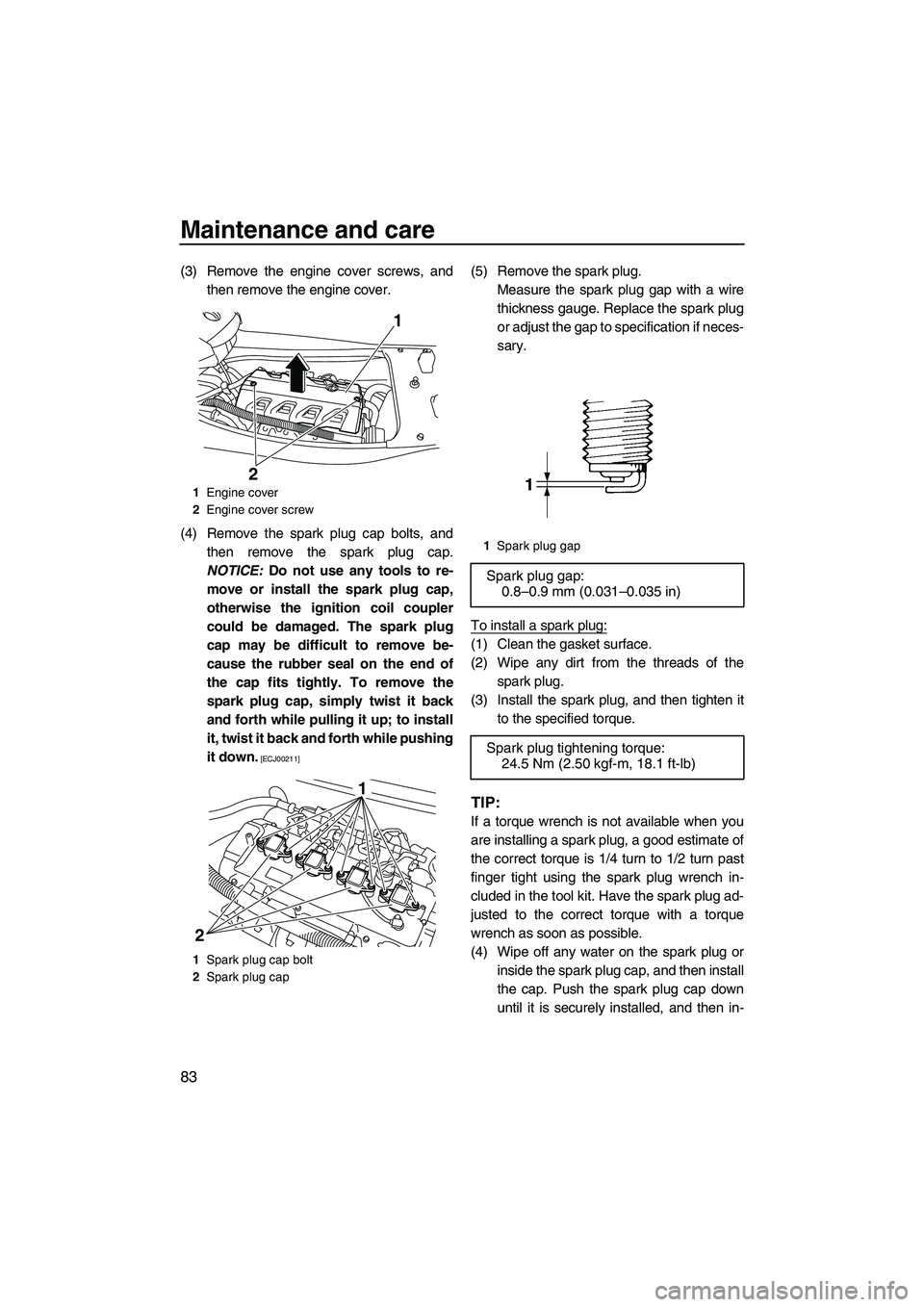

Maintenance and care
83
(3) Remove the engine cover screws, and
then remove the engine cover.
(4) Remove the spark plug cap bolts, and
then remove the spark plug cap.
NOTICE: Do not use any tools to re-
move or install the spark plug cap,
otherwise the ignition coil coupler
could be damaged. The spark plug
cap may be difficult to remove be-
cause the rubber seal on the end of
the cap fits tightly. To remove the
spark plug cap, simply twist it back
and forth while pulling it up; to install
it, twist it back and forth while pushing
it down.
[ECJ00211]
(5) Remove the spark plug.
Measure the spark plug gap with a wire
thickness gauge. Replace the spark plug
or adjust the gap to specification if neces-
sary.
To install a spark plug:
(1) Clean the gasket surface.
(2) Wipe any dirt from the threads of the
spark plug.
(3) Install the spark plug, and then tighten it
to the specified torque.
TIP:
If a torque wrench is not available when you
are installing a spark plug, a good estimate of
the correct torque is 1/4 turn to 1/2 turn past
finger tight using the spark plug wrench in-
cluded in the tool kit. Have the spark plug ad-
justed to the correct torque with a torque
wrench as soon as possible.
(4) Wipe off any water on the spark plug or
inside the spark plug cap, and then install
the cap. Push the spark plug cap down
until it is securely installed, and then in-
1Engine cover
2Engine cover screw
1Spark plug cap bolt
2Spark plug cap
21
2
1
1Spark plug gap
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Spark plug tightening torque:
24.5 Nm (2.50 kgf-m, 18.1 ft-lb)
UF2H70E0.book Page 83 Thursday, January 15, 2009 10:49 AM

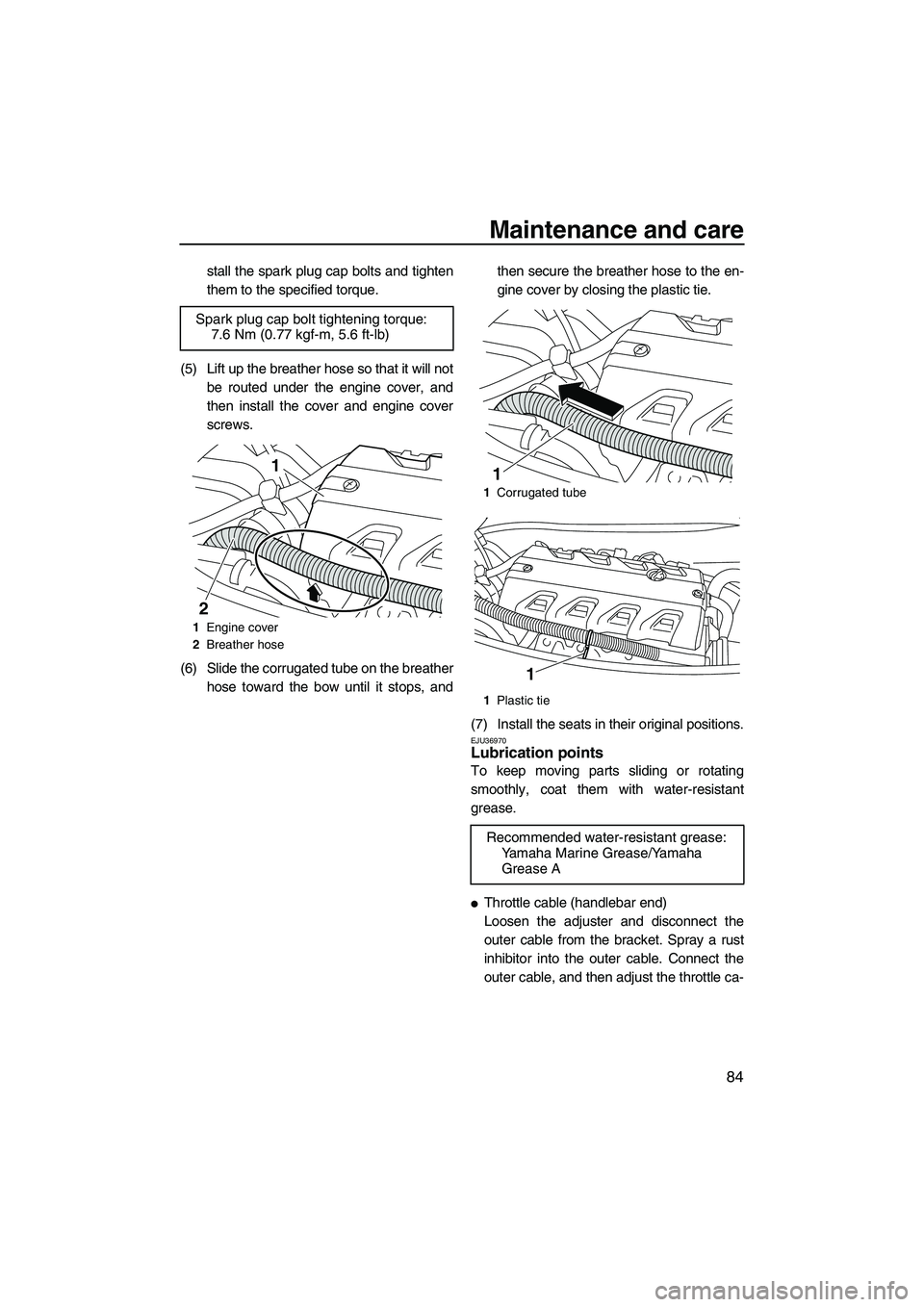

Maintenance and care
84
stall the spark plug cap bolts and tighten
them to the specified torque.
(5) Lift up the breather hose so that it will not
be routed under the engine cover, and
then install the cover and engine cover
screws.
(6) Slide the corrugated tube on the breather
hose toward the bow until it stops, andthen secure the breather hose to the en-
gine cover by closing the plastic tie.
(7) Install the seats in their original positions.
EJU36970Lubrication points
To keep moving parts sliding or rotating
smoothly, coat them with water-resistant
grease.

Throttle cable (handlebar end)
Loosen the adjuster and disconnect the
outer cable from the bracket. Spray a rust
inhibitor into the outer cable. Connect the
outer cable, and then adjust the throttle ca- Spark plug cap bolt tightening torque:
7.6 Nm (0.77 kgf-m, 5.6 ft-lb)
1Engine cover
2Breather hose
1
2
1Corrugated tube
1Plastic tie
Recommended water-resistant grease:
Yamaha Marine Grease/Yamaha
Grease A
1
1
UF2H70E0.book Page 84 Thursday, January 15, 2009 10:49 AM

Maintenance and care
85
ble free play. (See page 80 for adjustment
procedures.)

Steering cable (handlebar end)

Steering cable (jet thrust nozzle end)

QSTS rod (jet thrust nozzle end)

Shift cable (shift lever end)

Shift cable (reverse gate end)

Intermediate housing
Fill the intermediate housing with water-re-
sistant grease through the grease nipple
using a grease gun.
1Adjuster
UF2H70E0.book Page 85 Thursday, January 15, 2009 10:49 AM

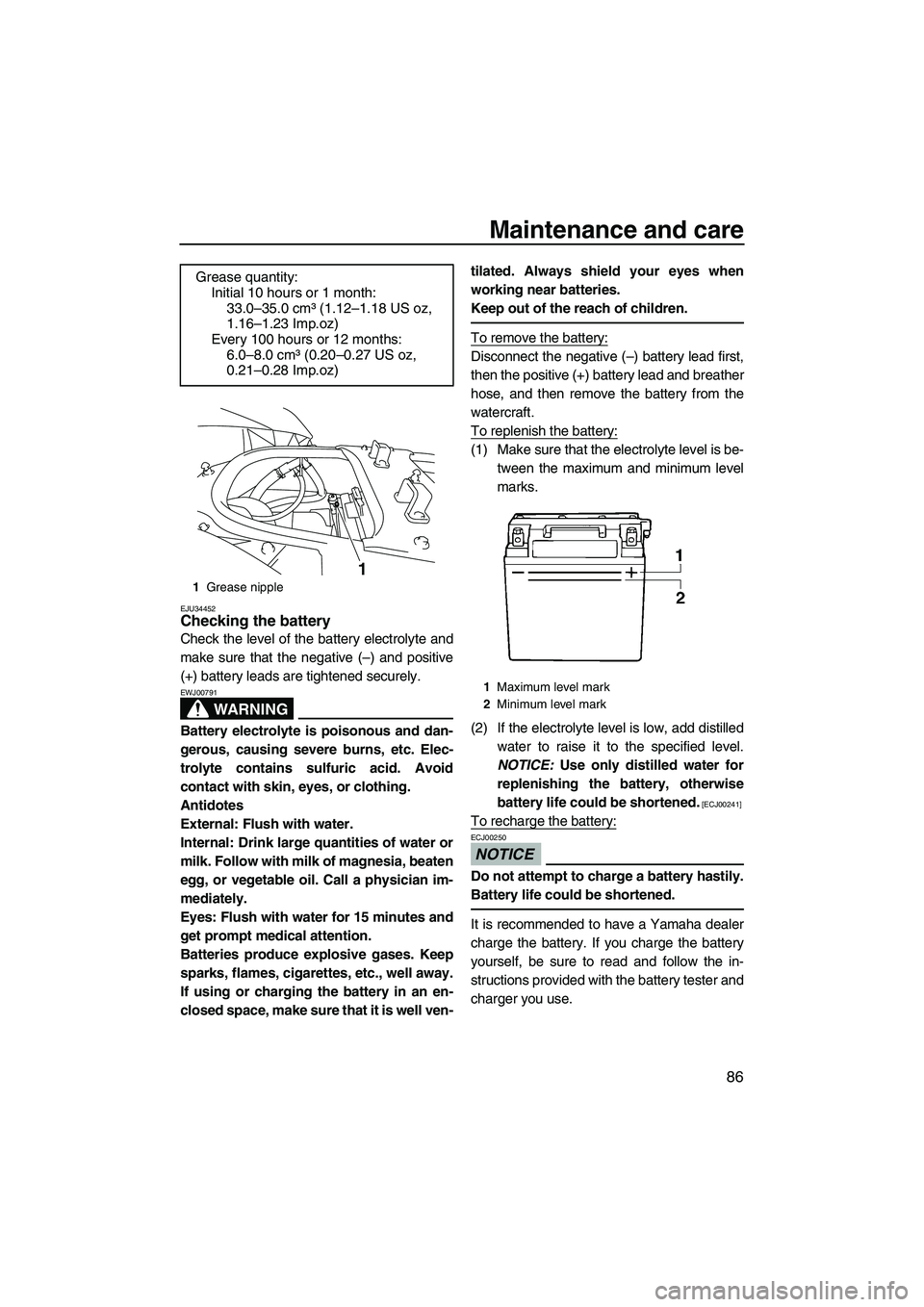

Maintenance and care
86
EJU34452Checking the battery
Check the level of the battery electrolyte and
make sure that the negative (–) and positive
(+) battery leads are tightened securely.
WARNING
EWJ00791
Battery electrolyte is poisonous and dan-
gerous, causing severe burns, etc. Elec-
trolyte contains sulfuric acid. Avoid
contact with skin, eyes, or clothing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten
egg, or vegetable oil. Call a physician im-
mediately.
Eyes: Flush with water for 15 minutes and
get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flames, cigarettes, etc., well away.
If using or charging the battery in an en-
closed space, make sure that it is well ven-tilated. Always shield your eyes when
working near batteries.
Keep out of the reach of children.
To remove the battery:
Disconnect the negative (–) battery lead first,
then the positive (+) battery lead and breather
hose, and then remove the battery from the
watercraft.
To replenish the battery:
(1) Make sure that the electrolyte level is be-
tween the maximum and minimum level
marks.
(2) If the electrolyte level is low, add distilled
water to raise it to the specified level.
NOTICE: Use only distilled water for
replenishing the battery, otherwise
battery life could be shortened.
[ECJ00241]
To recharge the battery:
NOTICE
ECJ00250
Do not attempt to charge a battery hastily.
Battery life could be shortened.
It is recommended to have a Yamaha dealer
charge the battery. If you charge the battery
yourself, be sure to read and follow the in-
structions provided with the battery tester and
charger you use. Grease quantity:
Initial 10 hours or 1 month:
33.0–35.0 cm³ (1.12–1.18 US oz,
1.16–1.23 Imp.oz)
Every 100 hours or 12 months:
6.0–8.0 cm³ (0.20–0.27 US oz,
0.21–0.28 Imp.oz)
1Grease nipple
1
1Maximum level mark
2Minimum level mark
UF2H70E0.book Page 86 Thursday, January 15, 2009 10:49 AM

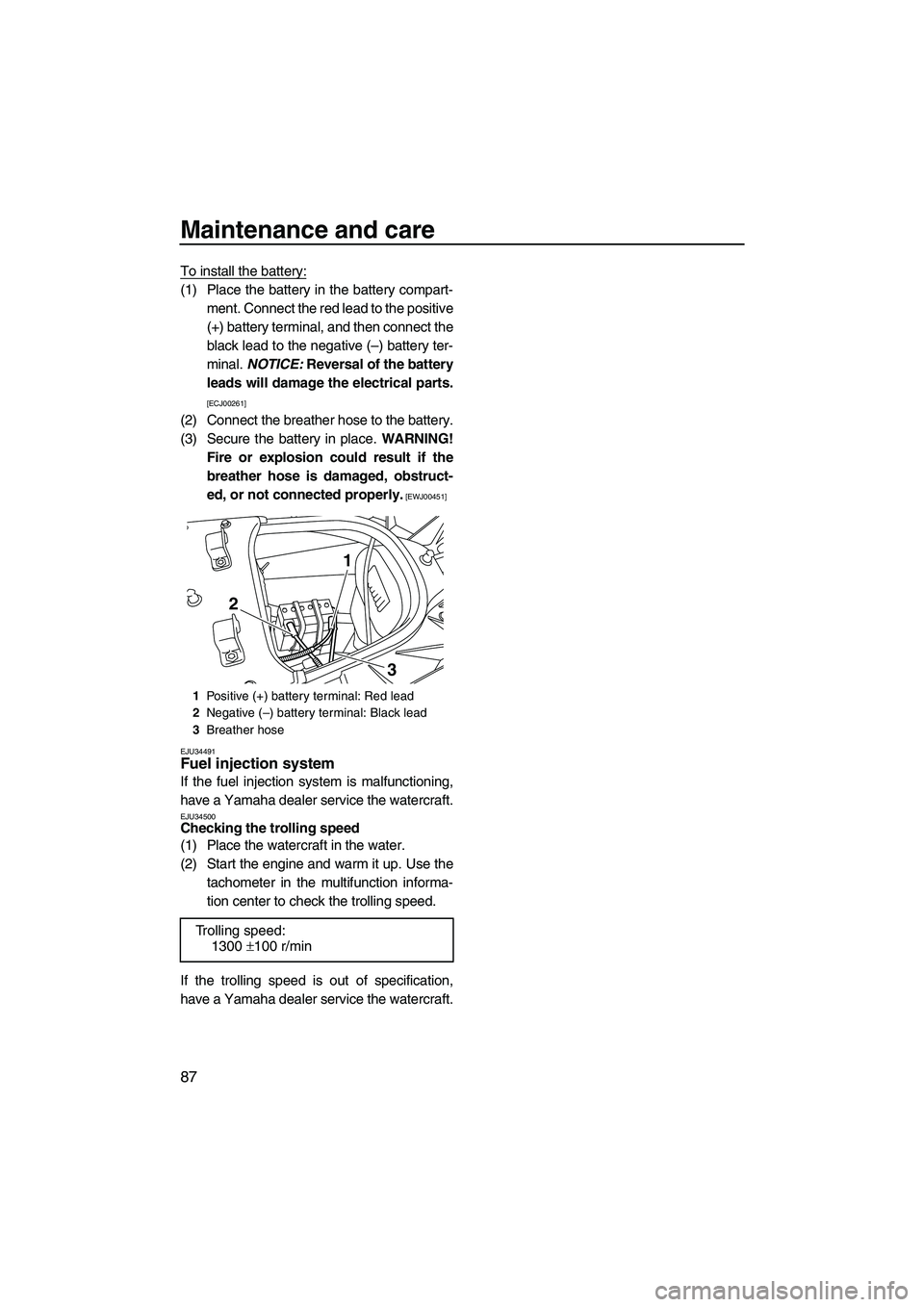

Maintenance and care
87
To install the battery:
(1) Place the battery in the battery compart-
ment. Connect the red lead to the positive
(+) battery terminal, and then connect the
black lead to the negative (–) battery ter-
minal. NOTICE: Reversal of the battery
leads will damage the electrical parts.
[ECJ00261]
(2) Connect the breather hose to the battery.
(3) Secure the battery in place. WARNING!
Fire or explosion could result if the
breather hose is damaged, obstruct-
ed, or not connected properly.
[EWJ00451]
EJU34491
Fuel injection system
If the fuel injection system is malfunctioning,
have a Yamaha dealer service the watercraft.
EJU34500Checking the trolling speed
(1) Place the watercraft in the water.
(2) Start the engine and warm it up. Use the
tachometer in the multifunction informa-
tion center to check the trolling speed.
If the trolling speed is out of specification,
have a Yamaha dealer service the watercraft.
1Positive (+) battery terminal: Red lead
2Negative (–) battery terminal: Black lead
3Breather hose
Trolling speed:
1300 ±100 r/min
3
1
2
UF2H70E0.book Page 87 Thursday, January 15, 2009 10:49 AM

Specifications
88
EJU34542
Specifications
Watercraft capacity:
Maximum people on board:
3 person
Maximum load capacity:
240 kg (530 lb)
Dimensions:
Length:
3370 mm (132.7 in)
Width:
1230 mm (48.4 in)
Height:
FX High Output 1160 mm (45.7 in)
FX Cruiser High Output 1240 mm (48.8 in)
Dry weight:
FX High Output 360 kg (794 lb)
FX Cruiser High Output 365 kg (805 lb)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):
132.40 kW@7600 r/min
Maximum fuel consumption:
48.6 L/h (12.8 US gal/h, 10.7 Imp.gal/h)
Cruising range at full throttle:
1.44 hour
Trolling speed:
1300 ±100 r/min
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Number of cylinders:
4
Engine displacement:
1812 cm³
Bore & stroke:
86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio:
11.0 : 1
Valve clearance-intake (cold):
0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold):
0.28–0.37 mm (0.0110–0.0146 in)
Lubrication system:
Wet sump
Cooling system:
Water
Starting system:
ElectricIgnition system:
T.C.I.
Spark plug:
LFR6A
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Battery capacity:
12 V, 19.0 Ah
Charging system:
Flywheel magneto
Drive unit:
Propulsion system:
Jet pump
Jet pump type:
Axial flow, single stage
Impeller rotation:
Counterclockwise
Jet thrust nozzle angle:
24.0+24.0 °
Jet thrust nozzle trim angle:
-10, -5, 0, 5, 10 °
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Minimum octane rating (PON):
86
Minimum octane rating (RON):
90
Recommended engine oil type SAE:
SAE 10W-30, 10W-40, 20W-40, 20W-50
Recommended engine oil grade API:
API SE,SF,SG,SH,SJ,SL
Fuel tank total capacity:
70 L (18.5 US gal, 15.4 Imp.gal)
Engine oil quantity with oil filter replacement:
3.1 L (3.28 US qt, 2.73 Imp.qt)
Engine oil quantity without oil filter replacement:
3.0 L (3.17 US qt, 2.64 Imp.qt)
Engine oil total quantity:
4.3 L (4.55 US qt, 3.78 Imp.qt)
UF2H70E0.book Page 88 Thursday, January 15, 2009 10:49 AM

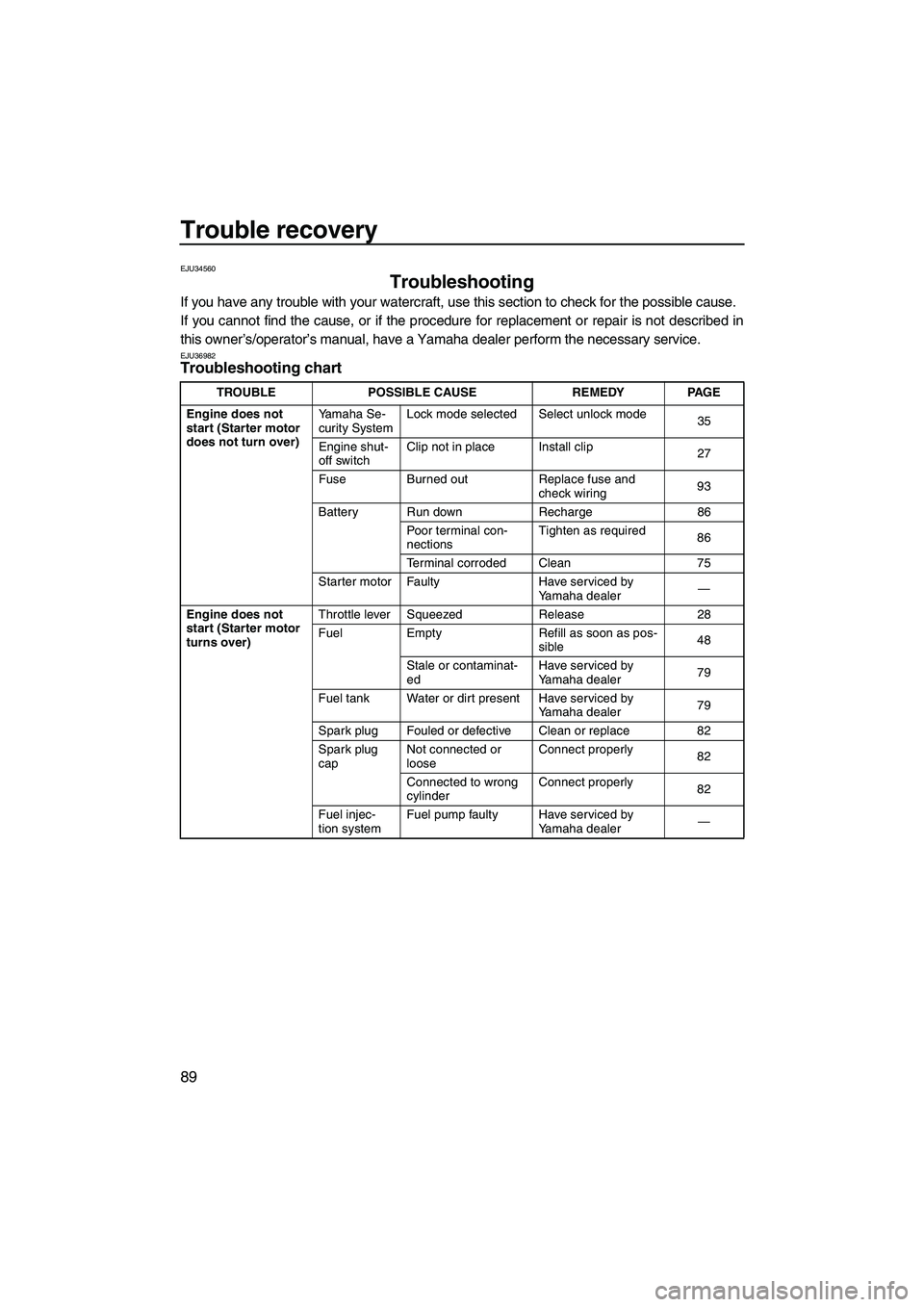

Trouble recovery
89
EJU34560
Troubleshooting
If you have any trouble with your watercraft, use this section to check for the possible cause.
If you cannot find the cause, or if the procedure for replacement or repair is not described in
this owner’s/operator’s manual, have a Yamaha dealer perform the necessary service.
EJU36982Troubleshooting chart
TROUBLE POSSIBLE CAUSE REMEDY PAGE
Engine does not
start (Starter motor
does not turn over)Yamaha Se-
curity SystemLock mode selected Select unlock mode
35
Engine shut-
off switchClip not in place Install clip
27
Fuse Burned out Replace fuse and
check wiring93
Battery Run down Recharge 86
Poor terminal con-
nectionsTighten as required
86
Terminal corroded Clean 75
Starter motor Faulty Have serviced by
Yamaha dealer—
Engine does not
start (Starter motor
turns over)Throttle lever Squeezed Release 28
Fuel Empty Refill as soon as pos-
sible48
Stale or contaminat-
edHave serviced by
Yamaha dealer79
Fuel tank Water or dirt present Have serviced by
Yamaha dealer79
Spark plug Fouled or defective Clean or replace 82
Spark plug
capNot connected or
looseConnect properly
82
Connected to wrong
cylinderConnect properly
82
Fuel injec-
tion systemFuel pump faulty Have serviced by
Yamaha dealer—
UF2H70E0.book Page 89 Thursday, January 15, 2009 10:49 AM
