2009 VOLVO XC90 Owner´s Manual

11
SPECIFICATIONS

11 SpecificationsLabel information
11258
G031880G032548

11 Specifications

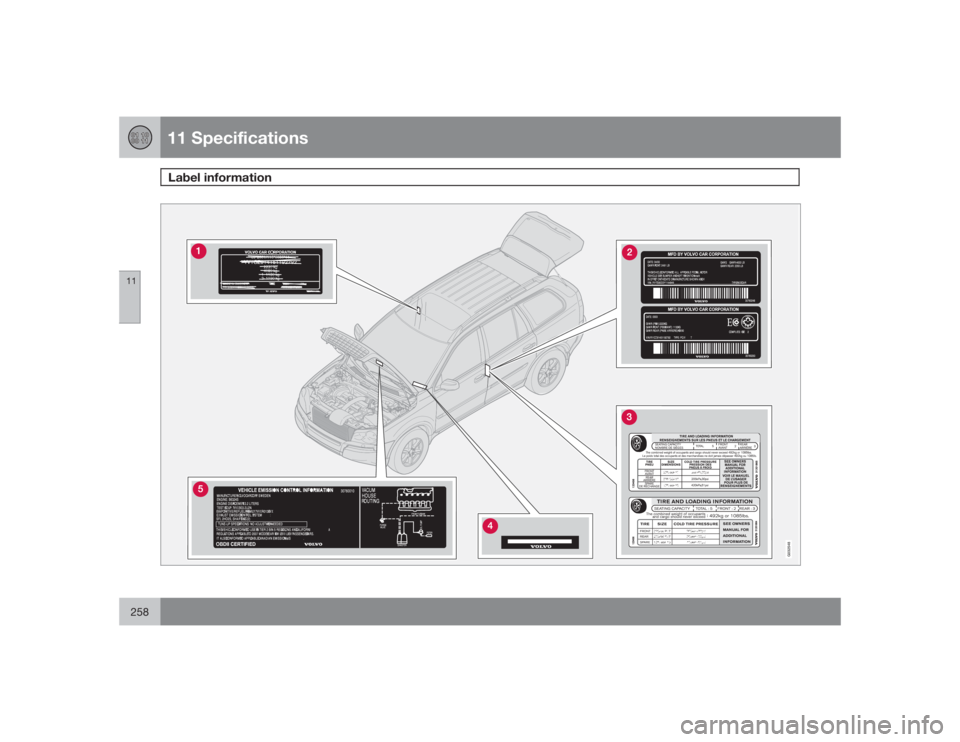

Label information
11
259
Model plate: includes e.g., Vehicle Identi-
fication Number (VIN), codes for color and
upholstery, etc.Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Min-
istry of Transport (CMVSS) standards
(Canada): Your Volvo is designed to meet
all applicable safety standards, as evi-
denced by the certification label on the
facing side of the driver's door. For further
information regarding these regulations,
please consult your Volvo retailer.Loads and Tire Pressures: The appear-
ance of the decal will vary, depending on
the market for which the vehicle is
intended. Canadian models have the upper
decal, U.S. models have the lower one.Vehicle Identification Number (VIN): The
VIN plate is located on the top left surface
of the dashboard. The VIN is also stamped
on the right hand door pillar.Vehicle Emission Control Information:
Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by
the certification label on the underside of
the hood. For further information regarding
these regulations, please consult your
Volvo retailer.

11 SpecificationsDimensions
11260
G020132Position
Dimension
in. (mm)
A
Wheelbase
112.6 in (285.7 cm)
B
Length
188.9 in (479.8 cm)
C
Load length, floor, seatback down
79.4 in. (201.8 cm)
D
Load length, cargo area
44 in. (111.8 cm)
E
Height
70.2 in (178.4 cm)
F
Track, front
64.3 in (163.4 cm)
G
Track, rear
63.9 (162.4 cm)

11 Specifications
Dimensions
11
261
Position
Dimension
in. (mm)
H
Width
74.7 in (189.8 cm)
I
Width incl. door mirrors
83.1 in. (211.2 cm)

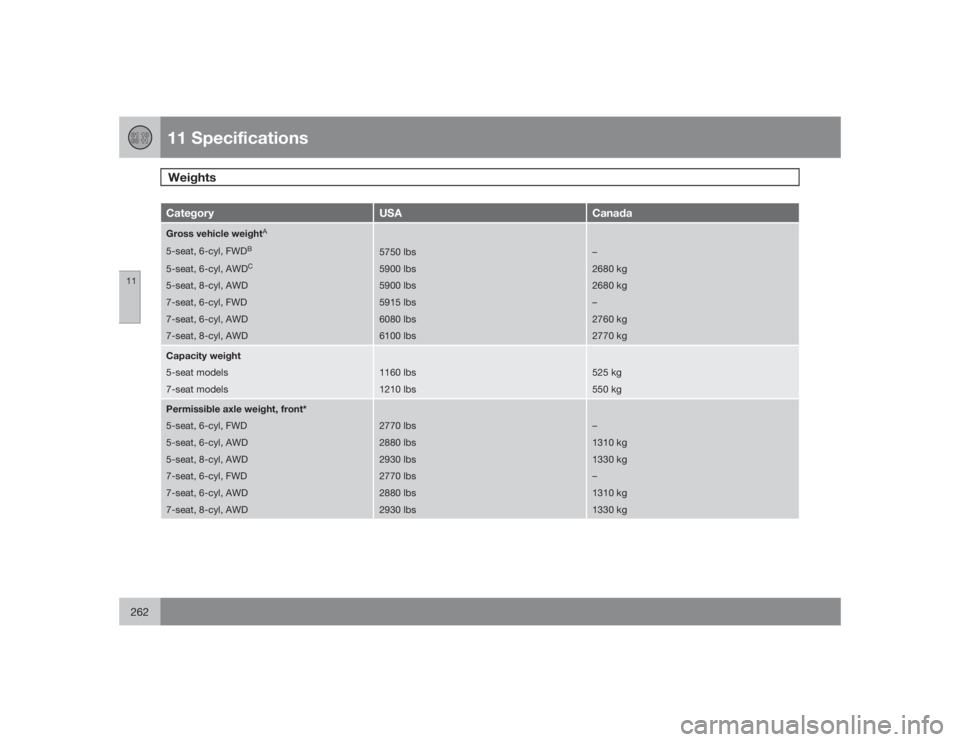

11 SpecificationsWeights
11262
Category
USA
Canada
Gross vehicle weight
A
5-seat, 6-cyl, FWD
B
5-seat, 6-cyl, AWD
C
5-seat, 8-cyl, AWD
7-seat, 6-cyl, FWD
7-seat, 6-cyl, AWD
7-seat, 8-cyl, AWD
5750 lbs
5900 lbs
5900 lbs
5915 lbs
6080 lbs
6100 lbs
–
2680 kg
2680 kg
–
2760 kg
2770 kg
Capacity weight
5-seat models
7-seat models
1160 lbs
1210 lbs
525 kg
550 kg
Permissible axle weight, front*
5-seat, 6-cyl, FWD
5-seat, 6-cyl, AWD
5-seat, 8-cyl, AWD
7-seat, 6-cyl, FWD
7-seat, 6-cyl, AWD
7-seat, 8-cyl, AWD
2770 lbs
2880 lbs
2930 lbs
2770 lbs
2880 lbs
2930 lbs
–
1310 kg
1330 kg
–
1310 kg
1330 kg

11 Specifications
Weights
11``263
Category
USA
Canada
Permissible axle weight, rear
5-seat, 6-cyl, FWD
5-seat, 6-cyl, AWD
5-seat, 8-cyl, AWD
7-seat, 6-cyl, FWD
7-seat, 6-cyl, AWD
7-seat, 8-cyl, AWD
3060 lbs
3150 lbs
3150 lbs
3170 lbs
3240 lbs
3240 lbs
–
1430 kg
1430 kg
–
1470 kg
1470 kg
Curb weight
5-seat, FWD
5-seat, AWD
7-seat, FWD
7-seat, AWD
4365 – 4400 lbs
4505 – 4655 lbs
4530 – 4570 lbs
4675 – 4820 lbs
–
2065 – 2130 kg
–
2135 – 2160 kg
Max. roof load
220 lbs
100 kg
Trailer weight, w/o brakes
1650 lbs
750 kg
Trailer weights, with brakes
See the table on page 151
See the table on page 151
Max. tongue weight
See the table on page 151
See the table on page 151
APermissible axle weight or gross vehicle weight must never be exceeded.BFWD= front wheel driveCAWD = All Wheel Drive

11 SpecificationsWeights
11264
CAUTION
The maximum permissible axle loads and/
or the gross vehicle weight must not be
exceeded.
WARNING
When adding accessories, equipment, lug-
gage and other cargo to your vehicle, the
total capacity weight must not be exceeded.
