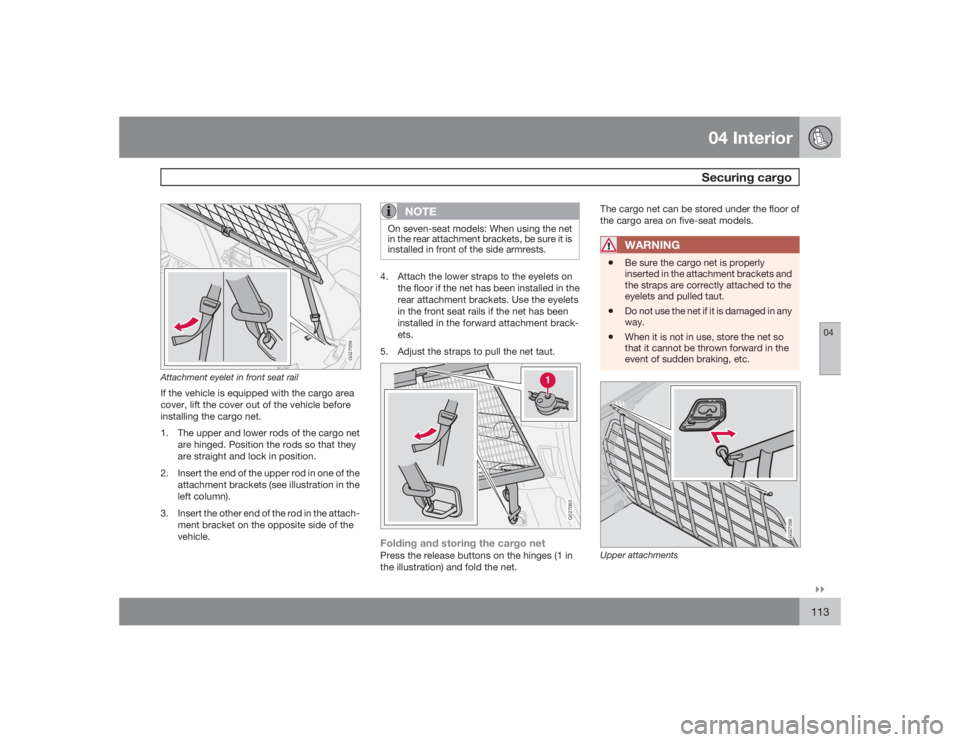

04 InteriorSecuring cargo
04``113
G027059
Attachment eyelet in front seat railIf the vehicle is equipped with the cargo area
cover, lift the cover out of the vehicle before
installing the cargo net.
1. The upper and lower rods of the cargo net
are hinged. Position the rods so that they
are straight and lock in position.
2. Insert the end of the upper rod in one of the
attachment brackets (see illustration in the
left column).
3. Insert the other end of the rod in the attach-
ment bracket on the opposite side of the
vehicle.
NOTE
On seven-seat models: When using the net
in the rear attachment brackets, be sure it is
installed in front of the side armrests.4. Attach the lower straps to the eyelets on
the floor if the net has been installed in the
rear attachment brackets. Use the eyelets
in the front seat rails if the net has been
installed in the forward attachment brack-
ets.
5. Adjust the straps to pull the net taut.
G027060
Folding and storing the cargo netPress the release buttons on the hinges (1 in
the illustration) and fold the net.The cargo net can be stored under the floor of
the cargo area on five-seat models.
WARNING
•
Be sure the cargo net is properly
inserted in the attachment brackets and
the straps are correctly attached to the
eyelets and pulled taut.
•
Do not use the net if it is damaged in any
way.
•
When it is not in use, store the net so
that it cannot be thrown forward in the
event of sudden braking, etc.
G027056
Upper attachments

04 InteriorSecuring cargo
04114
Steel grid (accessory)
Installing the grid, upper attachments1. Lift in the grid through the tailgate or
through one of the rear passenger doors (in
this case, fold down the rear seat backr-
ests/backrests in second row of seats in
seven-seat models).
2. Insert one of the grid's upper attachments
into an attachment bracket above one of
the rear passenger doors (see illustration
above).
3. Push the grid's attachment into the forward
position in the attachment bracket (see
inset illustration above) to lock the attach-
ment in place.
G027057
Lower attachments4. Insert the grid's other upper attachment in
the attachment bracket above the oppo-
site rear passenger door, and press the
attachment into the forward position in the
attachment bracket to lock it in place.Installing the grid, lower attachments1. Insert the lower attachment bracket
through the steel grid's lower mount from
underneath.
2. Install the spring on the attachment
bracket and tighten the knob.
3. Secure the attachment bracket hook in the
lower cargo eyelet. Turn the knob to ten-sion the attachment bracket in the cargo
eyelet.
4. Repeat the operation on the opposite side.
5. Tighten both attachment brackets alterna-
tively.
6. Place the protective caps on the threads
above the knobs.
WARNING
Seven-seat models:•
The backrests of the optional third row
seats must be folded down when instal-
ling the steel grid.
•
The steel grid is installed behind the
second row of seats in seven-seat mod-
els. To avoid the risk of injury, no one
should be allowed to sit in the third row
of seats when the steel grid is in place
in the vehicle.

04 InteriorSecuring cargo
04
115
G027055
Cargo area cover (option)
Installing the cargo area cover:1. Press the end pieces of the cargo area
cover down in the holders.
2. Pull out the cargo area cover and hook it in
the holes in the rear cargo area pillars (see
illustration above).Removing the cargo area cover:1. Press the end pieces of the cover inward.
2. Pull up and lift out.
G027066
Grocery bag holder1. Fold down the lower section of the tailgate.
2. Fold up the rear section of the cargo com-
partment floor.
3. Hang or secure your grocery bags by
means of the straps or holders.

116
Keys and remote controls..................................................................... 118
Locking and unlocking.......................................................................... 122
Child safety locks.................................................................................. 124
Alarm..................................................................................................... 125

05
LOCKS AND ALARM

05 Locks and alarmKeys and remote controls
05118
Keys
G030177
Your vehicle is equipped with two coded
remote control transmitters with integrated
ignition key blades called Key Integrated
Remote (KIR).
To unlock/lock the vehicle using the key blade:•
Insert the key blade in the driver's door lock
and turn it once to unlock the driver's door
only.
•
Turn the key blade again (within 10 sec-
onds) to unlock all doors and the tailgate.
•
Turn the key blade once in the opposite
direction to lock all doors and the tailgate.Use the switch on the driver's door armrest to
lock/unlock the vehicle from the inside.
WARNING
If the doors are locked while driving, this
may hinder rapid access to the occupants
of the vehicle in the event of an accident.
(Also see information on "Child safety locks"
NOTE
To help prevent accidentally locking the
keys in the vehicle, the central locking sys-
tem is designed to unlock the doors imme-
diately if the key is left in the ignition switch,
the vehicle is locked using the lock button
on the door and the door is then closed. A
sound from the lock will be audible at this
time.
Please note that this function will not unlock
the doors if the engine is running.Immobilizer (start inhibitor)Each of the keys supplied with your vehicle
contains a coded transmitter. The code in the
key is transmitted to an antenna in the ignition
switch where it is compared to the code stored
in the start inhibitor module. The vehicle will
start only with a properly coded key.
Each key has a unique code, which your Volvo
retailer uses if new keys are required. A maxi-mum of six remote controls/keys can be pro-
grammed and used for one vehicle.
If you misplace a key, take the other keys to an
authorized Volvo retailer for reprogramming as
an antitheft measure.
If two of the keys to your vehicle are close
together, e.g., on the same key ring, when you
try to start the vehicle, this could cause inter-
ference in the immobilizer system and result in
the vehicle not starting. If this should occur,
remove one of the keys from the key ring before
trying to start the vehicle again.
NOTE
This device complies with part 15 of the
FCC rules. Operation is subject to the fol-
lowing condition: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.

05 Locks and alarmKeys and remote controls
05``119 Remote controls
G026963
Your vehicle is equipped with two coded
remote control transmitters with integrated
ignition keys called Key Integrated Remote
(KIR).
The remote control transmitters will also acti-
vate or allow "keyless" entry into the passenger
compartment or the tailgate. These transmit-
ters use a radio frequency that will enable you
to lock/unlock all doors and the tailgate from a
distance of 10 – 15 feet (3 – 5 meters). They will
also activate or deactivate your vehicle's alarm
system(s). The vehicle can also be locked/
unlocked with the key.If one of the transmitters is misplaced, a
replacement can be purchased from your near-
est authorized Volvo retailer for replacement.
G027013
UnlockUnlock tailgate"Panic" functionApproach lightingLockFold key blade in/out
Using the remote control UnlockPress this button once to unlock the driver's
door only. Wait for at least 1 second and press
the button again (within 10 seconds) to unlock
all doors, and the tailgate.
Tailgate unlock
Press this button to unlock the tailgate (without
unlocking the other doors). This function will
not open the tailgate. Panic function
For more information on this function, see
page 125. Approach lighting
Press this button when approaching the vehi-
cle at night to light up the interior courtesy light,
parking lights, license plate lights and the lights
in the door mirrors. Lock
Press once to lock all doors, and the tailgate. Fold key blade in/out
Press to extend the key blade. This button
must also be pressed when the key blade is
folded back into the slot in the side of the
remote control unit.

05 Locks and alarmKeys and remote controls
05120
NOTE
•
If an airbag deploys, your vehicle's SRS
control module will attempt to automat-
ically unlock all doors.
•
The key blade may also be used to lock
and unlock the doors, and to activate
and deactivate the alarm system.
•
To avoid leaving your keys in the vehi-
cle, make a habit of always locking the
vehicle with the remote control.
•
If the key blade section of the remote is
not fully folded out when starting the
vehicle, the immobilizer function may
make it impossible to start the engine.
•
The vehicle can be locked even if a door
is open. When the door(s) are closed,
they will be locked. Please be aware
that the keys could be locked in the car
when this is done.
Automatic re-lockingIf the doors are unlocked, the locks will auto-
matically reengage (re-lock) and the alarm will
rearm after 2 minutes unless a door or the tail-
gate has been opened. This helps prevent the
car from inadvertently being left unlocked.
FCC ID: LQNP2T-APU
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canadian 2306104388
Model 504 2927 by Donnelly
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
Canadian 2306104388A
Model 509 977 by Connaught Electronics
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
WARNING
Never use the transmitter to lock the doors
from inside the vehicle.•
Doing so would ACTIVATE:
•
the break-in alarm, which would sound
if one of the doors were opened
•
the optional interior motion and inclina-
tion alarm sensors.
•
Doing so would DEACTIVATE:
•
the moonroof and interior courtesy light
controls.
•
the central locking buttons on the front
door armrests, although the interior
door handles would still function to
allow occupants to leave the vehicle.
•
Disabled features would remain disa-
bled until the remote is used again to
unlock the vehicle.
•
In addition, locking an occupied vehicle
would hinder rapid access to the occu-
pants in an accident or emergency.
