06 Maintenance and specifications
Label information06
}}
279

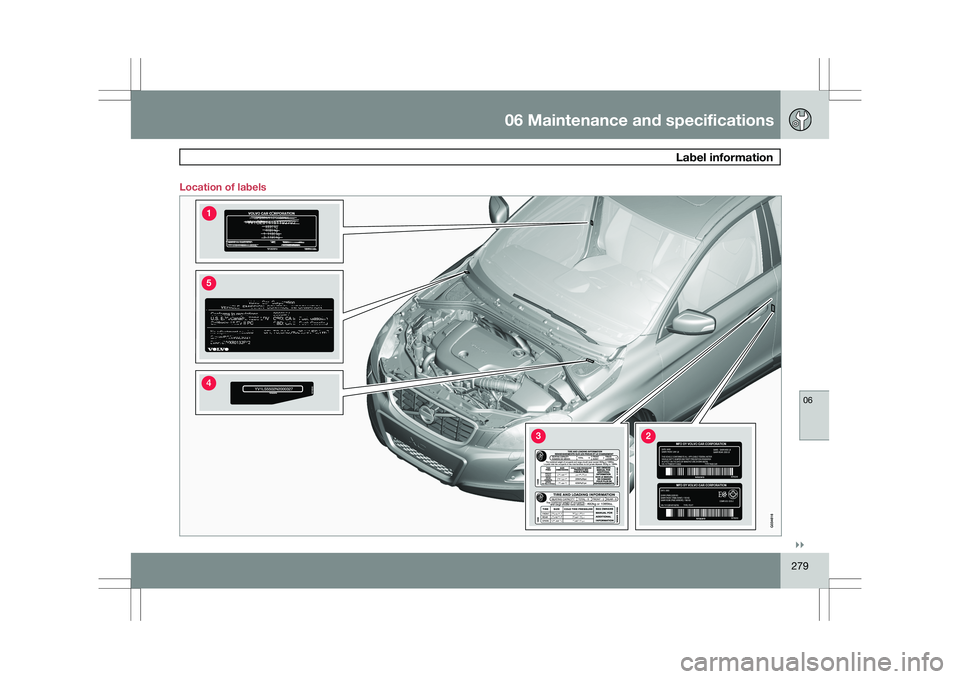

Location of labels

06 Maintenance and specificationsLabel information 06

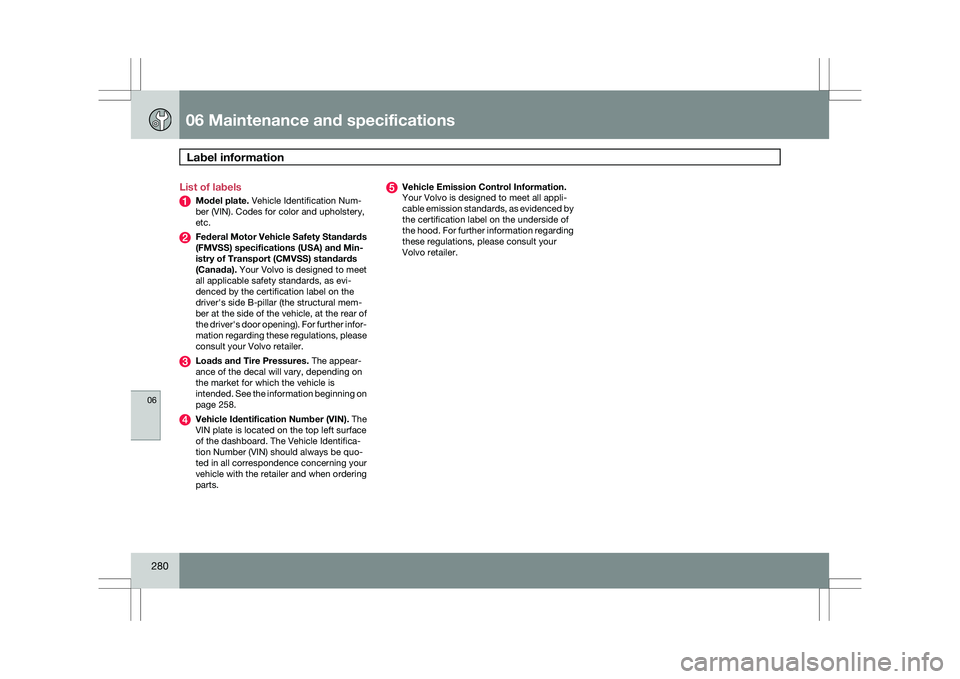

280 List of labels
Model plate. Vehicle Identification Num-
ber (VIN). Codes for color and upholstery,
etc.
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Min-
istry of Transport (CMVSS) standards
(Canada). Your Volvo is designed to meet
all applicable safety standards, as evi-
denced by the certification label on the
driver\fs side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear of
the driver\fs door opening). For further infor-
mation regarding these regulations, please
consult your Volvo retailer.
Loads and Tire Pressures. The appear-
ance of the decal will vary, depending on
the market for which the vehicle is
intended. See the information beginning
on
page 258. Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface
of the dashboard. The Vehicle Identifica-
tion Number (VIN) should always be quo-
ted in all correspondence concerning your
vehicle with the retailer and when ordering
parts. Vehicle Emission Control Information.
Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by
the certification label on the underside of
the hood. For further information regarding
these regulations, please consult your
Volvo retailer.

06 Maintenance and specifications
Specifications06
}}
281
Dimensions
Dimension In. (mm)
A Wheelbase 109.2 (2774)
B Length 182.2 (4628)
C Load length, floor, seatback down 70.4 (1789)
D Load length, floor 38.3 (972)
E Height 67.4 (1713)
F Load height 31.6 (802)
G Track, front 64.3 (1632)

06 Maintenance and specificationsSpecifications 06
282 Dimension In. (mm)
H Track, rear 62.4 (1586)
I Load width, floor 42.9 (1090)
J Width 74.4 (1891)
K Width, incl. door mirrors 84.3 (2142)
Weights
Category USA Canada
Gross vehicle weight 5380 lbs 2440 kg
Capacity weight 950 lbs 430 kg
Permissible axle weights, front 2840 lbs 1290 kg
Permissible axle weights, rear 2645 lbs 1200 kg
Curb weight 4190 – 4230 lbs 1910 – 1930 kg
Max. roof load 220 lbs 100 kg
Max. trailer weights Without brakes: 1650 lbs
With brakes, 1 7/8” ball: 2,000 lbs
With brakes, 2” ball: 3,300 lbs Without brakes: 750 kg
With brakes, 1 7/8” ball: 900 kg
With brakes, 2” ball: 1500 kg
Max. tongue weight 165 lbs 75 kg

06 Maintenance and specifications
Specifications06
}}
283
Engine specifications
Specification/Model 3.0T
Engine designation B6304T2
Output (kW/rps) 210/93
Output (hp/rpm) 281/5600
Torque (Nm/rps) 400/25 – 80
Torque (ft. lbs./rpm) 295/1500 – 4800
No. of cylinders 6
Bore (in/mm) 3.23/82
Stroke (in/mm) 3.67/93.2
Displacement 2.95 liters (175 cu. in.)
Compression ratio 9.3:1
Engine oil
Engine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.
Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.
Volvo recommends Castrol.
Depending on your driving habits, premium or
synthetic oils may provide superior fuel econ-
omy and engine protection. Consult your Volvo
retailer for recommendations on premium or
synthetic oils.
Oil additives must not be used.
Synthetic oil is not used when the oil is
changed at the normal maintenance services.
This oil is only used at customer request, at
additional charge. Please consult your Volvo
retailer.
Oil viscosityIncorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will provide
good fuel economy and engine protection. See
the viscosity chart.

06 Maintenance and specificationsSpecifications 06
284 Viscosity chart
Extreme engine operationSynthetic oils meeting SAE 0W-30 or 0W-40
and complying with oil quality requirements are
recommended for driving in areas of sustained
temperature extremes (hot or cold), when tow-
ing a trailer over long distances, and for pro-
longed driving in mountainous areas.
American Petroleum Institute (API)
symbol The API Service Symbol "donut" is divided into
three parts:
\b
The upper section describes the oil\fs per-
formance level.
\b The center identifies the oil\fs viscosity.
\b The lower section indicates whether the oil
has demonstrated energy-conserving
properties in a standard test in comparison
to a reference oil.
Oil volume Engine model Oil volume between MIN and
MAX Volume (incl. filter)
3.0T (6 cyl.) B6304T2 1.27 US qts (1.2 liters) 7.82 US qts (7.4 liters)
G023491
G022917

06 Maintenance and specifications
Specifications06
}}
285
Other fluids and lubricants
Fluid System Volume Specification
Transmission oil
A Automatic (TF-80SC) 7.4 US qts (7.0 liters) Transmission fluid JWS 3309
Coolant 9.4 US qts. (8.9 liters) Coolant with corrosion inhibitor
mixed with water (50/50 mix), see
packaging.
Air conditioning 1.8 lbs (800 g) Refrigerant: R134a (HFC134a),
PAG oil
Brake fluid 0.63 US qts (0.6 liters) DOT 4+
Power steering 1.26 US qts (1.2 liters) Power steering fluid WSS
M2C204-A2 or equivalent product.
Washer fluid 6.8 US qts (6.5 liters)
4.7 US qts (4.5 liters
B
) Use a washer antifreeze recom-
mended by Volvo, mixed with
water.
Fuel tank volume 18.5 US gallons (70 liters)
A
Under normal driving conditions the transmission oil does not need chang\
ing during its service life. However, it may be necessary under adverse \
driving conditions.
B Models without headlight washers

06 Maintenance and specificationsSpecifications 06
286 Electrical system
General information12 volt system with a voltage-regulated alter-
nator. Single pole system in which the chassis
and engine block are used as conductors. The
negative terminal is connected to the chassis.
Performance, battery
Engine 3.0T
Voltage (V) 12
Cold start capacity (A) 520 – 700
Reserve capacity (min) 100 – 135
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
CAUTION
If the battery is replaced, replace it with a
battery of the same cold start capacity and
reserve capacity as the original (see the
decal on the battery).
