2009 VOLVO S80 Owner´s Manual

06 Maintenance and specifications
Specifications
06``273
Category
USA
Canada
Permissible axle weights, rear
6-cyl. FWD: 2270 lbs
6-cyl. turbo AWD: 2360 lbs
8-cyl. AWD: 2380 lbs
S80 Executive 6 cyl. turbo AWD: 2360 lbs
S80 Executive 8 cyl. AWD: 2380 lbs
6-cyl. FWD: 1030 kg
6-cyl. turbo AWD: 1070 kg
8-cyl. AWD: 1080 kg
S80 Executive 6 cyl. turbo AWD: 1070 kg
S80 Executive 8 cyl. AWD: 1080 kg
Curb weight
3760–4060 lbs
S80 Executive: 4005–4070 lbs
1700–1860 kg
S80 Executive: 1814–1864 kg
Max. roof load
220 lbs
100 kg
Max. trailer weights
Without brakes: 1650 lbs
With brakes, 1 7/8” ball: 2,000 lbs
With brakes, 2” ball: 3,300 lbs
Without brakes: 750 kg
With brakes, 1 7/8” ball: 900 kg
With brakes, 2” ball: 1500 kg
Max. tongue weight
165 lbs
75 kg
AFWD = Front Wheel DriveBAWD = All Wheel DriveEngine specificationsSpecification/Model
3.2 6-cyl.
3.0T
V8
Engine designation
B6324S
B6304T2
B8444S
Output (kW/rps)
175/103
210/93
232/99
Output (hp/rpm)
235/6200
281/5600
311/5950

06 Maintenance and specificationsSpecifications
06274
Specification/Model
3.2 6-cyl.
3.0T
V8
Torque (Nm/rps)
320/53
400/25 – 80
440/66
Torque (ft. lbs./rpm)
236/3200
295/1500 – 4800
325/3950
No. of cylinders
6
6
8
Bore (in/mm)
3.3/84
3.23/82
3.7/94
Stroke (in/mm)
3.78/96
3.67/93.2
3.13/79.5
Displacement
3.19 liters (194.8 cu. in.)
2.95 liters (175 cu. in.)
4.4 liters (269.4 cu. in.)
Compression ratio
10.8:1
9.3:1
10.4:1
Engine oilEngine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.
Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.
Volvo recommends Castrol.
Depending on your driving habits, premium or
synthetic oils may provide superior fuel econ-
omy and engine protection. Consult your Volvo
retailer for recommendations on premium or
synthetic oils.
Oil additives must not be used.Synthetic oil is not used when the oil is
changed at the normal maintenance services.
This oil is only used at customer request, at
additional charge. Please consult your Volvo
retailer.
Oil viscosity (stable ambient
temperatures)
Operation in hot climatesWhen temperatures exceed 104 °F (40 °C) in
your area, Volvo recommends, for the protec-
tion of your engine, that you use a heavier
weight oil, such as such as SAE 5W-40 or
0W-40. See the viscosity chart.
G023491
Viscosity tableOperation in temperate climatesIncorrect viscosity oil can shorten engine life.
Under normal use when temperatures do not
exceed 104 °F (40 °C), SAE 5W-30 will provide

06 Maintenance and specifications
Specifications
06``275
good fuel economy and engine protection. See
the viscosity chart.Extreme engine operationSynthetic oils meeting SAE 0W-30 or 0W-40
and complying with oil quality requirements are
recommended for driving in areas of sustained
temperature extremes (hot or cold), when tow-
ing a trailer over long distances, and for pro-
longed driving in mountainous areas.American Petroleum Institute (API)
symbol
G022917
The API Service Symbol "donut" is divided into
three parts:•
The upper section describes the oil's per-
formance level.
•
The center identifies the oil's viscosity.
•
The lower section indicates whether the oil
has demonstrated energy-conserving
properties in a standard test in comparison
to a reference oil.

06 Maintenance and specificationsSpecifications
06276

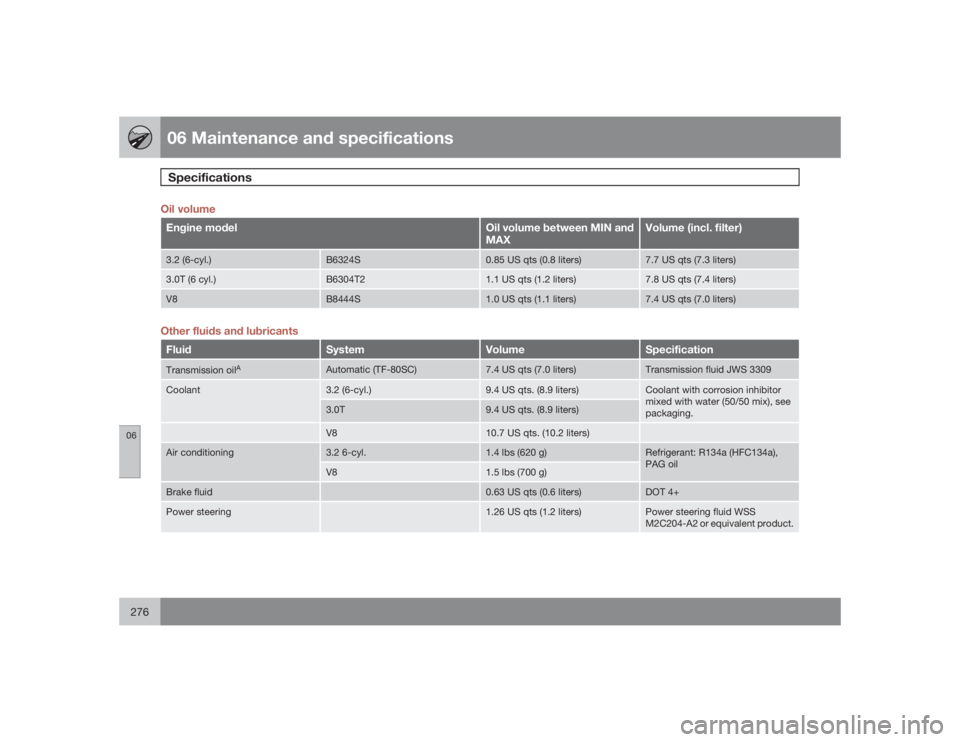

Oil volumeEngine model
Oil volume between MIN and
MAX
Volume (incl. filter)
3.2 (6-cyl.)
B6324S
0.85 US qts (0.8 liters)
7.7 US qts (7.3 liters)
3.0T (6 cyl.)
B6304T2
1.1 US qts (1.2 liters)
7.8 US qts (7.4 liters)
V8
B8444S
1.0 US qts (1.1 liters)
7.4 US qts (7.0 liters)
Other fluids and lubricantsFluid
System
Volume
Specification
Transmission oil
A
Automatic (TF-80SC)
7.4 US qts (7.0 liters)
Transmission fluid JWS 3309
Coolant
3.2 (6-cyl.)
9.4 US qts. (8.9 liters)
Coolant with corrosion inhibitor
mixed with water (50/50 mix), see
packaging.
3.0T
9.4 US qts. (8.9 liters)
V8
10.7 US qts. (10.2 liters)
Air conditioning
3.2 6-cyl.
1.4 lbs (620 g)
Refrigerant: R134a (HFC134a),
PAG oil
V8
1.5 lbs (700 g)
Brake fluid
0.63 US qts (0.6 liters)
DOT 4+
Power steering
1.26 US qts (1.2 liters)
Power steering fluid WSS
M2C204-A2 or equivalent product.

06 Maintenance and specifications
Specifications
06
277
Fluid
System
Volume
Specification
Washer fluid
6.8 US qts (6.5 liters)
4.7 US qts (4.5 liters
B)
Use a washer antifreeze recom-
mended by Volvo, mixed with
water.
Fuel tank volume
18.5 US gallons (70 liters)
AUnder normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.BModels without headlight washersElectrical systemGeneral information12 volt system with a voltage-regulated alter-
nator. Single pole system in which the chassis
and engine block are used as conductors. The
negative terminal is connected to the chassis.Performance, batteryEngine
3.2
6-cyl./3.0T
V8
Voltage (V)
12
12
Cold start
capacity (A)
520
800
A
Reserve capacity
(min)
100
120
ACertain models may be equipped with 600 or 700 A batteries,
depending on the options chosen.
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
CAUTION
If the battery is replaced, replace it with a
battery of the same cold start capacity and
reserve capacity as the original (see the
decal on the battery).

06 Maintenance and specificationsVolvo programs
06278
Volvo On Call Roadside AssistanceYour new Volvo comes with a four year ON
CALL roadside assistance. Additional informa-
tion, features, and benefits are described in a
separate information package in your glove
compartment.
If you require assistance, dial:
American customers: 1-800-638-6586
(1-800-63-VOLVO)
Canadian customers: 1-800-263-0475Technician certificationIn addition to Volvo factory training, Volvo sup-
ports certification by the National Institute for
Automotive Service Excellence (A.S.E.). Certi-
fied technicians have demonstrated a high
degree of competence in specific areas.
Besides passing exams, each technician must
also have worked in the field for two or more
years before a certificate is issued. These pro-
fessional technicians are best able to analyze
vehicle problems and perform the necessary
maintenance procedures to keep your Volvo at
peak operating condition.
