2009 VOLVO S80 Owner´s Manual

04 Comfort and driving pleasure

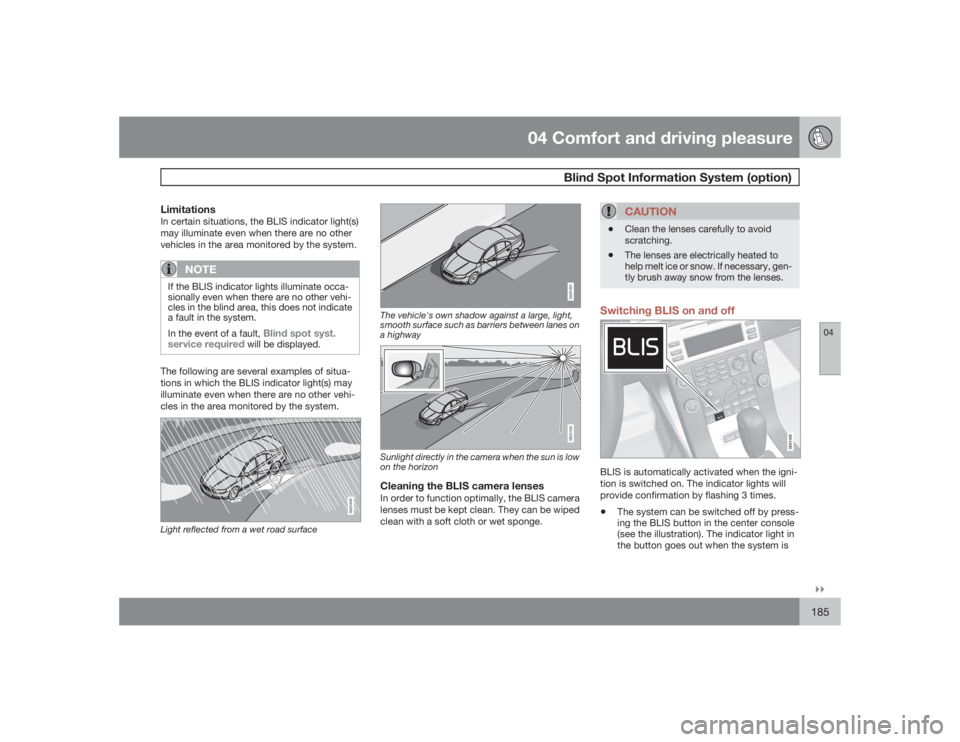

Blind Spot Information System (option)
04``185
LimitationsIn certain situations, the BLIS indicator light(s)
may illuminate even when there are no other
vehicles in the area monitored by the system.
NOTE
If the BLIS indicator lights illuminate occa-
sionally even when there are no other vehi-
cles in the blind area, this does not indicate
a fault in the system.
In the event of a fault,
Blind spot syst.
service required
will be displayed.
The following are several examples of situa-
tions in which the BLIS indicator light(s) may
illuminate even when there are no other vehi-
cles in the area monitored by the system.
G021430
Light reflected from a wet road surface
G021431
The vehicle's own shadow against a large, light,
smooth surface such as barriers between lanes on
a highway
G021432
Sunlight directly in the camera when the sun is low
on the horizonCleaning the BLIS camera lensesIn order to function optimally, the BLIS camera
lenses must be kept clean. They can be wiped
clean with a soft cloth or wet sponge.
CAUTION
•
Clean the lenses carefully to avoid
scratching.
•
The lenses are electrically heated to
help melt ice or snow. If necessary, gen-
tly brush away snow from the lenses.
Switching BLIS on and off
G021428
BLIS is automatically activated when the igni-
tion is switched on. The indicator lights will
provide confirmation by flashing 3 times.•
The system can be switched off by press-
ing the BLIS button in the center console
(see the illustration). The indicator light in
the button goes out when the system is

04 Comfort and driving pleasureBlind Spot Information System (option)
04186
switched off, and a text message is dis-
played.
•
BLIS can be switched on again by pressing
the button. The indicator light in the button
will illuminate and a new text message will
be displayed. Press the READ button (see
page 121) to erase the message.
BLIS system messagesText in the dis-
play
System status
Blind spot syst.
service required
BLIS not functioning
properly. Contact an
authorized Volvo
service technician.
Blind spot syst.
camera blocked
BLIS camera
obscured. Clean the
lenses.
Blind-spot info
system ON
BLIS system on
Text in the dis-
play
System status
Blind-spot info
system off
BLIS system off
Blind spot syst.
reduced function
The BLIS cameras'
function has been
reduced by e.g., fog,
or strong sunlight
directly into the
camea. The camera
will reset itself when
these conditions
have changed. have
been function
reduced

04 Comfort and driving pleasure
Passenger compartment convenience
04``187 Storage spaces
G024158

04 Comfort and driving pleasurePassenger compartment convenience
04188
Compartment in door panelStorage pocket on the front edge of the
front seat cushionsGlove compartmentStorage compartment, 12-volt socket and
AUX inputJacket holderRear seat cup holdersStorage pocket
Jacket holderThe jacket hanger is located on the inboard
side of the front passenger's seat head
restraint. It is only intended for hanging light
garments.
Tunnel console
G021436
Storage compartment (for CDs, etc.) under
armrest.Includes cup holder for driver and passen-
ger, 12 V socket and small storage com-
partment.
Cigarette lighter and ashtray (option)Your Volvo retailer has lighters and ashtrays
available as accessories.
Glove compartment
A
B
G021437
The owner's manual and maps can be kept
here. There are also holders for pens and fuel
cards. The glove compartment can be locked
manually with the key blade, see page 61.

04 Comfort and driving pleasure
Passenger compartment convenience
04
189 Vanity mirror
G021438
Vanity mirror with lightingThe light comes on automatically when the
cover is lifted.
12-volt sockets
G021439
12-volt socket in the front tunnel console
G021440
12-volt socket in the rear center consoleThe electrical socket can be used for 12-volt
accessories such as cell phone chargers and
coolers. The maximum current is 10 A. For thesocket to supply current, the ignition must be
in at least mode I, see page 78.
WARNING
Always keep the sockets covered when not
in use.

04 Comfort and driving pleasurePassenger compartment convenience–S80 Executive
04190
Refrigerator
G021857
The refrigerator is located behind the rear cen-
ter armrest and has a volume of 12.2 qts.
(11.5 liters). It functions when the engine is run-
ning or when the ignition is in mode II
WARNING
Bottles kept in the refrigerator should be
firmly sealed and the refrigerator's door
must be securely closed while the vehicle is
in motion.
NOTE
The refrigerator requires free air circulation
in order to function at its best. At least
2 inches (5 cm) of free space should be left
around the refrigerator's air intake in the
trunk.
Carpet in the trunk
G021858
If the vehicle is equipped with a refrigerator, the
rear seat backrests must be folded down
slightly before the carpet on the floor of the
trunk can be removed, see page 82.
Glasses
G021859
There is a storage compartment under the
cover in the rear center armrest for two glasses
and a bottle opener.
WARNING
Keep the glasses in their storage compart-
ment when not in use or in the cup holders
provided. The cover on the armrest should
be closed when the vehicle is in motion.

04 Comfort and driving pleasure
04
191

192
