2009 TOYOTA LAND CRUISER fuse

TABLE OF CONTENTSIndex
4
L/C200_U (OM60D97U)
DVD player and DVD video disc information ................ 327
Using the video mode ........ 334
Changing other settings ..... 336
3-4. Using the interior lights ............................... 338
Interior lights list ................. 338
• Interior lights .................... 339
• Personal lights ................. 340
3-5. Using the storage features ........................... 341
List of storage features....... 341
• Glove box ......................... 342
• Console box ..................... 343
• Overhead console ............ 344
• Cup holders...................... 345
• Bottle holders ................... 346
• Card holders .................... 348
• Auxiliary box..................... 348
3-6. Other interior features ..... 349 Cool box ............................. 349
Sun visors .......................... 351
Vanity mirror ....................... 352
Clock .................................. 353
Outside temperature display .............................. 354
Ashtrays ............................. 355
Cigarette lighter .................. 357
Power outlets ..................... 358
Seat heaters ....................... 360
Armrest............................... 362
Floor mats .......................... 363
Luggage compartment features ............................ 364
Garage door opener ........... 366 4-1. Maintenance and care ...... 374
Cleaning and protecting the vehicle exterior ........... 374
Cleaning and protecting the vehicle interior ............ 376
4-2. Maintenance ...................... 379 Maintenance requirements .................... 379
General maintenance ......... 381
Emission inspection and maintenance (I/M)
programs .......................... 384
4-3. Do-it-yourself maintenance ................... 385
Do-it-yourself service precautions ....................... 385
Hood ................................... 388
Engine compartment .......... 389
Tires.................................... 405
Tire inflation pressure ......... 414
Wheels................................ 418
Air conditioning filter ........... 420
Electronic key battery ......... 423
Checking and replacing fuses ................................. 426
Light bulbs .......................... 439
4Maintenance and care

359
3-6. Other interior features
3
Interior features
L/C200_U (OM60D97U)
■

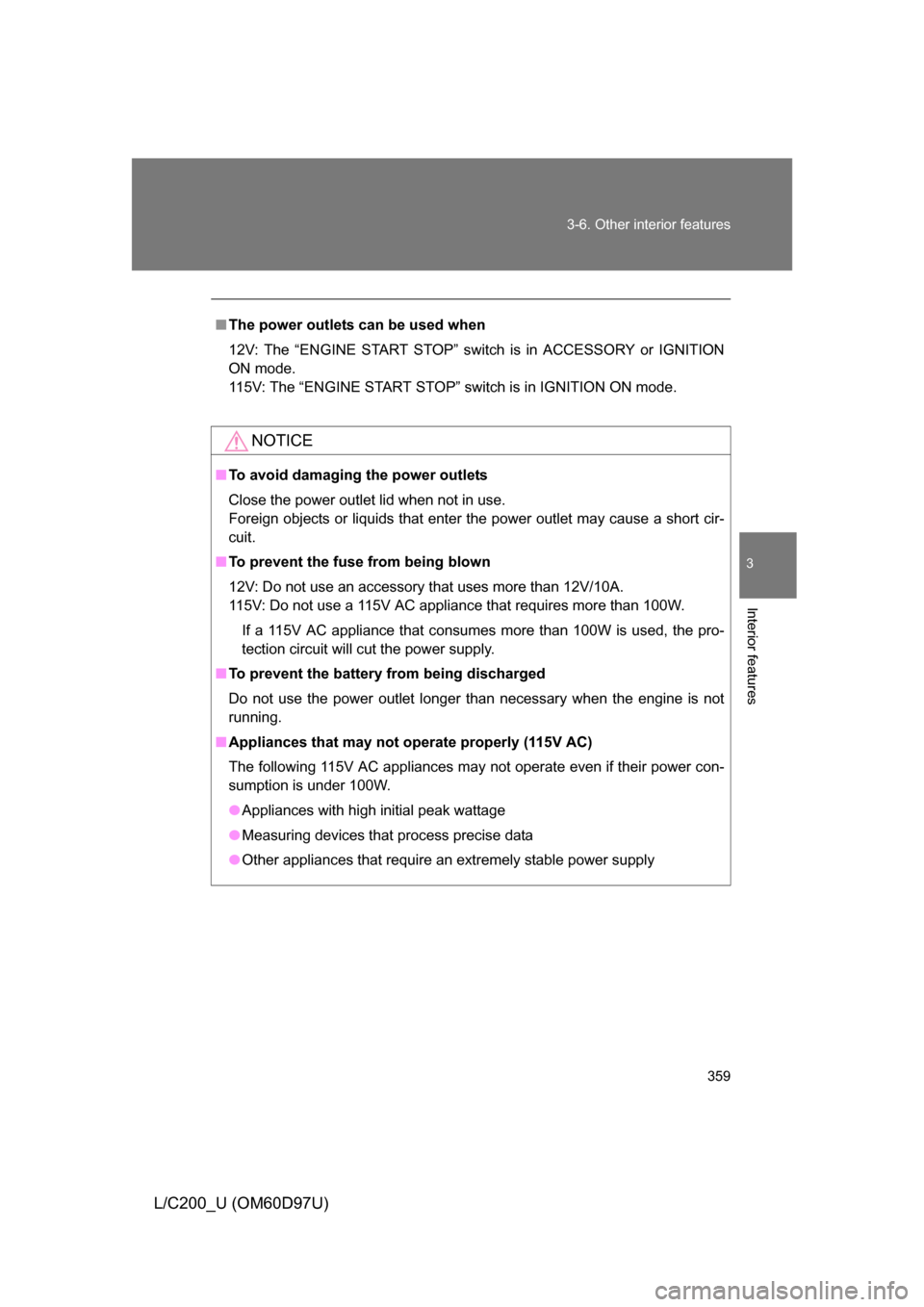

The power outlets can be used when
12V: The “ENGINE START STOP” switch is in ACCESSORY or IGNITION
ON mode.
115V: The “ENGINE START STOP” switch is in IGNITION ON mode.
NOTICE
■To avoid damaging the power outlets
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
12V: Do not use an accessory that uses more than 12V/10A.
115V: Do not use a 115V AC appliance that requires more than 100W.
If a 115V AC appliance that consumes more than 100W is used, the pro-
tection circuit will cut the power supply.
■ To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not\
running.
■ Appliances that may not ope rate properly (115V AC)
The following 115V AC appliances may not operate even if their power con-
sumption is under 100W.
● Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply

Maintenance and care4
373
L/C200_U (OM60D97U)
4-1. Maintenance and care ... 374Cleaning and protecting the vehicle exterior ......... 374
Cleaning and protecting the vehicle interior .......... 376
4-2. Maintenance ................... 379 Maintenance requirements .................. 379
General maintenance....... 381
Emission inspection and maintenance (I/M)
programs ........................ 384
4-3. Do-it-yourself maintenance ................. 385
Do-it-yourself service precautions .................... 385
Hood ................................ 388
Engine compartment ........ 389
Tires ................................. 405
Tire inflation pressure ...... 414
Wheels ............................. 418
Air conditioning filter......... 420
Electronic key battery....... 423
Checking and replacing fuses .............................. 426
Light bulbs........................ 439

385
4
Maintenance and care
L/C200_U (OM60D97U)
4-3. Do-it-yourself maintenance
Do-it-yourself ser vice precautions
If you perform maintenance yourself, be sure to follow the correct
procedure given in these sections.
ItemsParts and tools
Battery condition (P. 4 0 1)
•Warm water
• Baking soda
• Grease
• Conventional wrench
(for terminal clamp bolts)
Brake fluid level ( P. 398)
• FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine coolant level ( P. 396)
• “Toyota Super Long Life Coolant”
or similar high quality ethylene
glycol based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology.
“Toyota Super Long Life Cool-
ant” is pre-mixed with 50% cool-
ant and 50% deionized water.
• Funnel (used only for adding cool- ant)
Engine oil level ( P. 391)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( P. 426)• Fuse with same amperage rating
as original

389
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
Engine compar tment
Power steering fluid reser-
voir (P. 400)
Engine oil level dipstick ( P. 391)
Engine coolant reservoir ( P. 396)
Cooling fan
Engine oil filler cap ( P. 392)Brake fluid reservoir
( P. 398)
Fuse box ( P. 426)
Washer fluid tank ( P. 404)
Battery ( P. 401)
Condenser ( P. 397)
Radiator ( P. 397)
51234678
911 1 0ITY43C004

426
4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Driver’s side instrument panel Remove the lid.STEP1
STEP2
ITY43C073
ITY43C032

427
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)

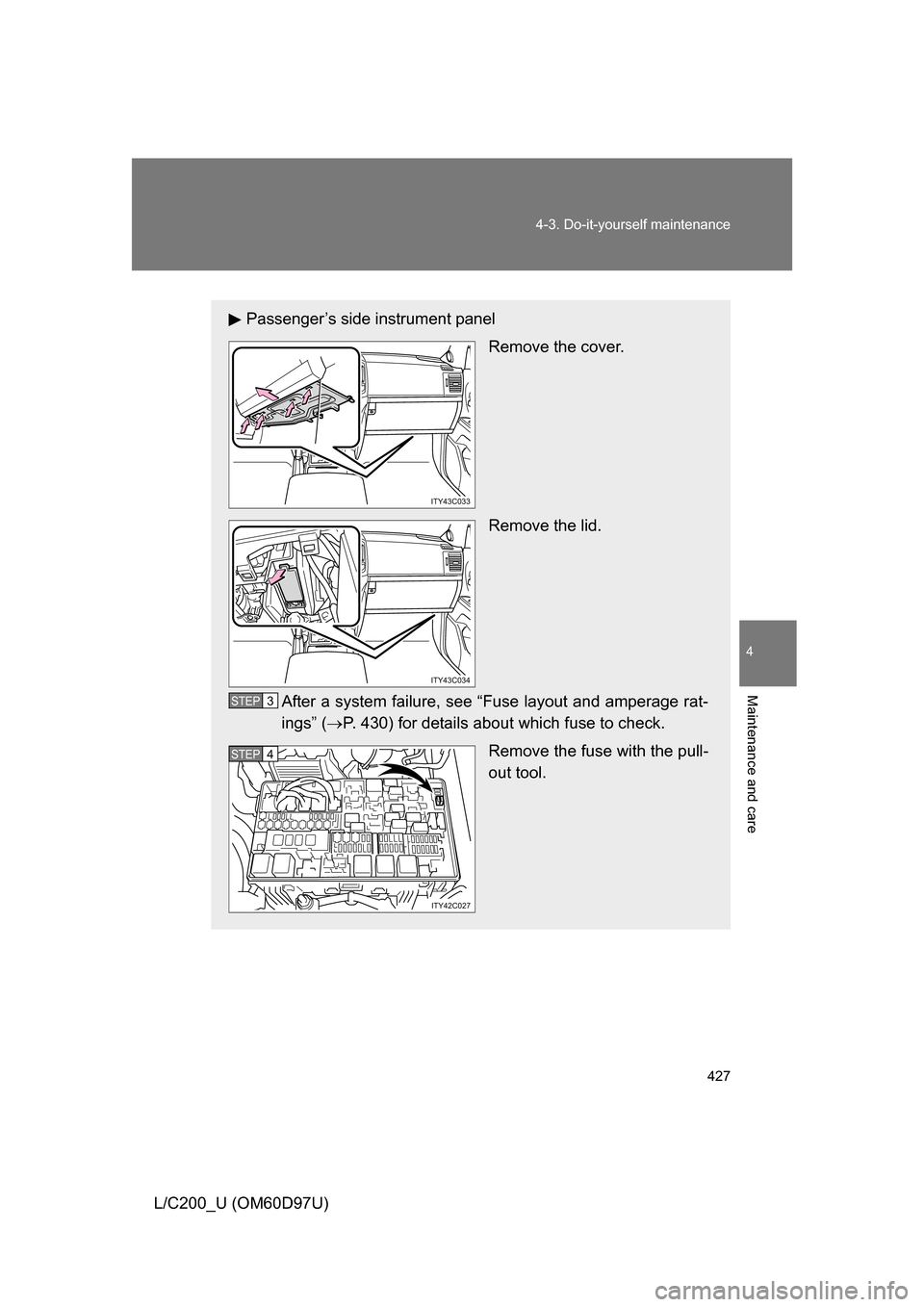

Passenger’s side instrument panel
Remove the cover.
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 430) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
ITY43C033
ITY43C034
STEP3
ITY42C027
STEP4

428 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)
Check if the fuse has blown.
Type A and B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP5
12
ITY42C012
Ty pe A
12
ITY42C013
Ty pe B
