4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)

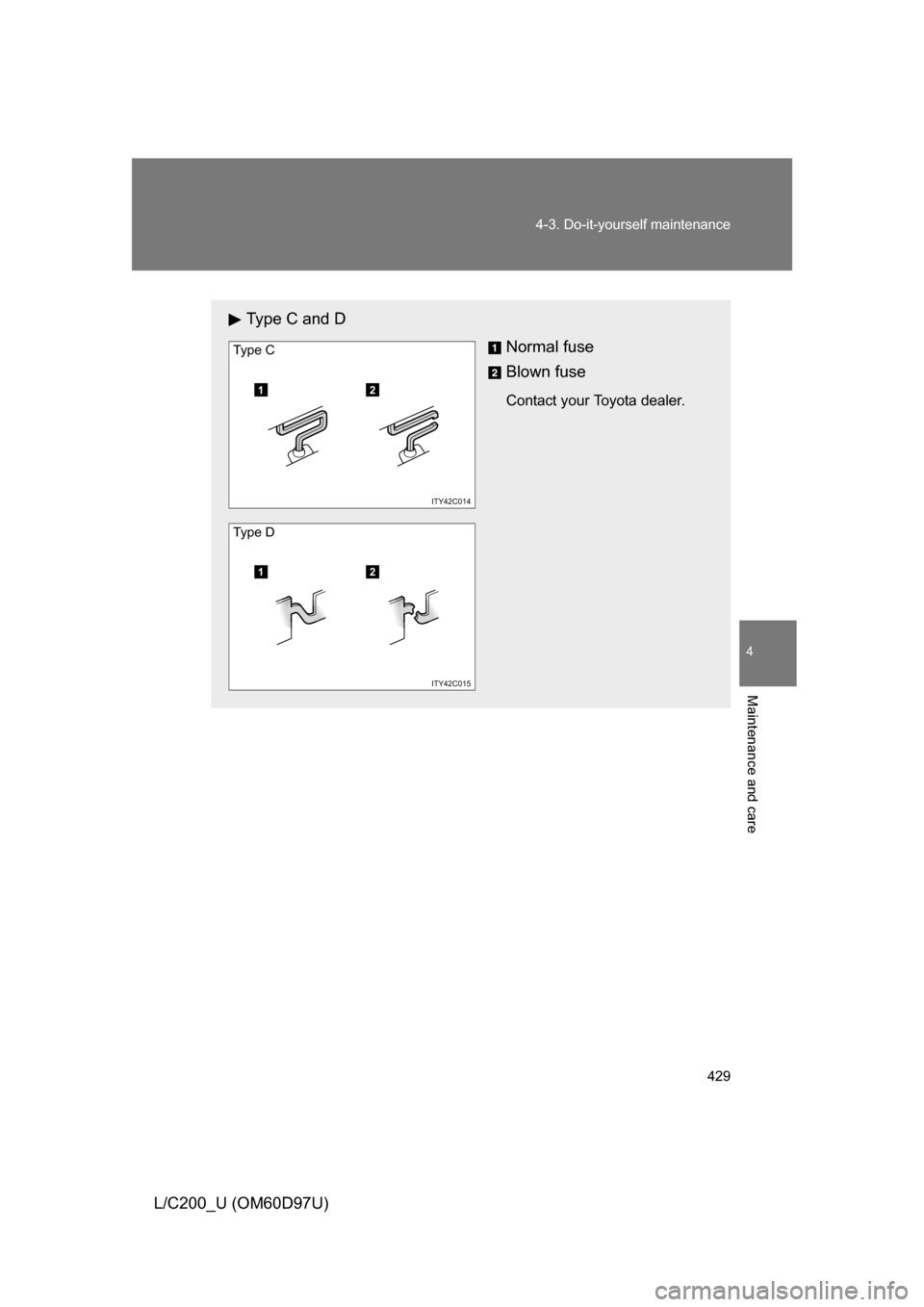

Type C and D
Normal fuse
Blown fuse
Contact your Toyota dealer.12
ITY42C014
Ty pe C
12
ITY42C015
Ty pe D

430 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)

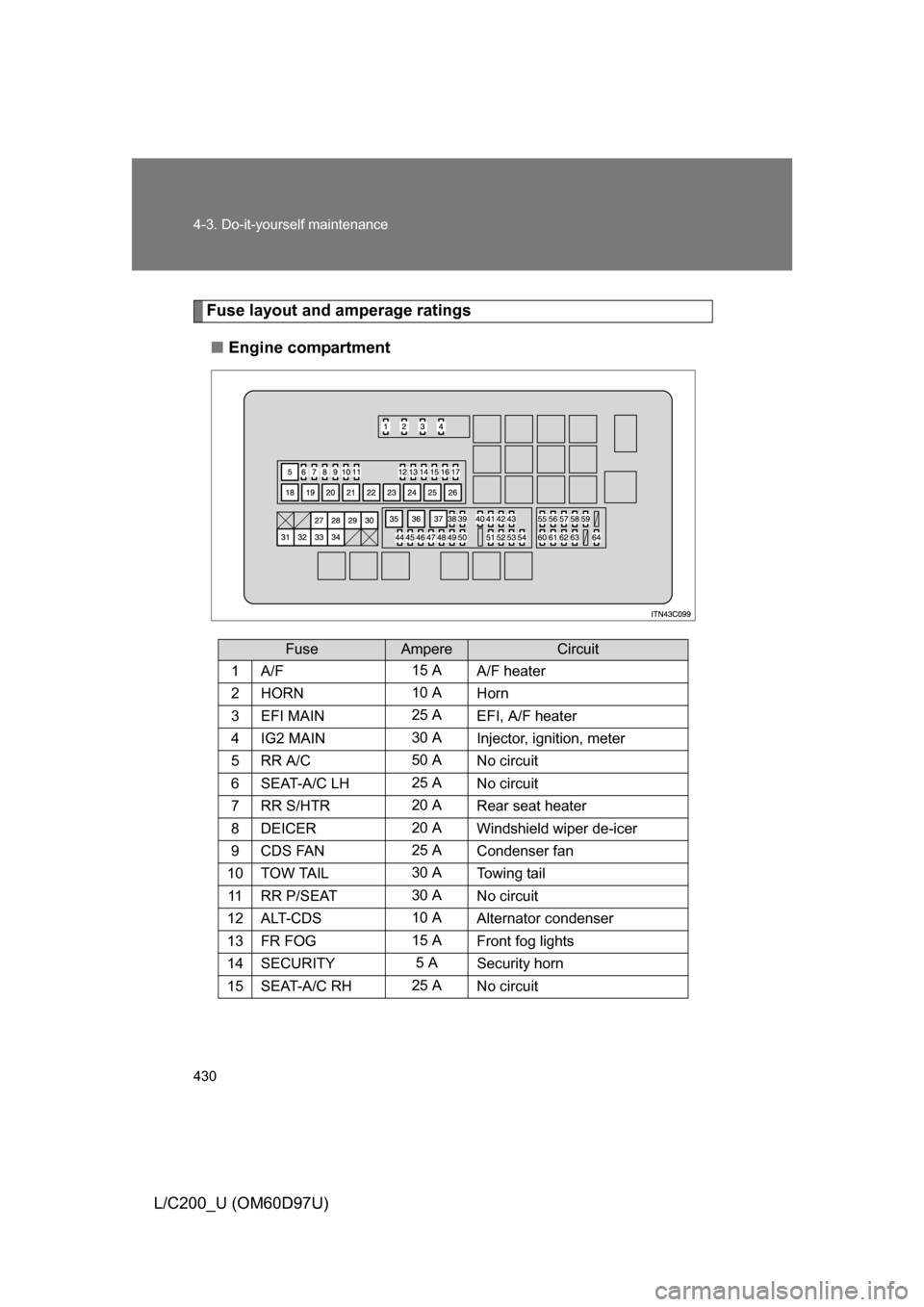

Fuse layout and amperage ratings■ Engine compartment
FuseAmpereCircuit
1A/F15 A
A/F heater
2HORN10 AHorn
3EFI MAIN25 A
EFI, A/F heater
4IG2 MAIN 30 AInjector, ignition, meter
5RR A/C50 ANo circuit
6SEAT-A/C LH25 A
No circuit
7RR S/HTR20 ARear seat heater
8DEICER20 AWindshield wiper de-icer
9CDS FAN25 A
Condenser fan
10TOW TAIL30 ATowing tail
11RR P/SEAT30 ANo circuit
12ALT-CDS10 A
Alternator condenser
13FR FOG15 AFront fog lights
14SECURITY5 ASecurity horn
15SEAT-A/C RH25 A No circuit

431
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
16STOP15 A
Stoplights, high mounted stop-
light, brake controller, towing
converter, ABS, VSC, main
body ECU, EFI
17TOW BRK30 A
Brake controler
18RR AUTO A/C50 ARear blower control
19PTC-150 APTC heater
20PTC-250 A
PTC heater
21PTC-350 APTC heater
22RH-J/B40 ANo circuit
23SUB BATT40 A
To w i n g
24VGRS40 ANo circuit
25H-LP CLN30 AHeadlight cleaner
26DEFOG30 A
Rear window defogger
27AHC60 ANo circuit
28HTR50 ABlower controller
29PBD30 A
No circuit
30LH-J/B150 A Main body ECU
31ALT180 ANo circuit
32A/PUMP NO.150 A
AI DRIVER
33A/PUMP NO.250 AAI DRIVER2
34MAIN40 AHeadlight, daytime running
light system
35ABS150 A
ABS
36ABS230 A
ABS
37ST30 AStarter system
38IMB7.5 A ID code box, smart key sys-
tem, GBS
39AM25 A
Main body ECU
40DOME27.5 A
Vanity lights, overhead module
FuseAmpereCircuit

432 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)
41ECU-B25 ADriving position memory sys-
tem
42TEL5 A
No circuit
43RSE7.5 A Rear seat entertainment
44TOWING30 ATo w i n g
45DOOR NO.225 A
Main body ECU
46STR LOCK20 ASteering lock system
47TURN-HAZ15 AMeter, front turn signal lights,
rear turn signal lights, towing
converter
48EFI MAIN220 A
Fuel pump
49ETCS10 A
EFI
50ALT-S5 AIC-ALT
51AMP30 A Audio system
52RAD NO.110 ANavigation system, radio
receiver assembly
53ECU-B15 ASmart key system, overhead
module, tilt and telescopic
steering, meter, cool box, gate-
way ECU, steering sensor
54DOME15 A
Door courtesy lights, clock
55HEAD LH15 A Headlight high beam (left)
56HEAD LL15 AHeadlight low beam (left)
57INJ10 A
Injector, ignition
58MET5 AMeter
59IGN10 A Circuit open, SRS airbag sys-
tem, gateway ECU, occupant
detection system, smart key
system, ABS, VSC, steering
lock system, GBS
60HEAD RH15 A
Headlight high beam (right)
FuseAmpereCircuit

433
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
61HEAD RL15 A
Headlight low beam (right)
62EFI NO.27.5 A AFM, EVP VSV, 02 SSR, KEY
OFF PMP, AI DRIVER, AI EX
VSV, ACIS VSV
63RR A/C NO.27.5 A
No circuit
64DEF NO.25 AOutside rear view mirror heater
FuseAmpereCircuit

434 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)■
Driver’s side instrument panel
FuseAmpereCircuit
1CIG15 A Cigarette lighter
2BK/UP LP10 A Back-up lights, trailer
3ACC7.5 A Stereo component amplifier
assembly, multi-display
assembly, gateway ECU, radio
receiver assembly, main body
ECU, mirror ECU, rear seat
entertainment, smart key sys-
tem, clock
4PA N E L10 AFour-wheel drive system, ash-
tray, cigarette lighter, brake
controller, cool box, cruise con-
trol, center differential lock,
DAC, multi-display assembly,
seat heater, air conditioning
system, glove box light, emer-
gency flasher, radio receiver
assembly, headlight cleaner,
inverter, driving position mem-
ory system, mirror ECU, over-
head module, roll sensing of
curtain shield airbags off
switch, shift lever switch, steer-
ing switches, VSC, console
switch

435
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
5ECU-IG NO.210 A
Air conditioning system,
heater, overhead module,
ABS, VSC, steering sensor,
yaw rate & G sensor, main
body ECU, stoplights, moon
roof, clock, EC mirror
6WINCH5 A No circuit
7A/C IG10 A
Cool box, condenser fan,
cooler compressor, MG CL,
rear window defogger, RR
MGC VLV
8TA I L15 ATail lights, license plate lights,
front fog lights, front side
marker lights, rear side marker
lights, parking lights
9WIPER30 A Windshield wiper
10WSH20 A Windshield washer
11RR WIPER15 A Rear wiper
124WD20 A 4WD
13LH-IG5 AAlternator, sub battery, seat
heater, windshield wiper de-
icer, seat belt pretensioners,
emergency flasher, inverter,
shift lever switch
14ECU-IG NO.15 AABS, VSC, tilt and telescopic
steering, gateway ECU, shift
lock system, cruise control sys-
tem, pre-collision seat belt,
headlight cleaner, multi-dis-
play assembly, driving position
memory system, power door
lock system
15S/ROOF25 A Moon roof
FuseAmpereCircuit

436 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)

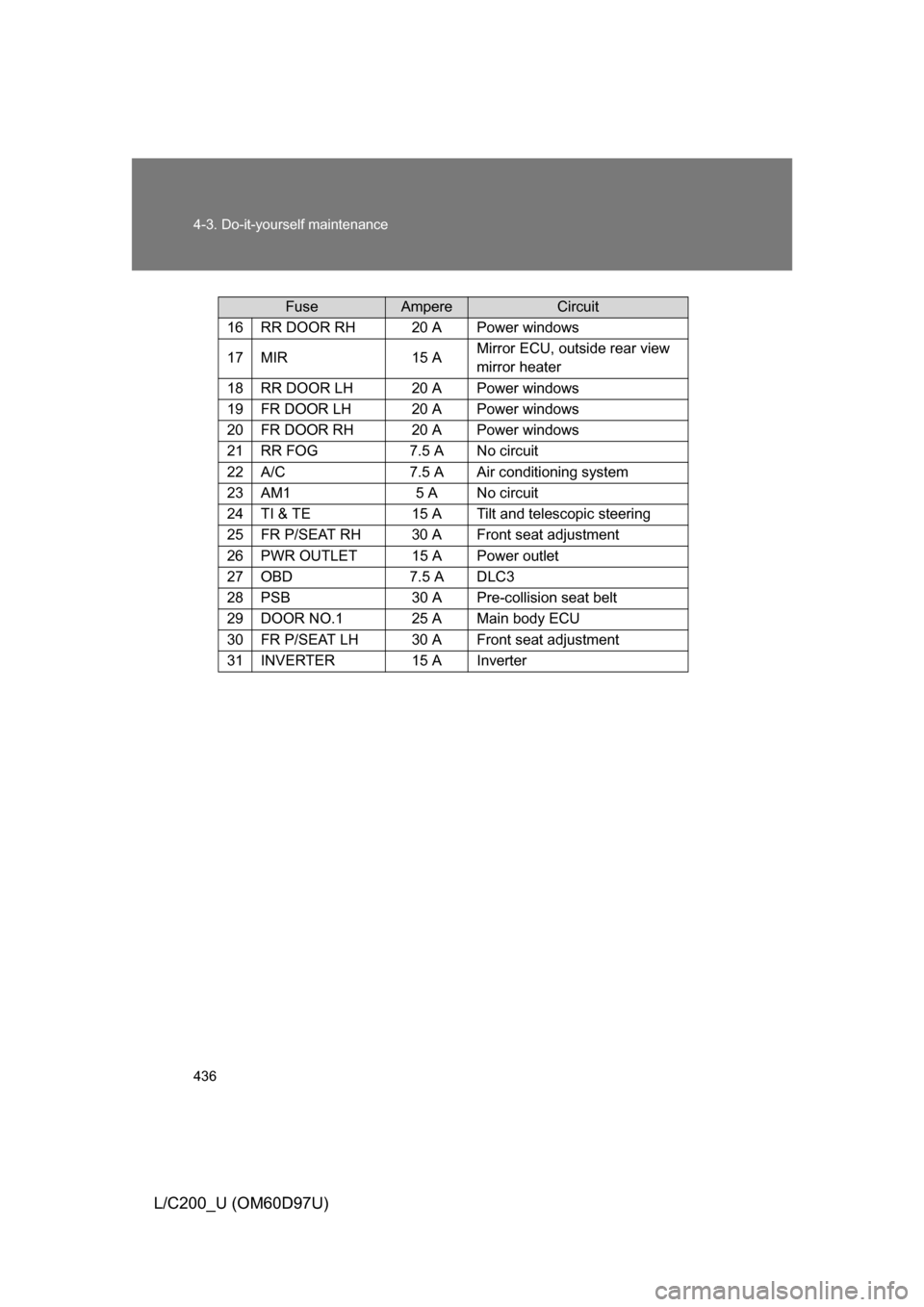

16RR DOOR RH20 A Power windows
17MIR15 AMirror ECU, outside rear view
mirror heater
18RR DOOR LH20 A Power windows
19FR DOOR LH20 A Power windows
20FR DOOR RH20 A Power windows
21RR FOG7.5 A No circuit
22A/C7.5 A Air conditioning system
23AM15 A No circuit
24TI & TE15 A Tilt and telescopic steering
25FR P/SEAT RH30 A Front seat adjustment
26PWR OUTLET15 A Power outlet
27OBD7.5 A DLC3
28PSB30 A Pre-collision seat belt
29DOOR NO.125 A Main body ECU
30FR P/SEAT LH30 A Front seat adjustment
31INVERTER15 A Inverter
FuseAmpereCircuit
