2009 TOYOTA LAND CRUISER fuse

437
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
■

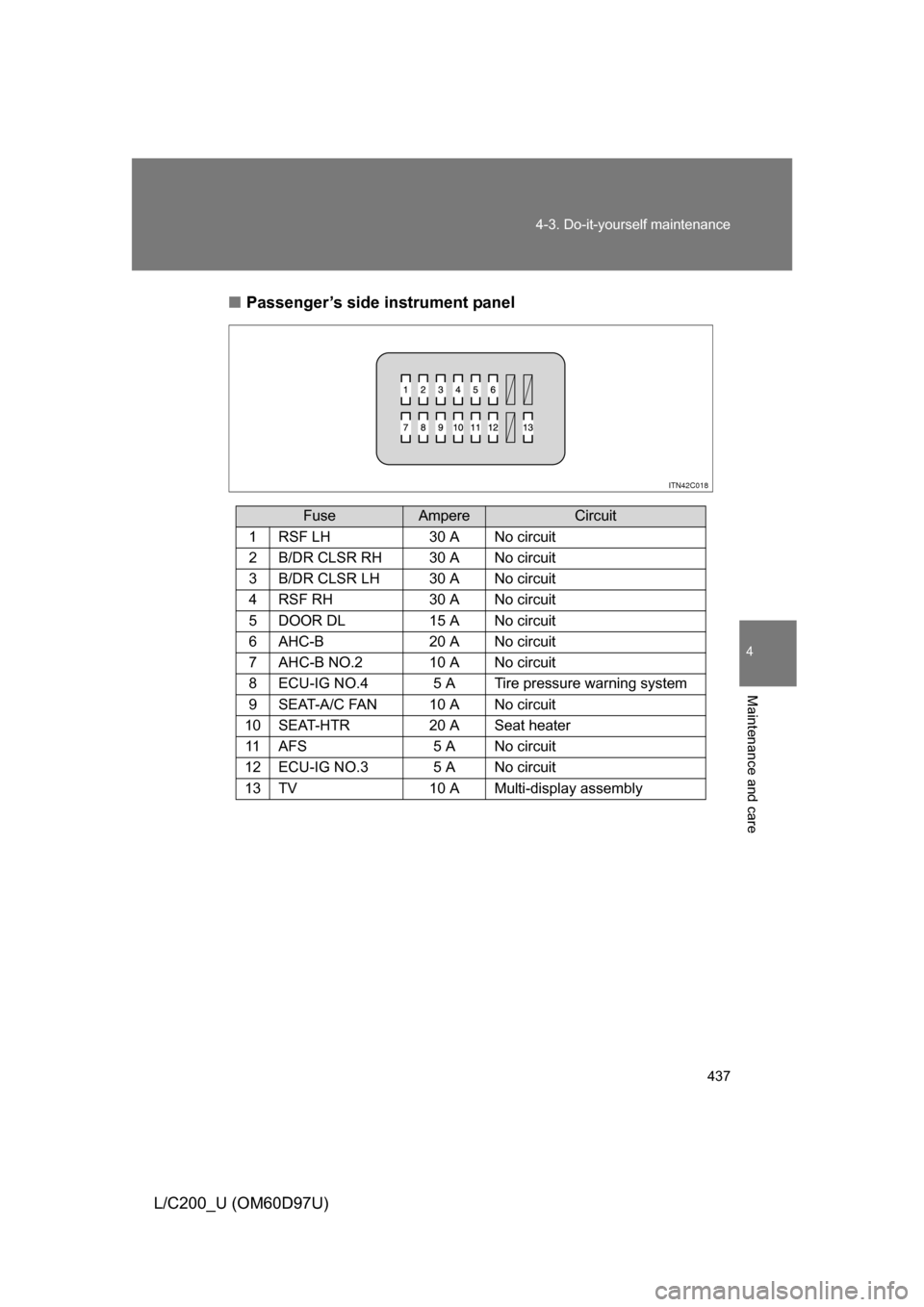

Passenger’s side instrument panel
FuseAmpereCircuit
1RSF LH30 A No circuit
2B/DR CLSR RH30 A No circuit
3B/DR CLSR LH30 A No circuit
4RSF RH30 A No circuit
5DOOR DL15 A No circuit
6AHC-B20 A No circuit
7AHC-B NO.210 A No circuit
8ECU-IG NO.45 A Tire pressure warning system
9SEAT-A/C FAN10 A No circuit
10SEAT-HTR20 A Seat heater
11AFS5 A No circuit
12ECU-IG NO.35 A No circuit
13TV10 A Multi-display assembly
ITN42C018

438 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 439)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer.

5
When trouble arises
489
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)

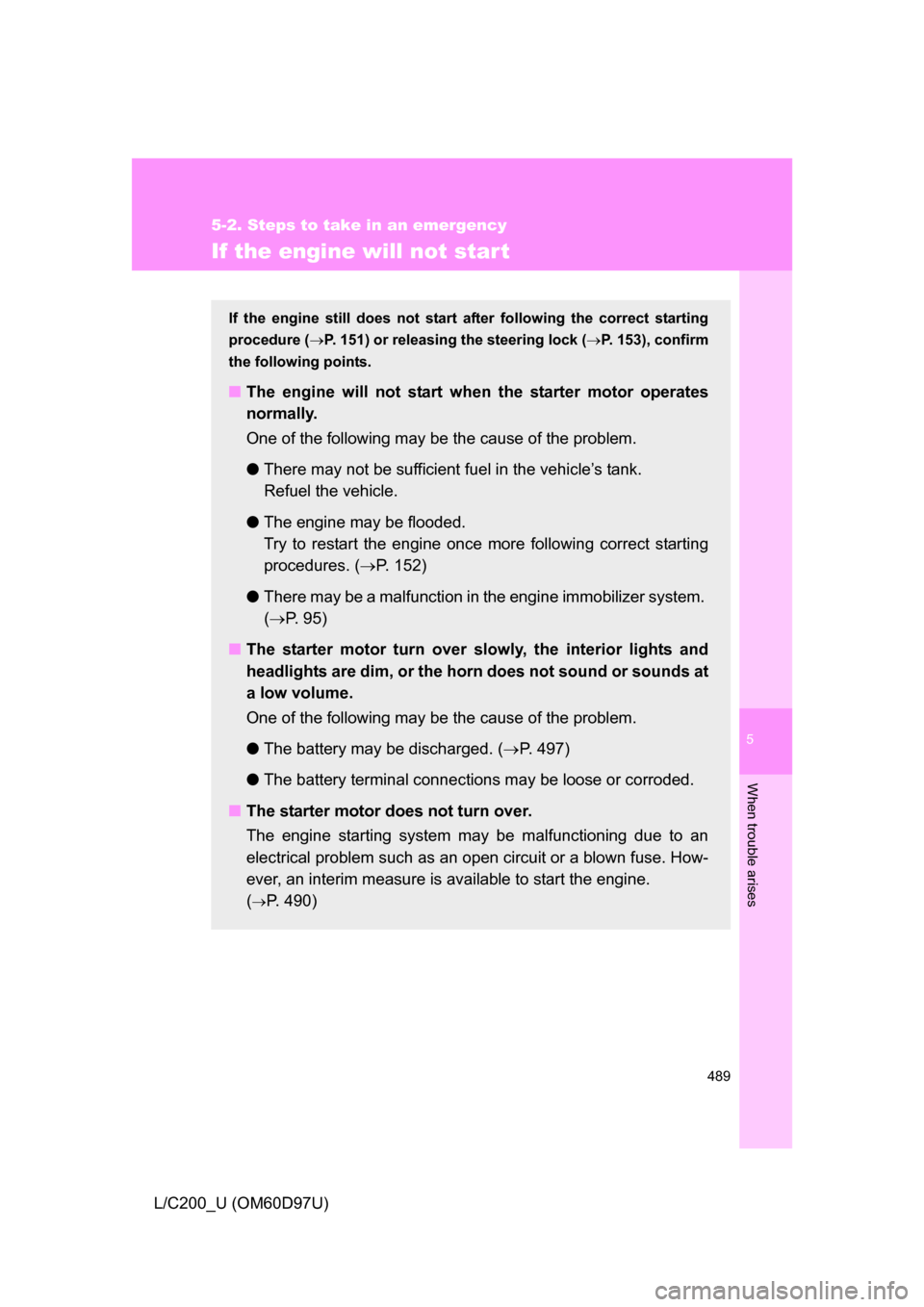

If the engine will not star t
If the engine still does not start after following the correct starting
procedure ( P. 151) or releasing the steering lock ( P. 153), confirm
the following points.
■ The engine will not start when the starter motor operates
normally.
One of the following may be the cause of the problem.
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. ( P. 152)
● There may be a malfunction in the engine immobilizer system.
(  P. 9 5 )
■ The starter motor turn over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem.
●The battery may be discharged. ( P. 497)
● The battery terminal connec tions may be loose or corroded.
■ The starter motor does not turn over.
The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine.
(
P. 490)

547
Alphabetical index
L/C200_U (OM60D97U)
Wattage ................................ 517
Front passenger’s seat belt reminder light ........................ 465
Front seats Adjustment ............................. 51
Driving position memory ......... 62
Front side marker light Replacing light bulbs ............ 439
Wattage ................................ 517
Front turn signal lights Replacing light bulbs ............ 439
Wattage ................................ 517
Fuel Capacity ............................... 510
Fuel gauge ........................... 164
Fuel pump shut off system ... 459
Gas station information ........ 556
Information ........................... 518
Refueling ................................ 91
Type ..................................... 518
Fuel door .................................... 91
Fuel filler door ........................... 91
Fuel pump shut off system ................................... 459
Fuses ........................................ 426
Garage door opener ................ 366
Gas station information .......... 556
Gauges ..................................... 164
Glove box ................................. 342
Glove box light ........................ 342
Head restraints
Adjusting................................. 66
Headlight cleaner .................... 187
Headlights
Replacing light bulbs ............ 439
Switch ................................... 174
Wattage ................................ 517
Heaters Seat heaters ......................... 360 Hill-start assist control ............212
Hood ..........................................388
Hooks
Cargo hook............................364
Tie-down hooks .....................364
Horn...........................................163
I/M test.......................................384
Identification
Engine ...................................509
Vehicle ..................................509
Ignition Engine switch ........................151
Keys ........................................24
Ignition switch........................151
Ignition switch ..........................151
Illuminated entry system .........338
Indicator lights .........................167
Initialization
Items to initialize....................537
Inside rear view mirror ..............81
Instrument panel light
control ....................................165
Interior lights
Interior lights..........................338
Switch....................................339
Wattage .................................517
Jack Replacing the wheel ..............476
Jack handle ..............................476
KDSS .........................................212
Keyless entry..............................26
Keys Electronic key ..........................24
If you lose your keys .............492
If your electronic key battery is discharged...423, 494
Ignition switch........................151
Keyless entry...........................26
Key number .............................24
G
H
I
J
K

549
Alphabetical index
L/C200_U (OM60D97U)
Rear turn signal lights
Replacing light bulbs ............ 439
Wattage ................................ 517
Rear window defogger............ 268
Rear window wiper.................. 185
Replacing Fuses.................................... 426
Key battery ........................... 423
Light bulbs ............................ 439
Tires ..................................... 476
Reporting safety defects for U.S.A. owners........................ 540
Roll sensing of curtain shield airbags off switch ................. 116
Roof luggage carrier ............... 225
Seat belts
Adjusting the seat belt ............ 71
Automatic Locking Retractor .............................. 73
Child restraint system
installation .......................... 127
Cleaning and maintaining the seat belts...................... 377
Emergency Locking Retractor .............................. 73
How to wear your seat belt ..... 70
How your child should wear
the seat belt ......................... 75
Pregnant women,
proper seat belt use ............. 74
Reminder light ...................... 465
Seat belt extenders ................ 75
Seat belt pretensioners .......... 73
Seat heaters ............................. 360
Seats Adjustment precautions .......... 52
Child seats/child restraint system installation.............. 127 Cleaning ................................376
Driver’s seat position
memory .................................62
Front seat adjustment .............51
Head restraint..........................66
Properly sitting in the seat .....100
Rear seat adjustment ..............53
Seat heaters ..........................360
Service reminder
indicators ..............................167
Shift lever Automatic transmission .........155
If the shift lever cannot be
shifted from P......................491
Side airbags..............................102
Side marker lights
Replacing light bulbs .............439
Switch....................................174
Wattage .................................517
Side mirror Adjusting and folding ...............82
Mirror position memory ...........62
Smart key system Entry function ..........................26
Starting the engine ................151
Spare tire Inflation pressure...................414
Spare tire...............................476
Spark plug ................................512
Specifications...........................508
Speech command switch
*
Speedometer ............................164
Steering Column lock release..............153
Fluid ......................................400
Steering wheel Adjustment ..............................79
Audio switches ......................296
Steering wheel position memory .................................62
S
*: Refer to the “Navigation System Owner’s Manual”.
