L/C200_U (OM60D97U)

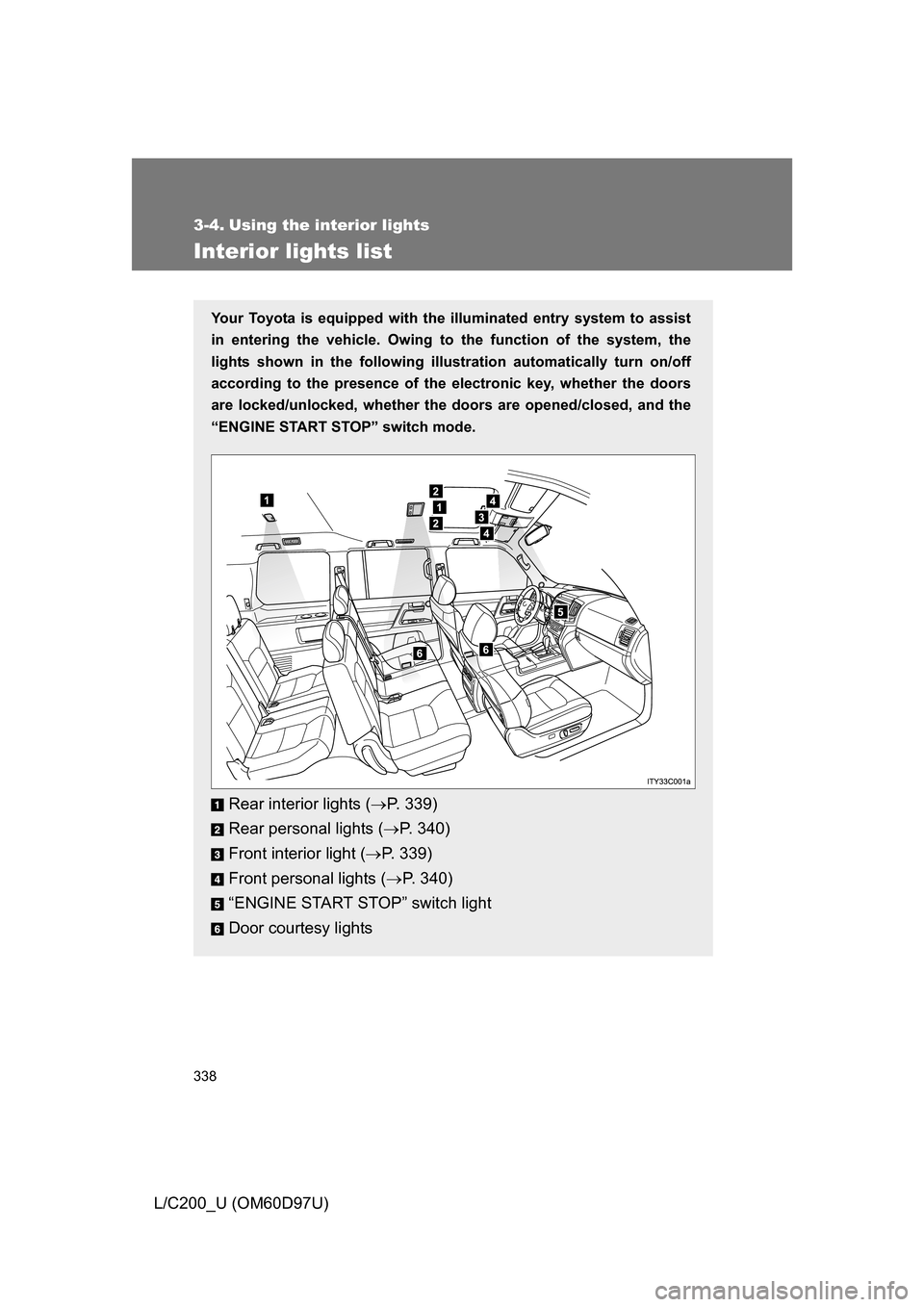

3-4. Using the interior lights
Interior lights list
Your Toyota is equipped with the illuminated entry system to assist
in entering the vehicle. Owing to the function of the system, the
lights shown in the following illust ration automatically turn on/off
according to the presence of the el ectronic key, whether the doors
are locked/unlocked, whether the doors are opened/closed, and the
“ENGINE START STOP” switch mode.
Rear interior lights ( P. 339)
Rear personal lights ( P. 340)
Front interior light ( P. 339)
Front personal lights ( P. 340)
“ENGINE START STOP” switch light
Door courtesy lights
12
1
2
4
3
4
5
66

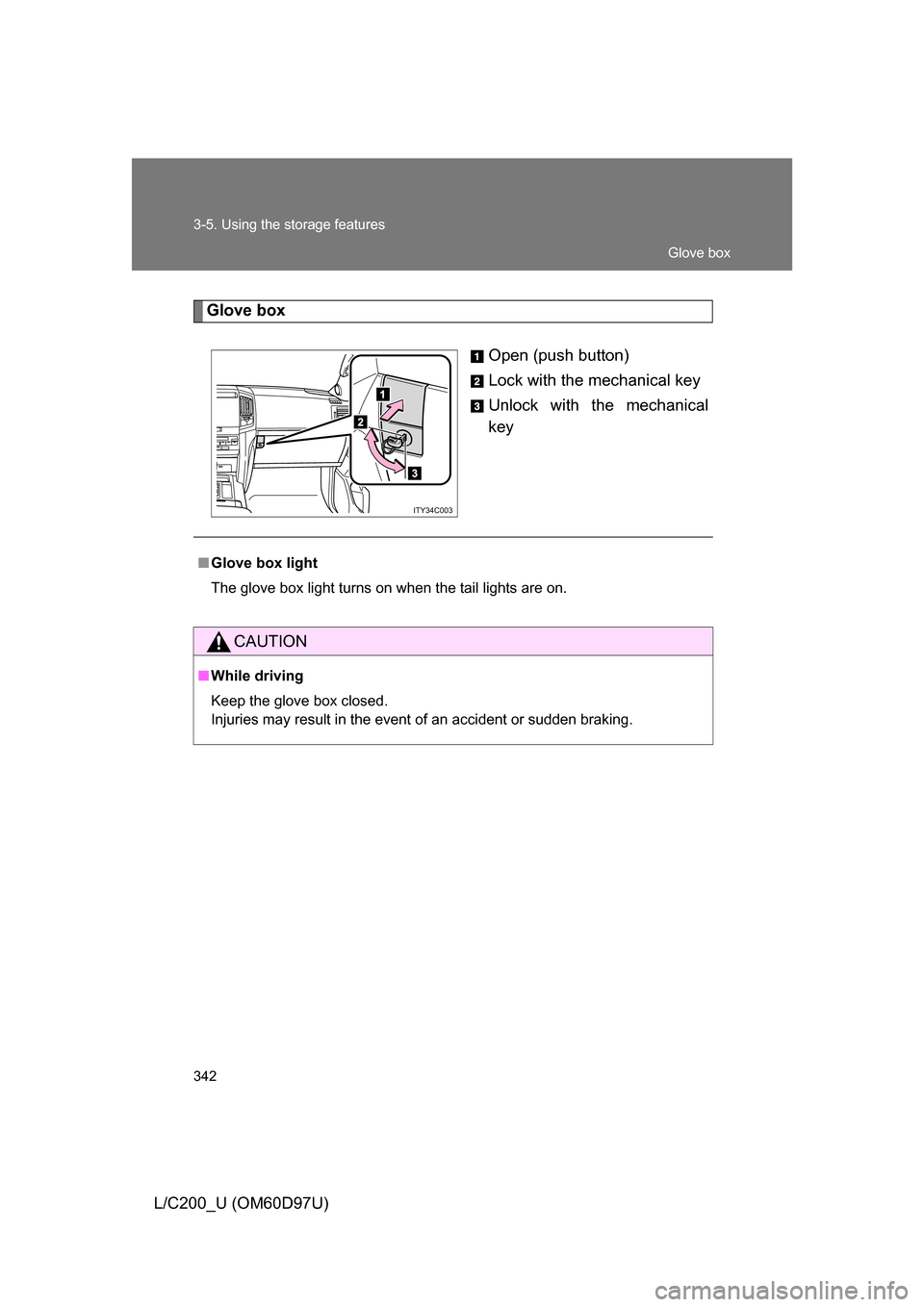

342 3-5. Using the storage features
L/C200_U (OM60D97U)
Glove boxOpen (push button)
Lock with the mechanical key
Unlock with the mechanical
key
ITY34C003
■Glove box light
The glove box light turns on when the tail lights are on.
CAUTION
■While driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box

Maintenance and care4
373
L/C200_U (OM60D97U)
4-1. Maintenance and care ... 374Cleaning and protecting the vehicle exterior ......... 374
Cleaning and protecting the vehicle interior .......... 376
4-2. Maintenance ................... 379 Maintenance requirements .................. 379
General maintenance....... 381
Emission inspection and maintenance (I/M)
programs ........................ 384
4-3. Do-it-yourself maintenance ................. 385
Do-it-yourself service precautions .................... 385
Hood ................................ 388
Engine compartment ........ 389
Tires ................................. 405
Tire inflation pressure ...... 414
Wheels ............................. 418
Air conditioning filter......... 420
Electronic key battery....... 423
Checking and replacing fuses .............................. 426
Light bulbs........................ 439

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)

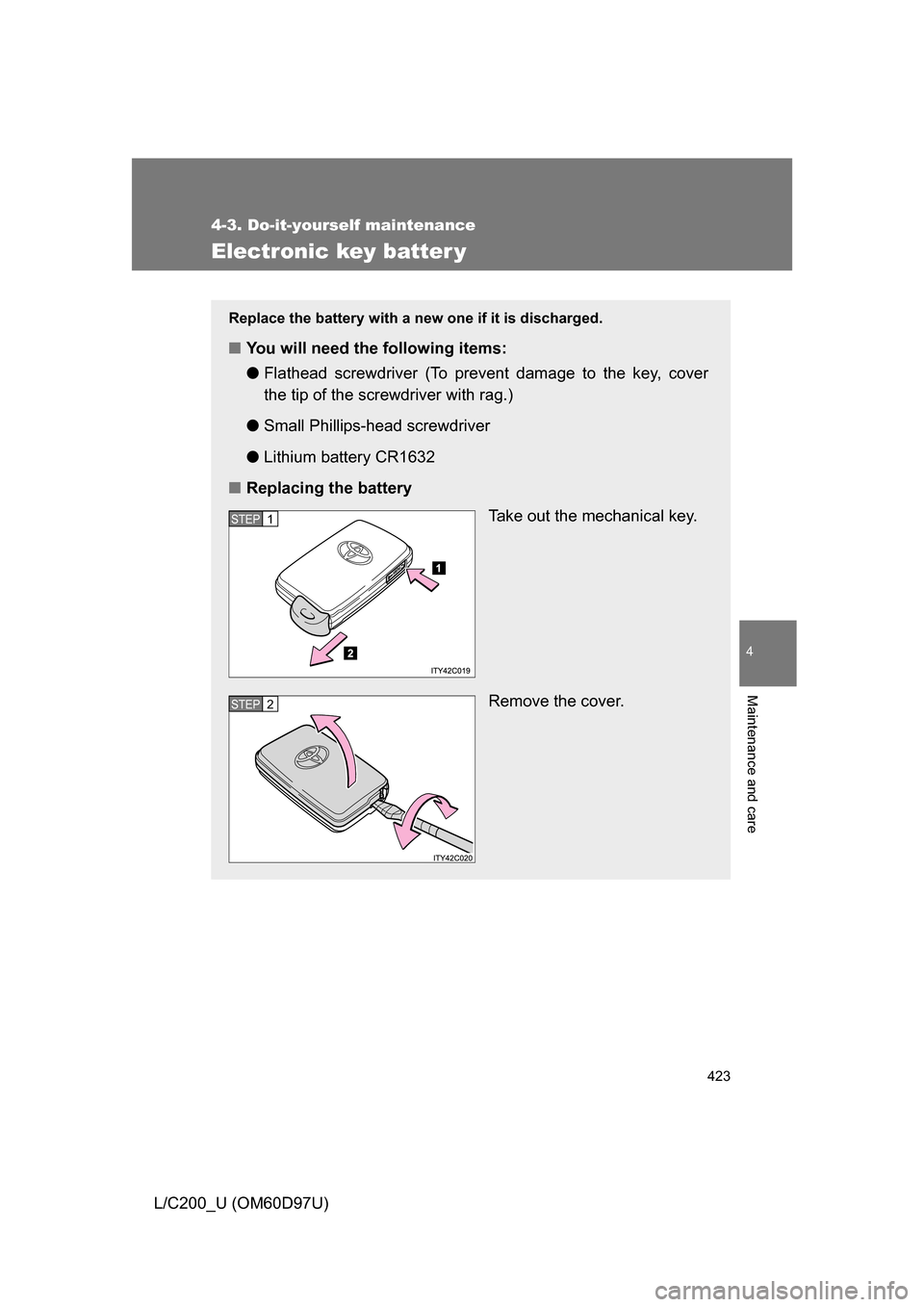

Electronic key batter y
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Flathead screwdriver (To prevent damage to the key, cover
the tip of the screwdriver with rag.)
● Small Phillips-hea d screwdriver
● Lithium battery CR1632
■ Replacing the battery
Take out the mechanical key.
Remove the cover.
STEP1
STEP2

424 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)

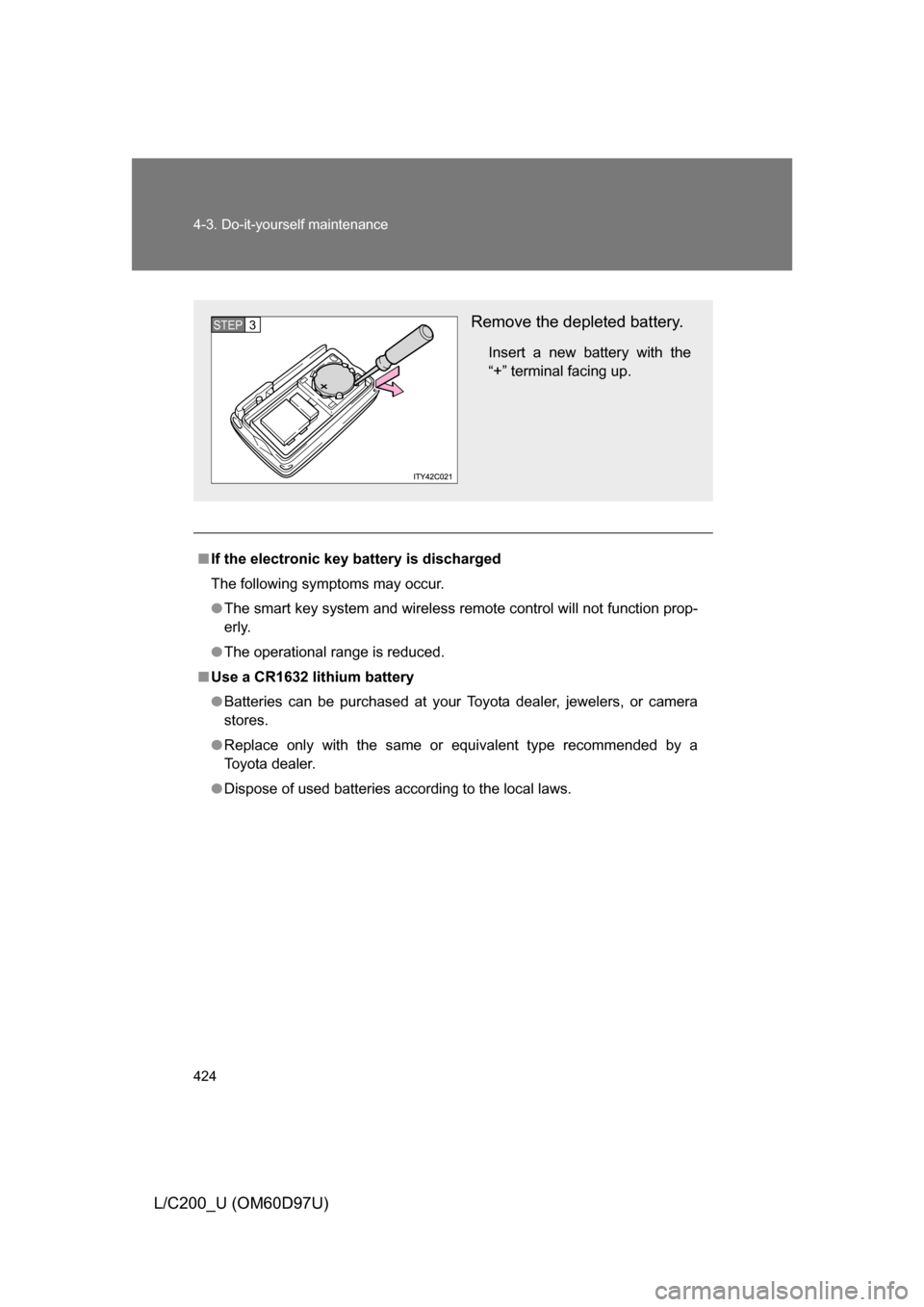

■If the electronic key battery is discharged
The following symptoms may occur.
● The smart key system and wireless remote control will not function prop-
erly.
● The operational range is reduced.
■ Use a CR1632 lithium battery
● Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
● Replace only with the same or equivalent type recommended by a
Toyota dealer.
● Dispose of used batteries according to the local laws.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP3

425
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)

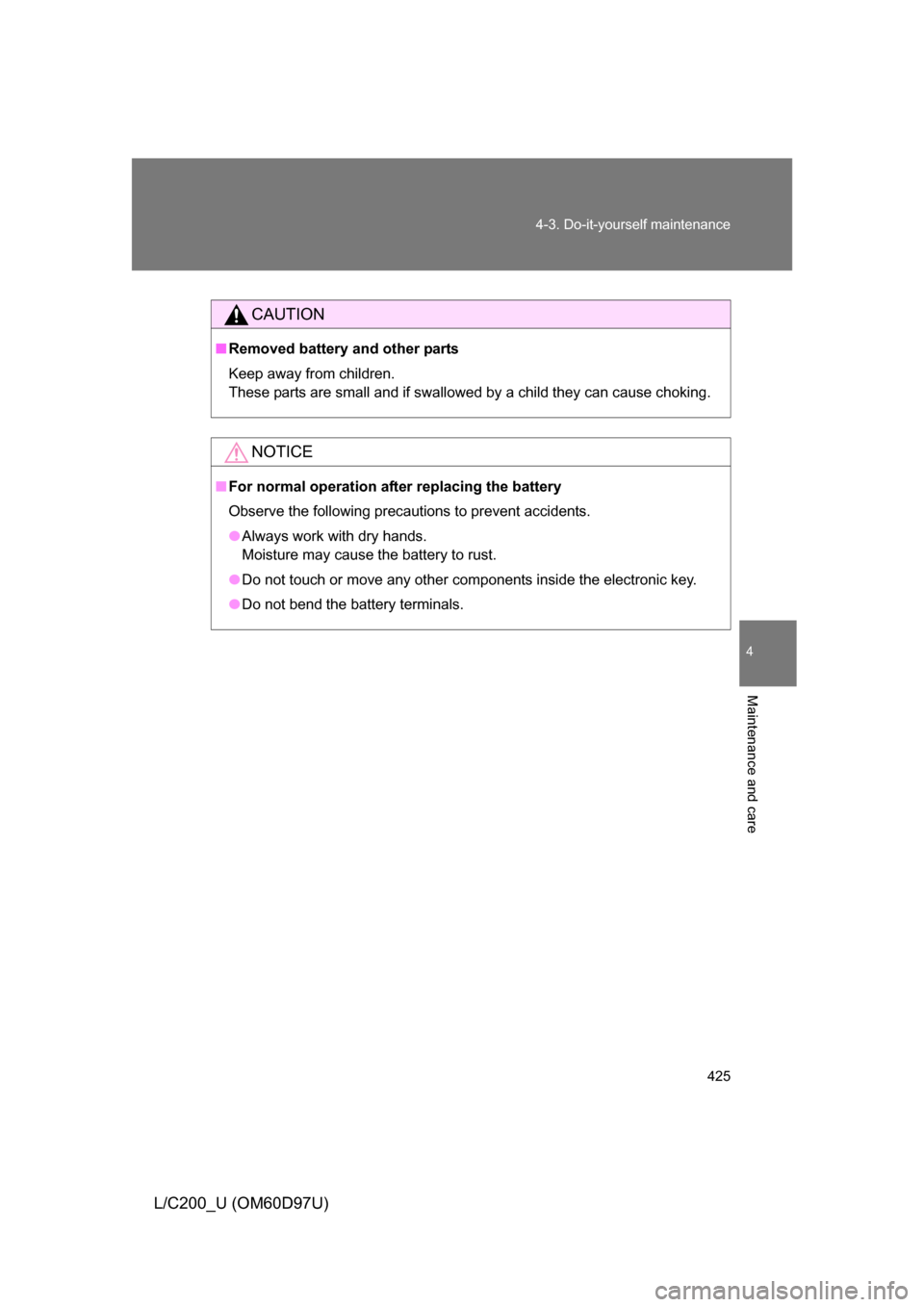

CAUTION
■
Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the electronic key.
● Do not bend the battery terminals.

431
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
16STOP15 A
Stoplights, high mounted stop-
light, brake controller, towing
converter, ABS, VSC, main
body ECU, EFI
17TOW BRK30 A
Brake controler
18RR AUTO A/C50 ARear blower control
19PTC-150 APTC heater
20PTC-250 A
PTC heater
21PTC-350 APTC heater
22RH-J/B40 ANo circuit
23SUB BATT40 A
To w i n g
24VGRS40 ANo circuit
25H-LP CLN30 AHeadlight cleaner
26DEFOG30 A
Rear window defogger
27AHC60 ANo circuit
28HTR50 ABlower controller
29PBD30 A
No circuit
30LH-J/B150 A Main body ECU
31ALT180 ANo circuit
32A/PUMP NO.150 A
AI DRIVER
33A/PUMP NO.250 AAI DRIVER2
34MAIN40 AHeadlight, daytime running
light system
35ABS150 A
ABS
36ABS230 A
ABS
37ST30 AStarter system
38IMB7.5 A ID code box, smart key sys-
tem, GBS
39AM25 A
Main body ECU
40DOME27.5 A
Vanity lights, overhead module
FuseAmpereCircuit

432 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)
41ECU-B25 ADriving position memory sys-
tem
42TEL5 A
No circuit
43RSE7.5 A Rear seat entertainment
44TOWING30 ATo w i n g
45DOOR NO.225 A
Main body ECU
46STR LOCK20 ASteering lock system
47TURN-HAZ15 AMeter, front turn signal lights,
rear turn signal lights, towing
converter
48EFI MAIN220 A
Fuel pump
49ETCS10 A
EFI
50ALT-S5 AIC-ALT
51AMP30 A Audio system
52RAD NO.110 ANavigation system, radio
receiver assembly
53ECU-B15 ASmart key system, overhead
module, tilt and telescopic
steering, meter, cool box, gate-
way ECU, steering sensor
54DOME15 A
Door courtesy lights, clock
55HEAD LH15 A Headlight high beam (left)
56HEAD LL15 AHeadlight low beam (left)
57INJ10 A
Injector, ignition
58MET5 AMeter
59IGN10 A Circuit open, SRS airbag sys-
tem, gateway ECU, occupant
detection system, smart key
system, ABS, VSC, steering
lock system, GBS
60HEAD RH15 A
Headlight high beam (right)
FuseAmpereCircuit
