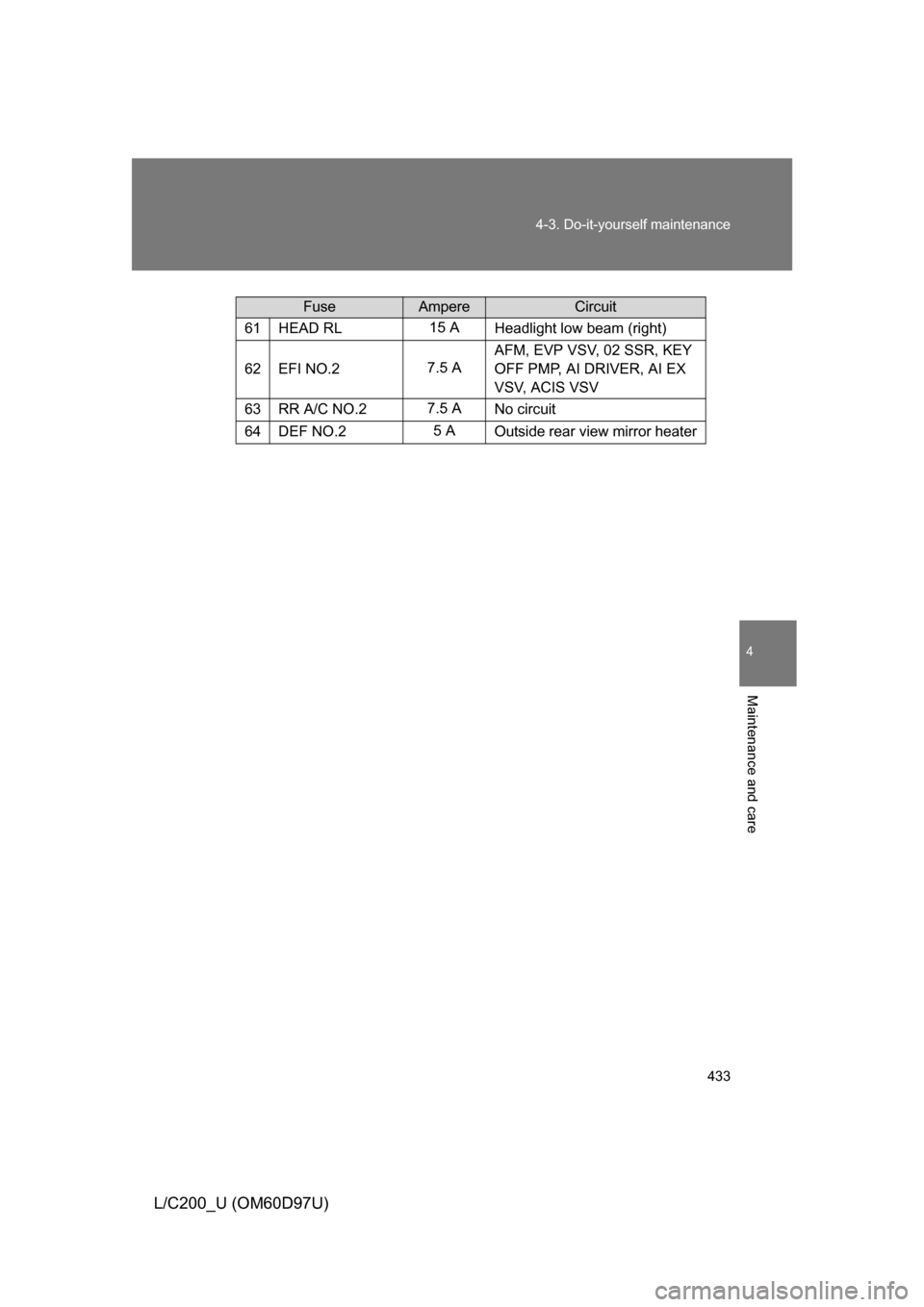

434 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)■
Driver’s side instrument panel
FuseAmpereCircuit
1CIG15 A Cigarette lighter
2BK/UP LP10 A Back-up lights, trailer
3ACC7.5 A Stereo component amplifier
assembly, multi-display
assembly, gateway ECU, radio
receiver assembly, main body
ECU, mirror ECU, rear seat
entertainment, smart key sys-
tem, clock
4PA N E L10 AFour-wheel drive system, ash-
tray, cigarette lighter, brake
controller, cool box, cruise con-
trol, center differential lock,
DAC, multi-display assembly,
seat heater, air conditioning
system, glove box light, emer-
gency flasher, radio receiver
assembly, headlight cleaner,
inverter, driving position mem-
ory system, mirror ECU, over-
head module, roll sensing of
curtain shield airbags off
switch, shift lever switch, steer-
ing switches, VSC, console
switch

When trouble arises5
451
L/C200_U (OM60D97U)
5-1. Essential information .... 452Emergency flashers ......... 452
If your vehicle needs to be towed .................... 453
If you think something is wrong ............................. 458
Fuel pump shut off system ........................... 459
Event data recorder ......... 460 5-2. Steps to take in an
emergency .................... 462
If a warning light turns on or a warning sounds... ........ 462
If a warning message is displayed ........................ 473
If you have a flat tire......... 476
If the engine will not start ................................ 489
If the shift lever cannot be shifted from P ................. 491
If you lose your keys ........ 492
If you cannot operate back door opener ................... 493
If the electronic key does not operate properly....... 494
If the battery is discharged ..................... 497
If your vehicle overheats ....................... 501
If the vehicle becomes stuck .............................. 504

492
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)

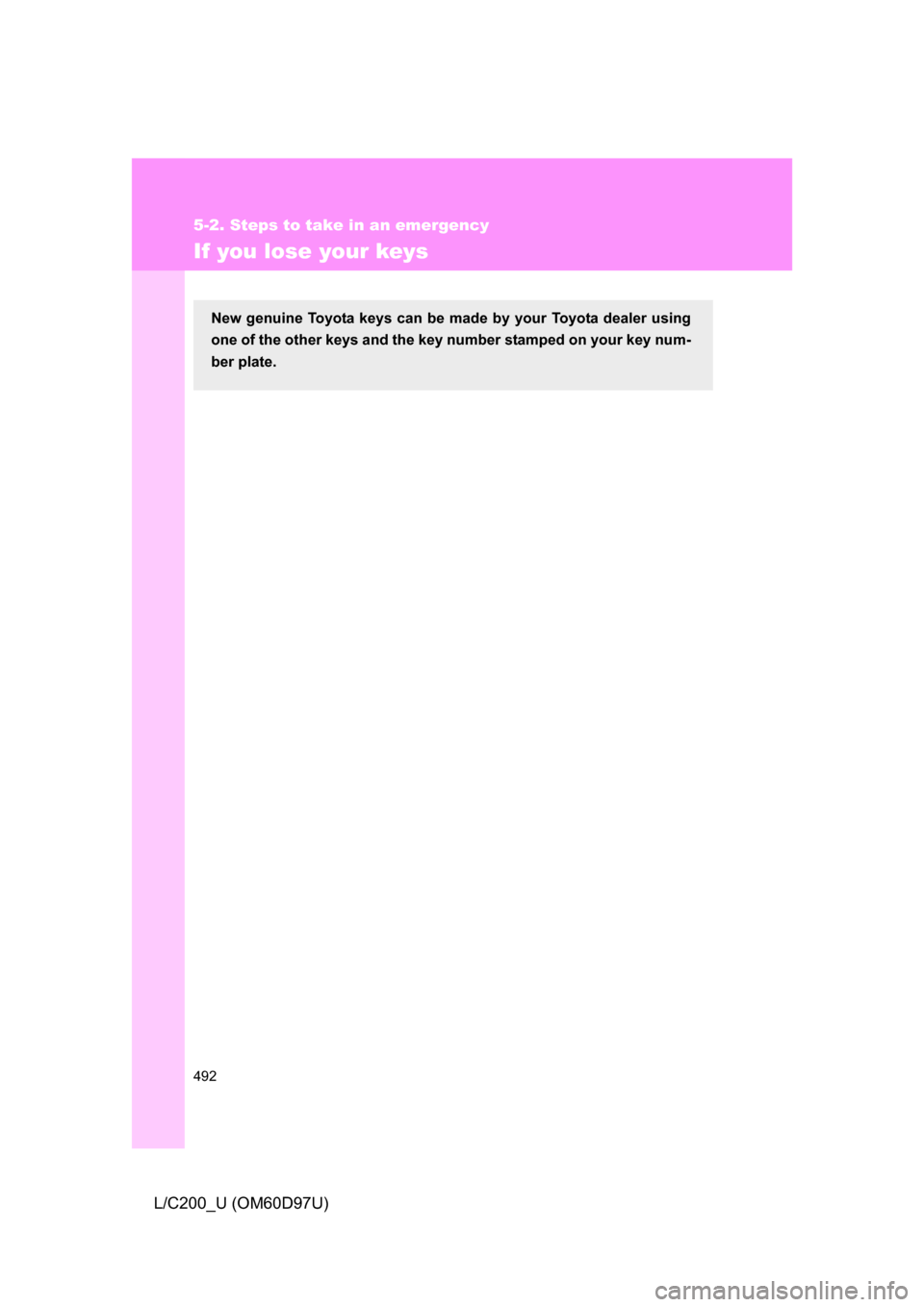

If you lose your keys
New genuine Toyota keys can be made by your Toyota dealer using
one of the other keys and the key number stamped on your key num-
ber plate.

494
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)

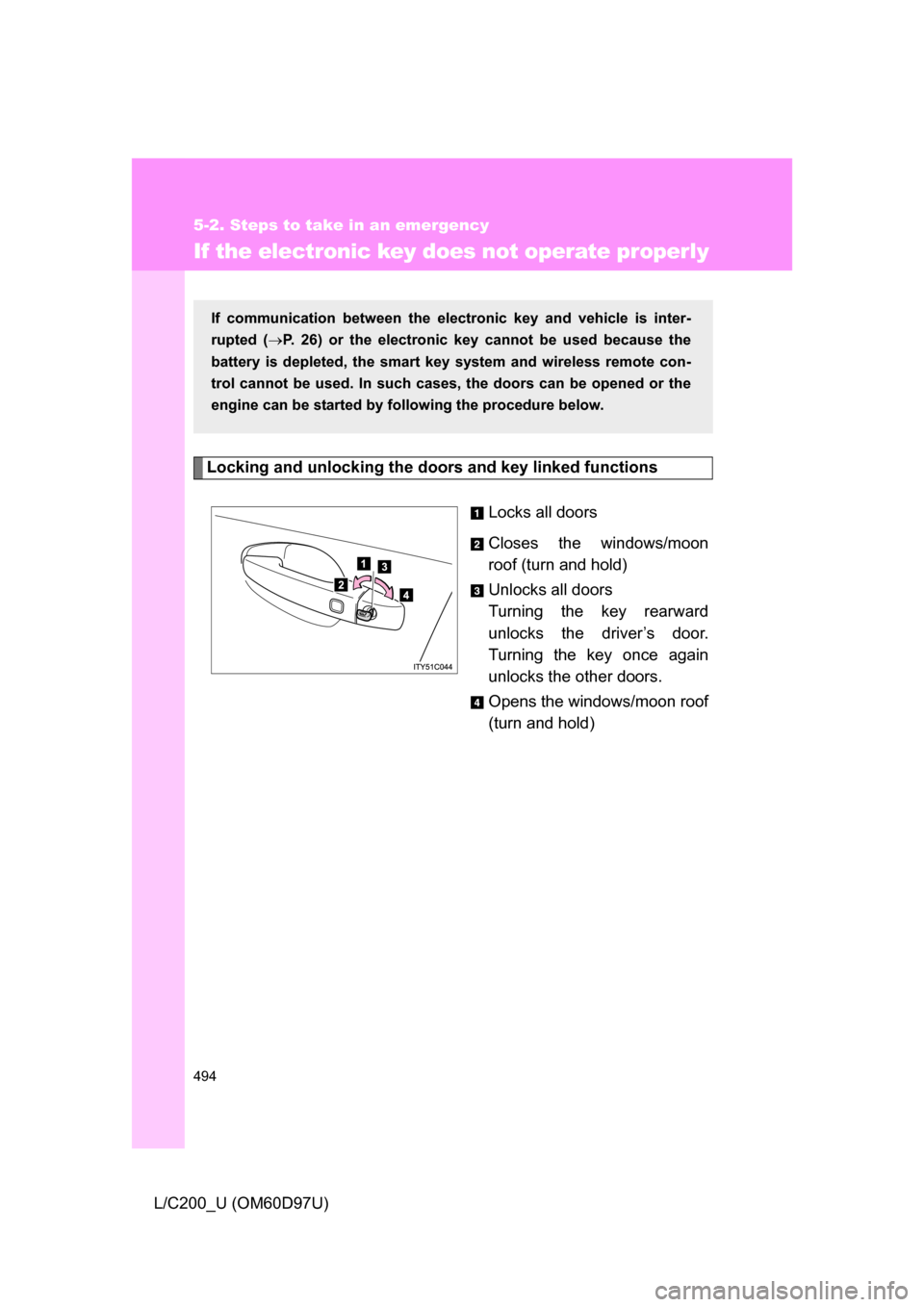

If the electronic key does not operate properly
Locking and unlocking the doors and key linked functions
Locks all doors
Closes the windows/moon
roof (turn and hold)
Unlocks all doors
Turning the key rearward
unlocks the driver’s door.
Turning the key once again
unlocks the other doors.
Opens the windows/moon roof
(turn and hold)
If communication between the electronic key and vehicle is inter-
rupted ( P. 26) or the electronic key cannot be used because the
battery is depleted, the smart key system and wireless remote con-
trol cannot be used. In such cases, the doors can be opened or the
engine can be started by following the procedure below.

5
When trouble arises
495
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)

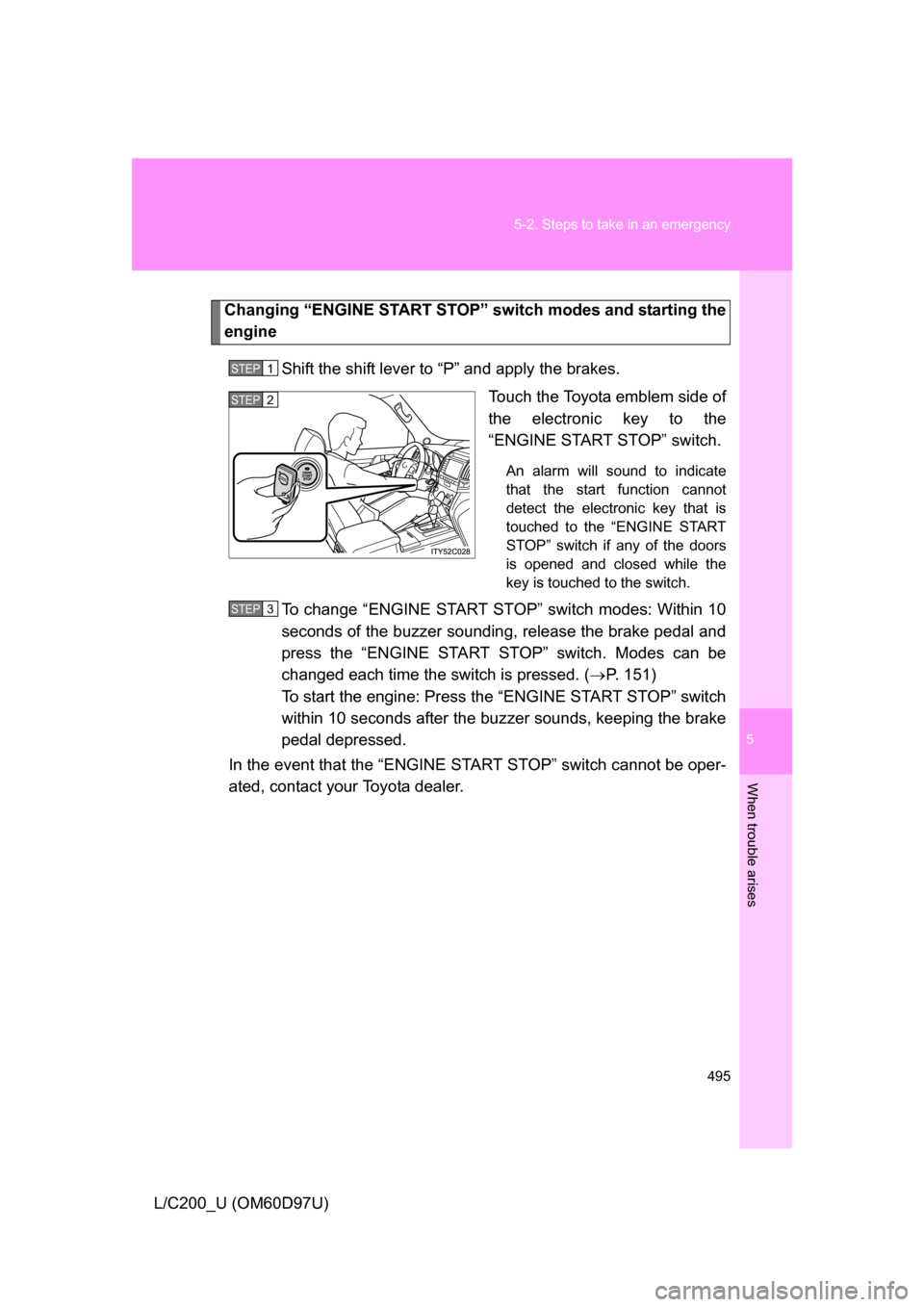

Changing “ENGINE START STOP”
switch modes and starting the
engine
Shift the shift lever to “P” and apply the brakes. Touch the Toyota emblem side of
the electronic key to the
“ENGINE START STOP” switch.
An alarm will sound to indicate
that the start function cannot
detect the electronic key that is
touched to the “ENGINE START
STOP” switch if any of the doors
is opened and closed while the
key is touched to the switch.
To change “ENGINE START STOP” switch modes: Within 10
seconds of the buzzer soundin g, release the brake pedal and
press the “ENGINE START STOP” switch. Modes can be
changed each time the sw itch is pressed. (P. 151)
To start the engine: Press the “ENGINE START STOP” switch
within 10 seconds after the buz zer sounds, keeping the brake
pedal depressed.
In the event that the “ENGINE ST ART STOP” switch cannot be oper-
ated, contact your Toyota dealer.
STEP1
STEP2
STEP3

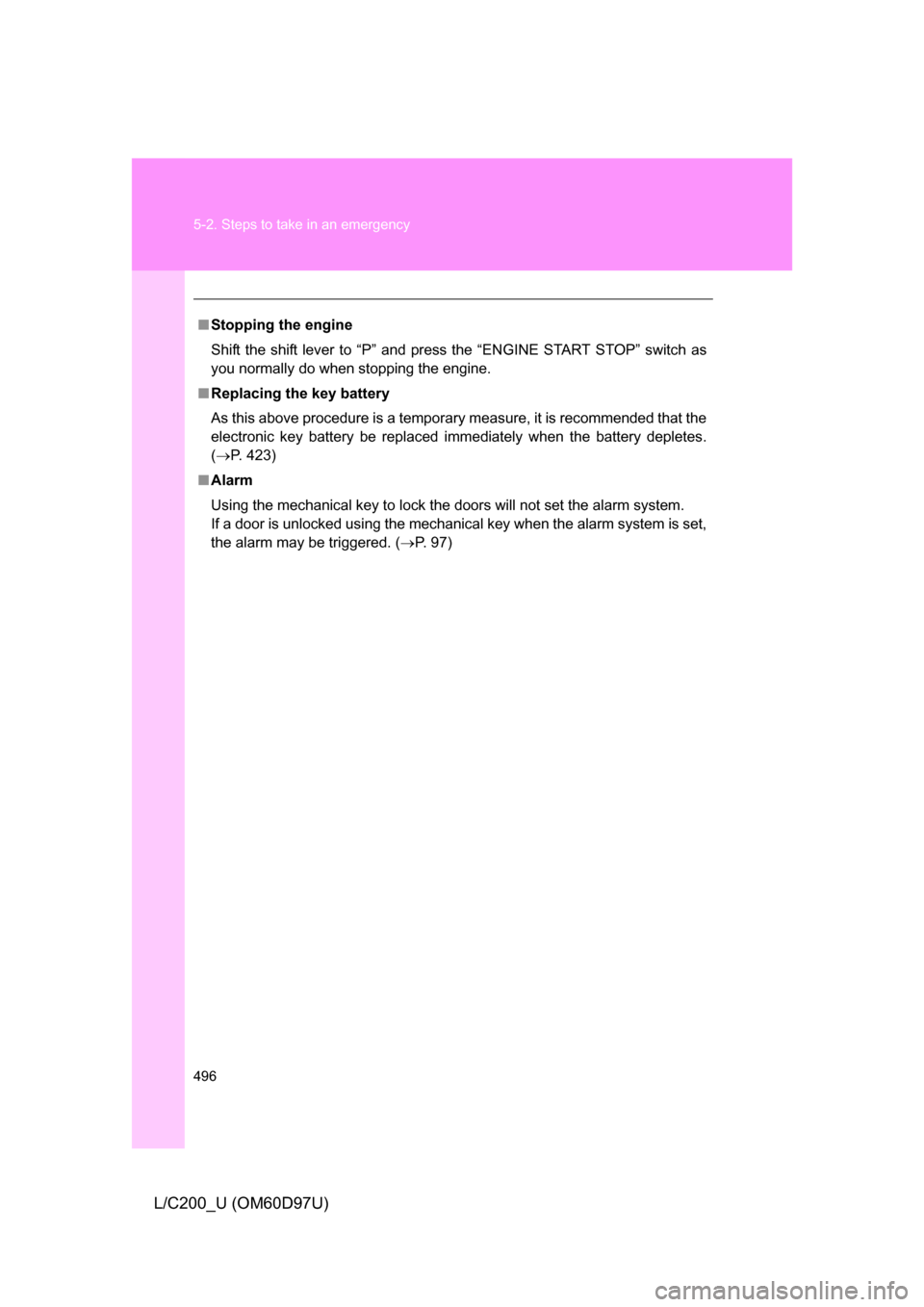

496 5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
■Stopping the engine
Shift the shift lever to “P” and press the “ENGINE START STOP” switch as
you normally do when stopping the engine.
■ Replacing the key battery
As this above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery depletes.
(P. 423)
■ Alarm
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered. ( P. 97)

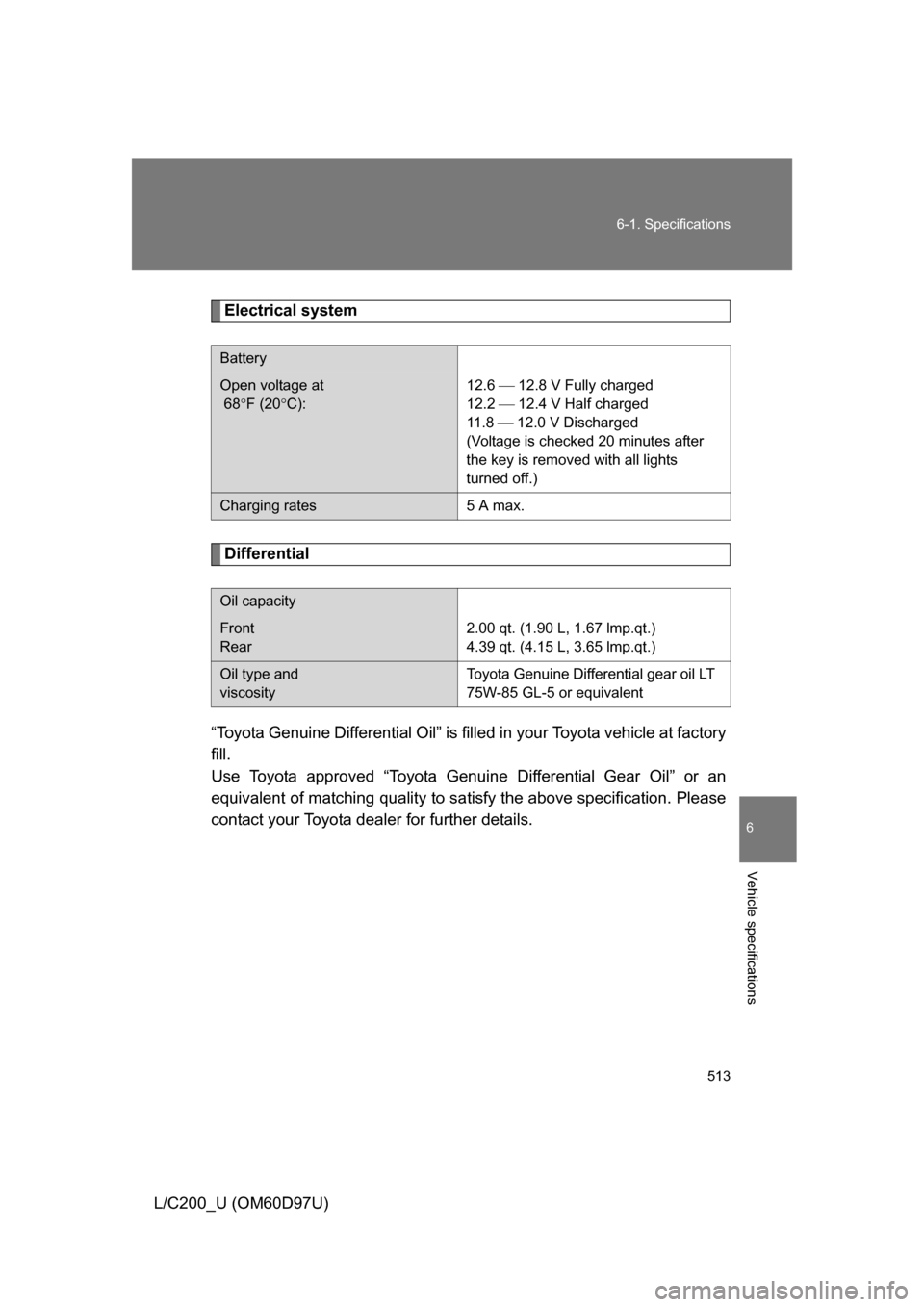

513
6-1. Specifications
6
Vehicle specifications
L/C200_U (OM60D97U)
Electrical system
Differential
“Toyota Genuine Differential Oil” is filled in your Toyota vehicle at factory
fill.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an
equivalent of matching quality to sa tisfy the above specification. Please
contact your Toyota dealer for further details.
Battery
Open voltage at
68 F (20 C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage is checked 20 minutes after
the key is removed with all lights
turned off.)
Charging rates5 A max.
Oil capacity
Front
Rear2.00 qt. (1.90 L, 1.67 lmp.qt.)
4.39 qt. (4.15 L, 3.65 lmp.qt.)
Oil type and
viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
