2009 SKODA YETI belt

Seat belts
145
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The belt tensioner is deployed in the event
of a frontal collision of major severity. A
powder charge is ignited in the inertia re
els during deployment. The belt webbing is
pulled into the inertia reels by a mechanical system and the belt is tensioned. The belt tensioners are not activated in case
of minor frontal and rear-end collisions,
in the case of vehicle rollover or accidents,
through which no long delays are incurred
to the vehicle. In the case of
a side collision, only the belt tensioner of the front seat on
the side on which the collision takes place is deployed.
WARNING
•
Any work on the system including removal and installation of system
components because of other repair work, must only be carried out by a specialist garage.•
The protective function of the system is
only adequate for a single accident.
If the belt tensioners have been deployed, it is then necessary to replace the entire system.•
The Owner's Manual must also be handed over to the new owner if the
vehicle is sold.
Note
•
Smoke is generated when the belt tensione
rs are deployed. This is not an indica-
tion of a fire in the vehicle.•
It is essential to pay attent
ion to relevant safety regulations if the vehicle or indi-
vidual parts of the system are scrapped. Specialist garages are familiar with these regu-lations and will be able to provide you with detailed information in this respect.•
When disposing of vehicle or parts of the system, it is important to comply with the
national legal requirements.
sgg.6.book Page 145 Thursday, September 24, 2009 2:32 PM

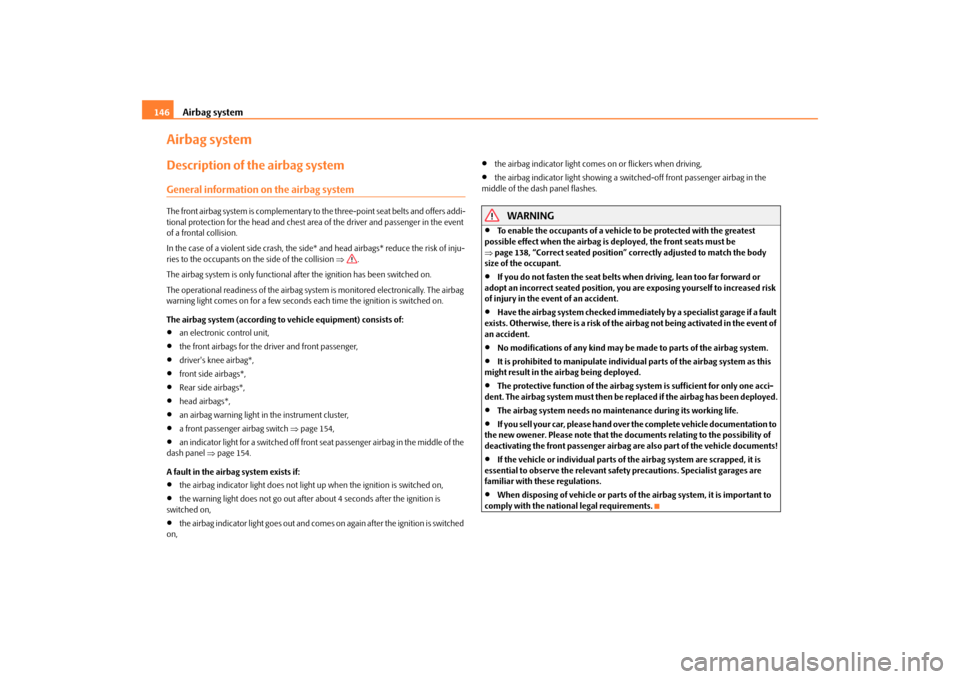

Airbag system
146
Airbag systemDescription of the airbag systemGeneral information on the airbag systemThe front airbag system is complementary to
the three-point seat belts and offers addi-
tional protection for the head and chest area of the driver and passenger in the event of a frontal collision. In the case of a violent side cr
ash, the side* and head airbags* reduce the risk of inju-
ries to the occupants on the side of the collision
⇒
.
The airbag system is only functional af
ter the ignition has been switched on.
The operational readiness of the airbag syst
em is monitored electronically. The airbag
warning light comes on for a few seconds each time the ignition is switched on. The airbag system (according to vehicle equipment) consists of:•
an electronic control unit,
•
the front airbags for the driver and front passenger,
•
driver's knee airbag*,
•
front side airbags*,
•
Rear side airbags*,
•
head airbags*,
•
an airbag warning light in the instrument cluster,
•
a front passenger airbag switch
⇒page 154,
•
an indicator light for a switched off front seat passenger airbag in the middle of the
dash panel
⇒page 154.
A fault in the airbag system exists if:•
the airbag indicator light does not light up when the ignition is switched on,
•
the warning light does not go out after about 4 seconds after the ignition is
switched on,•
the airbag indicator light goes out and come
s on again after the ignition is switched
on,
•
the airbag indicator light comes on or flickers when driving,
•
the airbag indicator light showing a swit
ched-off front passen
ger airbag in the
middle of the dash panel flashes.
WARNING
•
To enable the occupants of a vehicle
to be protected with the greatest
possible effect when the airbag is
deployed, the front seats must be
⇒ page 138, “Correct seated position” co
rrectly adjusted to match the body
size of the occupant.•
If you do not fasten the seat belts when driving, lean too far forward or
adopt an incorrect seated position, you are exposing yourself to increased risk of injury in the event of an accident.•
Have the airbag system checked immediat
ely by a specialist garage if a fault
exists. Otherwise, there is a
risk of the airbag not bein
g activated in the event of
an accident.•
No modifications of any kind may be made to parts of the airbag system.
•
It is prohibited to manipulate individual parts of the airbag system as this
might result in the airbag being deployed.•
The protective function of the airbag system is sufficient for only one acci-
dent. The airbag system must then be re
placed if the airbag has been deployed.
•
The airbag system needs no main
tenance during its working life.
•
If you sell your car, please hand over the complete vehicle documentation to
the new owener. Please note that the documents relating to the possibility of deactivating the front passenger airbag are also part of the vehicle documents!•
If the vehicle or individual parts of
the airbag system are scrapped, it is
essential to observe the relevant safety
precautions. Specialist garages are
familiar with these regulations.•
When disposing of vehicle or parts of the airbag system, it is important to
comply with the national legal requirements.
sgg.6.book Page 146 Thursday, September 24, 2009 2:32 PM

Airbag system
147
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
When are the airbags deployed?The airbag system is designed in such a wa
y that the driver and front passenger airbag
are deployed in the event of a
violent frontal collision
.
In the case of a
violent side collision
, the side airbag* on the side of the vehicle at
which the collision occurs, is deployed to
gether with the relevant head airbag*.
In special cases, the front as well as th
e relevant side and head airbags may be
deployed together. The airbags
are not deployed
in the case of
minor
frontal and side collisions, in the
case of rear-end collisi
ons and vehicle rollover.
Deployment factors It is not possible to state globally which
deployment conditions apply to the airbag
system in every situation as the circumstances which exist in the case of accidents vary greatly. An important role in
this case is pl
ayed by factors such as the type of object
against which the vehicle impacts (hard, soft
), the angle of impact, the relative speed
during the accident etc. A decisive factor for the deployment of the airbags is the deceleration which occurs during a collision. The control unit analyses
the nature of the collision and activates the
relevant restraint system. If the vehicle deceleration which occurs and is measured during the collision remains below the prescribed reference values specified in the control unit, the airbags are no
t deployed although the vehicle may well suffer severe
damage to the bodywork as a consequence of the accident. The airbags are not deployed if:•
ignition is switched off;
•
a minor frontal collision;
•
a minor side collision;
•
a rear-end collision;
•
rollover of the vehicle.Note
•
A grey white, non harmful gas is released when airbag is inflated. This is perfectly
normal and is not an indicati
on of a fire in the vehicle.
•
In the event of an accident in which the airbags are deployed: − the interior lighting comes on (if the swit
ch for the interior light is in the door
contact position); − the hazard warning li
ght is switched on;
− all the doors are unlocked; − the fuel supply to the engine is interrupted.
Front airbagsDescription of the front airbags The airbag system is not a su
bstitute for the seat belt!
Fig. 137 Driver airbag in th
e steering wheel / front passenger airbag in the dash panel
The front airbag for the driver is housed in the steering wheel
⇒fig. 137
on the left. The
front airbag for the front passenger is housed in the dash panel above the storage compartment
⇒fig. 137
on the right. The installation positions are each marked with
the “AIRBAG” logo. The front airbag system, in combination with
three-point safety belts, offers additional
protection for the head and chest area of the driver and front passenger in the event of a frontal collision of major severity
⇒page 148.
The airbag is not a substitute for the seat
belt, but is part of the complete passive
vehicle safety concept.
Please note that an airbag can only offer you optimal
protection in combination with a seat belt which is fastened
.
sgg.6.book Page 147 Thursday, September 24, 2009 2:32 PM

Airbag system
148
Apart from their normal protective function, a further task of the
seat belts
is to also
hold the driver and front passenger in a correct seated position in the event of a frontal collision so as to enable the front ai
rbags to offer the maximum protection.
You should therefore always fasten the seat be
lts, not only because this is required by
law, but also for safety reasons and for your own protection
⇒page 141, “Why seat
belts?”.
Note
The dash panel must be replaced after the front passenger airbag has been deployed.Function of the front airbags Risk of injury to the head and ches
t area is reduced by fully inflated
airbags.The airbag system is designed in such a wa
y that the airbags for the driver and front
passenger are deployed in the event of a violent frontal collision. In certain accident situations, the front, side
, knee and head airbag are simultaneously
deployed. If the airbags are deployed, the airbags are filled with a propellant gas and inflated in front of the driver and front passenger
⇒fig. 138
. The airbags inflate in fractions of a
second and at a high speed in order to be able
to offer that additional protection in the
event of an accident. The forward movement of the driver and of the front passenger
i s c us h i o n e d w h e n th e y m a ke co n t a c t w i t h t h e f u l l y i n f l a t e d a i r ba g a n d th e r i s k o f i n j u r y to head and chest is thus reduced. The specially developed airbag allows the gas
to flow out of the inflated airbag in a
controlled manner (depending on the load of
the particular car occupant) in order to
cushion head and chest areas. The airbag then
deflates subsequently to such an extent,
after an accident, to again provide a clear view forward. A grey white, non harmful gas is released when airbag is inflated. This is perfectly normal and is not an indicati
on of a fire in the vehicle.
The airbag develops enormous forces when triggered, which can lead to injuries if the sitting position or seated position is not correct
⇒page 148.
Important safety information regarding the front airbag system Correct use of the airbag system cons
iderably reduces the risk of injury!
WARNING
•
Never transport children on the front seat of a vehicle without using a
proper restraint system. If airbags are de
ployed in the event of an accident, the
child might suffer severe
or even fatal injuries!
•
For the driver and front passenger it is important to maintain a distance of
at least 25 cm from the steering wheel or dash panel
⇒fig. 139
. Not main-
taining this minimum distance will mean that the airbag system will not be able to properly protect you - hazard! The front seats and the head restraints must always also be correctly adjusted to match the body size of the occupant.
Fig. 138 Inflated airbags
Fig. 139 Safe distance to steering wheel
sgg.6.book Page 148 Thursday, September 24, 2009 2:32 PM

Airbag system
149
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
•
It is essential to always switch off
⇒page 154, “Deactivating an airbag” the
front passenger airbag when attaching a child safety seat on the front passenger seat where the child is seated
with its back facing in direction of
travel (in some countries also
when the child is facing the direction of travel). If
this is not done, there is a risk of the ch
ild suffering severe or even fatal injuries
if the front passenger airbag is deploy
ed. In certain countries national legal
provisions also require that the side or
head passenger airbags be deactivated.
When transporting a child on the front passenger seat, please comply with the appropriate national regu
lations regarding the use of child safety seats.
•
There must not by any further persons, animals or objects positioned
between the front seated occupants and
the deployment area of the airbag.
•
The steering wheel and the surface of th
e airbag module in the dash panel
on the passenger side must not be stuck
onto, covered or modified in any other
way. These parts should only be cleaned with a dry cloth or a cloth moistened with water. No objects such as cup holders, mobile phone mounts, etc. may be attached to the covers of the airbag modules or be located within the imme- diate area.•
No modifications of any kind may be
made to parts of the airbag system.
Any work on the airbag system includ
ing installing and removing system
components because of other repair wo
rk (e.g. removing the steering wheel)
must only be carried out by a specialist garage.•
Never carry out changes on the front bumper or on the body.
•
Never place any objects on
the surface of the front
passenger airbag module
in the dash panel.
Driver's knee airbag*Description of the driver's knee airbags The knee airbag reduces the risk of injury to the legs.The driver's knee airbag is located in th
e lower part of the dash panel below the
steering column
⇒fig. 140
. The fitting position is show
n in a picture on the side
surface of the dash panel on the driver's side. The driver's knee airbag is complementary
to the three-point seat belt and offers
adequate protection to the knees of the driver.
Please note that an airbag can only
offer you optimal protection in combination with a seat belt which is fastened
.
Apart from their normal protective function, a further task of the
seat belt
is to also
hold the driver in a correct seated position
in the event of a frontal collision so as to
enable the knee airbag to offer the maximum protection. You should therefore always fasten the seat belts, not only because this is required by law, but also for safety reasons and for your own protection
⇒page 141, “Why seat
belts?”.Function of the driver's knee airbagsThe airbag system is designed in such a way
that the driver's knee airbag is deployed
together with the belt tensioner in the even
t of a frontal collision of major severity.
If an airbag is deployed, the airbag is filled
with gas. The airbags inflate in fractions of a
second and at a high speed in order to be able to offer that additional protection in the event of an accident.
WARNING (continued)
Fig. 140 Driver's knee airbag below the steering column
sgg.6.book Page 149 Thursday, September 24, 2009 2:32 PM

Airbag system
150
A grey white, non harmful gas is released when airbag is inflated. This is perfectly normal and is not an indicati
on of a fire in the vehicle.
The forward movement of the body is cushioned when it makes contact with the fully inflated airbag and the risk of injury to
the legs of the driv
er is thus reduced.
Important safety information on the driver's knee airbag
WARNING
•
The surface of the airbag module in the lower part of the dash panel below
the steering column must not be stuck onto, covered or modified in any other way. These parts should only be cleaned with a dry cloth or a cloth moistened with water. No objects must be attached
to the cover of the airbag module or be
located within the immediate area.•
No modifications of any kind may be
made to parts of the airbag system.
Any work on the airbag system includ
ing installing and removing system
components because of other repair wo
rk (e.g. removing the steering wheel)
must only be carried out by a specialist garage.•
Never carry out changes on the front bumper or on the body.
•
Do not attach any bulky and heavy obje
cts (keys etc.) to the keylock. These
can be ejected by the knee airb
ag being deployed and hurt you.
Side airbags*Description of side airbags The side airbag together with the head airbag offers enhanced occu- pant protection in the event of a side collision.The front side airbags are housed in the upho
lstery of the seat backrests of the front
seats
⇒fig. 141
.
The side airbag system in combination with the three-point seat belts, offers additional protection for the upper area of the body
(chest, stomach and pelvis) of the occupants
of the vehicle in the event of severe side collisions
⇒page 151.
Apart from their normal protective function, a further task of the
seat belts
is to also
hold the occupents of the front or rear exteri
or seats in a correct seated position in the
event of a side collision so as to enable th
e side airbag to offer the maximum protec-
tion. You should therefore always fasten the seat belts, not only because this is required by law, but also for safety reasons and for your own protection. Each time the side airbags are deployed, th
e head airbag* and the front belt tensioner
on the side of the car on which the collision
occures, are automati
cally deployed at the
same time in order to provide the
occupant with enhanced protection.
Fig. 141 Installation position of side airbag in driver seat
sgg.6.book Page 150 Thursday, September 24, 2009 2:32 PM

Airbag system
151
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Function of the side airbags Risk of injury to the upper part of the body is reduced by fully inflated side airbags.When the side airbags are deployed, the head airbag* and the belt tensioner are also automatically deployed on the relevant side
⇒fig. 142
.
If an airbag is deployed, the airbag is filled with gas. The airbags inflate in fractions of a second and at a high speed in order to be able to offer that additional protection in the event of an accident. A grey white, non harmful gas is released when airbag is inflated. This is perfectly normal and is not an indicati
on of a fire in the vehicle.
The load of the occupants is cushioned when
plunging into the fully inflated airbag and
the ri sk of i njur y to the entire uppe r body
(chest, stomach and pelvis) is reduced on the
side facing the door.Important safety information on the side airbag Correct use of the airbag system cons
iderably reduces the risk of injury!
WARNING
•
It is essential to always switch off
⇒page 154, “Deactivating an airbag” the
front passenger airbag when attaching a child safety seat on the front passenger seat where the child is seated
with its back facing in direction of
travel (in some countries also
when the child is facing the direction of travel). If
this is not done, there is a risk of the ch
ild suffering severe or even fatal injuries
if the front passenger airbag is deploy
ed. In certain countries national legal
provisions also require that the side or
head passenger airbags be deactivated.
When transporting a child on the front passenger seat, please comply with the appropriate national regulations regarding the use of child safety seats.•
Your head should never be positioned in the deployment area of the side
airbag. You might suffer severe injuries in
the event of an accident. This applies
in particular to children who are transported without using a suitable child safety seat
⇒page 158, “Child safety and side airbag*”.
•
If children adopt an incorrect seated
position when travelling, they may be
exposed to an increased risk of injury in
the event of an accident. This can result
in serious injuries
⇒page 156, “What you should know about transporting
children!”.•
There must not be any further persons,
animals as well as objects posi-
tioned between the occupants and the deployment area of the airbag. No accessories, such as a can holder, should be attached to the doors.•
The airbag control unit operates together with the pressure sensors, which
are attached in the front doors. For this reason no adjustments must be carried out at the doors as well as at the door panels (for example additional installa-tion of loudspeakers). Resulting damage
s can have a negative affect on the
operation of the airbag system. All work on the front doors and their panels must only be carried out by a specialist garage.•
In the event of a side collision, the side airbags will not function properly, if
the sensors cannot measure the increasi
ng air pressure inside the doors,
because the air can escape through lar
ge, non-sealed open
ings in the door
panel.
− Never drive with removed inner door panels. − Never drive, if parts of the inner do
or panel have been removed and the
remaining openings have not been properly sealed. − Never drive, if the loudspeakers in the doors have been removed, only if the loudspeaker openings have been properly sealed. − Always make sure that the openings are covered or filled, if additional loudspeakers or other equipment part
s are installed in the inner door
panels.
Fig. 142 Inflated side airbag
WARNING (continued)
sgg.6.book Page 151 Thursday, September 24, 2009 2:32 PM

Airbag system
152
−Always work with an authorised Škoda dealer or have it carried out by a competent specialist workshop.
•
Only hang light items of clothing on the clothes hooks to the vehicle. Never
leave any heavy or sharp-edged objects in the pockets of the items of clothing.•
Ensure that there are no excessive forc
es, such as violent knocks, kicks etc.,
impact on the backrests of the seats
otherwise the system may be damaged.
The side airbags would not be deployed in such a case!•
Any seat or protective covers which you fit to the driver or front passenger
seats must only be of the type expressly authorised by Škoda Auto. In view of the fact that the airbag inflates out of the backrest of the seat, use of non- approved seat or protective covers would considerably impair the protective function of the side airbag.•
Any damage to the original seat covers in the area of the side airbag module
must be repaired without dela
y by your specialist garage.
•
The airbag modules in the front seats must not display any damage, cracks
or deep scratches. It is not permissible to use force in order to open the modules.•
Any work on the side airbag system including removing and installing
system components because of other repair work (e.g. removing seats) must only be carried out by a specialist garage.
Head airbags*Description of the head airbags The head airbag together with the side airbag offers enhanced occu- pant protection in the event of a side collision.The head airbags are positioned above the door
s on both sides in the interior of the
car
⇒fig. 143
. The installation positions are each marked with the “AIRBAG” logo.
The head airbag together with the three-poin
t seat belts and the side airbags, offers
additional protection for the head and neck ar
ea of the occupants in the event of a side
collision of major severity
⇒page 153.
Apart from their normal protective function, a further task of the
seat belts
is to also
hold the driver and the occupants in a correct seated position in the event of a side collision so as to enable the head airbags to offer the maximum protection. You should therefore always fasten the seat belts, not only because this is required by law, but also for safety reasons and for your own protection
⇒page 141, “Why seat belts?”.
Together with other elements (such as cross ba
rs in the seats, stable vehicle structure)
the head airbags are the consequent further development of occupant protection in the case of side collisions.
WARNING (continued)
Fig. 143 Installation position of the head airbags
sgg.6.book Page 152 Thursday, September 24, 2009 2:32 PM
