2009 RENAULT TWINGO Sequential Transmission Workshop Manual

21B-97
MR-413-X44-21B000$649.mif
V2
SEQUENTIAL GEARBOX
Fault finding - Interpretation of statuses
Vdiag No: 04
21B
ET059
SELECTION SOLENOID VALVE 1 CONTROL
STATUS
DEFINITIONThis signal indicates the status of the control circuit of selection solenoid valve 1 and
has the specification "ACTIVE" or "INACTIVE".
NOTESNone
Engine stopped, ignition on
INACTIVE, engine stopped
In the event of a fault, consult the interpretation of fault DF074 “Selection solenoid valve 1 circuit”.
Engine warm at idle speed
INACTIVE, engine running, vehicle stopped
ACTIVE during selection of first and second gears
In the event of a fault, consult the interpretation of fault DF074 “Selection solenoid valve 1 circuit”.
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
BVRJH1_V04_ET059

21B-98
MR-413-X44-21B000$649.mif
V2
SEQUENTIAL GEARBOX
Fault finding - Interpretation of statuses
Vdiag No: 04
21B
ET060
SELECTION SOLENOID VALVE 2 CONTROL
STATUS
DEFINITIONThis signal indicates the status of the control circuit of selection solenoid valve 2 and
has the specification "ACTIVE" or "INACTIVE".
NOTESNone
Engine stopped, ignition on
INACTIVE, engine stopped
In the event of a fault, consult the interpretation of fault DF075 “Selection solenoid valve 2 circuit”.
Engine warm at idle speed
INACTIVE, engine running, vehicle stopped
ACTIVE during selection of fifth and reverse gears
In the event of a fault, consult the interpretation of fault DF075 “Selection solenoid valve 2 circuit”.
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
BVRJH1_V04_ET060

21B-99
MR-413-X44-21B000$649.mif
V2
SEQUENTIAL GEARBOX
Fault finding - Interpretation of statuses
Vdiag No: 04
21B
ET061
GEAR PROGRAMMING
STATUS
DEFINITIONThis signal indicates the status of the programming of all the gears and has the
specification "NOT DONE", "DONE" or "OK".
NOTESNone
Engine stopped, ignition on
ET061: "DONE" or "OK"
If "NOT DONE", consult the interpretation of faults DF069 "Selecting position sensor circuit", DF070
"Engaging position sensor circuit" and DF067 "Lever position sensor circuit".
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
BVRJH1_V04_ET061

21B -100
MR-413-X44-21B000$649.mif
V2
SEQUENTIAL GEARBOX
Fault finding - Interpretation of statuses
Vdiag No: 04
21B
ET062
BITING POINT PROGRAMMING
STATUS
DEFINITIONThis signal indicates the status of the programming of the clutch biting point and has the
specification "NOT DONE" or "DONE".
NOTESNone
Engine stopped, ignition on
ET062: DONE
If "NOT DONE", put the gearbox in neutral.
Start the engine.
Wait 10 seconds without changing gear (to program the clutch biting point).
Check the programming was applied correctly:
ET062 displays "DONE".
If "NOT DONE", refer to the interpretation of fault DF068 "Clutch position sensor circuit".
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
BVRJH1_V04_ET062

21B -101
MR-413-X44-21B000$649.mif
V2
SEQUENTIAL GEARBOX
Fault finding - Interpretation of statuses
Vdiag No: 04
21B
ET063
SOLENOID VALVE ZERO POINT PROGRAMMING
STATUS
DEFINITIONThis signal indicates the status of the programming of the clutch solenoid valve position
and has the specification "NOT DONE" or "DONE".
NOTESNone
Engine stopped, ignition on
ET063: DONE
If "NOT DONE", put the gearbox in neutral.
Start the engine.
Wait 10 seconds without changing gear (to program the clutch biting point).
Check the programming was applied correctly:
ET063 displays "DONE".
If "NOT DONE", consult the interpretation of faults DF068 "Clutch position sensor circuit", DF069 "Selecting
position sensor circuit" and DF070 "Engaging position sensor circuit".
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
BVRJH1_V04_ET063

21B -102
MR-413-X44-21B000$649.mif
V2
SEQUENTIAL GEARBOX
Fault finding - Interpretation of statuses
Vdiag No: 04
21B
ET064
CLUTCH POSITION PROGRAMMING
STATUS
DEFINITIONThis signal indicates the status of the programming of the clutch position and has the
specification "NOT DONE" or "DONE".
NOTESNone
Engine stopped, ignition on
ET064: DONE
If "NOT DONE", refer to the section "replacement of components".
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
BVRJH1_V04_ET064

21B -103
MR-413-X44-21B000$649.mif
V2
SEQUENTIAL GEARBOX
Fault finding - Interpretation of statuses
Vdiag No: 04
21B

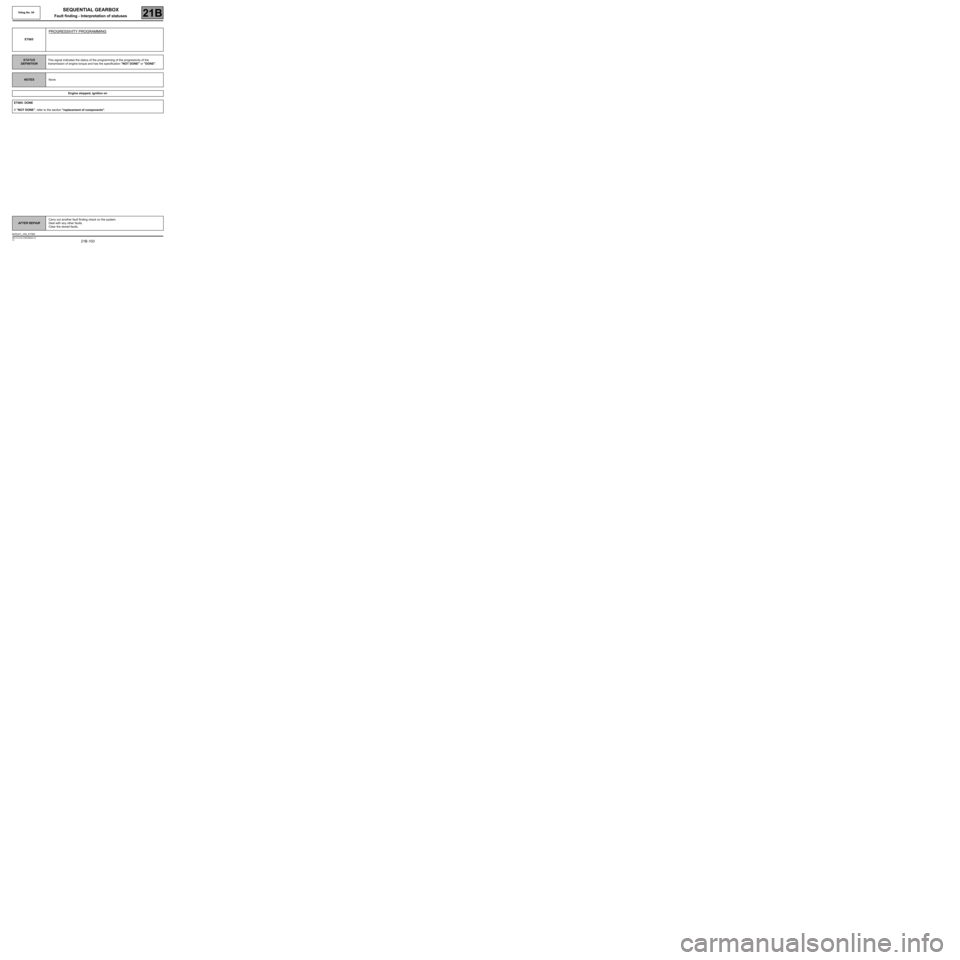

ET065
PROGRESSIVITY PROGRAMMING
STATUS
DEFINITIONThis signal indicates the status of the programming of the progressivity of the
transmission of engine torque and has the specification "NOT DONE" or "DONE".
NOTESNone
Engine stopped, ignition on
ET065: DONE
If "NOT DONE", refer to the section "replacement of components".
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
BVRJH1_V04_ET065

21B -104
MR-413-X44-21B000$649.mif
V2
SEQUENTIAL GEARBOX
Fault finding - Interpretation of statuses
Vdiag No: 04
21B
ET086
DOWNSHIFT REQUEST
STATUS
DEFINITIONThis status indicates the request, by the injection computer or by the driver, to change
down a gear and has the specification "ACTIVE" or "INACTIVE".
NOTESNone
Engine stopped, ignition on
ET086: INACTIVE
In the event of a fault, consult the interpretation of faults DF062 "CAN fault" and DF067 "Lever position sensor
circuit".
Road test
ET086: ACTIVE following low engine speed or a request to change down from the driver.
In the event of a fault, consult the interpretation of faults DF062 "CAN fault" and DF067 "Lever position sensor
circuit".
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
BVRJH1_V04_ET086
