2009 RENAULT TWINGO RS check engine

17B-238V7 MR-413-X44-17B000$152.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET557
CONTINUED 1
Conformity check with engine stopped and ignition on, or engine running, and engine coolant
temperature > 80˚C
STATUS 1 Invalid vehicle speed
If status ET557 changes to STATUS 1 if the vehicle speed received by the computer
is invalid.
In the event of any faults, run fault finding on the ABS computer (see 38C, Anti-lock
braking system).
If the fault is still present, contact the Techline.
STATUS 2 Fault detected by the injection computer
If status ET557 changes to STATUS 2 if the injection computer detects a fault on the
injection system:
–Faults on the accelerator pedal.
–Engine speed sensor or camshaft faults.
–Engine speed greater than 4700 rpm.
–Engine speed less than 1000 rpm.
Carry out a multiplex network test, then an injection system test, and carry out fault
finding on any faults.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.

17B-240V7 MR-413-X44-17B000$152.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET561Operating mode
STATUS
DEFINITIONALCOHOL: This status indicates that the engine runs on ETHANOL (E85).
PETROL: This status indicates that the engine runs on petrol.
NOTESThere must be no present or stored faults.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant
temperature > 80˚C
ALCOHOL
or
PETROLThe status ET561 is ALCOHOL if the vehicle runs on ETHANOL (E85).
The status ET561 is PETROL if the vehicle runs on petrol.
–Reprogram the alcohol level (see Configurations and programming, Alcohol
level programming):
–start the engine,
–allow the engine coolant temperature to reach 75˚C, check using parameter PR064
Coolant temperature,
–run the engine at 1500 rpm for at least 5 mins,
–check that the programming has been carried out using status ET671 Alcohol
level programming and parameter PR743 Estimated alcohol level in tank,
the programming is saved when the ignition is switched off.
If the fault is still present, contact the Techline.
SIM32_V44_ET561/SIM32_V4C_ET561/SIM32_V50_ET561/SIM32_V54_ET561
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.

17B-241V7 MR-413-X44-17B000$152.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET562FAN ASSEMBLY REQUEST BY AUTOMATIC TRANSMISSION (applies only for the sequential gearbox on engine D4F 772)
STATUS
DEFINITIONPRESENT: This status indicates that there has been a fan assembly request from the
transmission.
ABSENT: This status indicates that there has not been a fan assembly request from the
transmission.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system operation
programming.
There must be no present or stored faults.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant
temperature > 80˚C
PRESENT
or
ABSENTThe status is PRESENT or ABSENT depending on the computer program (engine oil
temperature).
SIM32_V44_ET562/SIM32_V4C_ET562/SIM32_V50_ET562/SIM32_V54_ET562
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.

17B-243V7 MR-413-X44-17B000$152.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET565DEFECT MODE TYPE 2
STATUS
DEFINITIONACTIVE: This status indicates that defect mode type 2 is active.
INACTIVE: This status indicates that defect mode type 2 is inactive.
NOTESThere must be no present or stored faults.
This type groups together the faults preventing the system from controlling the air flow modulation.
The associated defect mode limits the engine speed by injection cut-off (limitation of engine speed to 2400 rpm
at idle speed and 3500 rpm in other gears.
SIM32_V44_ET565/SIM32_V4C_ET565/SIM32_V50_ET565/SIM32_V54_ET565
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.

17B-245V7 MR-413-X44-17B000$152.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET567DEFECT MODE TYPE 4
STATUS
DEFINITIONACTIVE: This status indicates that defect mode type 4 is active.
INACTIVE: This status indicates that defect mode type 4 is inactive.
NOTESThere must be no present or stored faults.
This type groups together faults affecting the motorised throttle valve monitoring system, the pedal and the
turbocharging circuit for which there is a backup operating mode that is viable for the system.
The associated defect mode is a limitation of the throttle opening according to the engine speed. This is expressed
by limiting the speed to less than 66 mph (110 km/h) in 5
th and 6th and the accelerator pedal feels "soft".
SIM32_V44_ET567/SIM32_V4C_ET567/SIM32_V50_ET567/SIM32_V54_ET567
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.

17B-246V7 MR-413-X44-17B000$152.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET568TYPE 5 DEFECT MODE
STATUS
DEFINITIONACTIVE: This status indicates that defect mode type 5 is active.
INACTIVE: This status indicates that defect mode type 5 is inactive.
NOTESThere must be no present or stored faults.
This type groups together faults affecting the pressure, the throttle valve control by the torque structure and the
turbocharging pressure.
Its effect is to go into pedal feedback mode instead of the permanent torque structure. The ESP and cruise control/
speed limiter systems are deactivated. The automatic or sequential gearbox goes into safe mode. The engine
management no longer accepts requests from the gearbox, and sends torque values by default to the multiplex
network.
SIM32_V44_ET568/SIM32_V4C_ET568/SIM32_V50_ET568/SIM32_V54_ET568
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.

17B-247V7 MR-413-X44-17B000$152.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET569DEFECT MODE TYPE
6
STATUS
DEFINITIONACTIVE: This status indicates that defect mode type 6 is active.
INACTIVE: This status indicates that defect mode type 6 is inactive.
NOTESThere must be no present or stored faults.
This type groups the faults affecting the wastegate control in turbocharged vehicles.
Defect mode enables the engine to operate as a naturally aspirated engine.
The wastegate is no longer controlled and opens freely. The vehicle operates without turbocharging: loss of
turbocharger effectiveness (brisk engine performance, acceleration, recovery, etc.); operation as a naturally
aspirated engine.
Entry into type 1 to 5 defect mode always leads to the application of type 6 in turbocharged versions.
SIM32_V44_ET569/SIM32_V4C_ET569/SIM32_V50_ET569/SIM32_V54_ET569
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.

17B-248V7 MR-413-X44-17B000$152.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54

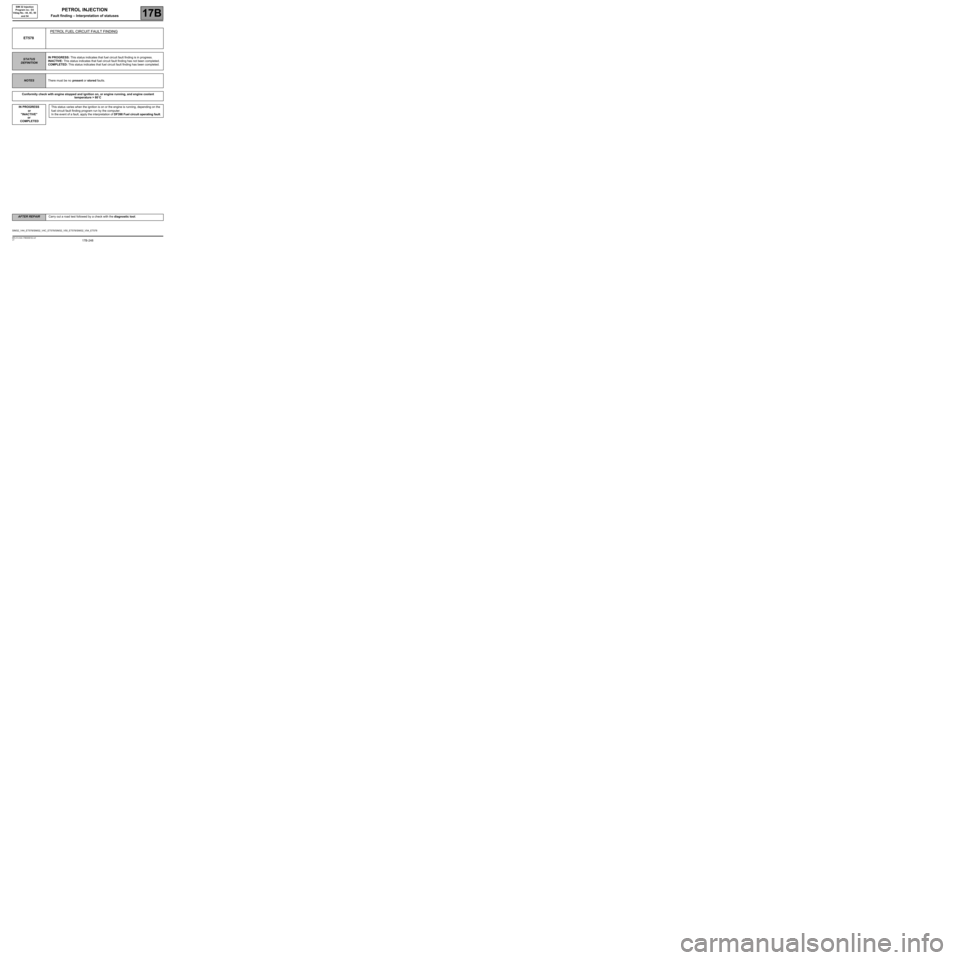

ET578PETROL FUEL CIRCUIT FAULT FINDING
STATUS
DEFINITIONIN PROGRESS: This status indicates that fuel circuit fault finding is in progress.
INACTIVE: This status indicates that fuel circuit fault finding has not been completed.
COMPLETED: This status indicates that fuel circuit fault finding has been completed.
NOTESThere must be no present or stored faults.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant
temperature > 80˚C
IN PROGRESS
or
"INACTIVE"
or
COMPLETEDThis status varies when the ignition is on or the engine is running, depending on the
fuel circuit fault finding program run by the computer.
In the event of a fault, apply the interpretation of DF398 Fuel circuit operating fault.
SIM32_V44_ET578/SIM32_V4C_ET578/SIM32_V50_ET578/SIM32_V54_ET578
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
