5.Determine the combined
weight of luggage and
cargo being loaded on the
vehicle. That weight may not
safely exceed the available
cargo and luggage load
capacity calculated in Step 4.
6.If your vehicle will be towing a
trailer, the load from your
trailer will be transferred to
your vehicle. Consult
this manual to determine how
this reduces the available
cargo and luggage load
capacity of your vehicle.
SeeTowing a Trailer on
page 9-89for important
information on towing a trailer,
towing safety rules and
trailering tips.
A.Vehicle Capacity Weight for
Example 1=1,000 lbs
(453 kg).
B.Subtract Occupant Weight
150 lbs (68 kg)×2=300 lbs
(136 kg).
C.Available Occupant and
Cargo Weight=700 lbs
(317 kg).
A.Vehicle Capacity Weight for
Example 2=1,000 lbs
(453 kg).
B.Subtract Occupant Weight
150 lbs (68 kg)×5=750 lbs
(340 kg).
C.Available Cargo
Weight=250 lbs (113 kg).
Example 1Example 2
8-32 Driving and Operating

Gasoline Octane
If the vehicle has a V8 engine, use
regular unleaded gasoline with a
posted octane rating of 87 or higher.
If the octane rating is less than 87,
you might notice an audible knocking
noise when you drive, commonly
referred to as spark knock. If this
occurs, use a gasoline rated at 87
octane or higher as soon as possible.
If you are using gasoline rated at 87
octane or higher and you hear heavy
knocking, the engine needs service.
If the vehicle has the 3.6L V6 engine
(VIN Code 7), use regular unleaded
gasoline with a posted octane rating
of 87 or higher. For best performance
or trailer towing, you could choose
to use middle grade 89 octane
unleaded gasoline. If the octane
rating is less than 87, you might
notice an audible knocking noise
when you drive, commonly referredto as spark knock. If this occurs,
use a gasoline rated at 87 octane
or higher as soon as possible. If you
are using gasoline rated at
87 octane or higher and you hear
heavy knocking, the engine needs
service.
Gasoline Specications
At a minimum, gasoline should
meet ASTM specication D 4814
in the United States or
CAN/CGSB-3.5 or 3.511 in Canada.
Some gasolines contain an
octane-enhancing additive called
methylcyclopentadienyl manganese
tricarbonyl (MMT). We recommend
against the use of gasolines
containing MMT. SeeAdditives on
page 8-36for additional information.
California Fuel
If the vehicle is certied to meet
California Emissions Standards, it is
designed to operate on fuels that
meet California specications. See
the underhood emission control
label. If this fuel is not available in
states adopting California emissions
standards, the vehicle will operate
satisfactorily on fuels meeting federal
specications, but emission control
system performance might be
affected. The malfunction indicator
lamp could turn on and the vehicle
might fail a smog-check test. See
Malfunction Indicator Lamp on
page 4-18. If this occurs, return to
your authorized dealer/retailer for
diagnosis. If it is determined that the
condition is caused by the type of
fuel used, repairs might not be
covered by the vehicle warranty.
Driving and Operating 8-35

Uniform Tire Quality
Grading...........................9-62
Wheel Alignment and
Tire Balance....................9-64
Wheel Replacement..........9-64
Tire Chains.......................9-65
Tire Changing
If a Tire Goes Flat............9-66
Tire Sealant and
Compressor Kit
(V8 Engine)
.....................9-67
Changing a Flat Tire.........9-75
Removing the Spare
Tire and Tools.................9-76
Removing the Flat Tire
and Installing the
Spare Tire
.......................9-77
Storing a Flat or Spare
Tire and Tools.................9-82
Compact Spare Tire..........9-83
Jump Starting
Jump Starting...................9-84
Towing
Towing Your Vehicle.........9-88
Shift Lock Manual
Release...........................9-88
Recreational Vehicle
Towing............................9-89
Towing a Trailer................9-89
Appearance Care
Interior Cleaning................9-95
Exterior Cleaning..............9-98
Sheet Metal Damage.......9-102
Finish Damage................9-102
Underbody Maintenance. . .9-102
Chemical Paint
Spotting.........................9-102
Service
For service and parts needs, visit
your dealer/retailer. You will receive
genuine GM parts and GM-trained
and supported service people.
Genuine GM parts have one
of these marks:
9-2 Vehicle Service and Care

Engine Oil
Checking Engine Oil
It is a good idea to check the
engine oil every time you get fuel.
In order to get an accurate reading,
the oil must be warm and the
vehicle must be on level ground.
The engine oil dipstick handle
is a yellow loop. SeeEngine
Compartment Overview on page 9-6
for the location of the engine oil
dipstick.
1. Turn off the engine and give the
oil several minutes to drain back
into the oil pan. If you do not
do this, the oil dipstick might not
show the actual level.
2. Pull the dipstick and clean it with
a paper towel or cloth, then push
it back in all the way. Remove
it again, keeping the tip down and
check the level.
When to Add Engine Oil
If the oil is below the MIN (minimum)
mark, add at least one quart/liter
of the recommended oil. This
section explains what kind of oil to
use. For engine oil crankcase
capacity, seeCapacities and
Specifications on page 10-2.
Notice:Do not add too much oil.
If the engine has so much oil
that the oil level gets above the
upper mark that shows the proper
operating range, the engine
could be damaged.
SeeEngine Compartment Overview
on page 9-6for the location of
the engine oil ll cap.
Add enough oil to put the level
somewhere in the proper operating
range. Push the dipstick all the
way back in when you are through.
What Kind of Engine Oil to Use
Look for three things:
9-8 Vehicle Service and Care

If No Steam Is Coming From
The Engine Compartment
If an engine overheat warning is
displayed but no steam can be seen
or heard, the problem may not be too
serious. Sometimes the engine can
get a little too hot when the vehicle:
Climbs a long hill on a hot day.
Stops after high-speed driving.
Idles for long periods in traffic.
Tows a trailer.
If the overheat warning is displayed
with no sign of steam:
1. Turn the air off.
2. Turn the heater on to the highest
temperature and to the highest
fan speed. Open the windows as
necessary.
3. In heavy traffic, let the engine idle
in N (Neutral) while stopped. If it
is safe to do so, pull off the road,
shift to P (Park) or N (Neutral) and
let the engine idle.If the temperature overheat gage is
no longer in the overheat zone
or an overheat warning no longer
displays, the vehicle can be driven.
Continue to drive the vehicle
slow for about 10 minutes. Keep a
safe vehicle distance from the
car in front of you. If the warning
does not come back on, continue to
drive normally.
If the warning continues, pull over,
stop, and park the vehicle right away.
If there is no sign of steam, idle the
engine for three minutes while
parked. If the warning is still
displayed, turn off the engine until it
cools down. Also, see ‘‘Overheated
Engine Protection Operating Mode’’
later in this section.
Power Steering Fluid
Power Steering Fluid Level
Power steering uid is used in
all vehicles.
Check the level after the vehicle has
been driven for at least twenty
minutes so the uid is warm.
How to Check Power Steering
Fluid
To check the power steering uid,
do the following:
1. Turn the key off and let the engine
compartment cool down.
2. The power steering uid reservoir
is located on the driver side
toward the front of the engine
compartment. SeeEngine
Compartment Overview on
page 9-6.
Vehicle Service and Care 9-21

Bulb Replacement
For the proper type of replacement
bulbs, seeReplacement Bulbs
on page 9-35.
For any bulb changing procedure
not listed in this section, contact
your dealer/retailer.
Halogen Bulbs
{CAUTION
Halogen bulbs have pressurized
gas inside and can burst if you
drop or scratch the bulb. You or
others could be injured. Be sure
to read and follow the instructions
on the bulb package.
Headlamps and
Parking Lamps
To replace one of these bulbs:
If the front turn signal lamp
or parking lamp needs to be
changed, see your dealer/retailer.
A. Front Turn Signal Lamp/
Parking Lamp
B. Low Beam Headlamp
C. High Beam Headlamp1. Open the hood. SeeHood
Release on page 9-5.
2. Remove the radiator support
by turning the head screws
counterclockwise and then
pulling them straight out.
3. For the passenger side pull up
on the coolant bottle ller neck
to remove it and place it to
one side.
Let the ller neck drain before
pulling it all the way out. Place a
clean towel over the opening
of the coolant bottle after
removing it.
Vehicle Service and Care 9-31

Any time you notice unusual
wear, rotate the tires as soon
as possible and check wheel
alignment. Also check for
damaged tires or wheels.
SeeWhen It Is Time for New
Tires on page 9-59andWheel
Replacement on page 9-64.
When rotating the vehicle’s tires,
always use the correct rotation
pattern shown here.The compact spare tire, if the
vehicle has one, is not included
in the tire rotation.
After the tires have been rotated,
adjust the front and rear ination
pressures as shown on the Tire
and Loading Information label.
SeeInflation - Tire Pressure on
page 9-49andLoading the
Vehicle on page 8-30.
Reset the Tire Pressure Monitor
System. SeeTire Pressure
Monitor Operation on page 9-54.
Make certain that all wheel
nuts are properly tightened.
See “Wheel Nut Torque” under
Capacities and Specifications on
page 10-2.{CAUTION
Rust or dirt on a wheel, or on
the parts to which it is
fastened, can make wheel
nuts become loose after time.
The wheel could come off and
cause an accident. When you
change a wheel, remove any
rust or dirt from places where
the wheel attaches to the
vehicle. In an emergency, you
can use a cloth or a paper
towel to do this; but be sure to
use a scraper or wire brush
later, if needed, to get all the
rust or dirt off. SeeChanging
a Flat Tire on page 9-75.
9-58 Vehicle Service and Care

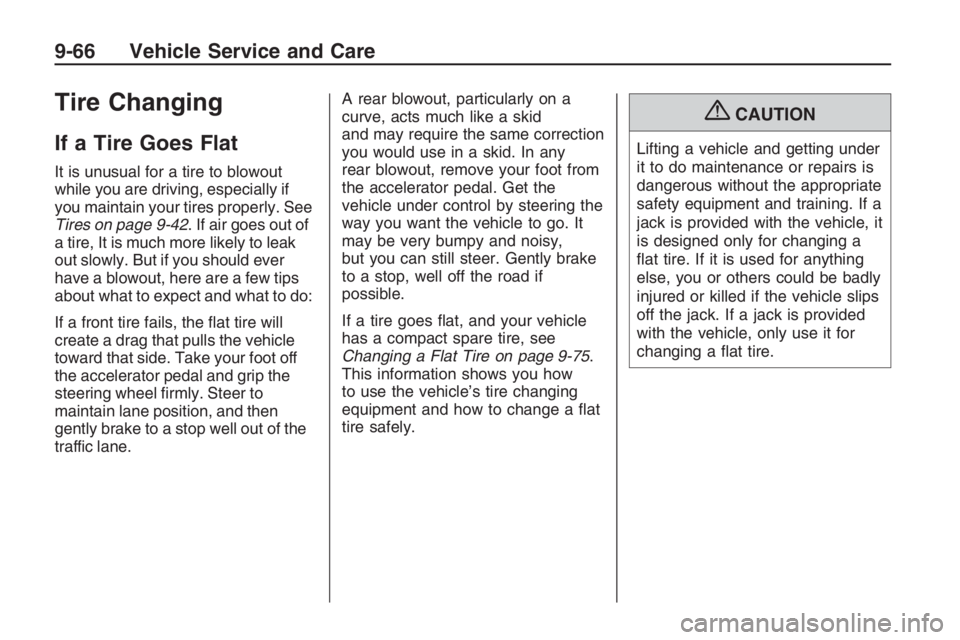

Tire Changing
If a Tire Goes Flat
It is unusual for a tire to blowout
while you are driving, especially if
you maintain your tires properly. See
Tires on page 9-42. If air goes out of
a tire, It is much more likely to leak
out slowly. But if you should ever
have a blowout, here are a few tips
about what to expect and what to do:
If a front tire fails, the at tire will
create a drag that pulls the vehicle
toward that side. Take your foot off
the accelerator pedal and grip the
steering wheel rmly. Steer to
maintain lane position, and then
gently brake to a stop well out of the
traffic lane.A rear blowout, particularly on a
curve, acts much like a skid
and may require the same correction
you would use in a skid. In any
rear blowout, remove your foot from
the accelerator pedal. Get the
vehicle under control by steering the
way you want the vehicle to go. It
may be very bumpy and noisy,
but you can still steer. Gently brake
to a stop, well off the road if
possible.
If a tire goes at, and your vehicle
has a compact spare tire, see
Changing a Flat Tire on page 9-75.
This information shows you how
to use the vehicle’s tire changing
equipment and how to change a at
tire safely.
{CAUTION
Lifting a vehicle and getting under
it to do maintenance or repairs is
dangerous without the appropriate
safety equipment and training. If a
jack is provided with the vehicle, it
is designed only for changing a
at tire. If it is used for anything
else, you or others could be badly
injured or killed if the vehicle slips
off the jack. If a jack is provided
with the vehicle, only use it for
changing a at tire.
9-66 Vehicle Service and Care
