2009 OPEL MERIVA headlamp

7
In Brief
1 Parking lamps, dipped beam ... 3102
Courtesy lamp ............................ 3108
Instrument illumination .............. 3108
Rear fog lamp ............................ 3104
Fog lamp 3 ................................. 3103
Headlamp range adjustment 33104
2 Side Air vents .............................. 3115
3 Horn ............................................... 312
4 Indicators, headlamp flasher
Dipped beam, main beam ............ 311
Ambient lighting 3...................... 3107
Cruise control 3........................... 3148
5 Steering wheel remote
control 3...................................... 3111
6 Instruments .................................. 382
7 Windscreen wipers and
windscreen washer system,
headlamp washer system 3
and rear window
washer system 3 ............... 312, 3100
8 Centre air vents .......................... 3115 9
Hazard warning lamps ... 312, 3104
LED for
anti-theft alarm system 3 ............ 334
Heated seats 3 ............................ 346
10 Central information display
for time, date,
outside temperature,
infotainment system 3 ................ 390
11 Infotainment system 3 .............. 311
1
12 Front passenger airbag 3 ........... 367
13 Glove compartment ..................... 380
14 Climate control ........................... 3114
15 Air conditioning system 3 ......... 3114
Heated rear window ........... 313, 341
Recirculation system 3............... 3 119
16 Ashtray ......................................... 379
Accessory socket and
cigarette lighter ........................... 378
17 Accelerator pedal .......... 3135, 3137 18
Brake pedal .................... 3135, 3151
19 Ignition switch
with steering wheel lock .............. 315
20 Steering wheel adjustment 3 ....... 35
21 Clutch pedal 3 ........................... 3135
22 Bonnet release lever .................. 3165
23 Fuse box ..................................... 3182

9

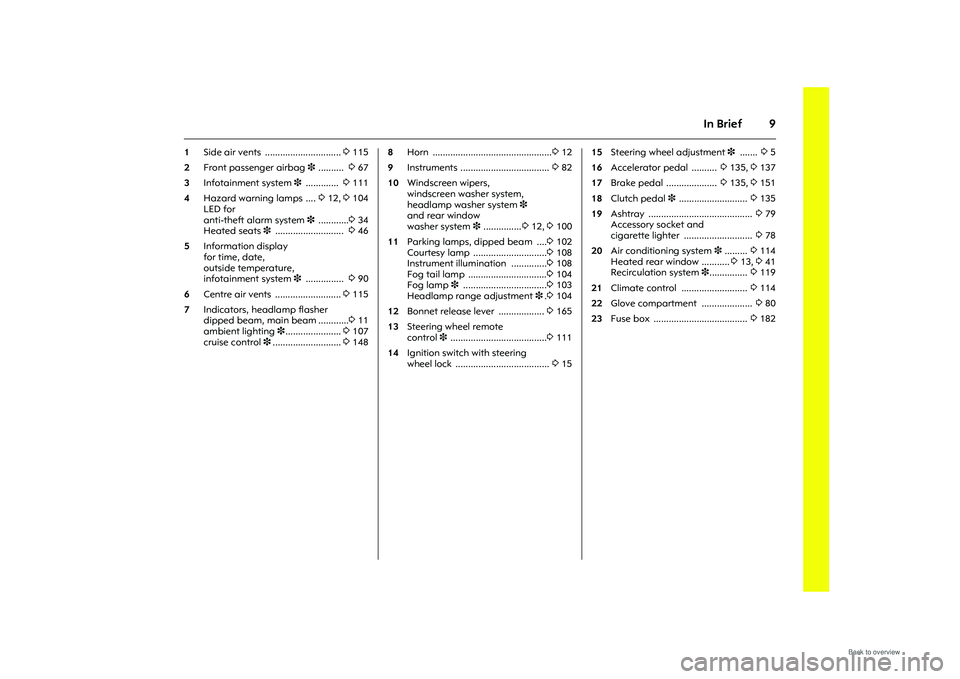

In Brief
1Side air vents .............................. 3115
2 Front passenger airbag 3 .......... 367
3 Infotainment system 3 ............. 3111
4 Hazard warning lamps .... 312, 3104
LED for
anti-theft alarm system 3 ............ 334
Heated seats 3 ........................... 346
5 Information display
for time, date,
outside temperature,
infotainment system 3 ............... 390
6 Centre air vents .......................... 3115
7 Indicators, headlamp flasher
dipped beam, main beam ............3 11
ambient lighting 3...................... 3107
cruise control 3........................... 3148 8
Horn ............................................... 312
9 Instruments ................................... 382
10 Windscreen wipers,
windscreen washer system,
headlamp washer system 3
and rear window
washer system 3 ............... 312, 3100
11 Parking lamps, dipped beam .... 3102
Courtesy lamp ............................. 3108
Instrument illum ination .............. 3108
Fog tail lamp ............................... 3104
Fog lamp 3 ................................. 3103
Headlamp range adjustment 3.3 10
4
12 Bonnet release lever .................. 3165
13 Steering wheel remote
control 3 ...................................... 3111
14 Ignition switch with steering
wheel lock ..................................... 315 15
Steering wheel adjustment 3 ....... 35
16 Accelerator pedal .......... 3135, 3137
17 Brake pedal .................... 3135, 3151
18 Clutch pedal 3 ........................... 3135
19 Ashtray ......................................... 379
Accessory socket and
cigarette lighter ........................... 378
20 Air conditioning system 3 ......... 3114
Heated rear window ........... 313, 341
Recirculation system 3............... 3119
21 Climate control .......................... 3114
22 Glove compartment .................... 380
23 Fuse box ..................................... 3182

11
In Brief
Picture no: 14727s.tif
Exterior lights Rotate
Press
Lighting 3102, headlamp warning device
3 17.
Picture no: 18475s.tif
Headlamp flash, main beam and
dipped beam Main beam, headlamp flash 3103.
Picture no: 14054h.tif
Turn signals Turn signal lamps 3103.
7
=Off
8 = Parking lamps
9 = Dipped or main beam
> =Fog lamps 3
r = Fog tail lamp
Headlamp flash = Pull stalk towards
steering wheel
Main beam = Push stalk forwards
Dipped beam = Push stalk forwards again
Right = Lever upwards
Left = Lever downwards

13
In Brief
Picture no: 14056h.tif
Operating windscreen and
headlamp washer systems
3:
Pull stalk towards steering wheel
The wipers will swipe for a few strokes.
The headlamp washer system 3 can be
operated when the lights are on.
Windscreen washer system and headlamp
washer system 3 3101, Further
information 3198, 3215.
Picture no: 14057h.tif
Rear window wiper and washer
system Rear window wash and wipe system 3101,
Wiper blades 3215, Car care 3198.
Picture no: 13992s.tif
Heated rear window, heated
exterior mirrors
3
Operated with the Ü button.
Climate control 3114, Heated rear window
3 41.
Wiper on = Push stalk forwards
Wiper off = Pull stalk towards
steering wheel
Washing = Push lever forward and hold

25
In Brief
Picture no: 18604s.tif
Adaptive Headlight (AFL)
3
The system provides better illumination of
the road on corners and curves.
Curve lighting
The light beam pivots based on
steering wheel position and speed
(from approx. 10 km/h).
The headlamps shine at an angle of up
to 15 to the right or left of the direction of
travel.
Cornering light
An additional lamp comes on at certain
steering wheel settings (after rotation
of approx. 90), turn signal settings and
speeds (up to approx. 40 km/h).The lamp beam projects at a 90 angle to
the left or right of the vehicle up to a
distance of approx. 30 metres.
Reversing function
Turning the lights on
, selecting reverse
gear and activating the turn signal
activates the cornering light for the
relevant side. When the turn signal is
switched off, the corn ering light continues
to illuminate for 15 seconds.
Adaptive forward lighting 3 3 106.
Diesel particle filter
3
The diesel particle filter system filters
harmful soot particles out of the exhaust
gases. The system includes a self-cleaning
function that run automatically during
driving. The filter is cleaned by burning off
the soot particles at high temperature.
This process takes place automatically
under set driving conditions and may take
up to 25 minutes. Fuel consumption may
be higher during this period. The emission
of smells and smoke during this process is
normal.
Picture no: 18600S.tif
Under certain driving conditions, e.g. short
journeys, the system may not clean itself
automatically.
If the filter requires cleaning and previous
driving conditions did not enable
automatic cleaning, control indicator !
flashes.
Further instructions 3144.

82 Instruments, ControlsInstruments, ControlsControl indicators ................................ 82
Instrument display ............................... 87
Information display ............................. 90
Warning buzzers.................................. 100
Windscreen wipers ............................... 100
Picture no: 17876s.tif
Control indicators The control indicators described here are
not present in all vehicles. The description
applies to all instrument versions.
The colours of the control indicators mean:
Picture no:
X
Seat belt 3
Control indicator lights up red.
This comes on after turning on the ignition
(with warning tone) until the seat belt is
done up.
Fasten seat belt 362. B
Adaptive headlamp 3 (AFL)
Control indicator lights up and/or flashes
yellow.
Lamps

Fault in system. Contact a workshop for
assistance.
z
Red
Danger, important reminder.
z Yellow
Warning, information, fault.
z Green
Switch-on confirmation.
z Blue
Switch-on confirmation.

84 Instruments, Controls
Picture no: 17876s.tif
I

Engine oil pressure
Control indicator lights up red
It illuminates when the ignition is switched
on and goes out shortly after the engine
starts.
Illuminates when the engine is running
1. Depress clutch.
2. Move gearshift lever to neutral, or with
manual transmissi on automated 3 place
selector lever in N.
Picture no:
3. Move out of the flow of traffic as quickly
as possible without impeding other
vehicles.
4. Switch off ignition.
Contact a workshop for assistance.
Caution
Engine lubrication may be interrupted.
This may result in damage to the engine
and/or locking of the drive wheels.
9 Warning
When the engine is off, considerably
more force is needed to brake and steer.
Do not remove key until vehicle has
come to a standstill, otherwise the
steering column lock could engage
unexpectedly.
O

Turn signal lamps
Control indicator flashes green.
The control indicator flashes if a turn signal
or the hazard warning flashers are
activated.
Rapid flashing: failure of a direction
indicator lamp or associated fuse.
Change bulbs 3 185. Fuses 3182.
C

Main beam
Control indicator lights up blue.
It is illuminated when main beam is on and
during headlamp flash 311, 3102.
j

Automatic transmission 3, start engine.
Control indicator lights up yellow.
The engine can only be started if the foot
brake is depressed. If the foot brake is not
depressed, the control indicator illuminates
3 130.

101
Instruments, Controls
Picture no: 14056h.tif
Windscreen washer and headlamp
washer system 3
Pull stalk towards steer ing wheel. Screen
wash is squirted onto the screen and the
wipers move back and forth a few times.
When the lights are switched on,
windscreen wash is al so squirted onto the
headlamps.
Picture no: 14057h.tif
Rear window washer and wiper system
Push stalk forwards. The rear window wiper
wipes in timed interval mode. Switch off by
pulling stalk towards the steering wheel.
If the stalk is held forwards, washer fluid is
sprayed on the rear window.
