2009 OPEL MERIVA headlamp

216 Service and maintenance
Picture no: 14246s.tif
In vehicles with headlamp washing
system 3 Opening for refilling is in engine
compartment behind the right-hand
headlamp.
Fill with clean water mixed with cleaner
and anti-freeze.
Make sure there is sufficient anti-freeze
protection.
When closing the reservoir, press the lid
firmly over the beaded edge all the way
round.
Picture no: 13488a.tif
Battery The vehicle battery is maintenance-free.
Batteries do not belong in household
waste. They must be disposed of at an
appropriate recycling collection point.
The retrofitting of electrical or electronic
accessories may subject the battery to
additional loading and cause it to become
discharged. Please seek advice concerning
the technical options, such as installing a
more powerful battery. Laying up the vehicle for more than
4 weeks can lead to battery discharge.
Disconnect the negative terminal of the
vehicle battery.
Ensure the ignition is switched off before
connecting or disconnecting the vehicle
battery.
Protecting electronic components In order to prevent faults in electronic
components in the electrical system, never
connect or disconnect battery with engine
running or ignition sw
itched on. Never start
engine with battery disconnected, e.g.
when starting using jump leads.
To avoid damaging th e vehicle, do not
make any modifications to the electrical
system, e. g. connecting additional
consumers or tampering with electronic
control units (chip tuning).
9 Warning
Electronic ignition systems generate very
high voltages. Do not touch the ignition
system; high voltage can be fatal.

217
Service and maintenance
Laying the vehicle up for a long
period of time If the vehicle is to be laid up for several
months, the following work should be
undertaken to prevent damage.
zWash and wax the vehicle 3196.
z Have the wax in the engine
compartment and underbody checked.
z Clean and preserve rubber seals.
z Change engine oil.
z Check antifreeze and corrosion
protection 3 212.
z Check coolant level, add antifreeze if
necessary 3213.
z Empty windscreen washer system and
headlamp washer system.
z Increase tyre pressure to value given for
full load 3228. z
Park vehicle in dry and well ventilated
place. Select first gear or reverse gear,
and with manual transmission
automated 3 move selector lever to
middle position before switching ignition
off. Use wedges or something similar to
prevent vehicle from rolling.
z Do not apply hand brake.
z Disconnect the clamp from the negative
terminal of the vehicle battery.
Putting the vehicle back into
servicePerform the following work before
recommissioning the vehicle:
zConnect the clamp to the negative
terminal of the vehicle battery.
z Check tyre pressure 3228.
z Top up windscreen washer system 3215.
z Check engine oil level 3210.
z Check coolant level 3213.
z Fit the number plate if necessary.

235
Index
Centre console lighting .................. 108, 109
Changing the remote control battery ..... 29
Changing wheels .................................... 174
Chassis number, see Vehicle identification number ........................... 219
Child restraint system ............................... 65
Child safety locks ................................ 36, 40
Cigarette lighter........................................ 78
Climate control system ........................... 122
Clutch operation ............................. 134, 136
CO2 emissions......................................... 224
Coin holder ................................................ 81
Cold start ................................................. 136
Colour information display ...................... 92
Contrast ..................................................... 96
Control indicator ABS (Anti-lock Brake System) ............ 152
Airbag .................................................... 72
Engine electronics ............................... 143
Exhaust ................................................ 143
Immobiliser ............................................ 27
Control indicators ............................... 10, 82 Adaptive Forward Lighting
(AFL) .............................................. 82, 106
Belt tensioners ....................................... 61
Cruise control ...................................... 148
EPS (Electric Power Steering) ............... 86
ESP (Electronic Stability Program) ..... 146
Coolant ............................................ 208, 212
Coolant level ........................................... 213
Coolant temperature display .................. 88
Coolant thermometer ............................... 88
Cornering light ........................................ 106
Correcting time ......................................... 95 Coupling socket load ............................. 163
Courtesy lamp ........................................ 108
Bulb replacement ............................... 194
Cruise control .......................................... 148
Curtain airbags......................................... 71
Curve lighting ......................................... 106
DDashboard, see Instrument panel .......... 15
Data................................................... 26, 218
Date ........................................................... 92
Daytime running lights........................... 102
Decommissioning ................................... 217
Demisting and defrosting Windows .............................................. 118
with climate control system ............... 124
With the air conditioning system....... 121
Diesel fuel filter ....................................... 212
Diesel fuel system ........................... 165, 212
Diesel particle filter.............41, 86, 136, 144
Dimensions .............................................. 231
Dipped beam ............................................ 11 Bulb replacement ....................... 186, 188
Display....................................................... 90
Display mode ............................................ 96
Door locks ......................................... 26, 198
Driving abroad ....................................... 199 Headlamps.......................................... 110
Toll systems ......................................... 112
Driving hints ............................................ 135
EEasytronic ......................................... 15, 129 Driving programmes .......................... 131
Fault .................................................... 133
Interruption of power supply ............. 134
Kickdown............................................. 132
Selector lever................................. 15, 130
Winter programme ............................. 132
Economical driving ................................. 137
Electric power steering ............................. 86
Electric windows ....................................... 40
Electrical system ............................. 181, 216
Electronic components........................... 216
Electronic immobiliser .............................. 27
Electronic Stability Program .................. 146
Engine code .................................... 220, 221
Engine control indicator ........................ 143
Engine oil ........................................ 207, 210 Additives ............................................. 207
Top up ................................................. 207
Viscosity .............................................. 207
Engine oil consumption ... 135, 210, 220, 221
Engine oil level ........................................ 210
Engine oil pressure ................................... 84
Engine speed .......................................... 136
Engine wash............................................ 198
Environmental protection ...................... 196
EPS ............................................................. 86
ESP (Electronic Stability Program) ........ 146
Exhaust control indicator ...................... 143
Exhaust gases......................................... 144
Exhaust system ....................................... 135

236 IndexExterior lighting switch-off delay........... 107
Exterior mirrors..........................4, 36, 38, 41FFan ........................................................... 114
Fault........................................................... 41
Filling station Engine oil level .................................... 210
Fuel .............................................. 220, 221
Opening the bonnet ........................... 165
Tyre pressure ............................... 138, 228
Vehicle data ................................ 218, 219
Windscreen washer system ................ 215
First-aid kit .............................................. 171
Flat tyre ................................................... 178
FlexSpace .................................................. 52
Fog lamps ............................................... 103 Bulb replacement................................ 191
Fog tail lamp ........................................... 104 Bulb replacement................................ 191
Foot brake ....................................... 151, 153
Front passenger airbag ........................... 67
Fuel ......................................... 139, 220, 221
Fuel consumption ........................... 137, 224
Fuel filter.................................................. 212
Fuel gauge ................................................ 88
Fuel system, diesel .................................. 165
Fuses ........................................................ 181GGears ................................................. 14, 134
Generator, see Alternator ........................ 85
Glasses compartment .............................. 81
Glove compartment ................................. 80 Glove compartment lighting ................. 109
Bulb replacement ............................... 195
Graphical information display ................ 90
Gross vehicle weight............................... 226
Gross vehicle weight rating ................... 226
HHalogen headlamp system ................... 185 Bulb replacement ............................... 185
Driving abroad.................................... 110
Hand brake ....................................... 16, 153
Hazard warning lamps .................... 12, 104
Head restraints ............................. 21, 46, 47
Headlamp flash ........................................ 11
Headlamp range adjustment................ 104
Headlamp switch ............................. 11, 102
Headlamp washer system13, 100, 101, 215
Headlamps ............................................... 11 Daytime running lights ....................... 102
Driving abroad.................................... 110
Fog lamps ........................................... 103
Reversing lamps.................................. 104
Warning device ................................... 100
Headlights Changing bulbs .................................. 185
Heated exterior mirrors................ 13, 38, 41
Heated rear window .................... 13, 38, 41
Heated seats............................................. 46
Heating ........................................... 114, 117 Seats ...................................................... 46
With climate control system .............. 123
With the air conditioning system....... 114 Height adjustment
Seat belts .............................................. 63
Steering wheel .........................................5
High-pressure cleaners .......................... 198
Hill Start Assist ........................................ 153
Horn........................................................... 12
IIdentification plate ......................... 218, 219
Idling ....................................................... 134
Ignition switch..................................... 16, 27
Ignition system ............................... 209, 216
Immobiliser ............................................... 27
Information display .................................. 90
Infotainment system .............................. 111
Instrument display ................................... 87
Instrument illumin ation .......................... 108
Bulb replacement ............................... 196
Instrument pane l ...................................... 15
Instruments ................................... 15, 82, 87
Interior mirror.................................. 4, 38, 39
Interruption of po wer supply ................... 99
Easytronic............................................ 134
Electric sun roof .................................... 43
Electric windows ................................... 41
Electronic Stability Program .............. 147
ISOFIX ....................................................... 79JJack ................................................. 171, 176
Jump leads.............................................. 166

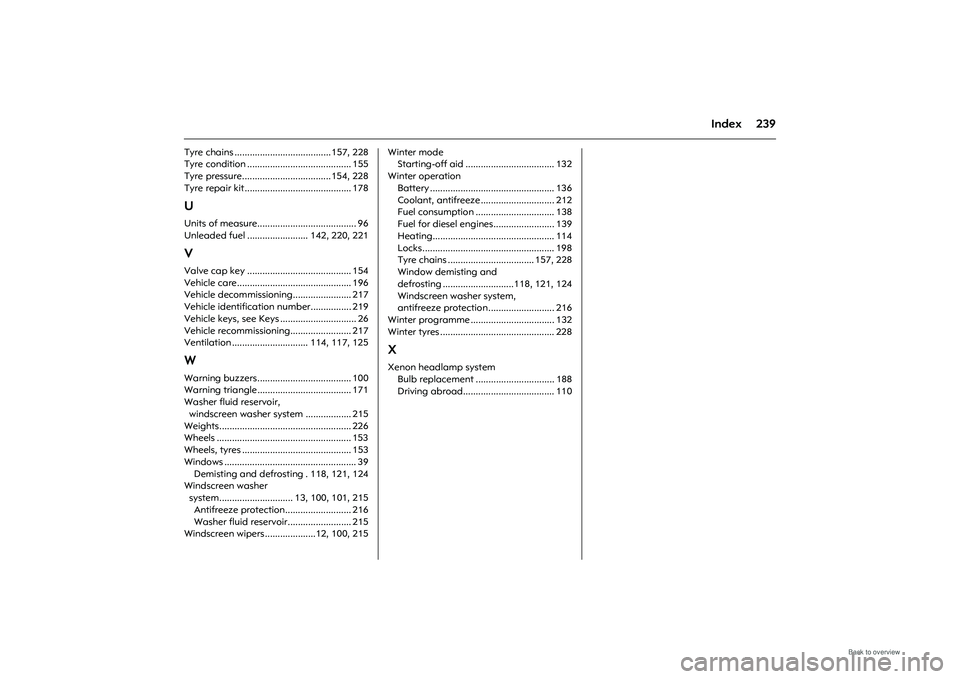

239
Index
Tyre chains ...................................... 157, 228
Tyre condition ......................................... 155
Tyre pressure................................... 154, 228
Tyre repair kit .......................................... 178UUnits of measure....................................... 96
Unleaded fuel ........................ 142, 220, 221VValve cap key ......................................... 154
Vehicle care............................................. 196
Vehicle decommissioning....................... 217
Vehicle identification number................ 219
Vehicle keys, see Keys .............................. 26
Vehicle recommissioning........................ 217
Ventilation .............................. 114, 117, 125WWarning buzzers..................................... 100
Warning triangle ..................................... 171
Washer fluid reservoir, windscreen washer system .................. 215
Weights.................................................... 226
Wheels ..................................................... 153
Wheels, tyres ........................................... 153
Windows .................................................... 39 Demisting and defrosting . 118, 121, 124
Windscreen washer system............................. 13, 100, 101, 215Antifreeze protection.......................... 216
Washer fluid reservoir......................... 215
Windscreen wipers ....................12, 100, 215 Winter mode
Starting-off aid ................................... 132
Winter operation Battery ................................................. 136
Coolant, antifreeze ............................. 212
Fuel consumption ............................... 138
Fuel for diesel engines........................ 139
Heating................................................ 114
Locks .................................................... 198
Tyre chains .................................. 157, 228
Window demisting and
defrosting ............................118, 121, 124
Windscreen washer system,
antifreeze protection .......................... 216
Winter programme ................................. 132
Winter tyres ............................................. 228
XXenon headlamp system Bulb replacement ............................... 188
Driving abroad.................................... 110
