2009 OPEL AGILA Owners Manual

1-4In brief
Adjusting manual exterior
mirrors: Swivel lever in
required direction
Exterior mirrors 3 2-8, heated exterior
mirrors 32-9, 8-5.
Adjusting power exterior
mirrors 3: Four-way switch
in driver’s door
Select corresponding mirror and
adjust.
Exterior mirrors 3 2-8, heated exterior
mirrors 3 2-9, 8-5.
To adjust steering wheel 3:
Pull lever forwards, adjust
height, push lever back and
engage
Adjust steering wheel only with
vehicle stationary and steering
column lock released.
Airbag system 3 3-13, further
information 3 5-1.

1-5 In brief

1-6In brief

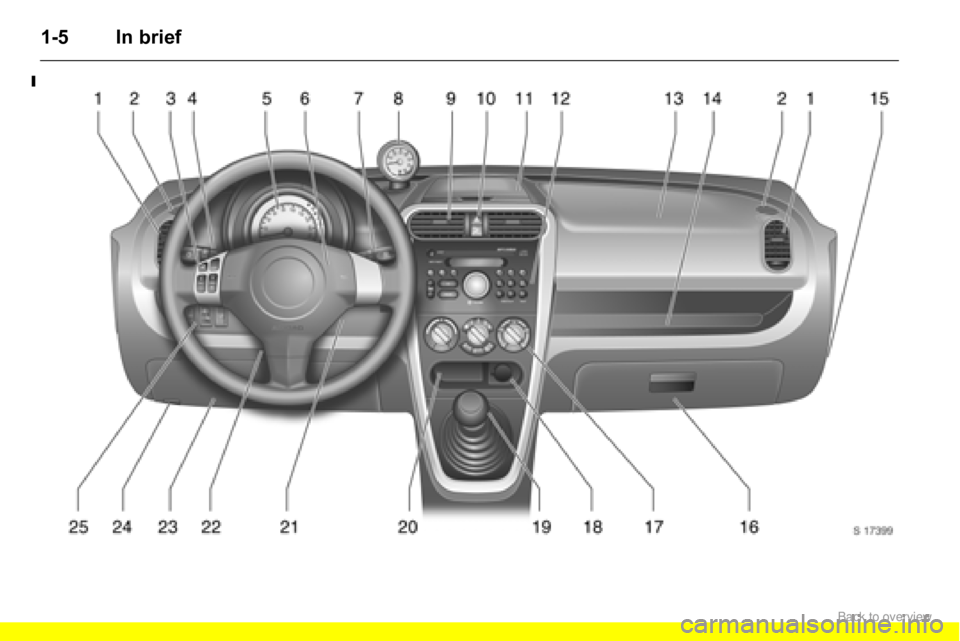

1Side air vents .................... 3 8-5
2Door window defroster
vents ................................. 3 8-5
3Steering wheel mounted
remote control 3............... 3 7-2
4Parking lamps ................... 3 6-1
Turn signal lamps .............. 3 6-2
High beam......................... 3 6-2
Dipped beam ..................... 3 6-2
Headlamp flash ................. 3 6-2
Rear fog lamp ................... 3 6-3
5Central information display
for time and outside
temperature .............. 3 5-3, 5-4
Instrument cluster ............. 3 5-8
Speedometer .................... 3 5-5
Odometer ......................... 3 5-6
Fuel gauge ........................ 3 5-7
Service interval display 3 3 5-14
Transmission display 3..... 3 5-7
Trip computer 3.............. 3 5-146Driver’s airbag ................. 3 3-13
Horn .................................. 3 5-2
7Windscreen wiper/washer . 3 5-2
Rear window wiper/washer 3 5-3
8Tachometer ....................... 3 5-6
9Centre air vents ................. 3 8-4
10Hazard warning ................. 3 6-2
Control indicator for
front passenger airbag
deactivation 3................. 3
3-18
11Upper tray ......................... 3 4-2
12Infotainment system .......... 3 7-1
13Front passenger’s airbag 3 3-13
14Storage tray....................... 3 4-2
15Passenger airbag deactivation
switch 3........................... 3 3-17
16Glove box .......................... 3 4-1
17Climate controls................ 3 8-1
18Power outlet ...................... 3 5-4
Cigarette lighter 3............. 3 5-519Gearshift lever ........... 3 9-4, 9-6
20Storage tray
21Ignition switch................... 3 9-1
22Steering wheel adjustment 3 5-1
23Fuse box ...................... 3 10-12
24Bonnet release ............... 3 10-2
25Front fog lamps 3............. 3 6-3
Headlamp range
adjustment 3.................... 3 6-1
TCSS deactivation 3...... 3 9-11

1-7 In brief
Exterior lamps controls:
Turn light switch:
Turn adjustment band:Press button:
Headlamp warning device 35-13,
further information 36-1, headlamp
range adjustment 36-1, fog lamps
36-3, headlamps when driving
abroad 3 6-3.
Headlamp flash, high beam
and dipped beam:
Further information 3 6-2. P= Dipped beam
or high beam
8= Parking lamps
OFF = Off
r= Rear fog lamp
OFF = Off
>= Front fog lamps 3
Headlamp
flash= Pull lever
towards steering
wheel
High beam = Push lever
forwards
Dipped beam = Pull lever back
towards steering
wheel

1-8In brief
Turn signal lamps:
Further information 3 6-2.
Hazard warning lamps: Horn: Press j
Airbag system 3 3-13, remote control
on steering wheel 3 3 5-1, 7-2. Upwards = Right turn
Downwards = Left turnOn = Press ¨
Off = Press ¨ again

1-9 In brief
Windscreen wipers:
Move lever up from position OFF:
Single swipe.
Windscreen wipers 3 5-2, further
information 3 10-5, 10-30, 10-31.
Windscreen washer system:
Pull lever towards steering
wheel
Windscreen washer system 3 5-3,
further information 3 10-5, 10-30,
10-31.
Rear window wiper and
washer systems: Rotate end
of lever
Rear window wiper/washer systems
35-3, further information 3 10-5, 10-
30, 10-31. MIST = Misting function
OFF = Off
INT = Timed interval wipe3
LO = Slow
HI = Fast
f= Washer
ON = Wiper on
INT = Timed interval wipe3
OFF = Wiper off
f= Washer

1-10In brief
Parking the vehicle:
„Apply the parking brake firmly
without actuating the release
button. On a downhill or uphill
slope, apply as firmly as possible.
Depress foot brake at the same
time to reduce operating forces.
„Push key into ignition switch before
turning to LOCK position and
removing (vehicles with automatic
transmission3: depress foot brake
and shift into P). Turn steering
wheel until lock is felt to engage
(anti-theft protection).
„If the vehicle is parked on a level
surface or a hill, select 1st gear
before switching the ignition off,
(vehicles with automatic
transmission3: shift into P). Also
turn front wheels away from kerb if
parked on an uphill slope.
„If the vehicle is parked on a
downhill slope, select reverse gear
before switching the ignition off,
(vehicles with automatic
transmission3: shift into P). Also
turn front wheels towards kerb.„Lock doors and tailgate by pressing
buttone on the radio remote
control3. Press buttone twice
within 3 seconds to activate the
anti-theft locking system3.
Advice when parking:
„Do not park the vehicle on an easily
ignitable surface. The high
temperature of the exhaust system
could ignite the surface.
„Close the windows.
„The engine cooling fans may run
after the engine has been switched
off 310-1.
Radio remote control3 32-1,
central locking system 32-3.

2-1 Keys, doors and windows
Keys, doors and
windowsKeys and locks
Keys
The key number is specified on the
keys or on a key number tag 3.
Remove key number tag from keys
and make a note of the number.
The key is a constituent of the
immobiliser 3. In case of loss,
replacement keys can be ordered
from your Opel Service Partner by
quoting the key number.
Ordering keys from an Opel Service
Partner guarantees problem-free
operation of the immobiliser 3.
Keep spare key in a safe place.
Locks 3 10-30.
Radio remote control 3
The remote control is used to
operate:
„Central locking system,
„Anti-theft locking system 3.
The remote control has a range of
approx. 5 metres. The range may be
reduced due to environmental
conditions or shadowing and
reflection of the radio waves.
Treat the remote control unit with
care: it should be protected against
moisture, kept out of direct sunlight
and should not be operated
unnecessarily. Keys and locks ..................... 2-1
Doors .................................... 2-5
Vehicle security .................... 2-6
Exterior mirrors ..................... 2-8
Interior mirror ........................ 2-9
Windows ............................... 2-10
