2009 MERCEDES-BENZ CL COUPE Owners Manual

X
To delete an entire entry: selectFon
the lower bar and press and hold Wuntil
the entire entry has been deleted.
X To accept the first list entry: press and
hold Wuntil the address input menu
appears again.
COMAND has automatically accepted the
first list entry and entered it in the address
input menu.
X To cancel an entry: selectBackon the
lower bar and press W.
or
X Press the %button.
Input speller ?disappears if COMAND is
able to unambiguously assign the characters
entered to one junction. The list of junctions
is shown without the input speller. Here you
can make another selection.
i It is also possible to change to the junc-
tion list without the input speller manually
at any time during character input.
X To change manually to the junction list
without the input speller: slideZV.
or
X Select !on the second lowest bar and
press W.
Ambiguity of town names If several towns share the same name, you
can also directly input or select a street name.
COMAND then selects the town where the
respective street is found. X
Enter a town as described above
(Y page 136).
X Select ALL.
X Input or select the street name.
X Select the appropriate town.
Entering the street before the town You can also enter the street name for an
address directly without first entering a town.
This is particularly useful if you wish to enter
an address with an unusual street name.
COMAND then searches automatically for
towns with the respective street name. X
Select or enter the country as described
above (Y page 135).
X Select or enter the street.
Starting route calculation You cannot start route calculation until all the
necessary address data has been entered.
X
Select Startafter you have entered the
destination.
Route calculation will start if route guid-
ance has not already been activated.
If route guidance has already been activa-
ted, a prompt will appear asking whether
you wish to end the current route guidance.
X Select YesorNo.
If you select Yes, COMAND will stop route
guidance and start route calculation for the
new destination.
If you select No, COMAND will continue
with the active route guidance. 142
Navigation system* (entering a destination)COMAND
* optional
216_AKB; 2; 3, en-GB
bjanott,
Version: 2.11.7.7 2009-02-27T14:54:17+01:00 - Seite 142
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:15:16; WK

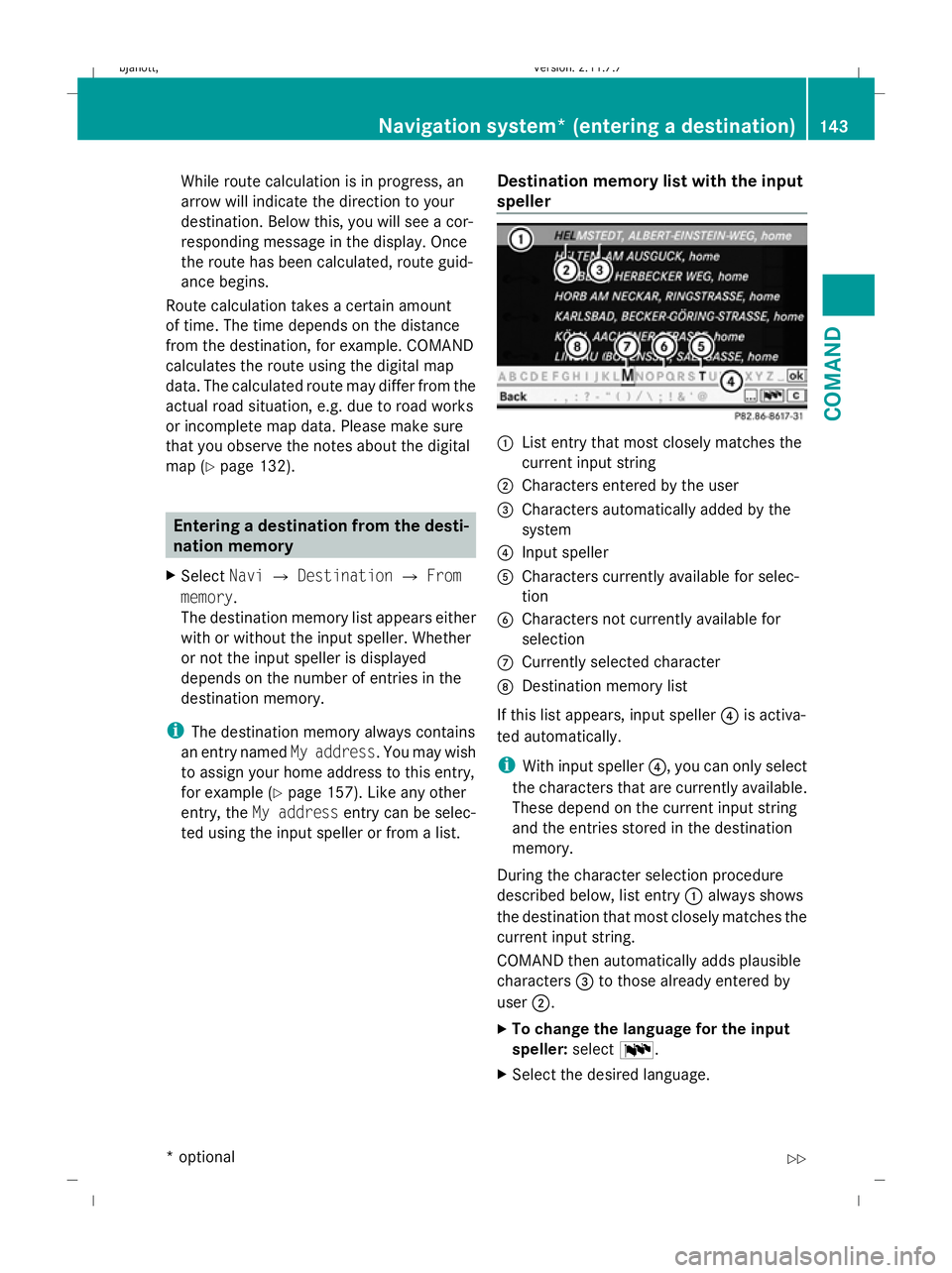

While route calculation is in progress, an
arrow will indicate the direction to your
destination. Below this, you will see a cor-
responding message in the display. Once
the route has been calculated, route guid-
ance begins.
Route calculation takes a certain amount
of time. The time depends on the distance
from the destination, for example. COMAND
calculates the route using the digital map
data. The calculated route may differ from the
actual road situation, e.g. due to road works
or incomplete map data. Please make sure
that you observe the notes about the digital
map (Y page 132). Entering a destination from the desti-
nation memory
X Select NaviQDestination QFrom
memory.
The destination memory list appears either
with or without the input speller. Whether
or not the input speller is displayed
depends on the number of entries in the
destination memory.
i The destination memory always contains
an entry named My address. You may wish
to assign your home address to this entry,
for example (Y page 157). Like any other
entry, the My address entry can be selec-
ted using the input speller or from a list. Destination memory list with the input
speller :
List entry that most closely matches the
current input string
; Characters entered by the user
= Characters automatically added by the
system
? Input speller
A Characters currently available for selec-
tion
B Characters not currently available for
selection
C Currently selected character
D Destination memory list
If this list appears, input speller ?is activa-
ted automatically.
i With input speller ?, you can only select
the characters that are currently available.
These depend on the current input string
and the entries stored in the destination
memory.
During the character selection procedure
described below, list entry :always shows
the destination that most closely matches the
current input string.
COMAND then automatically adds plausible
characters =to those already entered by
user ;.
X To change the language for the input
speller: selectB.
X Select the desired language. Navigation system* (entering a destination)
143COMAND
* optional
216_AKB; 2; 3, en-GB
bjanott,
Version: 2.11.7.7 2009-02-27T14:54:17+01:00 - Seite 143 Z
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:15:17; WK

X
To change the character set for the
input speller: selectC.
Depending on the previous setting, you will
change to letters with special characters or
to numbers with special characters.
X To select a character: slideXVY or turn
cVd .
X To confirm the character selection:
press W.
X To delete individual characters: select
F on the lower bar and press W.
X To delete an entire entry: selectFon
the lower bar and press and hold Wuntil
the entire entry has been deleted.
X To accept the first list entry: press and
hold Wuntil the destination list is displayed
without the input speller.
X To cancel an entry: selectBackon the
lower bar and press W.
or
X Press the %button.
Input speller ?disappears if COMAND is
able to unambiguously assign the characters
entered to one destination. The list of desti-
nations is shown without the input speller.
Here you can make another selection.
i It is also possible to change manually to
the destination memory list without the
input speller at any time during character
input.
X To change manually to the destination
list without the input speller: slideZV.
or
X Select !on the second lowest bar and
press W. Destination memory list without the
input speller X
To select a destination: slideZVÆ or turn
cVd .
X To cancel the selection: press the%
back button.
or
X Select Backand press W.
i The Back menu item is only available if
this list has been called up from the list with
the input speller.
X To confirm your selection: pressW.
X To start route calculation: select
Start (Ypage 142). Entering a destination from the list of
previous destinations
X Select NaviQDestination QFrom
last destinations .
The list of previous destinations appears.
The most recent destination is at the top of
the list.
X Select the desired destination.
X To start route calculation: select
Start (Ypage 142). Entering a destination via the map
i In certain countries, it is not possible to
enter an address if the vehicle is travelling 144
Navigation system* (entering a destination)COMAND
* optional
216_AKB; 2; 3, en-GB
bjanott,
Version: 2.11.7.7 2009-02-27T14:54:17+01:00 - Seite 144
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:15:17; WK

at more than approximately 5 km/h. As
soon as the vehicle speed drops below
about 3 km/h, the function is available
again. You can enter a destination using the
map if the digital map does not contain the
address of the destination, but it is within
the area of the digital map.
Calling up the map X
Select Mapin the address input menu
(Y page 135).
or
X Select NaviQDestination QUsing
map .
In both these cases, you will see the map
with a crosshair. :
Crosshair
; Details of the crosshair position
= Map scale selected
i Display ;may be the name of a street,
for example, provided the digital map con-
tains the necessary data.
If no data is available, display ;shows:
R the geo-coordinates if the geo-coordi-
nate display is switched on
(Y page 131).
R no display if the geo-coordinate display
is switched off (Y page 131) Moving the map and selecting the des-
tination X
To move the map: slideZVÆ, XVYor turn
cVd.
X To set the map scale: turncVd.
X To select a destination: pressW.
If the crosshair is located outside the digital
map, it is not possible to calculate a route
to this destination and you will see the mes-
sage The destination is located
off the map .
X Select OK.
If the destination is within the limits of the
digital map, COMAND attempts to assign
the destination to the map. This takes
approximately two seconds.
If the destination can be assigned, you will
see the address of the destination. If not,
you will see the display Destination
from map .
X To start route calculation: select
Start (Ypage 142). Entering an intermediate stop
When route guidance is active, you can enter
an intermediate stop. Intermediate stops can
be predefined destinations from the following
predefined categories:
R Mercedes-Benz Service
R Hospital
R Filling station
R Car park
R Restaurant
R Other
You can select intermediate stops from the
route or the vicinity.
You can use the intermediate stop function to
influence route guidance to the main desti-
nation. When you have reached your inter- Navigation system* (entering a destination)
145COMAND
* optional
216_AKB; 2; 3, en-GB
bjanott
,V ersion: 2.11.7.7
2009-02-27T14:54:17+01:00 - Seite 145 Z
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:15:17; WK

mediate stop, COMAND automatically calcu-
lates the route to the main destination.
Entering predefined destinations X
Select NaviQDestination QStop‐
over.
If an intermediate stop has already been
entered, you can change this.
X To change: selectChange stopover .
You can now select a category.
X To select a category: select a category,
e.g. Filling station.
COMAND first looks for destinations in the
immediate vicinity of the vehicle and near to
the vehicle’s route. If there are no destina-
tions available there, COMAND searches for
destinations in an area around the vehicle
position.
If COMAND does not find any destinations,
you will see a message to this effect.
X Select OK.
You can select a different category.
If COMAND finds destinations, you will see a
list of the destinations and details of how far
away they are in the right-hand side of the
display. It can take a few seconds for the
information about the distance to the desti-
nations to be displayed.
The left-hand part of the display shows the
destinations on the map. The destination
marked in the list is highlighted in the map.
X To select a destination: select the desired
destination from the list.
The address of the destination appears.
X To start route calculation: selectStart,
see also (Y page 142).
Entering another destination as an
intermediate stop X
Select NaviQDestination QStop‐
over.
X To enter: selectOther. You can select:
R
Address entry
R From memory
R From last destinations
R From special destinations
X Select a menu item.
Subsequent destination input may differ,
depending on your selection:
R Address input selected:
X Enter a destination by address
(Y page 135).
R From memory selected:
X Enter a destination from the destina-
tion memory (Y page 143).
R From last destinations selected:
X Enter a destination from the list of pre-
vious destinations (Y page 144).
R From POIs selected:
X Enter a special destination
(Y page 147).
X To start route calculation: selectStart
after entering the destination.
Changing an intermediate stop If an intermediate stop has already been
entered, you can change this.
X Select NaviQDestination QStop‐
over QChange stopover .
X Enter another destination as an intermedi-
ate stop.
Deleting the intermediate stop If an intermediate stop has already been
entered, you can delete it.146
Navigation system* (entering a destination)COMAND
* optional
216_AKB; 2; 3, en-GB
bjanott,
Version: 2.11.7.7 2009-02-27T14:54:17+01:00 - Seite 146
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:15:17; WK

X
Select NaviQDestination QStop‐
over QDelete stopover.
COMAND deletes the intermediate stop
and calculates the route to the main desti-
nation.
Displaying intermediate stop map X
Enter an intermediate stop (Y page 145).X
Select the intermediate stop.
X Select Position
X Select Stopover map .
Making phone calls from intermediate
stop destinations or special destina-
tions This function is only available if a mobile
phone is connected to COMAND.
X
Enter an intermediate stop (Y page 145).
X Select the intermediate stop.
X Select Call. Navigation system* (entering special
destinations)
Entering a special destination in the
vicinity of the current position
X Select Destination QFrom POIs Q
Current position in map view with the
menu system displayed (Y page 127).
The special destination list appears. Spe-
cial destinations in the vicinity of the cur-
rent position are displayed. Entering a special destination in the
vicinity of a town
X Select Destination QFrom POIs Q
Other town in map view with the menu
system displayed (Y page 127).
X Select the country if necessary
(Y page 135).
X To enter a town: selectTown.
The town input menu appears.
X Proceed as described in the "Entering a
town" section (Y page 136). Entering a special destination in the
vicinity of the selected destination
This function gives you quick access to spe-
cial destinations which are in the vicinity of
the destination you have selected.
X In map view with the menu system dis-
played (Y page 127), select Destination
Q From Special destinations Q
Near destination.
The special destination list appears. Spe-
cial destinations in the vicinity of the des-
tination are displayed. Navigation system* (entering special destinations)
147COMAND
* optional
216_AKB; 2; 3, en-GB
bjanott,
Version: 2.11.7.7 2009-02-27T14:54:17+01:00 - Seite 147 Z
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:15:18; WK

Entering a special destination using a
name
This function can be used to enter special
destinations by either entering or selecting
the name of the destination in COMAND.
X In map view with the map system displayed
(Y page 127), select DestinationQ
From Special destinations Q
Search by name QAll Special des‐
tinations.
You can also search for special destinations
by name in a specific location or in the vicinity
of your current destination.
X In map view with the map system displayed
(Y page 127) , select DestinationQ
From Special destinations Q
Search by name QCurrent position
or Other town . Entering a special destination using a
telephone number
This function can be used to enter special
destinations by either entering or selecting a
phone number for the special destination in
COMAND.
X In map view with the menu system dis-
played ( Ypage 127), select Destination
Q From POIs QBy phone number.
Telephone numbers of special destinations
in the navigation database appear. The tele-
phone numbers are displayed with the
country code but without the zero prefixes. Navigation system* (route guidance)
Change of direction
Changes of direction have three phases:
R Preparation phase
R Announcement phase
R Change of direction phase Preparation phase COMAND prepares you for the upcoming
change of direction. Based on the example
display below, the change of direction
is announced with the
Prepare to turn
left message. The display is not split and
shows the map over the full width. :
Point at which the change of direction
takes place (light blue dot)
; Current vehicle position: the triangle
points in the vehicle’s direction of travel
= Route (highlighted in blue)
Announcement phase COMAND announces the imminent change of
direction. Based on the example display
below, the change of direction is announced
200 metres before the change of direction
with the
Please take the second turn‐
ing left message.
The display is now split into two sectors. In
the left half, you see the normal map view. In
the right half, there is either an enlarged view
of the area surrounding the junction (crossing
zoom) or simply a symbol for the next change
of direction.
The following example illustration shows the
crossing zoom in the right half. 148
Navigation system* (route guidance)COMAND
* optional
216_AKB; 2; 3, en-GB
bjanott
,V ersion: 2.11.7.7
2009-02-27T14:54:17+01:00 - Seite 148
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:15:18; WK

:
Next road
; Change of direction (turn left here)
= Graphical representation of the distance
to the change of direction
? Point at which the change of direction
takes place (light blue dot, shown in both
the left and right displays)
A Distance to the next change of direction
B Current vehicle position: the triangle indi-
cates the vehicle’s direction of travel
(shown in both the left and right displays)
C Route (highlighted in blue, shown in both
the left and right displays)
D Road you are currently driving along or
GSM co-ordinates if the GSM co-ordi-
nates display is switched on
(Ypage 131)
i The filled-in section of visual display for
distance =gets shorter the nearer you get
to the announced change of direction.
Change of direction phase COMAND announces the imminent change of
direction. Based on the example display
below, the change of direction is announced
40 metres before the change of direction with
the
Now turn left message. The display is
also split into two halves, as for the announce-
ment phase.
i Once the change of direction is comple-
ted, COMAND automatically switches back
to the non-split screen. :
Visual representation of the distance to
the next change of direction
; Distance to the next change of direction Lane recommendations
On multi-lane roads, COMAND can display
lane recommendations for the next change of
direction. The relevant data must be available
on the digital map. This is currently the case
for numerous selected main urban and extra-
urban roads. :
Current vehicle position: the triangle indi-
cates the direction of travel
; Point of the next change of direction
= Information on direction, junction, exit
number etc.
? Next change of direction: turn off to the
left here
A Visual representation of the distance to
the next change of direction
B Distance to the next change of direction
C Lane not recommended Navigation system* (route guidance)
149COMAND
* optional
216_AKB; 2; 3, en-GB
bjanott,
Version: 2.11.7.7 2009-02-27T14:54:17+01:00 - Seite 149 Z
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:15:19; WK
