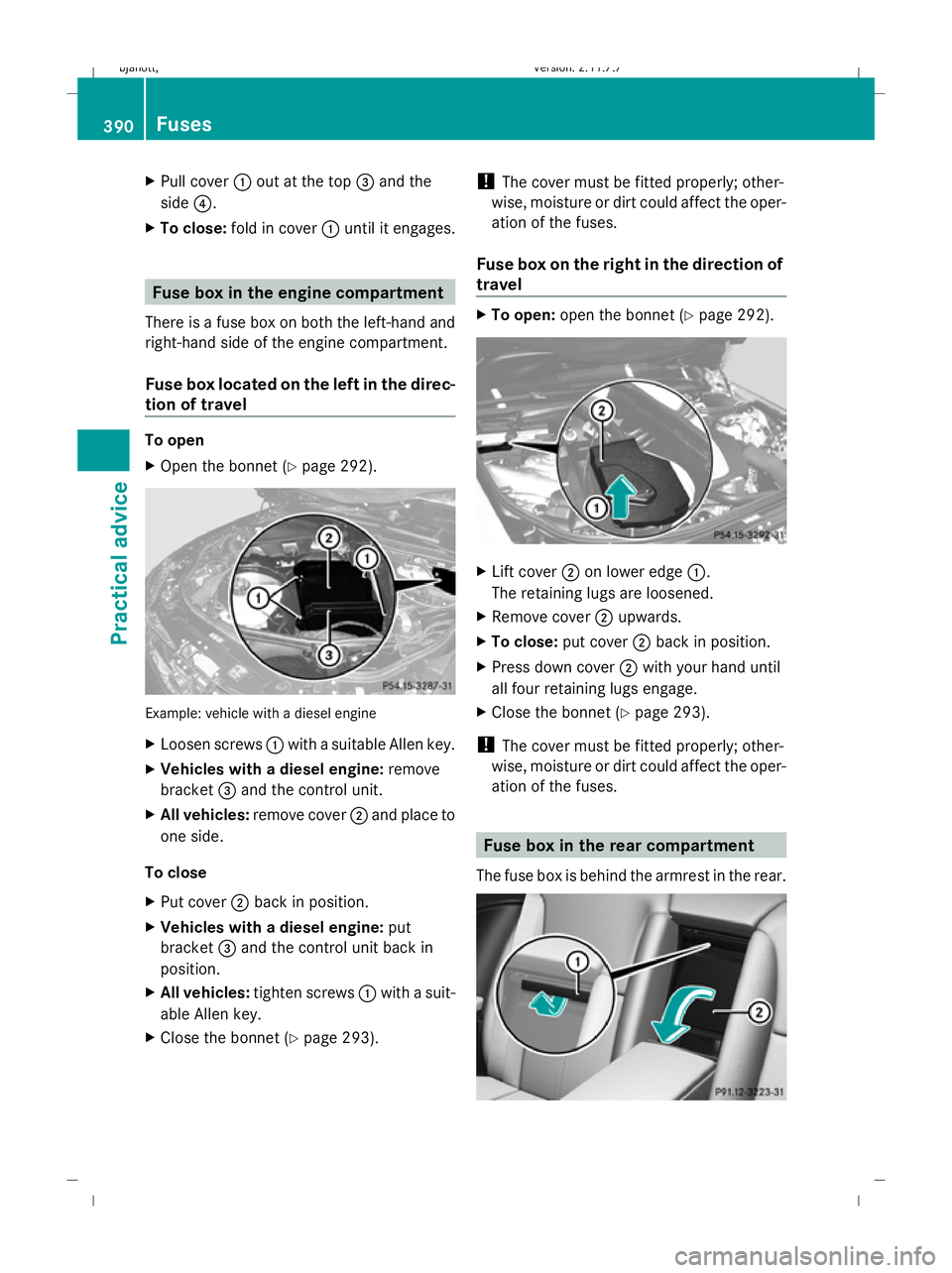

Pull cover :out at the top =and the
side ?.
X To close: fold in cover :until it engages. Fuse box in the engine compartment
There is a fuse box on both the left-hand and
right-hand side of the engine compartment.
Fuse box located on the left in the direc-
tion of travel To open
X
Open the bonnet (Y page 292). Example: vehicle with a diesel engine
X
Loosen screws :with a suitable Allen key.
X Vehicles with a diesel engine: remove
bracket =and the control unit.
X All vehicles: remove cover ;and place to
one side.
To close
X Put cover ;back in position.
X Vehicles with a diesel engine: put
bracket =and the control unit back in
position.
X All vehicles: tighten screws :with a suit-
able Allen key.
X Close the bonnet (Y page 293). !
The cover must be fitted properly; other-
wise, moisture or dirt could affect the oper-
ation of the fuses.
Fuse box on the right in the direction of
travel X
To open: open the bonnet (Y page 292). X
Lift cover ;on lower edge :.
The retaining lugs are loosened.
X Remove cover ;upwards.
X To close: put cover;back in position.
X Press down cover ;with your hand until
all four retaining lugs engage.
X Close the bonnet (Y page 293).
! The cover must be fitted properly; other-
wise, moisture or dirt could affect the oper-
ation of the fuses. Fuse box in the rear compartment
The fuse box is behind the armrest in the rear. 390
FusesPractical advice
216_AKB; 2; 3, en-GB
bjanott,
Version: 2.11.7.7 2009-02-27T14:54:17+01:00 - Seite 390
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:55; WK

X

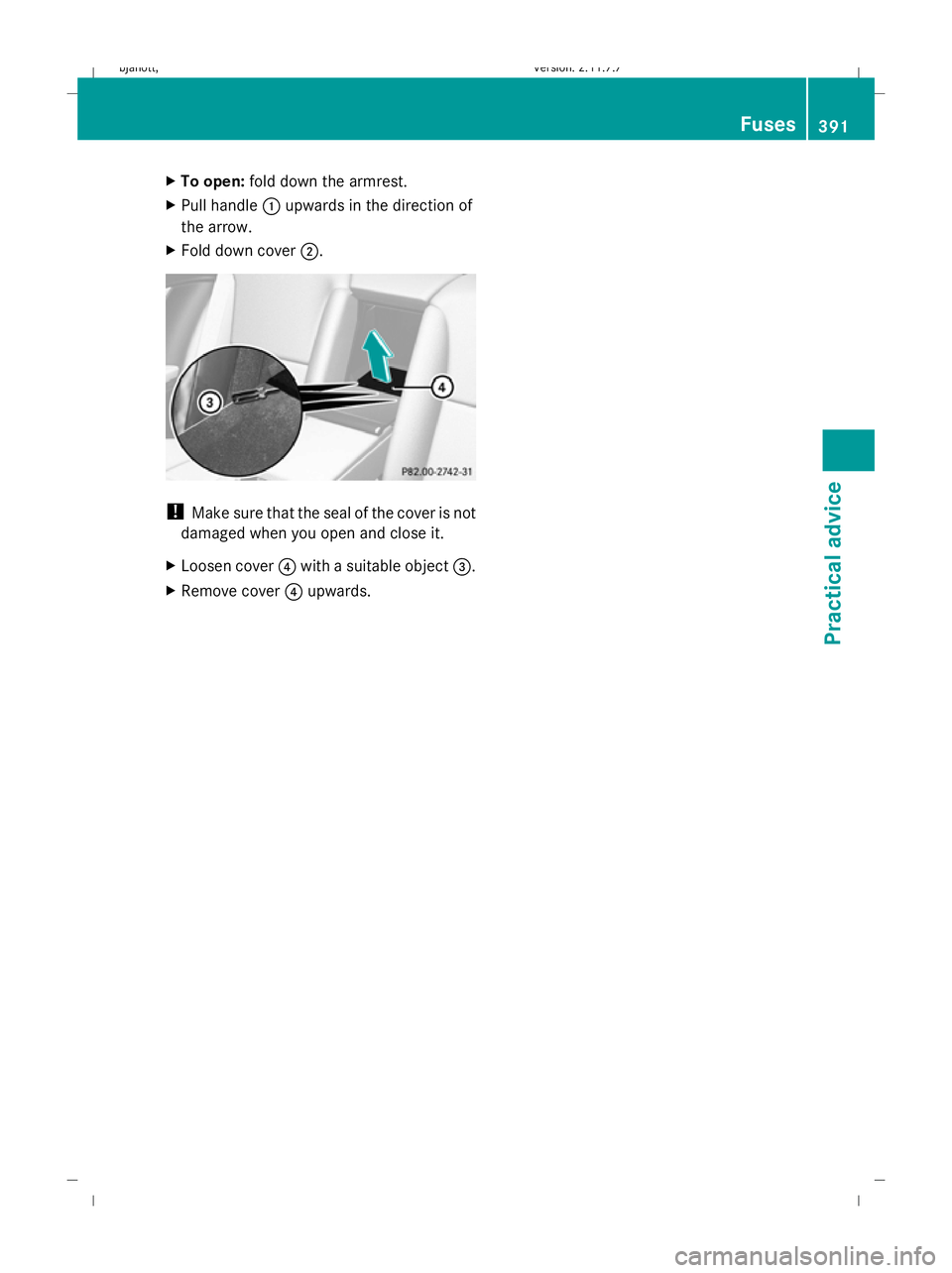

To open: fold down the armrest.
X Pull handle :upwards in the direction of
the arrow.
X Fold down cover ;. !
Make sure that the seal of the cover is not
damaged when you open and close it.
X Loosen cover ?with a suitable object =.
X Remove cover ?upwards. Fuses
391Practical advice
216_AKB; 2; 3, en-GB
bjanott, Version: 2.11.7.7 2009-02-27T14:54:17+01:00 - Seite 391 Z
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:55; WK

392 216_AKB; 2; 3, en-GB
bjanott,
Version: 2.11.7.7 2009-02-27T14:54:17+01:00 - Seite 392Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:55; WK

Notes on the technical data
.............394
Genuine Mercedes-Benz parts .........394
Vehicle electronics ...........................394
Vehicle identification plates ............396
Service products and capacities .....396
Vehicle data, CL 500 ........................400
Vehicle data, CL 500 4MATIC ..........400
Vehicle data, CL 600 ........................401
Vehicle data, CL 63 AMG ..................401
Vehicle data, CL 65 AMG ..................402
Tailgate opening dimensions ...........402
Tyres and wheels .............................. 402
Frequencies for garage door open-
ers* .................................................... 408
24-GHz radar sensor system*
(country overview) ............................411 393Technical data
216_AKB; 2; 3, en-GB
bjanott,
Version: 2.11.7.7 2009-02-27T14:54:17+01:00 - Seite 393
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:56; WK

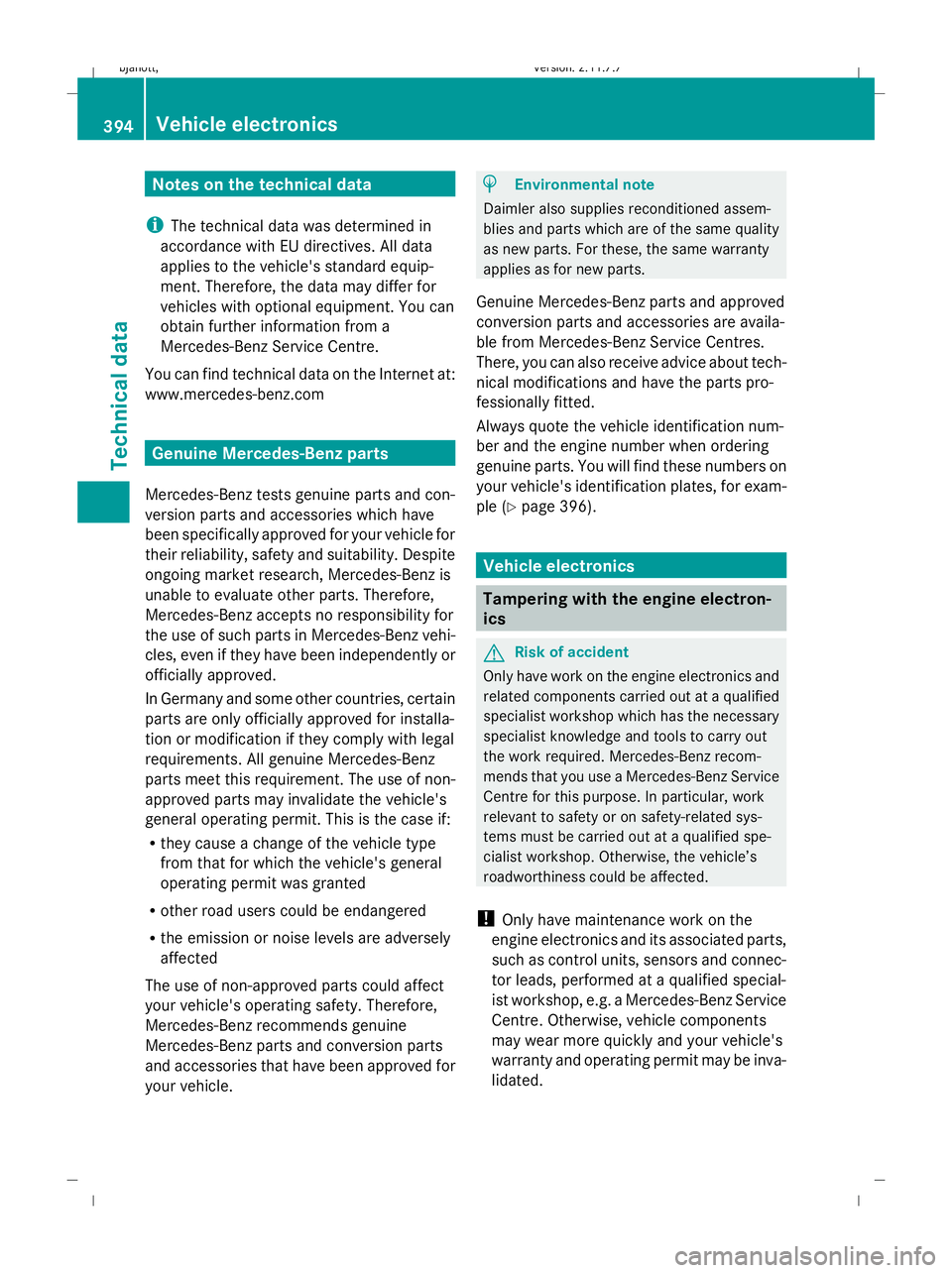

Notes on the technical data
i The technical data was determined in
accordance with EU directives. All data
applies to the vehicle's standard equip-
ment. Therefore, the data may differ for
vehicles with optional equipment. You can
obtain further information from a
Mercedes-Benz Service Centre.
You can find technical data on the Internet at:
www.mercedes-benz.com Genuine Mercedes-Benz parts
Mercedes-Benz tests genuine parts and con-
version parts and accessories which have
been specifically approved for your vehicle for
their reliability, safety and suitability. Despite
ongoing market research, Mercedes-Benz is
unable to evaluate other parts. Therefore,
Mercedes-Benz accepts no responsibility for
the use of such parts in Mercedes-Benz vehi-
cles, even if they have been independently or
officially approved.
In Germany and some other countries, certain
parts are only officially approved for installa-
tion or modification if they comply with legal
requirements. All genuine Mercedes-Benz
parts meet this requirement. The use of non-
approved parts may invalidate the vehicle's
general operating permit. This is the case if:
R they cause a change of the vehicle type
from that for which the vehicle's general
operating permit was granted
R other road users could be endangered
R the emission or noise levels are adversely
affected
The use of non-approved parts could affect
your vehicle's operating safety. Therefore,
Mercedes-Benz recommends genuine
Mercedes-Benz parts and conversion parts
and accessories that have been approved for
your vehicle. H
Environmental note
Daimler also supplies reconditioned assem-
blies and parts which are of the same quality
as new parts. For these, the same warranty
applies as for new parts.
Genuine Mercedes-Benz parts and approved
conversion parts and accessories are availa-
ble from Mercedes-Benz Service Centres.
There, you can also receive advice about tech-
nical modifications and have the parts pro-
fessionally fitted.
Always quote the vehicle identification num-
ber and the engine number when ordering
genuine parts. You will find these numbers on
your vehicle's identification plates, for exam-
ple (Y page 396). Vehicle electronics
Tampering with the engine electron-
ics
G
Risk of accident
Only have work on the engine electronics and
related components carried out at a qualified
specialist workshop which has the necessary
specialist knowledge and tools to carry out
the work required. Mercedes-Benz recom-
mends that you use a Mercedes-Benz Service
Centre for this purpose. In particular, work
relevant to safety or on safety-related sys-
tems must be carried out at a qualified spe-
cialist workshop. Otherwise, the vehicle’s
roadworthiness could be affected.
! Only have maintenance work on the
engine electronics and its associated parts,
such as control units, sensors and connec-
tor leads, performed at a qualified special-
ist workshop, e.g. a Mercedes-Benz Service
Centre. Otherwise, vehicle components
may wear more quickly and your vehicle's
warranty and operating permit may be inva-
lidated. 394
Vehicle electronicsTechni
cal data
216_AKB; 2; 3, en-GB
bjanott, Version: 2.11.7.7 2009-02-27T14:54:17+01:00 - Seite 394
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:56; WK

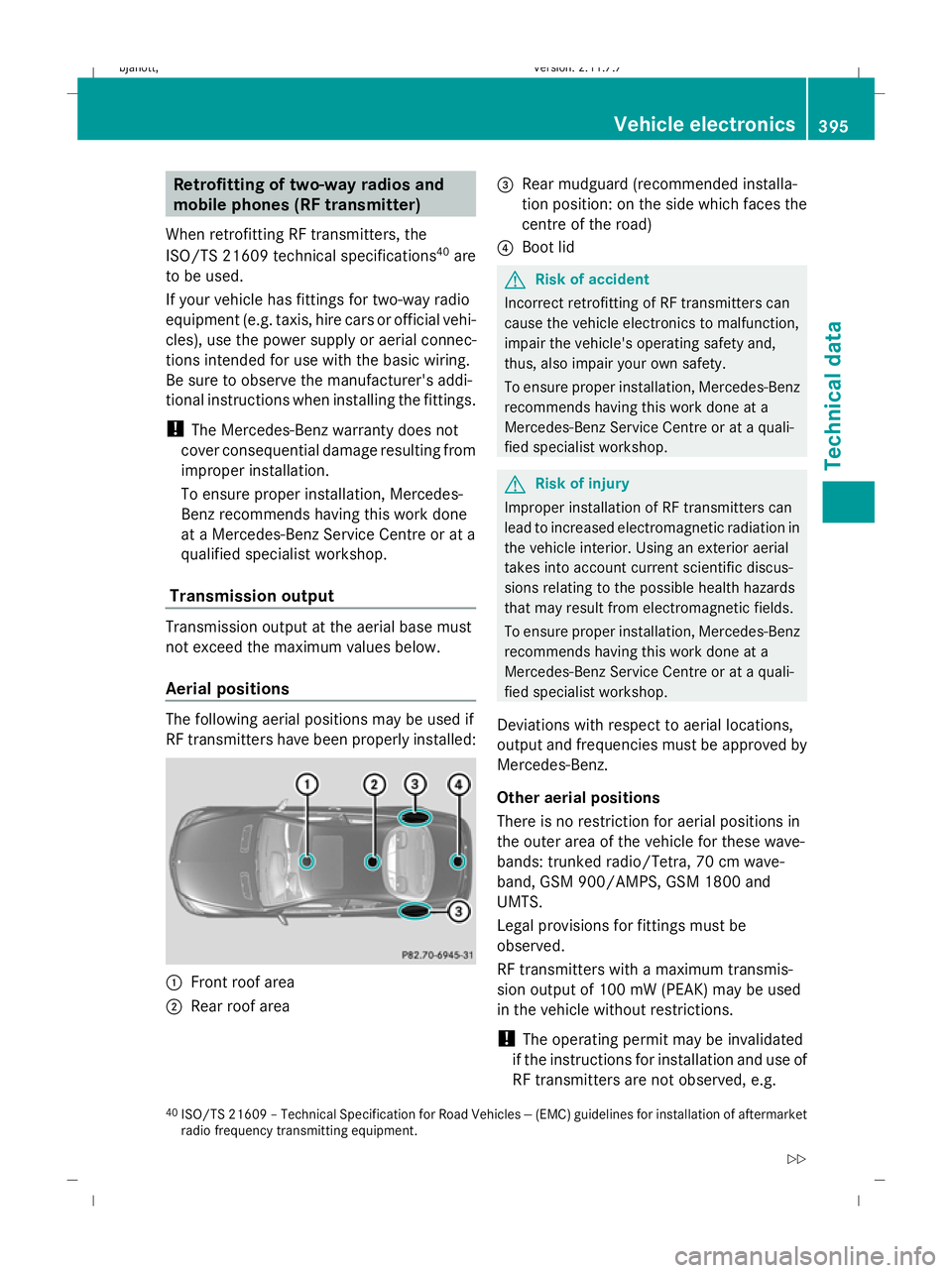

Retrofitting of two-way radios and
mobile phones (RF transmitter)
When retrofitting RF transmitters, the
ISO/TS 21609 technical specifications 40
are
to be used.
If your vehicle has fittings for two-way radio
equipment (e.g. taxis, hire cars or official vehi-
cles), use the power supply or aerial connec-
tions intended for use with the basic wiring.
Be sure to observe the manufacturer's addi-
tional instructions when installing the fittings.
! The Mercedes-Benz warranty does not
cover consequential damage resulting from
improper installation.
To ensure proper installation, Mercedes-
Benz recommends having this work done
at a Mercedes-Benz Service Centre or at a
qualified specialist workshop.
Transmission output Transmission output at the aerial base must
not exceed the maximum values below.
Aerial positions The following aerial positions may be used if
RF transmitters have been properly installed:
:
Front roof area
; Rear roof area =
Rear mudguard (recommended installa-
tion position: on the side which faces the
centre of the road)
? Boot lid G
Risk of accident
Incorrect retrofitting of RF transmitters can
cause the vehicle electronics to malfunction,
impair the vehicle's operating safety and,
thus, also impair your own safety.
To ensure proper installation, Mercedes-Benz
recommends having this work done at a
Mercedes-Benz Service Centre or at a quali-
fied specialist workshop. G
Risk of injury
Improper installation of RF transmitters can
lead to increased electromagnetic radiation in
the vehicle interior. Using an exterior aerial
takes into account current scientific discus-
sions relating to the possible health hazards
that may result from electromagnetic fields.
To ensure proper installation, Mercedes-Benz
recommends having this work done at a
Mercedes-Benz Service Centre or at a quali-
fied specialist workshop.
Deviations with respect to aerial locations,
output and frequencies must be approved by
Mercedes-Benz.
Other aerial positions
There is no restriction for aerial positions in
the outer area of the vehicle for these wave-
bands: trunked radio/Tetra, 70 cm wave-
band, GSM 900/AMPS, GSM 1800 and
UMTS.
Legal provisions for fittings must be
observed.
RF transmitters with a maximum transmis-
sion output of 100 mW (PEAK) may be used
in the vehicle without restrictions.
! The operating permit may be invalidated
if the instructions for installation and use of
RF transmitters are not observed, e.g.
40 ISO/TS 21609 – Technical Specification for Road Vehicles -- (EMC) guidelines for installation of aftermarket
radio frequency transmitting equipment. Vehicle electronics
395Technical data
216_AKB; 2; 3, en-GB
bjanott, Version: 2.11.7.7 2009-02-27T14:54:17+01:00 - Seite 395 Z
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:57; WK

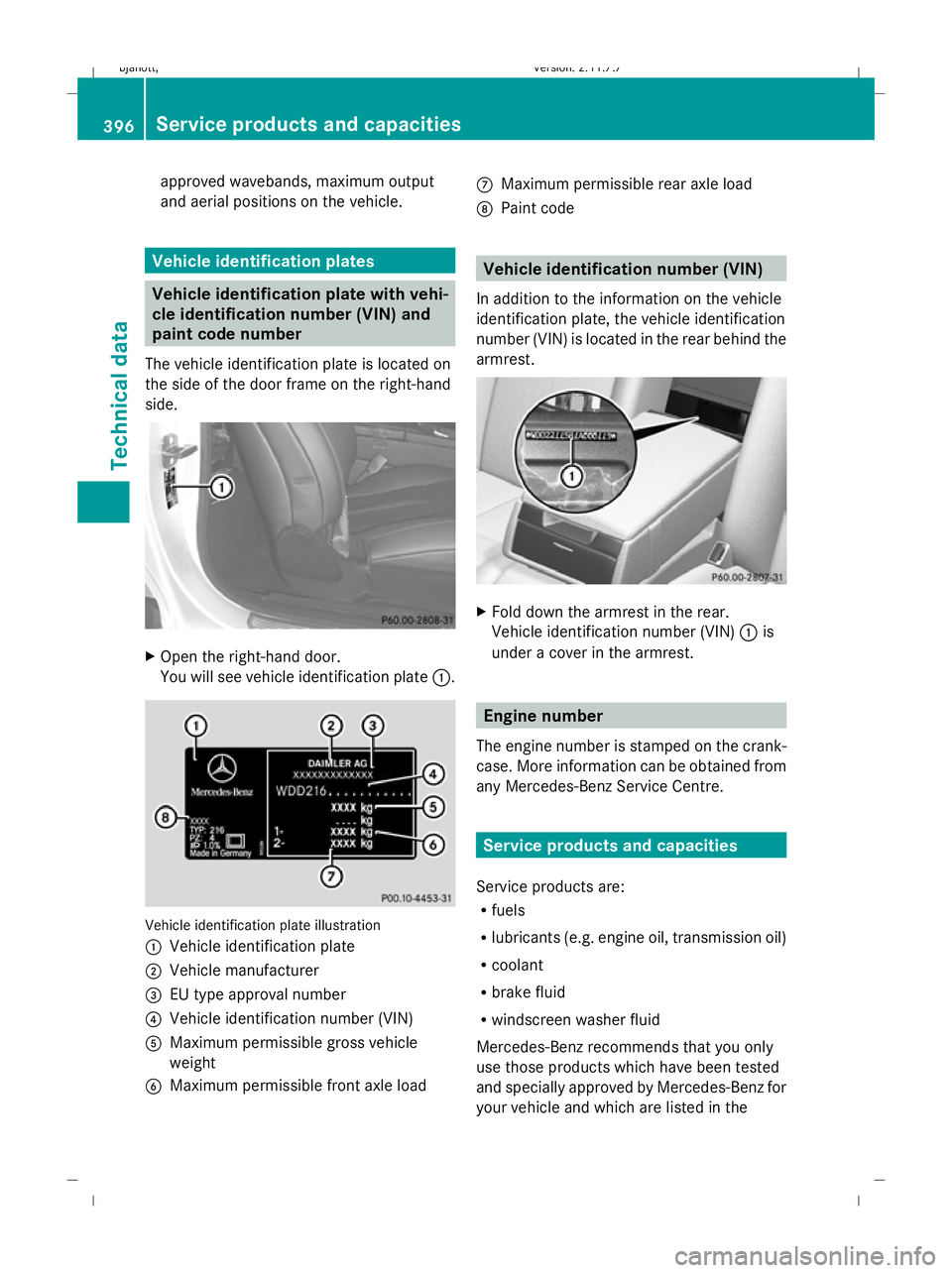

approved wavebands, maximum output
and aerial positions on the vehicle.
Vehicle identification plates
Vehicle identification plate with vehi-
cle identification number (VIN) and
paint code number
The vehicle identification plate is located on
the side of the door frame on the right-hand
side. X
Open the right-hand door.
You will see vehicle identification plate :.Vehicle identification plate illustration
:
Vehicle identification plate
; Vehicle manufacturer
= EU type approval number
? Vehicle identification number (VIN)
A Maximum permissible gross vehicle
weight
B Maximum permissible front axle load C
Maximum permissible rear axle load
D Paint code Vehicle identification number (VIN)
In addition to the information on the vehicle
identification plate, the vehicle identification
number (VIN) is located in the rear behind the
armrest. X
Fold down the armrest in the rear.
Vehicle identification number (VIN) 1is
under a cover in the armrest. Engine number
The engine number is stamped on the crank-
case. More information can be obtained from
any Mercedes-Benz Service Centre. Service products and capacities
Service products are:
R fuels
R lubricants (e.g. engine oil, transmission oil)
R coolant
R brake fluid
R windscreen washer fluid
Mercedes-Benz recommends that you only
use those products which have been tested
and specially approved by Mercedes-Benz for
your vehicle and which are listed in the 396
Service products and capacitiesTechnical data
216_AKB; 2; 3, en-GB
bjanott
,V ersion: 2.11.7.7
2009-02-27T14:54:17+01:00 - Seite 396
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:57; WK

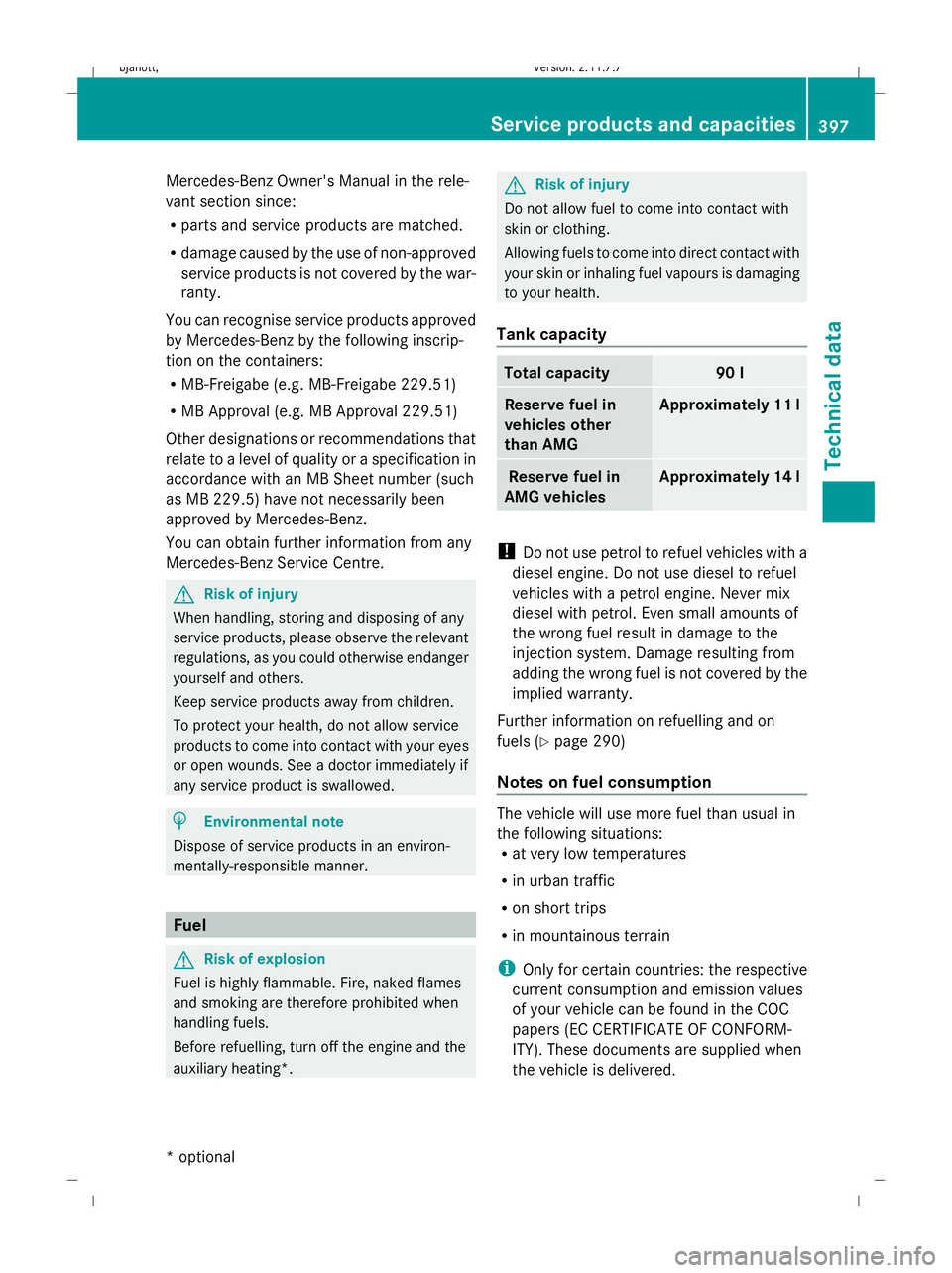

Mercedes-Benz Owner's Manual in the rele-
vant section since:
R parts and service products are matched.
R damage caused by the use of non-approved
service products is not covered by the war-
ranty.
You can recognise service products approved
by Mercedes-Benz by the following inscrip-
tion on the containers:
R MB-Freigabe (e.g. MB-Freigabe 229.51)
R MB Approval (e.g. MB Approval 229.51)
Other designations or recommendations that
relate to a level of quality or a specification in
accordance with an MB Sheet number (such
as MB 229.5) have not necessarily been
approved by Mercedes-Benz.
You can obtain further information from any
Mercedes-Benz Service Centre. G
Risk of injury
When handling, storing and disposing of any
service products, please observe the relevant
regulations, as you could otherwise endanger
yourself and others.
Keep service products away from children.
To protect your health, do not allow service
products to come into contact with your eyes
or open wounds. See a doctor immediately if
any service product is swallowed. H
Environmental note
Dispose of service products in an environ-
mentally-responsible manner. Fuel
G
Risk of explosion
Fuel is highly flammable. Fire, naked flames
and smoking are therefore prohibited when
handling fuels.
Before refuelling, turn off the engine and the
auxiliary heating*. G
Risk of injury
Do not allow fuel to come into contact with
skin or clothing.
Allowing fuels to come into direct contact with
your skin or inhaling fuel vapours is damaging
to your health.
Tank capacity Total capacity 90 l
Reserve fuel in
vehicles other
than AMG Approximately 11 l
Reserve fuel in
AMG vehicles Approximately 14 l
!
Do not use petrol to refuel vehicles with a
diesel engine. Do not use diesel to refuel
vehicles with a petrol engine. Never mix
diesel with petrol. Even small amounts of
the wrong fuel result in damage to the
injection system. Damage resulting from
adding the wrong fuel is not covered by the
implied warranty.
Further information on refuelling and on
fuels (Y page 290)
Notes on fuel consumption The vehicle will use more fuel than usual in
the following situations:
R
at very low temperatures
R in urban traffic
R on short trips
R in mountainous terrain
i Only for certain countries: the respective
current consumption and emission values
of your vehicle can be found in the COC
papers (EC CERTIFICATE OF CONFORM-
ITY). These documents are supplied when
the vehicle is delivered. Service products and capacities
397Technical data
* optional
216_AKB; 2; 3, en-GB
bjanott,V
ersion: 2.11.7.7
2009-02-27T14:54:17+01:00 - Seite 397 Z
Dateiname: 6515230602_buchblock.pdf; erzeugt am 04. Mar 2009 11:16:58; WK
