2009 INFINITI QX56 ECU

TM-112
< ECU DIAGNOSIS >
TCM

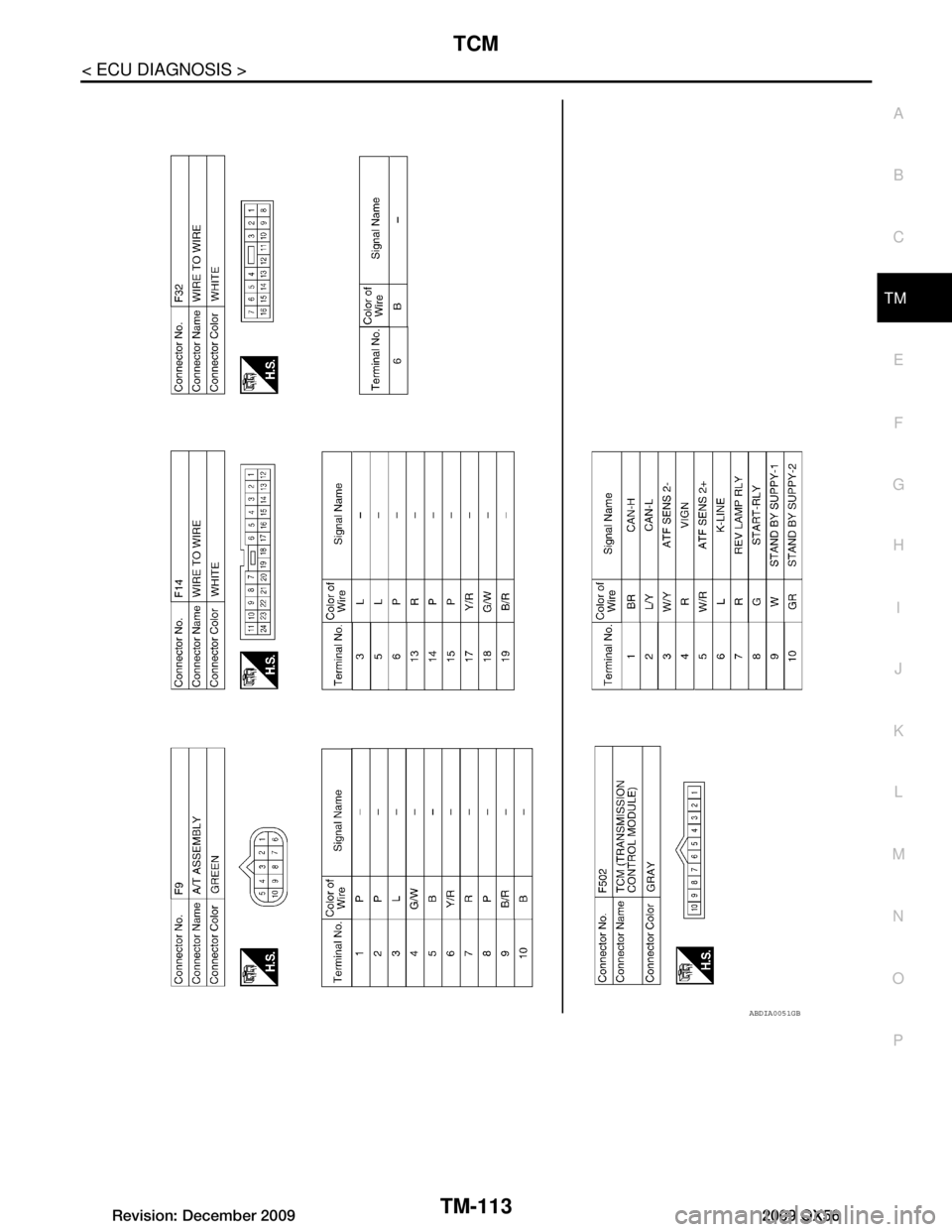

ABDIA0050GB
Revision: December 20092009 QX56

TCM
TM-113
< ECU DIAGNOSIS >
C EF
G H
I
J
K L
M A
B
TM
N
O P

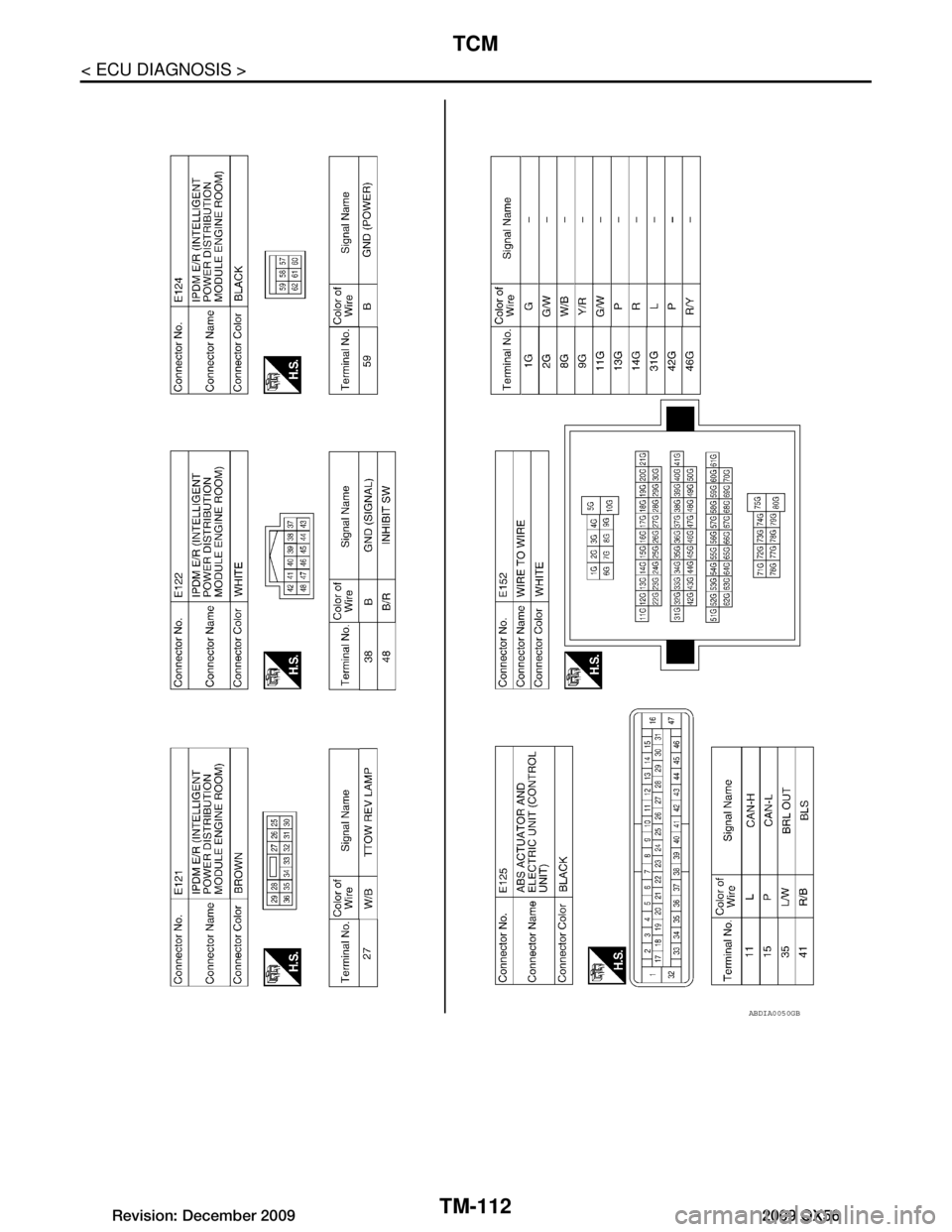

ABDIA0051GB
Revision: December 20092009 QX56

TM-114
< ECU DIAGNOSIS >
TCM

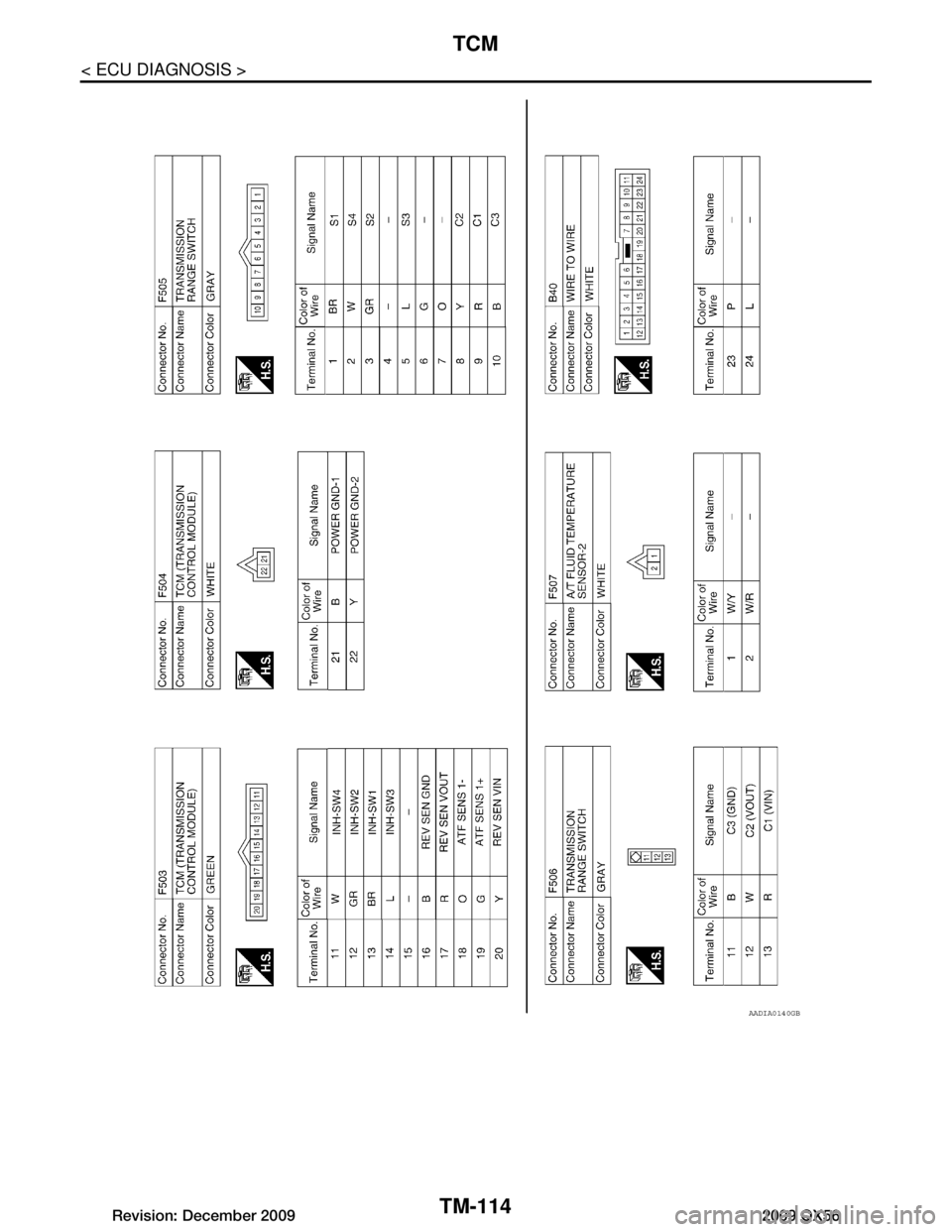

AADIA0140GB
Revision: December 20092009 QX56

TCM
TM-115
< ECU DIAGNOSIS >
C EF
G H
I
J
K L
M A
B
TM
N
O P
Fail-SafeINFOID:0000000003771987
The TCM has an electrical fail-safe mode. This mode make s it possible to operate even if there is an error in a
main electronic control input/output signal circuit.
The TCM has an electrical fail-safe mode. This mode make s it possible to operate even if there is an error in a
main electronic control input/output signal circuit. In fa il-safe mode the transmission is fixed in 2nd, 4th or 5th
(depending on the breakdown position), so the customer should feel “slipping” or “poor acceleration”.

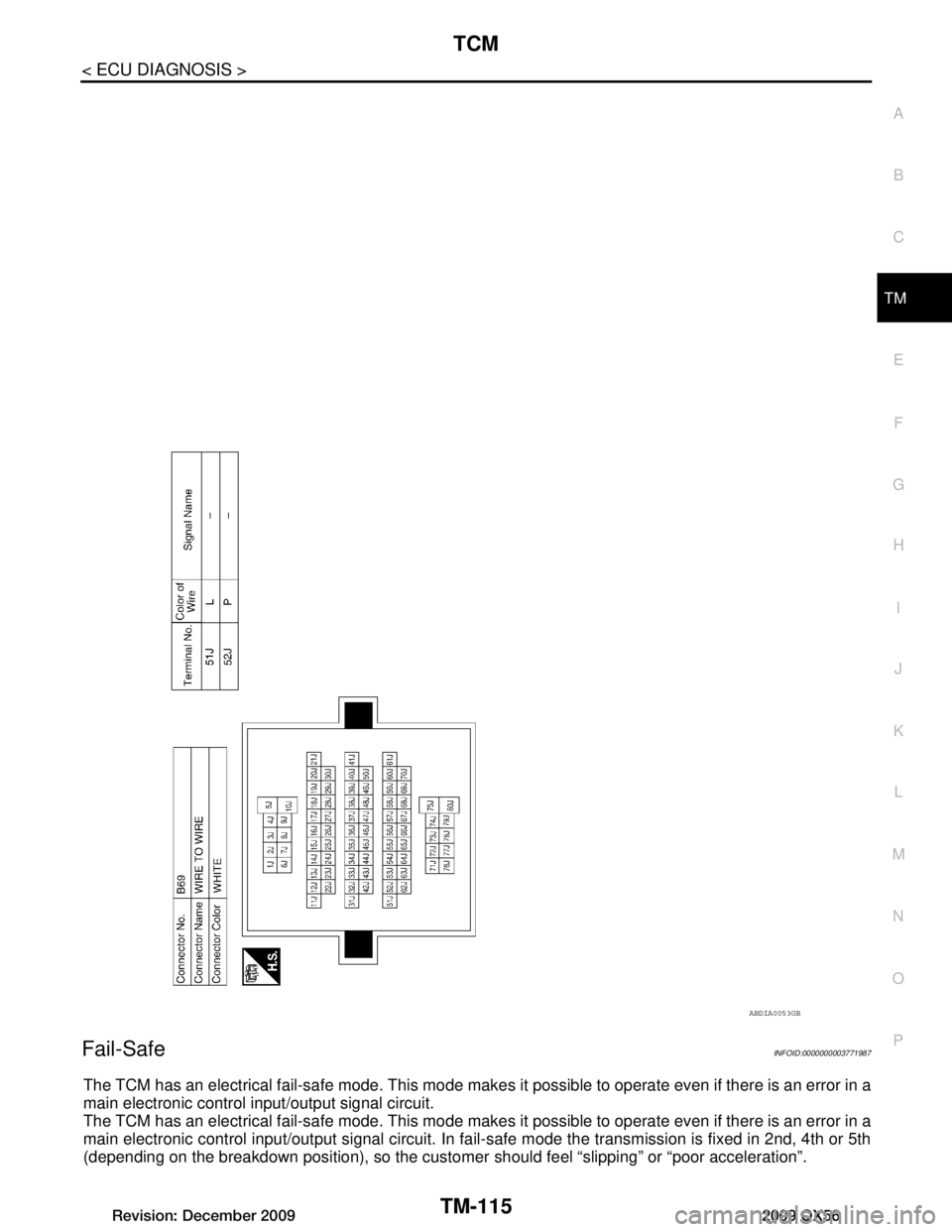

ABDIA0053GB
Revision: December 20092009 QX56

TM-116
< ECU DIAGNOSIS >
TCM
Even when the electronic circuits are normal, under special conditions (for example, when slamming on the
brake with the wheels spinning drastically and stopping t he tire rotation), the transmission can go into fail-safe
mode. If this happens, switch “OFF” the ignition switch for 10 seconds, then switch it “ON” again to return to
the normal shift pattern. Therefore, the customer's v ehicle has returned to normal, so handle according to the
“diagnostics flow” (Refer to TM-5, "Work Flow"
).
FAIL-SAFE FUNCTION
If any malfunction occurs in a sensor or solenoid, th is function controls the A/T to mark driving possible.
Output Speed Sensor
 Signals are input from two systems - from output s peed sensor installed on the transmission and from com-
bination meter so normal driving is possible even if ther e is a malfunction in one of the systems. And if output
speed sensor has unusual cases, 5GR is prohibited.
Accelerator Peda l Position Sensor
 If there is a malfunction in one of the systems, the accelerator opening angle is controlled by ECM according
to a pre-determined accelerator angle to make driving possible. And if there are malfunctions in tow sys-
tems, the engine speed is fixed by ECM to a pre-determined engine speed to make driving possible.
Throttle Position Sensor
 If there is a malfunction in one of the systems, the accelerator opening angle is controlled by ECM according
to a pre-determined accelerator angle to make driving possible. And if there are malfunctions in tow sys-
tems, the accelerator opening angle is controlled by the idle signal sent from the ECM which is based on
input indicating either idle condition or off-idle condition (pre-determined accelerator opening) in order to
make driving possible.
Transmission Range Switch
 In the unlikely event that a malfunction signal enters t he TCM, the position indicator is switched “OFF”, the
starter relay is switched “OFF” (starter starting is disabled), the back-up lamp relay switched “OFF” (back-up
lamp is OFF) and the position is fixed to the “D” range to make driving possible.
Starter Relay
 The starter relay is switched “OFF”. (Starter starting is disabled.)
Interlock
 If there is an interlock judgment malfunction, the trans mission is fixed in 2GR to make driving possible.
NOTE:
When the vehicle is driven fixed in 2GR, a input speed sensor malfunction is displayed, but this is
not a input speed sensor malfunction.
 When the interlock is detected at the 3GR or more, it is locked at the 2GR.
1st Engine Braking
 When there is an 1st gear engine brake judgment malfunc tion, the low coast brake solenoid is switched
“OFF” to avoid the engine brake operation.
Line Pressure Solenoid
 The solenoid is switched “OFF” and the line pressure is se t to the maximum hydraulic pressure to make driv-
ing possible.
Torque Converter Clutch Solenoid
 The solenoid is switched “OFF” to release the lock-up.
Low Coast Brake Solenoid
 When a (electrical or functional) malfunction occurs, in order to make driving possible, the engine brake is not applied in 1GR and 2GR.
Input Clutch Solenoid
 If a (electrical or functional) malfunction occurs with the solenoid either “ON” or “OFF”, the transmission is
held in 4GR to make driving possible.
Direct Clutch Solenoid
 If a (electrical or functional) malfunction occurs with the solenoid either “ON” or “OFF”, the transmission is
held in 4GR to make driving possible.
Front Brake Solenoid
 If a (electrical or functional) malfunction occurs with the solenoid “ON”, in order to make driving possible, the
A/T is held in 5GR; if the solenoid is OFF, 4GR.
Revision: December 20092009 QX56

TCM
TM-117
< ECU DIAGNOSIS >
C EF
G H
I
J
K L
M A
B
TM
N
O P
High and Low Revers
e Clutch Solenoid
 If a (electrical or functional) malfunction occurs with the solenoid either “ON” or “OFF”, the transmission is
held in 4th gear to make driving possible.
Input Speed Sensor 1 or 2
 The control is the same as if there were no input speed sensors, 5GR is prohibited.
DTC Inspection Priority ChartINFOID:0000000003771988
If some DTCs are displayed at the same time, per form inspections one by one based on the following priority
chart.
NOTE:
If DTC U1000 is displayed with other DTCs, first pe rform the trouble diagnosis for DTC U1000. Refer to
TM-39, "Diagnosis Procedure"
.
DTC No. IndexINFOID:0000000003771989
NOTE:
If DTC U1000 is displayed with other DTC, first pe rform the trouble diagnosis for DTC U1000. Refer to
TM-39, "Diagnosis Procedure"
.
Priority Detected items (DTC)
1 U1000 CAN COMM CIRCUT
2 Except above
DTC Items
(CONSULT- III screen terms) Reference page
OBD- II Except OBD- II
CONSULT- III GST (*1) CONSULT- III only
“TRANSMISSION”
— P0615 STARTER RELAY TM-40
P0700 P0700 TRANSMISSION CONT TM-43
P0705 P0705 T/M RANGE SWITCH ATM-44
P0710 P1710 TRANS FLUID TEMP SENTM-72
P0717 P0717 INPUT SPEED SENSOR ATM-47
P0720 P0720 OUTPUT SPEED SENSORTM-50
— P0725 ENGINE SPEEDTM-52
P0731 P0731 1GR INCORRECT RATIO TM-55
P0732 P0732 2GR INCORRECT RATIOTM-57
P0733 P0733 3GR INCORRECT RATIOTM-59
P0734 P0734 4GR INCORRECT RATIOTM-61
P0735 P0735 5GR INCORRECT RATIOTM-63
P0740 P0740 TORQUE CONVERTERTM-64
P0744 P0744 TORQUE CONVERTERTM-67
P0745 P0745 PC SOLENOID ATM-68
— P1705 TP SENSORTM-70
— P1721 VEHICLE SPEED SIGNALTM-74
P1730 P1730 INTERLOCK TM-76
— P1731 1GR E/BRAKINGTM-78
P1752 P1752 INPUT CLUTCH SOLENOID TM-80
P1757 P1757 FR BRAKE SOLENOIDTM-82
P1762 P1762 DRCT CLUTCH SOLENOIDTM-84
P1767 P1767 HLR CLUTCH SOLLENOIDTM-86
Revision: December 20092009 QX56

TM-118
< ECU DIAGNOSIS >
TCM
*1: These numbers are prescribed by SAE J2012.
*2: These malfunctions cannot be displayed MIL if another malfunction is assigned to MIL.
DTC Alphabetical IndexINFOID:0000000003771990
NOTE:
If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000. Refer to
TM-39, "Diagnosis Procedure"
.
*1: These numbers are prescribed by SAE J2012.
*2: These malfunctions cannot be displayed MIL if another malfunction is assigned to MIL. P1772 P1772 L C BRAKE SOLENOID
TM-88
P1774 (2*) P1774 L C BRAKE SOLENOID TM-90
U1000 U1000 CAN COMM CIRCUITTM-39
DTC
Items
(CONSULT- III screen terms) Reference page
OBD- II Except OBD- II
CONSULT- III GST (*1) CONSULT- III only
“TRANSMISSION”
Items
(CONSULT- III screen terms) DTC
Reference page
OBD- II Except OBD- II
CONSULT- III GST (*1) CONSULT- III only
“TRANSMISSION”
1ST E/BRAKING — P1731 TM-78
1GR INCORRECT RATIO P0731 P0731TM-55
2GR INCORRECT RATIO P0732 P0732TM-57
3GR INCORRECT RATIO P0733 P0733TM-59
4GR INCORRECT RATIO P0734 P0734TM-61
5GR INCORRECT RATIO P0735 P0735TM-63
INTERLOCK P1730 P1730TM-76
TORQUE CONVERTER P0744 P0744 TM-67
TRAXIS FLUID TEMP SEN P0710 P1710TM-72
CAN COMM CIRCUIT U1000 U1000TM-39
DRCT CLUTCH SOLENOID P1762 P1762 TM-84
ENGINE SPEED — P0725 TM-52
FR BRAKE SOLENOID P1757 P1757TM-82
HLR CLUTCH SOLENOID P1767 P1767TM-86
INPUT CLUTCH SOLENOID P1752 P1752TM-80
PC SOLENOID A P0745 P0745TM-68
LC BRAKE SOLENOID P1772 P1772TM-88
LC BRAKE SOLENOID P1774 P1774 TM-90
T/M RANGE SWITCH A P0705 P0705TM-44
STARTER RELAY — P0615TM-40
TORQUE CONVERTER P0740 P0740TM-64
TRANSMISSION CONT P0700 P0700TM-43
TP SENSOR — P1705TM-70
INPUT SPEED SENSOR A P0717 P0717TM-47
VEHICLE SPEED SIGNAL — P1721TM-74
OUTPUT SPEED SENSOR P0720 P0720TM-50
Revision: December 20092009 QX56

SYSTEM SYMPTOMTM-143
< SYMPTOM DIAGNOSIS >
CEF
G H
I
J
K L
M A
B
TM
N
O P
2. Check A/T fluid condition. Refer to TM-179, "Checking the A/T
Fluid (ATF)".
OK or NG
OK >> GO TO 4.
NG >> GO TO 7.
4.DETECT MALFUNCTIONING ITEM
 Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to TM-152,
"Symptom Table" (Symptom No.65).
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5.CHECK SYMPTOM
Check again. Refer to TM-191, "Cruise Test - Part 1"
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
6.PERFORM TCM INSPECTION
1. Perform TCM input/output signals inspection. Refer to TM-104, "Reference Value"
.
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness
connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
7.DETECT MALFUNCTIONING ITEM
 Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to TM-152,
"Symptom Table" (Symptom No.65).
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
A/T Does Not Shift: 5GR → 4GRINFOID:0000000003772007
SYMPTOM:
When shifted from D5 to 44 position, does not downshift from 5GR to 4GR.
DIAGNOSTIC PROCEDURE
1.CHECK SELF-DIAGNOSIS RESULTS
Perform self-diagnosis. Refer to TM-32, "CONSULT-III Function (TRANSMISSION)"
.
Do the self-diagnosis results i ndicate transmission range switch?
YES >> Check the malfunctioning system. Refer to TM-44, "Diagnosis Procedure".
NO >> GO TO 2.
2.CHECK 4TH POSITION SWITCH CIRCUIT
With CONSULT-III
1. Turn ignition switch “ON”.
2. Select "ECU INPUT SIGNALS" in "DATA MONITO R" mode for "TRANSMISSION" with CONSULT-III.
3. Read out "OD CONT SW" switch moving selector lever to each position.
SCIA5199E
