Page 3752 of 4171

TM-104
< ECU DIAGNOSIS >
TCM
ECU DIAGNOSIS
TCM
Reference ValueINFOID:0000000003771985
REFERENCE VALUES
NOTICE:
1. The CONSULT-III electrically displays shift timing and lock-up timing (that is, operation timing of each
solenoid).
Check for time difference between actual shift timi ng and the CONSULT-III display. If the difference is
noticeable, mechanical parts (except solenoids, sens ors, etc.) may be malfunctioning. Check mechanical
parts using applicable diagnostic procedures.
2. Shift schedule (which implies gear position) display ed on CONSULT-III and that indicated in Service Man-
ual may differ slightly. This occurs because of the following reasons:
- Actual shift schedule has more or less tolerance or allowance,
- Shift schedule indicated in Service Manual refers to the point where shifts start, and
- Gear position displayed on CONSULT-III indicates the point where shifts are completed.
3. Display of solenoid valves on CONSULT-III changes at t he start of shifting, while gear position is displayed
upon completion of shifting (which is computed by TCM).
Item name Condition Display value (Approx.)
AT F T E M P S E 1 0 °C (32 ° F) - 20 °C (68 °F) - 80 °C (176 °F) 3.3 - 2.7 - 0.9 V
TCC SOLENOID When perform slip lock-up 0.2 - 0.4 A
When perform lock-up 0.4 - 0.6 A
SLCT LVR POSI Selector lever in “N”,“P” position. N/P
Selector lever in “R” position. R
Selector lever in “D” position. D
Selector lever in “4” position. 4
Selector lever in “3” position. 3
Selector lever in “2” position. 2
Selector lever in “1” position. 1
VHCL/S SE·A/T During driving Approximately matches the
speedometer reading.
ENGINE SPEED Engine running Closely matches the tachometer
reading.
LINE PRES SOL During driving 0.2 - 0.6 A
INPUT SPEED During driving (lock-up ON) Approximately matches the en-
gine speed.
VHCL/S SE·MTR During driving Approximately matches the
speedometer reading.
ATF PRES SW 2 Low coast brake engaged. Refer to
TM-9
ON
Low coast brake disengaged. Refer to TM-9
OFF
I/C SOLENOID Input clutch disengaged. Refer to
TM-9
0.6 - 0.8 A
Input clutch engaged. Refer to TM-9
0 - 0.05 A
FR/B SOLENOID Front brake engaged. Refer to
TM-9
0.6 - 0.8 A
Front brake disengaged. Refer to TM-9
0 - 0.05 A
D/C SOLENOID Direct clutch disengaged. Refer to
TM-9
0.6 - 0.8 A
Direct clutch engaged. Refer to TM-9
0 - 0.05 A
HLR/C SOL High and low reverse clutch disengaged. Refer to
TM-9
0.6 - 0.8 A
High and low reverse clutch engaged. Refer to TM-9
0 - 0.05 A
Revision: December 20092009 QX56
Page 3753 of 4171

TCM
TM-105
< ECU DIAGNOSIS >
C EF
G H
I
J
K L
M A
B
TM
N
O P
A/T ASSEMBLY HARNESS CONNECTOR TERMINAL LAYOUT
TERMINALS AND REFERENCE VALUES FOR TCM
Data are reference value and are meas ured between each terminal and ground.
ON OFF SOLLow coast brake engaged. Refer to
TM-9ON
Low coast brake disengaged. Refer to TM-9
OFF
STARTER RELAY Selector lever in
“N”,“P” position. ON
Selector lever in other position. OFF
ACCELE POSI Released accelerator pedal. 0.0/8
Fully depressed accelerator pedal. 8/8
CLSD THL POS Released accelerator pedal. ON
Fully depressed accelerator pedal. OFF
W/O THL POS Fully depressed accelerator pedal. ON
Released accelerator pedal. OFF
BRAKE SW Depressed brake pedal. ON
Released brake pedal. OFF
Item name Condition Display value (Approx.)
AWDIA0348ZZ
Te r m i n a l
No. Wire
color Item Condition Data (Approx.)
1P Power supply
(Memory back-up)
Always Battery voltage
2P Power supply
(Memory back-up) Always Battery voltage
3 L CAN-H – –
4G/W K-line (CONSULT-
III signal) The terminal is connected to the data link connector for CONSULT-III. –
5 B Ground Always 0V
6Y/RPower supply – Battery voltage
–0V
7R Back-up lamp re-
lay Selector lever in “R” position. 0V
Selector lever in other positions. Battery voltage
8 P CAN-L – –
9 B/R Starter relay Selector lever in “N”,“ P”
positions. Battery voltage
Selector lever in other positions. 0V
10 B Ground Always 0V
Revision: December 20092009 QX56
Page 3754 of 4171
TM-106
< ECU DIAGNOSIS >
TCM

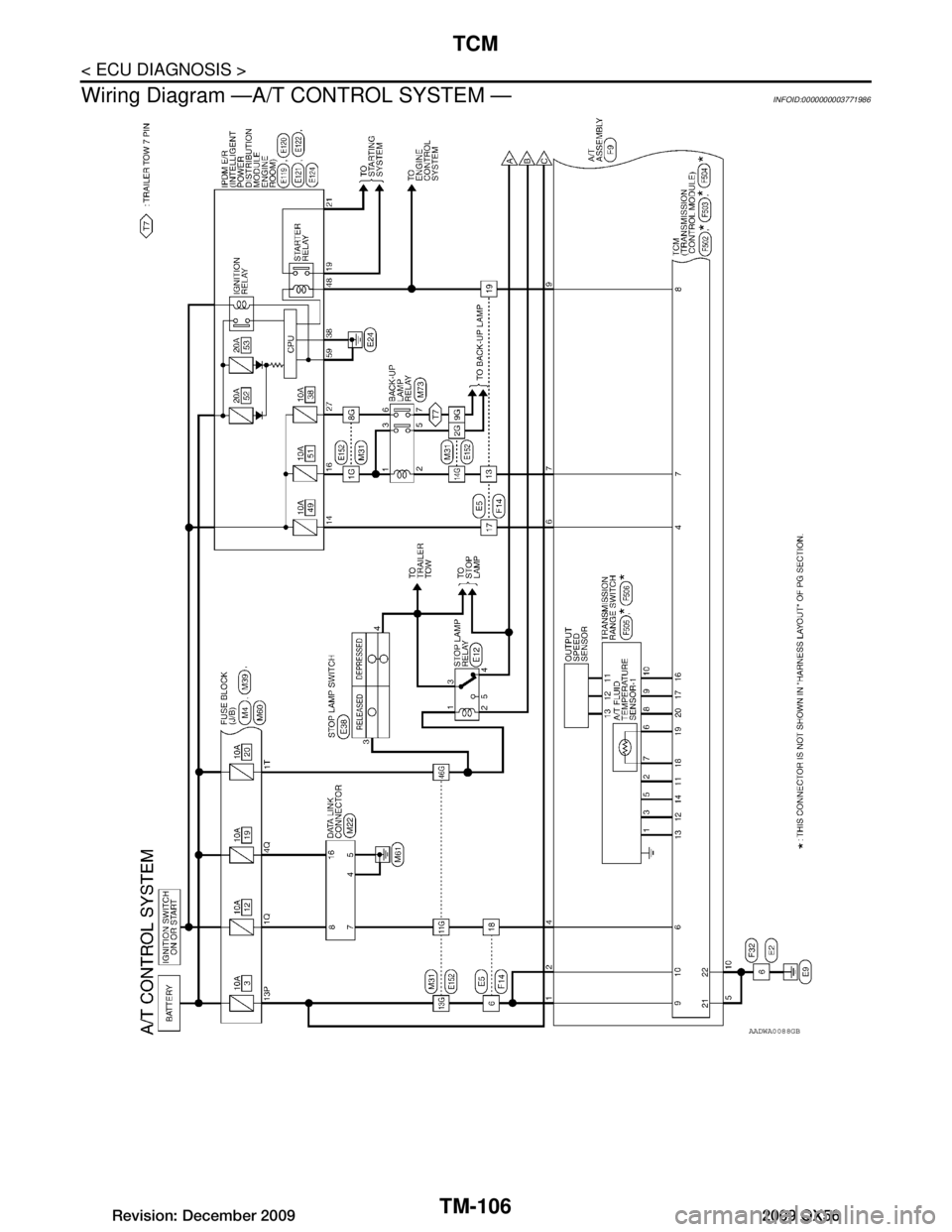

Wiring Diagram —A/T CONTROL SYSTEM —
INFOID:0000000003771986
AADWA0088GB
Revision: December 20092009 QX56

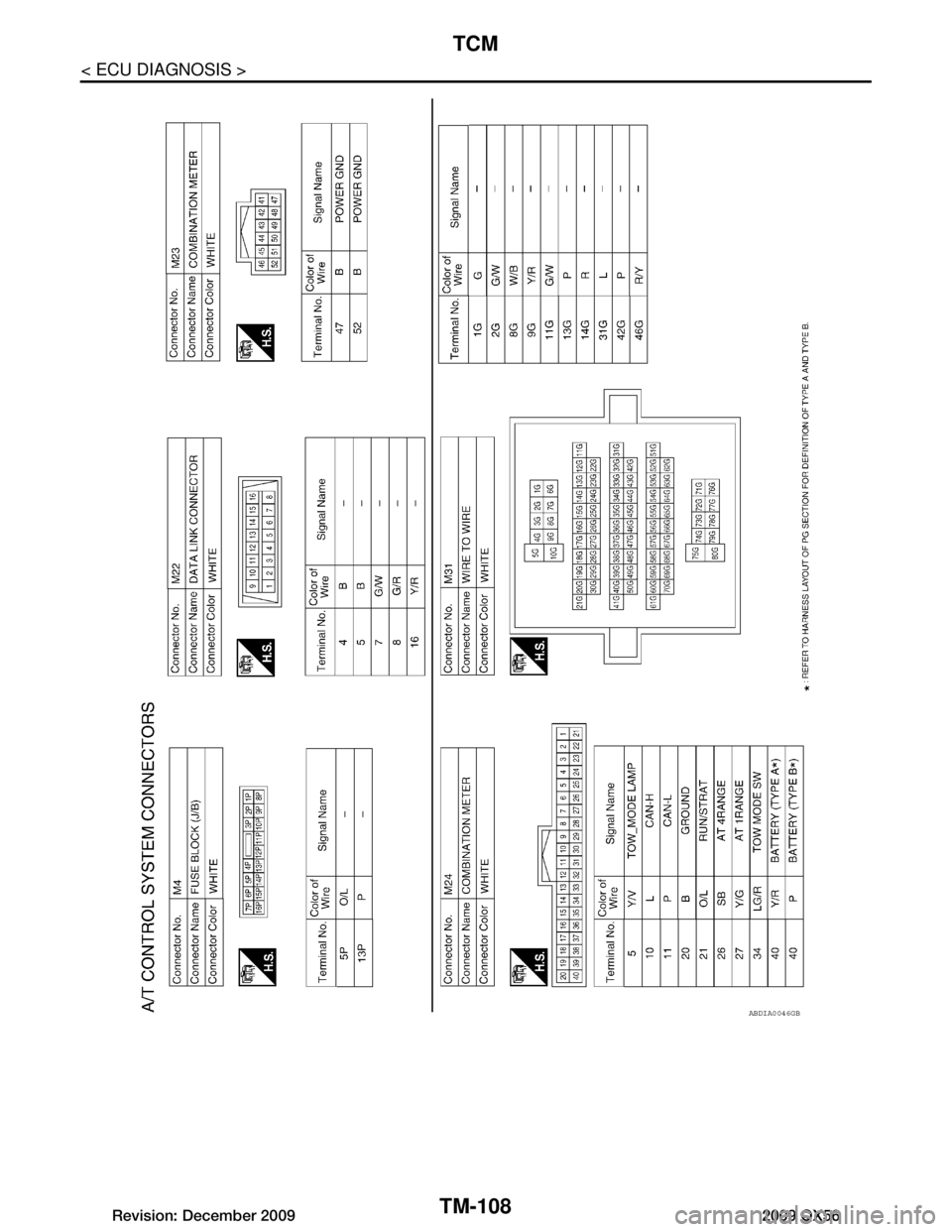

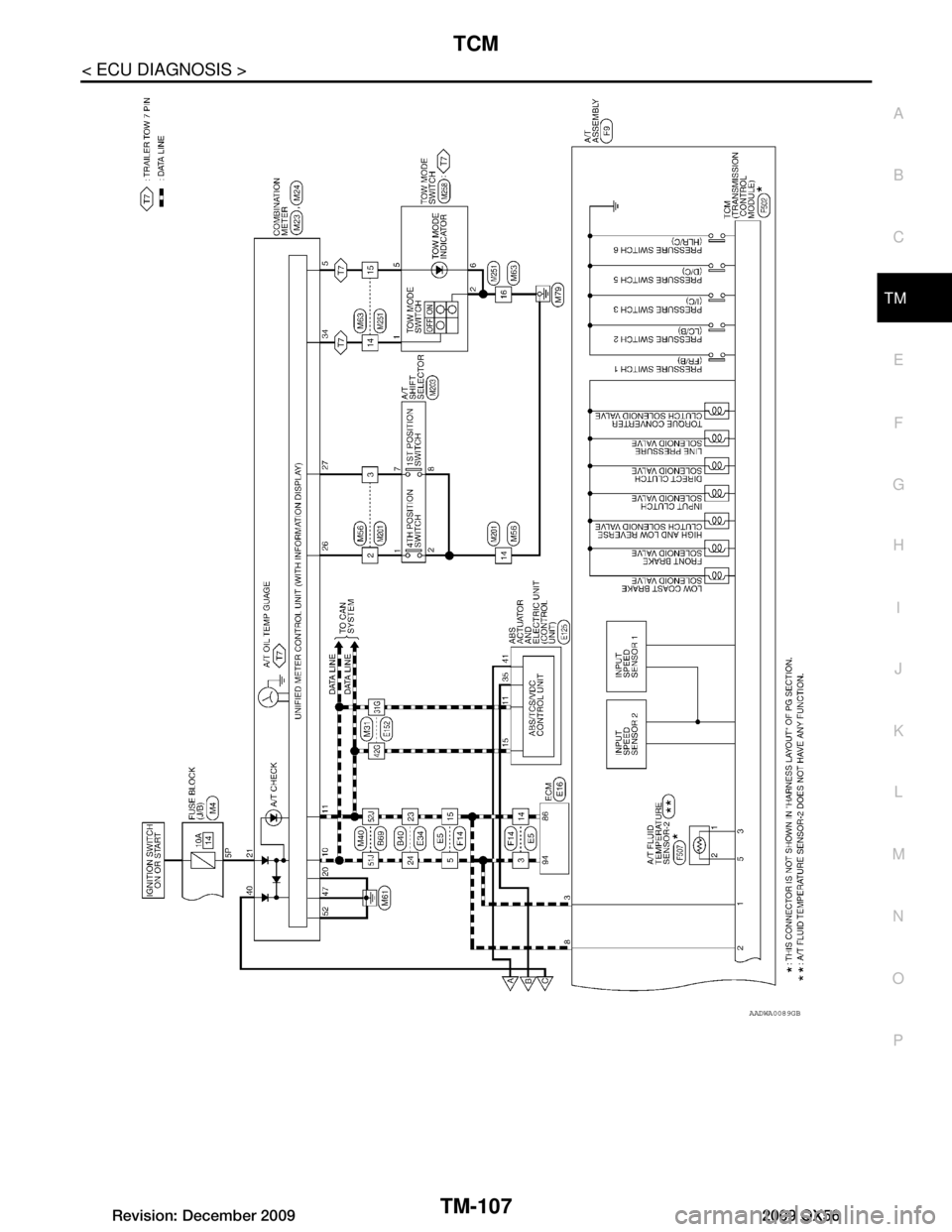

Page 3755 of 4171
TCM
TM-107
< ECU DIAGNOSIS >
C EF
G H
I
J
K L
M A
B
TM
N
O P
AADWA0089GB
Revision: December 20092009 QX56

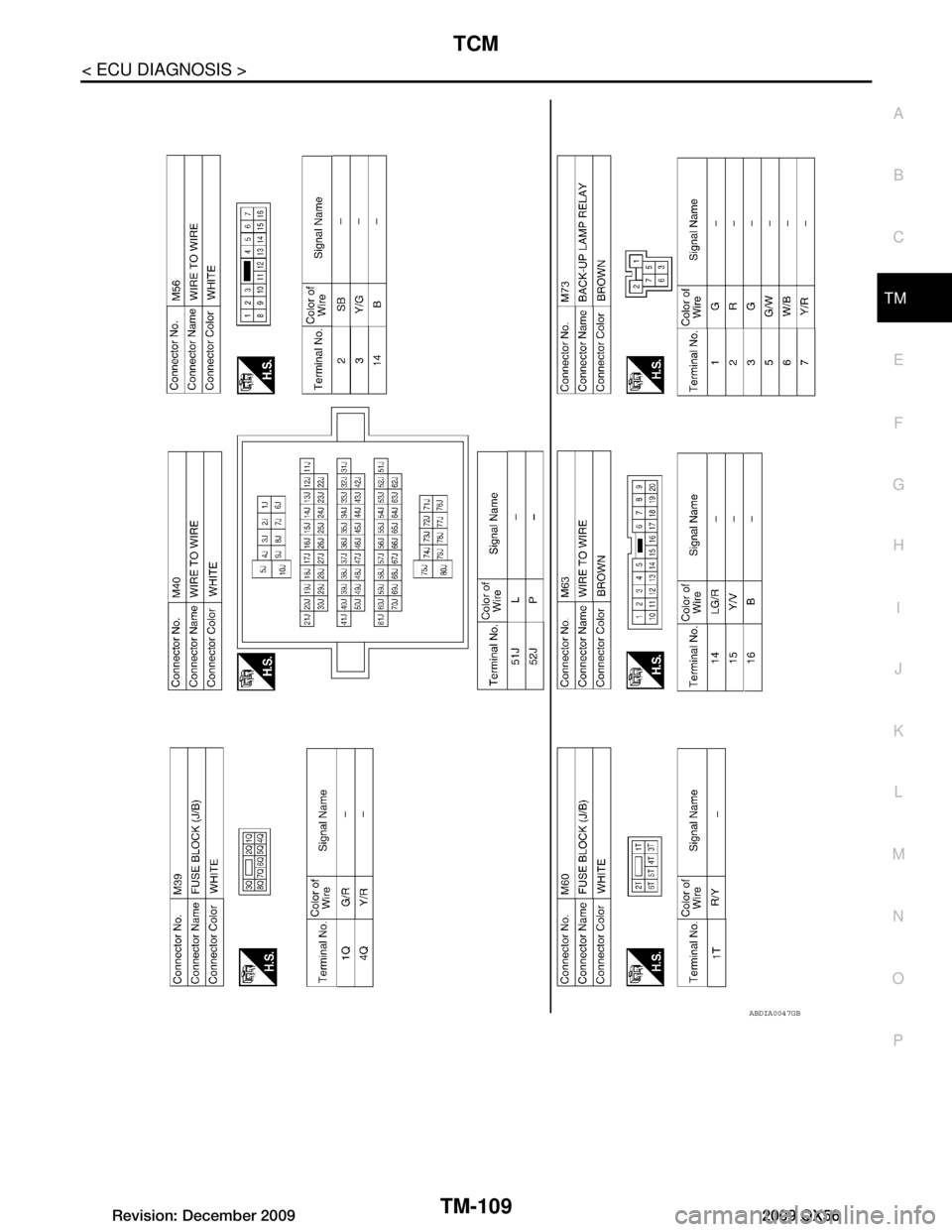

Page 3756 of 4171
TM-108
< ECU DIAGNOSIS >
TCM
ABDIA0046GB
Revision: December 20092009 QX56

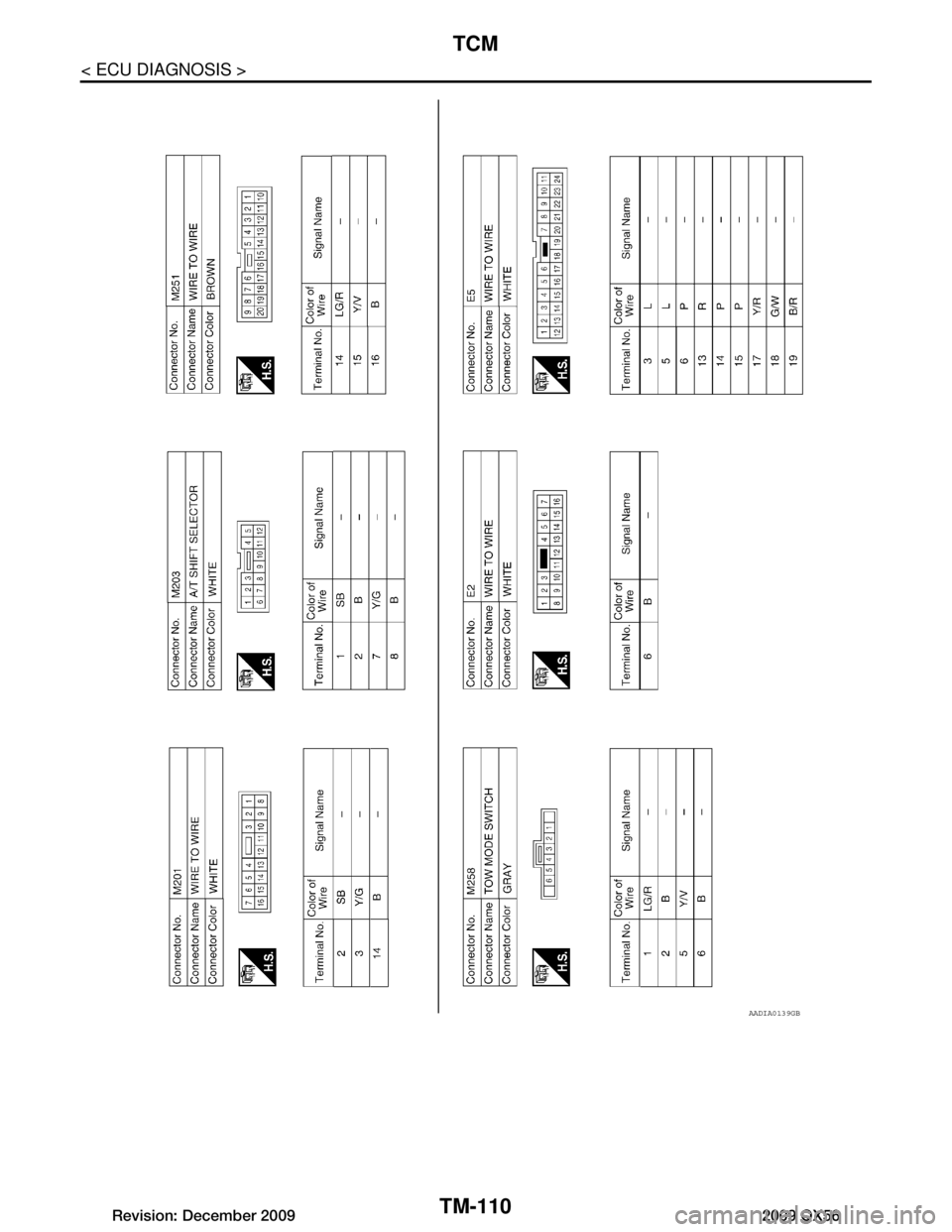

Page 3757 of 4171
TCM
TM-109
< ECU DIAGNOSIS >
C EF
G H
I
J
K L
M A
B
TM
N
O P
ABDIA0047GB
Revision: December 20092009 QX56

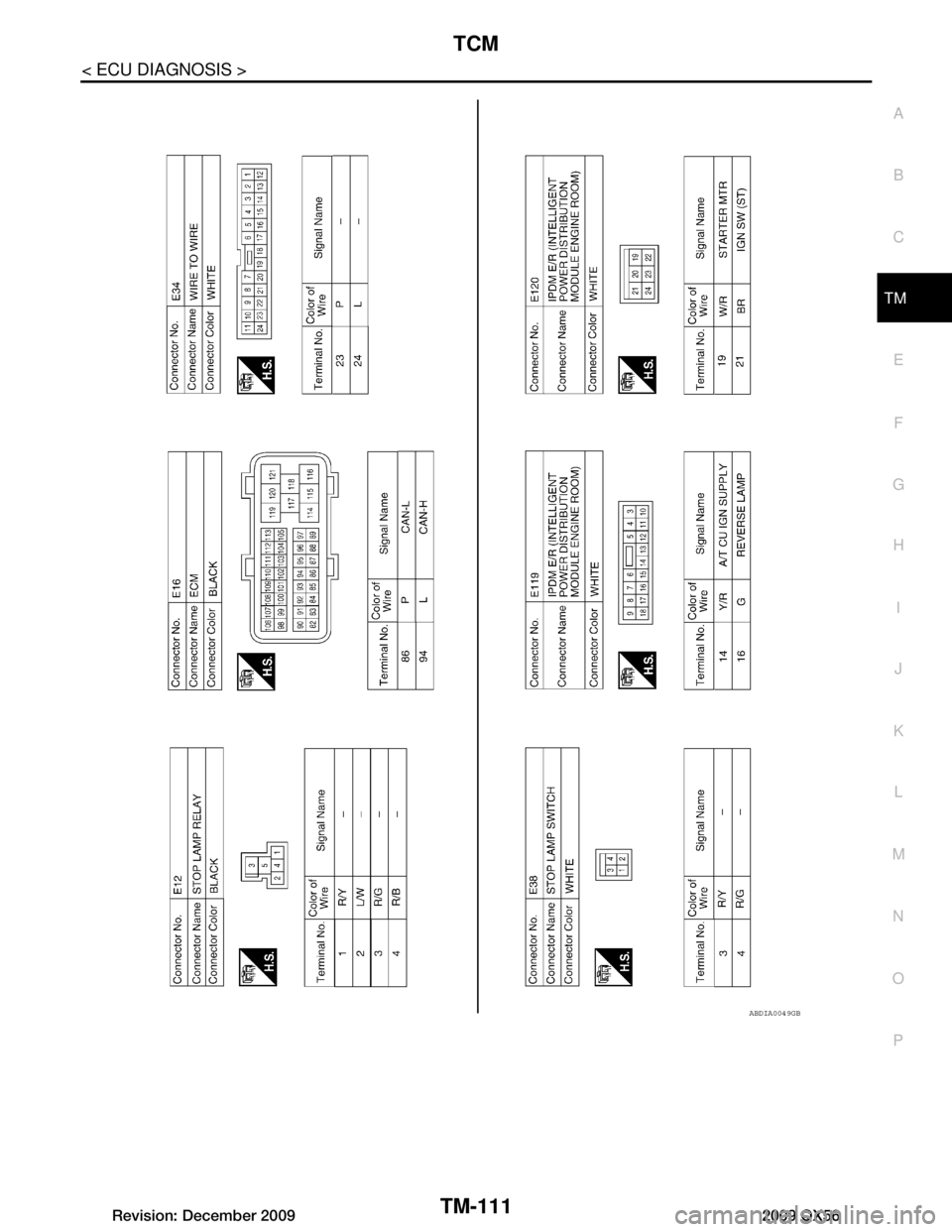

Page 3758 of 4171
TM-110
< ECU DIAGNOSIS >
TCM
AADIA0139GB
Revision: December 20092009 QX56
Page 3759 of 4171
TCM
TM-111
< ECU DIAGNOSIS >
C EF
G H
I
J
K L
M A
B
TM
N
O P
ABDIA0049GB
Revision: December 20092009 QX56
