2009 HYUNDAI TUCSON rear view mirror

F9
1. Panel Brightness Control Knob (Rheostat Switch)
2. 4WD Lock Switch (If installed)
3. Traction Control System (TCS) Switch (If installed) /
Electronic Stability Control (ESC) Switch (If installed)
4. Instrument Cluster
5. Multi-Function Light Switch (If installed)
6. Front Window Defroster (If installed) / Aux Outlet (If
installed)
7. Hazard Warning Light Switch
8. Digital Clock
9. Windshield Wiper/Washer Switch10. Rear Defroster and Outside Rearview Mirror Heater Switch
(If installed)
11. Front Fog Light Switch (If installed)
12. Passenger's Airbag
13. Hood Release Lever
14. Horn and Driver's Airbag
15. Small Article Tray / Ashtray (If installed)
16. Cruise Control Switch (If installed)
17. Heating/Air Conditioning Control Panel (If installed)
18. Shift Lever (If installed)
19. Glove Box
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster
nor on the instrument panel surface. If there is any leakage from the air freshener onto these areas
(Instrument cluster, instrument panel or air ventilator), it may damage these parts. If the liquid from the air
freshener does leak onto these areas, wash them with water immediately.
!

1
FEATURES OF YOUR HYUNDAI
65
AUX OUTLET
B380A02Y-AATRear Window Defroster SwitchThe rear window defroster and heated
outside rearview mirrors are turned on by
pushing in the switch. To turn the defroster
off, push the switch a second time. The rear
window defroster automatically turns itself
off after about 15 minutes. To restart the
defroster cycle, push in the switch again
after it has turned itself off.
HJM2104
NOTE:The engine must be running for the rear
window defroster to operate.
CAUTION:
Do not clean the inner side of the rear window
glass with an abrasive type of glass cleaner
or use a scraper to remove foreign deposits
from the inner surface of the glass as this
may cause damage to the defroster ele-
ments.
!
B380A02Y-AAT(if installed)You can use an aux outlet to connect an
audio device.NOTE:When using a portable audio device con-
nected to the power outlet, noise may
occur during playback. If this happens,
use the power source of the portable
audio device.
OJM019012

1FEATURES OF YOUR HYUNDAI74
The outside rearview mirrors can be ad-
justed to your preferred rear vision, both
directly behind the vehicle, and to the rear
of the left and right sides.
The remote control outside rearview mir-
ror switch controls the adjustments for both
right and left outside mirrors.To adjust the position of either mir-
ror:1. Move the selecting switch to the right or
left to activate the adjustable mecha-
nism for the corresponding door mirror.
2. Adjust mirror angle by depressing the
appropriate perimeter switch as illus-
trated.B510B01Y-AATElectric Type (If installed)
HJM2073
B510A01A-AATManual TypeThe outside rearview mirrors are equipped
with a remote control for your convenience.
It is operated by the control lever in the
bottom front corner of the window.
Before driving away, always check that
your mirrors are positioned so you can see
behind you, both to the left and right sides,
as well as directly behind your vehicle.
When using the mirror, always exercise
caution when attempting to judge the dis-
tance of vehicles behind or along side of
you.OUTSIDE REARVIEW MIRROR
CAUTION:
If the mirror control is jammed with ice,
do not attempt to break it free using the
control handle or by manipulating the
face of the mirror. Use an approved
spray de-icer (not radiator antifreeze) to
release the frozen mechanism or move
the vehicle to a warm place and allow the
ice to melt.
!
B510A01JM

1
FEATURES OF YOUR HYUNDAI
75
HJM2104
!

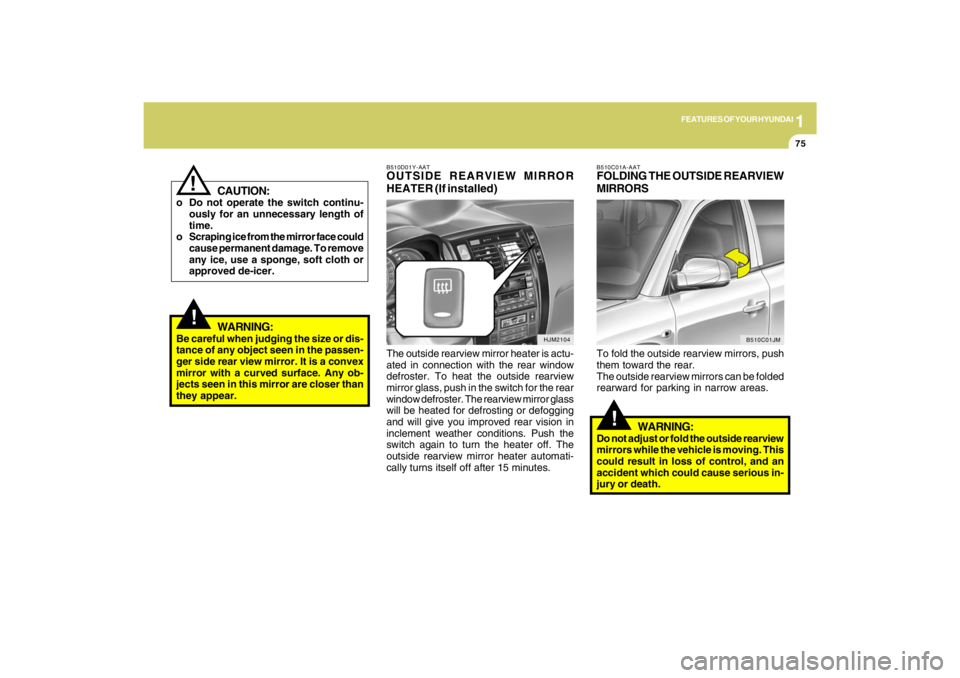

WARNING:
Be careful when judging the size or dis-
tance of any object seen in the passen-
ger side rear view mirror. It is a convex
mirror with a curved surface. Any ob-
jects seen in this mirror are closer than
they appear.
CAUTION:
o Do not operate the switch continu-
ously for an unnecessary length of
time.
o Scraping ice from the mirror face could
cause permanent damage. To remove
any ice, use a sponge, soft cloth or
approved de-icer.
!
B510D01Y-AATOUTSIDE REARVIEW MIRROR
HEATER (If installed)The outside rearview mirror heater is actu-
ated in connection with the rear window
defroster. To heat the outside rearview
mirror glass, push in the switch for the rear
window defroster. The rearview mirror glass
will be heated for defrosting or defogging
and will give you improved rear vision in
inclement weather conditions. Push the
switch again to turn the heater off. The
outside rearview mirror heater automati-
cally turns itself off after 15 minutes.
!
B510C01A-AATFOLDING THE OUTSIDE REARVIEW
MIRRORSTo fold the outside rearview mirrors, push
them toward the rear.
The outside rearview mirrors can be folded
rearward for parking in narrow areas.
WARNING:
Do not adjust or fold the outside rearview
mirrors while the vehicle is moving. This
could result in loss of control, and an
accident which could cause serious in-
jury or death.
B510C01JM

1FEATURES OF YOUR HYUNDAI76
1. To operate Compass featurePress and release the button, then the
vehicle's directional heading will be dis-
played. Pressing and releasing the button
again will turn off the display.
Heading display
- E : East
- W : West
- S : South
- N : North
ex) NE : North East2. Calibration procedurePress and hold the button for more than 9
but less than 12 seconds. When the com-
pass memory is cleared a "C" will appear
in the display.
- Driving the vehicle in a circle at less
than 5mph 2 times or until the compass
heading appears.
- Driving in a circle in right-handed direc-
tion and opposite direction are pos-
sible, and if the calibration is completed,
the compass heading will appear.
- Keep driving in a circle until a compass
heading appears.
DAY/NIGHT INSIDE REARVIEW
MIRRORB520A01A-AATManual TypeYour Hyundai is equipped with a day/night
inside rearview mirror. The "night" position
is selected by flipping the tab at the bottom
of the mirror toward you. In the "night"
position, the glare of headlights of cars
behind you is reduced.
HJM2070B520C04JM-AAT
AUTOMATIC DIMMING REAR VIEW
MIRROR WITH COMPASS
(If installed)1. Status Indicator LED
2. Feature Control Button
3. Rear Light Sensor
4. Display Window
Automatic dimming rear view mirror con-
trols automatically the glare of headlights
of the car behind you when it turned on by
pressing and holding the button for more
than 3 but less than 6 seconds.
It is turned off by pressing and holding the
button for same time once more.
B520C08JM

10
INDEX
4
K
Keys................................................................................................... 1-3
If you lose your keys ...................................................................3-19
Positions......................................................................................... 2-5
L
Light Bulbs Replacement ..................................................................6-27
Luggage Net ......................................................................................1-82
M
Maintenance Intervals
Explanation of scheduled maintenance items ............................... 5-7
Maintenance under severe usage conditions............................... 5-6
Scheduled maintenance................................................................ 5-4
Service requirements.................................................................... 5-2
Mirrors
Automatic Dimming Rear View Mirror With Compass ................1-76
Day-night inside rearview mirror .................................................1-76
Outside rearview mirror ...............................................................1-74
Outside rearview mirror Heater ..................................................1-75
O
Odometer / Trip Odometer ...............................................................1-56
Occupant Classification System ......................................................1-39
P
Parking Brake....................................................................................1-78
Power Outlet......................................................................................1-67
Power Steering Fluid Level ...............................................................6-25R
Rear Seat
Adjusting seatback angle .............................................................1-17
Folding rear seatback ..................................................................1-17
Rear Window Defroster Switch ........................................................1-65
Reporting Safety Defects (U.S.A Only)...........................................8-17
Risk of Rollover................................................................................... 2-3
Roof Rack.........................................................................................1-82
S
Seat
Front.............................................................................................1-13
Rear..............................................................................................1-17
Seat warmer .................................................................................1-16
Seat Belts
3-point system.............................................................................1-22
Pretensioner seat belt ..................................................................1-32
Adjusting your seat belt ...............................................................1-23
Care of seat belts .........................................................................1-20
Precautions..................................................................................1-19
Shop Manual ......................................................................................
8-14
Shopping Bag Holders......................................................................1-79
Sound
Brake pad warning sound ............................................................1-54
Spectacle Case.................................................................................1-71
Speedometer.....................................................................................1-55
Starting Procedure.............................................................................. 2-6
Steering Wheel Free play .................................................................6-19
Steering Wheel Tilt Lever ..................................................................1-87
Stereo Sound System ....................................................................1-109
Sunroof..............................................................................................1-68
Sun Visor...........................................................................................1-86
