Using the CD Player
The CD player can play smaller
3 inch (8 cm) single CDs with
an adapter ring.
A CD in the player it stays in the
player when the ignition is turned off.
When the ignition or radio is
turned on, the CD starts to play
where it stopped, if it was the last
selected audio source.
Loading a CD
To load a CD do one of the
following:
Single CD Radio:
To Insert a CD with the ignition
on, insert the CD partway into
the slot, label side up, until
the player pulls the CD in. The
CD begins playing automatically.
To insert a CD with the ignition
off, press
Z(Eject) or the
DISP knob rst.The CD symbol displays when a CD
is inserted, and the track number
displays when each new track starts
to play.
Six-Disc CD Radio:
LOAD:Press to load CDs into the
CD player.
To insert one CD:
1. Turn the ignition on.
2. Press and release the LOAD
button.
3. Wait for the indicator light
comes on.
4. Insert the CD partway into the
slot, label side up, until the
player pulls the CD in. The CD
begins playing automatically.To insert multiple CDs:
1. Turn the ignition on.
2. Press and hold the LOAD button
for two seconds. The radio
beeps once, the indicator light
ashes, and LOAD # is
displayed.
3. Load a CD once INSERT CD #
displays and the light stops
ashing and illuminates. Insert
the CD partway into the slot,
label side up, until the player
pulls the CD in.
4. Repeat step 3 to load the
remaining CDs.
To load more than one CD but less
than six, complete Steps 1
through 3. When nished loading
CDs, press the LOAD button
to cancel the loading function. The
last CD loaded begins playing
automatically.
Playing a CD
B(CD):Press to play a CD while
listening to the radio.
Instrument Panel 3-47

Single CD Radio:
1
r(Previous):Press to go to
the start of the current track
after more than eight seconds have
played. Press or hold 1
rmore
than once to continue moving
backward through the CD.
2
[(Next):Press to go to the
next track. Press or hold 2
[more
than once to continue moving
forward through the CD.
4
y(Random):Press to hear the
tracks in random order. Press 4
yagain to turn off random play.
tSEEKu:Press to go to the start
of the current or the previous
track. Press
uto go to the start of
the next track. To continue
moving backward or forward through
the tracks press and hold
tor
u, or press multiple times.
Z(Eject):Press to eject a CD.
Eject can be used with either
the ignition or radio off.
Six-Disc Radio:
r(Reverse):Press to reverse
within the track.
[(Fast Forward):Press to fast
forward within the track.
tSEEKu:Presstto go to the
start of the current track, if more
than ten seconds have played.
Press
uto go to the next track. To
continue moving backward or
forward through the tracks press
and hold
toru, or press multiple
times.
Press and hold
torufor more
than two seconds until SCAN
displays and a beep sounds to scan
one CD. The radio goes to the
next track, plays for 10 seconds,
then goes to the next track. Press
t
oruagain, to stop scanning.Press and hold
torufor more
than four seconds until CD
SCAN displays and a beep sounds
to scan all loaded CDs. Use this
feature to listen to 10 seconds of the
rst track of each loaded CD.
Press
toruagain, to stop
scanning.
N(Repeat):One track or an
entire CD can be repeated.
Press and releaseNto repeat
the current track. RPT ON
displays. Press again to turn off
repeat play. RPT OFF displays.
Press and holdNfor
two seconds to repeat the
current CD. RPT ON displays.
Press again to turn off repeat
play. RPT OFF displays.
3-48 Instrument Panel

Driving Your
Vehicle
Your Driving, the Road,
and the Vehicle
Driving for Better Fuel
Economy...........................4-1
Defensive Driving................4-2
Drunk Driving.....................4-2
Control of a Vehicle............4-3
Braking...............................4-3
Antilock Brake
System (ABS)...................4-5
Braking in Emergencies......4-6
StabiliTrak®System............4-6
Traction Control
System (TCS)...................4-7
Locking Rear Axle..............4-8
Locking Front Axle..............4-9
Steering............................4-10
Off-Road Recovery............4-11
Passing.............................4-12
Loss of Control.................4-12
Off-Road Driving...............4-13
Assist Steps......................4-28
Driving at Night.................4-28
Driving in Rain and on
Wet Roads......................4-29
Before Leaving on a
Long Trip........................4-30
Highway Hypnosis.............4-30
Hill and Mountain Roads. . .4-30
Winter Driving...................4-31
If Your Vehicle is
Stuck in Sand, Mud,
Ice, or Snow
...................4-33
Rocking Your Vehicle to
Get It Out.......................4-34
Recovery Loops................4-34
Loading the Vehicle..........4-35
Truck-Camper Loading
Information......................4-39
Towing
Towing Your Vehicle.........4-40
Recreational Vehicle
Towing............................4-40
Towing a Trailer................4-42
Trailer
Recommendations...........4-53
Your Driving, the
Road, and the Vehicle
Driving for Better Fuel
Economy
Driving habits can affect fuel
mileage. Here are some driving tips
to get the best fuel economy
possible.
Avoid fast starts and accelerate
smoothly.
Brake gradually and avoid abrupt
stops.
Avoid idling the engine for long
periods of time.
When road and weather
conditions are appropriate, use
cruise control, if equipped.
Always follow posted speed limits
or drive more slowly when
conditions require.
Keep vehicle tires properly
inated.
Driving Your Vehicle 4-1

And, of course, actual stopping
distances vary greatly with the
surface of the road, whether it is
pavement or gravel; the condition of
the road, whether it is wet, dry, or
icy; tire tread; the condition of
the brakes; the weight of the vehicle;
and the amount of brake force
applied.
Avoid needless heavy
braking. Some people drive in
spurts — heavy acceleration
followed by heavy braking — rather
than keeping pace with traffic.
This is a mistake. The brakes might
not have time to cool between
hard stops. The brakes will wear out
much faster with a lot of heavy
braking. Keeping pace with
the traffic and allowing realistic
following distances eliminates a lot
of unnecessary braking. That
means better braking and longer
brake life.
If the vehicle ever loses electrical
power while it is being driven, brake
normally but do not pump the
brakes. If the brakes are pumped,the pedal could get harder to push
down. If the vehicle loses electrical
power, there will still be some
power brake assist but it will be
used when the brake is applied.
Once the power assist is used up, it
can take longer to stop, the brake
pedal will be harder to push,
and you might experience longer
pedal travel.
Adding non-dealer/non-retailer
accessories can affect vehicle
performance. SeeAccessories and
Modifications on page 5-3.
Hill Start Assist
This vehicle has a Hill Start Assist
(HSA) feature, which may be
useful when the vehicle is stopped
on a grade. This feature is
designed to prevent the vehicle from
rolling, either forward or rearward,
during vehicle drive off. After
the vehicle is stopped on an incline,
push the brake pedal completely
to the oor to activate Hill StartAssist. When the system activates,
a chime will sound and the HSA
ON message will be displayed.
Letting off the brake pedal slightly or
applying the accelerator pedal to
disengage Hill Start Assist gives the
driver two seconds to pull forward
or back up before the vehicle
starts to roll. Lightly ease off the
brake pedal to disengage Hill
Start Assist. The brakes will
automatically be held for a maximum
of two seconds while the driver
switches from applying the brakes
to pushing the accelerator pedal.
When Hill Start Assist is active, the
driver might experience a “hard
pedal.” This is normal and does not
affect safe brake operation.
On steeper hills, Hill Start Assist will
only activate if the driver tries to
move the vehicle up the hill. It will
not activate if the vehicle is in a
drive gear and facing downhill or if
the vehicle is facing uphill and
in R (Reverse).
4-4 Driving Your Vehicle

Antilock Brake
System (ABS)
This vehicle has the Antilock Brake
System (ABS), an advanced
electronic braking system that will
help prevent a braking skid.
When the engine is started and the
vehicle begins to drive away,
ABS checks itself. A momentary
motor or clicking noise might
be heard while this test is going on.
This is normal.
If there is a problem with ABS, this
warning light stays on. See
Antilock Brake System (ABS)
Warning Light on page 3-28.Let us say the road is wet and you
are driving safely. Suddenly, an
animal jumps out in front of you. You
slam on the brakes and continue
braking. Here is what happens
with ABS:
A computer senses that the wheels
are slowing down. If one of the
wheels is about to stop rolling, the
computer will separately work
the brakes at each wheel.
ABS can change the brake pressure
to each wheel, as required, faster
than any driver could. This can help
the driver steer around the
obstacle while braking hard.
As the brakes are applied, the
computer keeps receiving updates
on wheel speed and controls braking
pressure accordingly.Remember: ABS does not change
the time needed to get a foot
up to the brake pedal or always
decrease stopping distance. If you
get too close to the vehicle in
front of you, there will not be enough
time to apply the brakes if that
vehicle suddenly slows or stops.
Always leave enough room up
ahead to stop, even with ABS.
Using ABS
Do not pump the brakes. Just hold
the brake pedal down rmly and
let antilock work. The brakes might
vibrate or some noise might be
heard, but this is normal.
Driving Your Vehicle 4-5

Braking in Emergencies
ABS allows the driver to steer
and brake at the same time. In many
emergencies, steering can help
more than even the very best
braking.
Brake Assist
This vehicle has a Brake Assist
feature designed to assist the driver
in stopping or decreasing vehicle
speed in emergency driving
conditions. This feature uses the
stability system hydraulic brake
control module to supplement the
power brake system under
conditions where the driver has
quickly and forcefully applied
the brake pedal in an attempt to
quickly stop or slow down the
vehicle. The stability system
hydraulic brake control module
increases brake pressure at each
corner of the vehicle until the
ABS activates. Minor brake pedal
pulsations or pedal movement
during this time is normal and the
driver should continue to applythe brake pedal as the driving
situation dictates The Brake Assist
feature will automatically disengage
when the brake pedal is released
or brake pedal pressure is quickly
decreased.
StabiliTrak®System
The vehicle has a vehicle stability
enhancement system called
StabiliTrak. It is an advanced
computer controlled system that
assists the driver with directional
control of the vehicle in difficult
driving conditions.
StabiliTrak activates when the
computer senses a discrepancy
between the intended path and the
direction the vehicle is actually
traveling. StabiliTrak selectively
applies braking pressure at any one
of the vehicle’s brakes to assist
the driver with keeping the vehicle
on the intended path.
When the vehicle is started and
begins to move, the system
performs several diagnostic checksto insure there are no problems.
The system may be heard or
felt while it is working. This is normal
and does not mean there is a
problem with the vehicle.
If cruise control is being used when
StabiliTrak activates, the cruise
control automatically disengages.
The cruise control can be
re-engaged when road conditions
allow. SeeCruise Control on
page 3-9.
If there is a problem detected with
StabiliTrak, a SERVICE STAB
SYS message displays on the Driver
Information Center (DIC). See
DIC Warnings and Messages on
page 3-37for more information.
When this message is displayed, the
system is not working. Adjust your
driving accordingly.
StabiliTrak comes on automatically
whenever the vehicle is started
and resets itself at each ignition
cycle. However, when the transfer
case is placed in Four-Wheel-Low
Lock mode, StabiliTrak is
4-6 Driving Your Vehicle

Scanning the Terrain
Off-road driving can take you over
many different kinds of terrain.
Be familiar with the terrain and its
many different features.
Surface Conditions:Off-roading
surfaces can be hard-packed
dirt, gravel, rocks, grass, sand,
mud, snow, or ice. Each of these
surfaces affects the vehicle’s
steering, acceleration, and braking
in different ways. Depending on
the surface, slipping, sliding, wheel
spinning, delayed acceleration,
poor traction, and longer braking
distances can occur.
Surface Obstacles:Unseen or
hidden obstacles can be hazardous.
A rock, log, hole, rut, or bump
can startle you if you are not
prepared for them. Often these
obstacles are hidden by grass,
bushes, snow, or even the rise and
fall of the terrain itself.Some things to consider:Is the path ahead clear?
Will the surface texture change
abruptly up ahead?
Does the travel take you uphill or
downhill?
Will you have to stop suddenly or
change direction quickly?
When driving over obstacles or
rough terrain, keep a rm grip on the
steering wheel. Ruts, troughs, or
other surface features can jerk the
wheel out of your hands.
When driving over bumps, rocks, or
other obstacles, the wheels can
leave the ground. If this happens,
even with one or two wheels,
you cannot control the vehicle as
well or at all.
Because you will be on an unpaved
surface, it is especially important
to avoid sudden acceleration,
sudden turns, or sudden braking.Off-roading requires a different
kind of alertness from driving on
paved roads and highways. There
are no road signs, posted speed
limits, or signal lights. Use
good judgment about what is safe
and what is not.Crossing Obstacles
Approach Angle — a Key to
Mobility
If you encounter a large dip in the
terrain, do not enter straight on;
enter at an angle — 15° minimum
approach (A), 75° maximum
approach angle (B).
Driving Your Vehicle 4-19

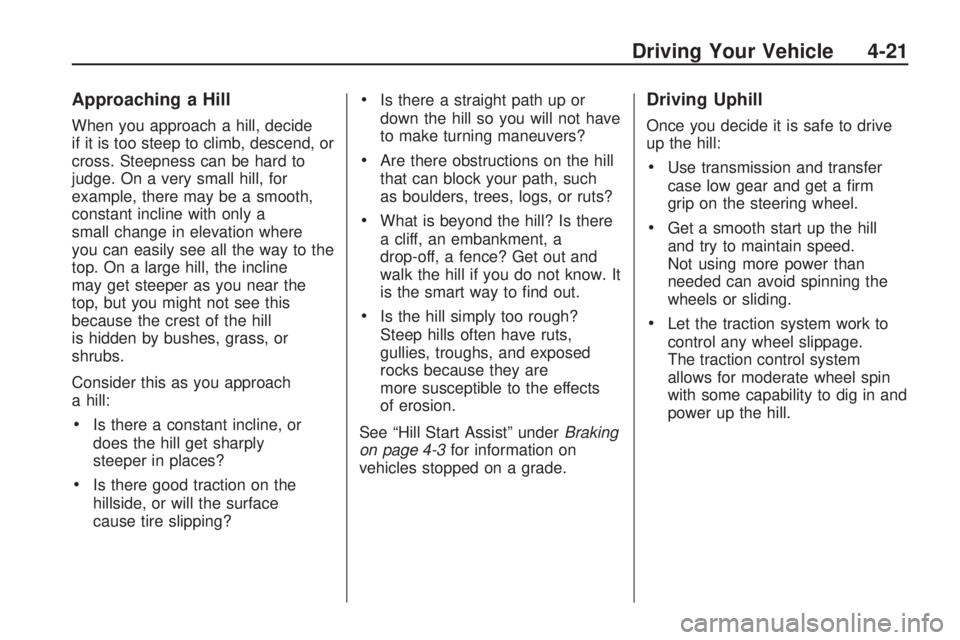

Approaching a Hill
When you approach a hill, decide
if it is too steep to climb, descend, or
cross. Steepness can be hard to
judge. On a very small hill, for
example, there may be a smooth,
constant incline with only a
small change in elevation where
you can easily see all the way to the
top. On a large hill, the incline
may get steeper as you near the
top, but you might not see this
because the crest of the hill
is hidden by bushes, grass, or
shrubs.
Consider this as you approach
a hill:
Is there a constant incline, or
does the hill get sharply
steeper in places?
Is there good traction on the
hillside, or will the surface
cause tire slipping?
Is there a straight path up or
down the hill so you will not have
to make turning maneuvers?
Are there obstructions on the hill
that can block your path, such
as boulders, trees, logs, or ruts?
What is beyond the hill? Is there
a cliff, an embankment, a
drop-off, a fence? Get out and
walk the hill if you do not know. It
is the smart way to nd out.
Is the hill simply too rough?
Steep hills often have ruts,
gullies, troughs, and exposed
rocks because they are
more susceptible to the effects
of erosion.
See “Hill Start Assist” underBraking
on page 4-3for information on
vehicles stopped on a grade.
Driving Uphill
Once you decide it is safe to drive
up the hill:
Use transmission and transfer
case low gear and get a rm
grip on the steering wheel.
Get a smooth start up the hill
and try to maintain speed.
Not using more power than
needed can avoid spinning the
wheels or sliding.
Let the traction system work to
control any wheel slippage.
The traction control system
allows for moderate wheel spin
with some capability to dig in and
power up the hill.
Driving Your Vehicle 4-21
