2009 HONDA ODYSSEY Owners Manual

Your vehicle is equipped with the
Michelin PAX system. Since each
Michelin PAX system tire has an
inner support ring that allows it to
continue running without air, it may
be dif f icult to immediately judge
f rom its appearance if a tire is
punctured. Your vehicle is also
equipped with a tire pressure
monitoring system (TPMS), and this
system may be your f irst detection of
a f lat tire.The TPMS monitors the air pressure
of all f our tires whenever the ignition
switch is in the ON (II) position. It
will immediately sense if a tire starts
to lose its pressure, and give you
warning with the low tire pressure/
TPMS indicator in the instrument

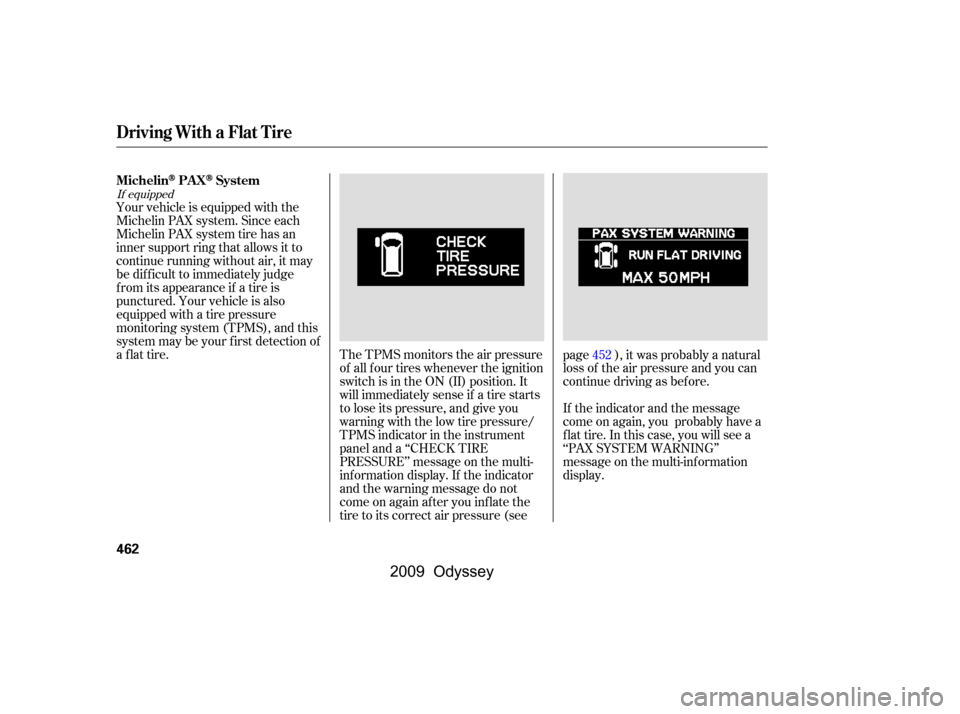

panel and a ‘‘CHECK TIRE
PRESSURE’’ message on the multi-
inf ormation display. If the indicator
and the warning message do not
come on again af ter you inf late the
tire to its correct air pressure (see page ), it was probably a natural
loss of the air pressure and you can
continue driving as bef ore.
If the indicator and the message
come on again, you probably have a
flat tire. In this case, you will see a
‘‘PAX SYSTEM WARNING’’
message on the multi-information
display.
452
If equipped
Driving With a Flat Tire
MichelinPAXSystem
462
\f—\f—
y


\fy
(\fy\fy
2009 Odyssey

With the PAX system tires, you can
drive up to about 125 miles (200 km)
even if one or more of your tires are
punctured. This allows you to drive
to the nearest Honda dealer or
authorized Michelin PAX system
dealer to have the tire(s) repaired.
If you get a f lat tire, never try to
repair it yourself , and never replace a

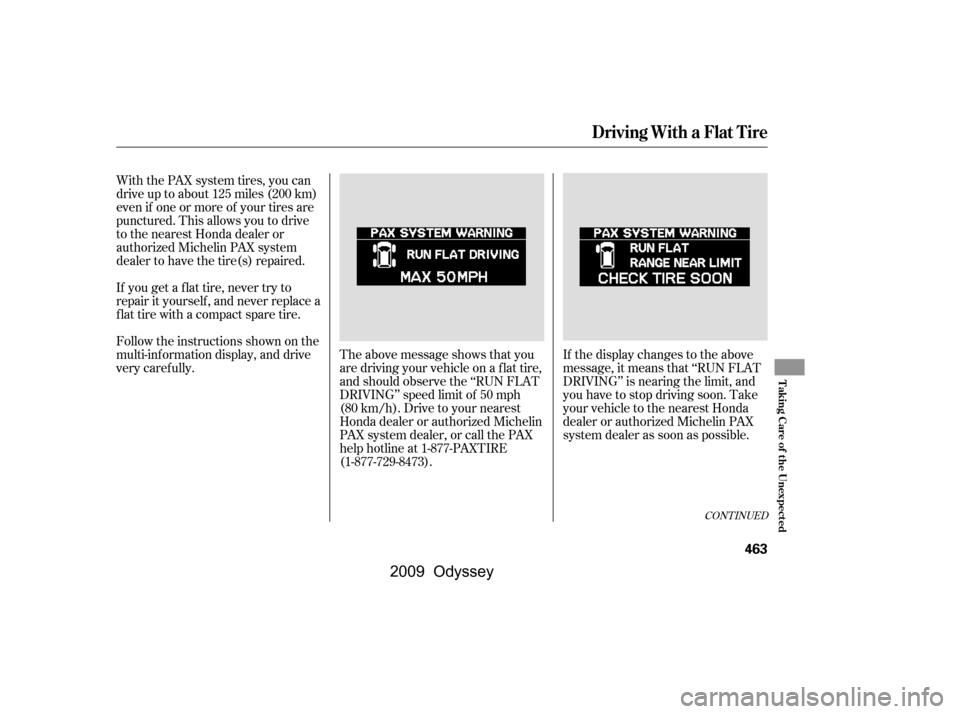

flat tire with a compact spare tire.The above message shows that you
are driving your vehicle on a flat tire,
andshouldobservethe‘‘RUNFLAT
DRIVING’’ speed limit of 50 mph
(80 km/h). Drive to your nearest
Honda dealer or authorized Michelin
PAX system dealer, or call the PAX
help hotline at 1-877-PAXTIRE
(1-877-729-8473).If the display changes to the above
message, it means that ‘‘RUN FLAT
DRIVING’’ is nearing the limit, and
you have to stop driving soon. Take
your vehicle to the nearest Honda
dealer or authorized Michelin PAX
system dealer as soon as possible.
Follow the instructions shown on the
multi-inf ormation display, and drive
very caref ully.
CONT INUED
Driving With a Flat Tire
T aking Care of t he Unexpect ed
463
\f—\f—
y


y
(\fy\fy
2009 Odyssey

If you see the above message on the
multi-inf ormation display, you have
reached the limit of run f lat driving,
and you should stop driving
immediately. Be aware that if you
continue to drive, the noise and
vibration level f rom the tire will
increase signif icantly, and the tire
may no longer be repairable.Stop driving immediately when
you see a ‘‘RUN FLAT LIMIT
STOP DRIVING’’ message on the
multi-inf ormation display.
Continuous driving af ter this
message will make it impossible to
repair the tire.
If you cannot f ind a Honda dealer or
an authorized Michelin PAX system
dealer where you are driving, call the
PAX help hotline at 1-877-PAXTIRE
(1-877-729-8473).
Call a prof essional towing service
who can transport your vehicle on
f lat-bed equipment. Never tow your vehicle behind another vehicle with a
rope or chain. Flat-bed equipment is
the best way to transport your
vehicle. Your vehicle can also be
towed by wheel-lif t equipment with
the wheels of f the ground (see page
).
Although your vehicle is capable of
runflatdriving,youshouldalways
observe the f ollowing: Do not drive f aster than 50 mph
(80 km/h).
Drive caref ully. Your vehicle may
handle dif f erently f rom when the
tires are properly inf lated,
especially when cornering.
In its run f lat mode, a PAX system
tire is somewhat noisier than when
it is f ully inf lated. This is normal.
488
Driving With a Flat Tire
Important Saf ety Precautions
464
\f—\f—
y

y
(\fy\fy
2009 Odyssey

Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed f or mounting a regular tire.
Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced,
and put it back on your vehicle as
soon as you can.
Check the inf lation pressure of the
compact spare tire every time you
check the other tires. It should be
inf lated to:
Follow these precautions:
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road
surf aces. Use greater caution
while driving.
Do not mount snow chains on the
compact spare tire. Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
The low tire pressure indicator
comes on and stays on af ter you
replace the flat tire with the
compact spare tire. Af ter several
miles (kilometers) driving with the
compact spare tire, the TPMS
indicator comes on and the low
tire pressure indicator goes of f .
After the flat tire is replaced with
the spare tire, the low tire
pressure/TPMS indicator stays on.
Af ter several miles (kilometers)
driving with the spare, this
indicator begins to f lash, then
stays on again. You will also see a
‘‘CHECK TPMS SYSTEM’’
message on the multi-inf ormation
display (see page ).
403
Models without Michelin PAX System
Except Touring models
Touring models
Compact Spare T ire
T aking Care of t he Unexpect ed
465
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm)
\f—\f—
y

y
(\fy\f\fy
2009 Odyssey

The jack is behind a cover in the
cargo area on the driver’s side,
and tools are on the back of the
cover. Remove the cover by
pushing the tabs down and pulling
the cover out.
Open the tailgate.
If you have a f lat tire while driving,
stop in a saf e place to change it.
Drive slowly along the shoulder until
you get to an exit or an area that is
far away from the traffic lanes.
Park the vehicle on f irm, level, and
non-slippery ground. Put the
transmission in Park. Apply the
parking brake.
If you are towing a trailer, unhitch
it.
Turn on the hazard warning lights,
and turn the ignition switch to the
LOCK (0) position. Have all
passengers get out of the vehicle
while you change the tire.
2.
1.3.
Models without Michelin PAX System
Changing a Flat Tire
466
JACK
SPARE TIRE
TOOLS
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
——
y

y
(y
y
2009 Odyssey

CONT INUED

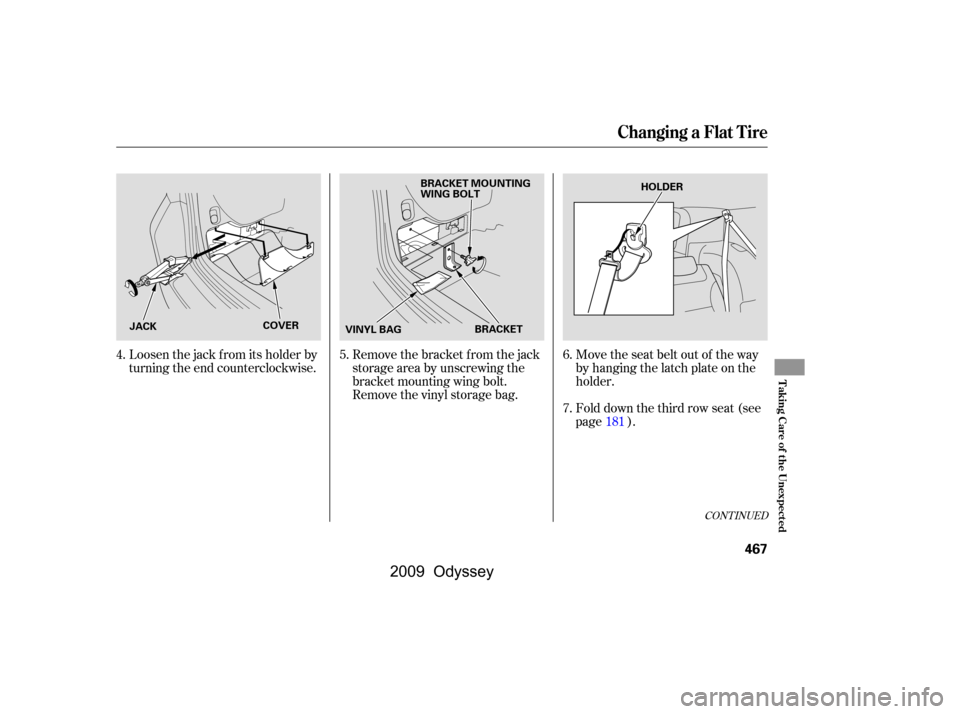

Loosen the jack from its holder by
turning the end counterclockwise.Remove the bracket from the jack
storageareabyunscrewingthe
bracket mounting wing bolt.
Remove the vinyl storage bag.Move the seat belt out of the way
by hanging the latch plate on the
holder.
Fold down the third row seat (see
page ).
6.
7.
5.
4.
181
Changing a Flat Tire
T aking Care of t he Unexpect ed
467
VINYL BAG
JACK
COVER BRACKET MOUNTING
WING BOLT
HOLDER
BRACKET
\f—\f—
y


y
(\fy\fy
2009 Odyssey

The spare tire is stored behind spare
tire cover on the sidewall of the
cargo area on the driver’s side.Placethejackunderthejacking
point nearest the tire you need to
change. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
Remove the cover by holding the
two handles on the spare tire
cover and pulling the cover out. If you are changing a rear tire,
close the sliding door.
Unscrew the tire mounting wing
bolt, and take the spare tire out of
its holder. Make sure you also turn of f the
sliding door main switch.
Loosen each wheel nut 1/2 turn
with the wheel nut wrench.
8.
9. 10.
12.
11.
On EX, EX-L, Touring models
Changing a Flat Tire
468
SEAT BELT
COVER
TIRE MOUNTING
WING BOLT
SPACER CONE
WHEEL NUT WRENCHWHEEL NUTS
\f—\f—
y

\f
y
(\fy\fy
2009 Odyssey

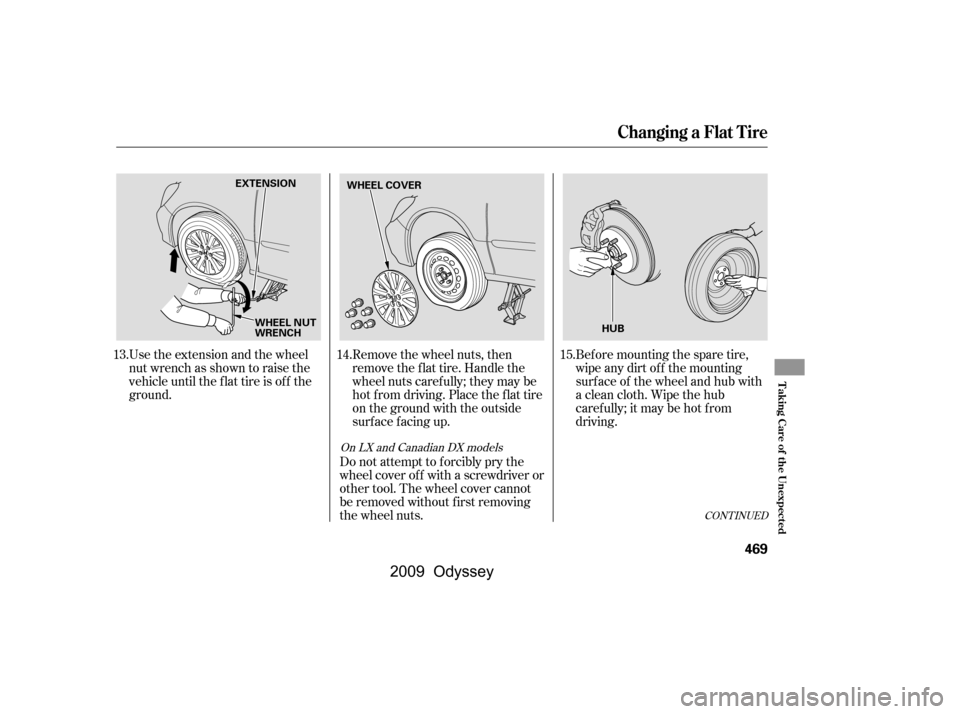

Use the extension and the wheel
nut wrench as shown to raise the
vehicle until the f lat tire is of f the
ground.Bef ore mounting the spare tire,
wipe any dirt of f the mounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
Do not attempt to forcibly pry the
wheel cover of f with a screwdriver or
other tool. The wheel cover cannot
be removed without f irst removing
the wheel nuts. Remove the wheel nuts, then
remove the f lat tire. Handle the
wheel nuts caref ully; they may be
hot from driving. Place the flat tire
on the ground with the outside
surface facing up.
13.
14.15.
CONT INUED
On LX and Canadian DX models
Changing a Flat Tire
T aking Care of t he Unexpect ed
469
EXTENSION
WHEEL COVER
HUB
WHEEL NUT
WRENCH
\f—\f—
y

\fy
(\fy\fy
