2009 HONDA ODYSSEY Owners Manual

To remove f og f rom the inside of the
windows:To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel next to each vent.
This sends more warm air to the
windshield def roster vents. Once the
windshield is clear, select f resh air
mode to avoid f ogging the windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
you can
cool it down more rapidly by partially
opening the windows, turning on the
air conditioning, and setting the f an
to maximum speed in f resh air mode.
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C). Switch the f an on.
Turn on the air conditioning.
Select and fresh air mode.
Adjust the temperature to your
pref erence.
When you switch to another mode
f rom , the A/C turns of f . But
if it was on to start with, it stays on.Set the f an to high.
Select . The system
automatically switches to the fresh
air mode and turns on the A/C.
The indicator in the A/C button
will not come on (LX and Canadian
DX models), or the A/C ON
indicator will not come on (EX,
EX-L, Touring and Touring PAX
models), if the A/C was of f to
start with.
Adjust the temperature so the
airflow feels warm.
Select to help clear the
rear window.
Select . The system
automatically switches to f resh air
mode and turns on the A/C.
The indicator in the A/C button
will not come on (LX and Canadian
DX models), or the A/C ON
indicator will not come on (EX,
EX-L, and Touring models), if the
A/C was off to start with.
Select .
Set the f an and temperature
controls to maximum level.
1.
2.
3.
4. 1.
1.
2.
3.
4. 2.
3.
If the interior is very warm,
Vents, Heating, and A/C
T o Def og and Def rost
T o Remove Exterior Frost or Ice
From the Windows
Dehumidif y the Interior
214
\f—\f—
y

y
(\fy\f
y
2009 Odyssey

If you set the temperature to its
lower or its upper limit, the system
runs at f ull cooling or heating only. It
does not regulate the interior
temperature.
When you press a f an control button,
the fan is taken out of AUTO mode.To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
In AUTO mode, the rear passenger
compartment temperature is also
regulated independently.
In AUTO mode, the vehicle’s interior
temperature is independently
regulated f or the driver and
passenger. If the driver’s side of the
vehicle is getting too much sun, the
system will adjust to a lower
temperature.
The automatic climate control
system adjusts the f an speed and
airflow levels to maintain the interior
temperature you select.
Press the Auto button. The
indicator in the button comes on.
Set the desired temperature with
the temperature control button.
You will see AUTO in the system’s
display. You can set the driver’s
side temperature and passenger’s
side temperature and the
temperature of the rear passenger
compartment separately. The
system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your pref erence. You can manually select various
f unctions of the climate control
system when it is in f ully automatic
mode. All other f eatures remain
automatically controlled. Making any
manual selection causes the word
AUTO in the display to go out.
Turn the f an speed and temperature
control dials all the way to the lef t,
and turn the rear controller dial to
the OFF position.
Press the OFF button and the REAR
ON/OFF button (indicator is of f ).
Keep the system completely of f
f or short periods only.
1.
2.
On EX, EX-L and Touring models
On models with navigation system
On LX and Canadian DX models
On EX, EX-L and Touring models
On EX, EX-L and Touring models
Vents, Heating, and A/C
Using A utomatic Climate ControlSemi-automatic Operation
To Turn Everything Off
Features
215
\f—\f—
y

\fy
(\fy\f\fy
2009 Odyssey

µ
µ With the dial in this position,
the rear control panel can be used by
a second row passenger to adjust the
rear fan speed, airflow, and
temperature.
The climate control system f or your
vehicle can also be operated by voice
control. See the navigation section in
your quick start guide f or an
overview of this system, and the
navigation system manual f or
complete details.
You can adjust the airflow of the rear
A/C unit with the rear controller dial
on the f ront control panel. The rear
passengers can also adjust the
direction and the amount of airf low
on the rear control panel. You can adjust the temperature of
the rear A/C unit with the REAR
button and the rear temperature
control switch on the f ront control
panel.
The rear passengers can also adjust
the f an speed, temperature, and
airf low of the rear A/C unit with the
rear control panel.
With the dial in this position,
no air flows to the rear vents. The
rear control panel cannot be used by
a second row passenger to adjust the
rear A/C. Turning the dial clockwise
changes the f an speed to the rear
passengers.
(On f ront control panel)
On models with navigation system
On LX and Canadian DX models On LX and Canadian DX models
On EX, EX-L and Touring models
Vents, Heating, and A/C
Voice Control System
ON
Using the Rear A/C Unit
Rear Controller Dial
OFF
216
\f—\f—
y


y
(\fy\f
y
2009 Odyssey

µµ

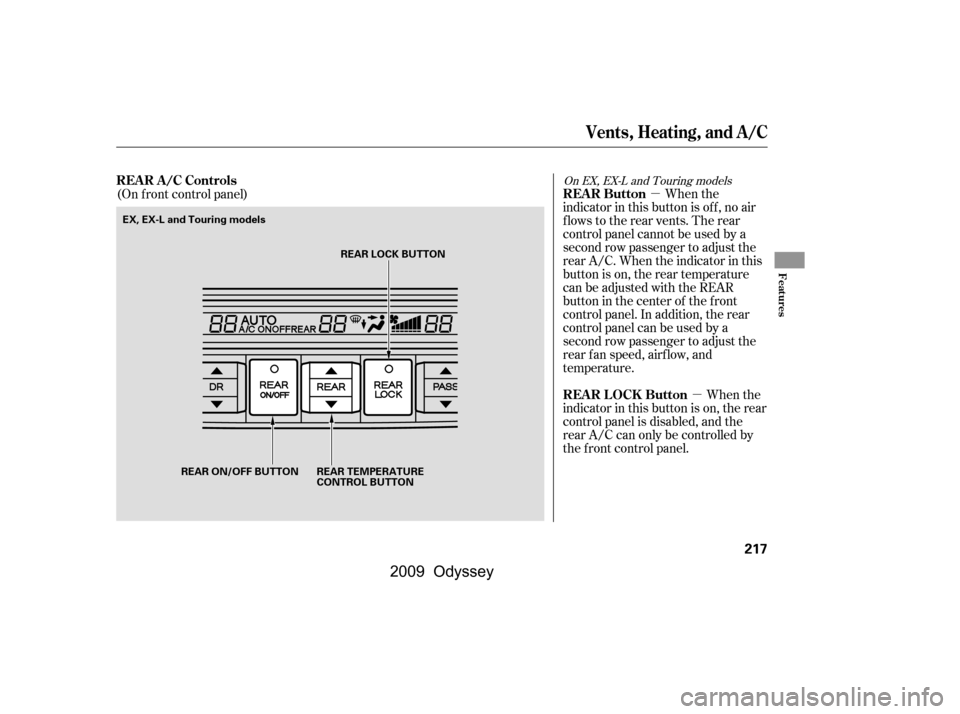

When the
indicator in this button is of f , no air
flows to the rear vents. The rear
control panel cannot be used by a
second row passenger to adjust the
rear A/C. When the indicator in this
button is on, the rear temperature
can be adjusted with the REAR
button in the center of the f ront
control panel. In addition, the rear
control panel can be used by a
second row passenger to adjust the
rearfanspeed,airflow,and
temperature.
When the
indicator in this button is on, the rear
control panel is disabled, and the
rear A/C can only be controlled by
the f ront control panel.
(On f ront control panel)
On EX, EX-L and Touring models
Vents, Heating, and A/C
REAR A/C Controls
REAR Button
REAR LOCK Button
Features
217
REAR LOCK BUTTON
REAR TEMPERATURE
CONTROL BUTTON
REAR ON/OFF BUTTON
EX, EX-L and Touring models
\f—\f—
y

y
(\fy\fy
2009 Odyssey

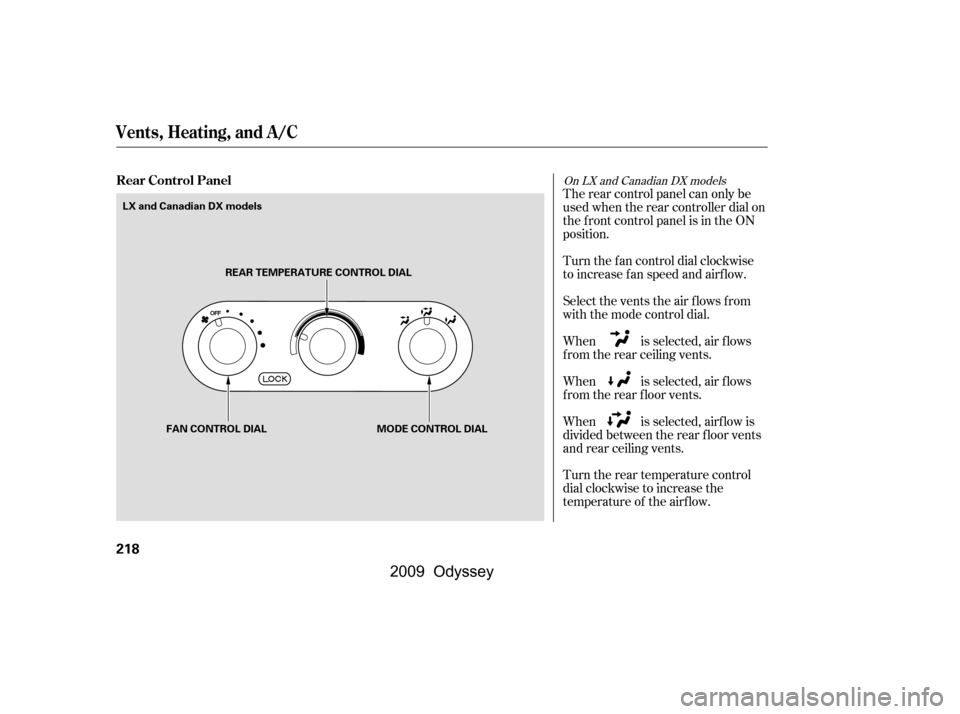

Turn the rear temperature control
dial clockwise to increase the
temperature of the airflow.
When is selected, airf low is
divided between the rear f loor vents
and rear ceiling vents.
When is selected, air f lows
f rom the rear f loor vents.
When is selected, air f lows
f rom the rear ceiling vents.
Select the vents the air flows from
with the mode control dial.
Turn the fan control dial clockwise
to increase f an speed and airf low.
The rear control panel can only be
used when the rear controller dial on
the f ront control panel is in the ON
position.
On LX and Canadian DX modelsRear Control Panel
Vents, Heating, and A/C
218
MODE CONTROL DIAL
REAR TEMPERATURE CONTROL DIAL
FAN CONTROL DIAL
LX and Canadian DX models
\f—\f—
y

y
(\fy\fy
2009 Odyssey

ÛÝ
Û Ý Press the top ( ) of the f an control
button to increase the f an speed and
airf low. Press the bottom ( ) of the
button to decrease it. The level of
the f an speed is shown in the display.
Each time you press the mode
button, the mode display changes
from , to , then to
.
When is selected, air f lows
f rom the rear ceiling vents.
When is selected, air f lows
f rom the rear f loor vents.
When is selected, airf low is
divided between the rear f loor vents
and rear ceiling vents. Pressing the AUTO button puts the
system in automatic operation mode.
The rear system automatically
adjusts the fan speed and airflow
levels to maintain the selected
temperature of the rear passenger
compartment.
Pressing the OFF button shuts off
the rear climate control system.
The rear control panel can only be
used when the indicator in the REAR
LOCK button on the f ront control
panel is off.

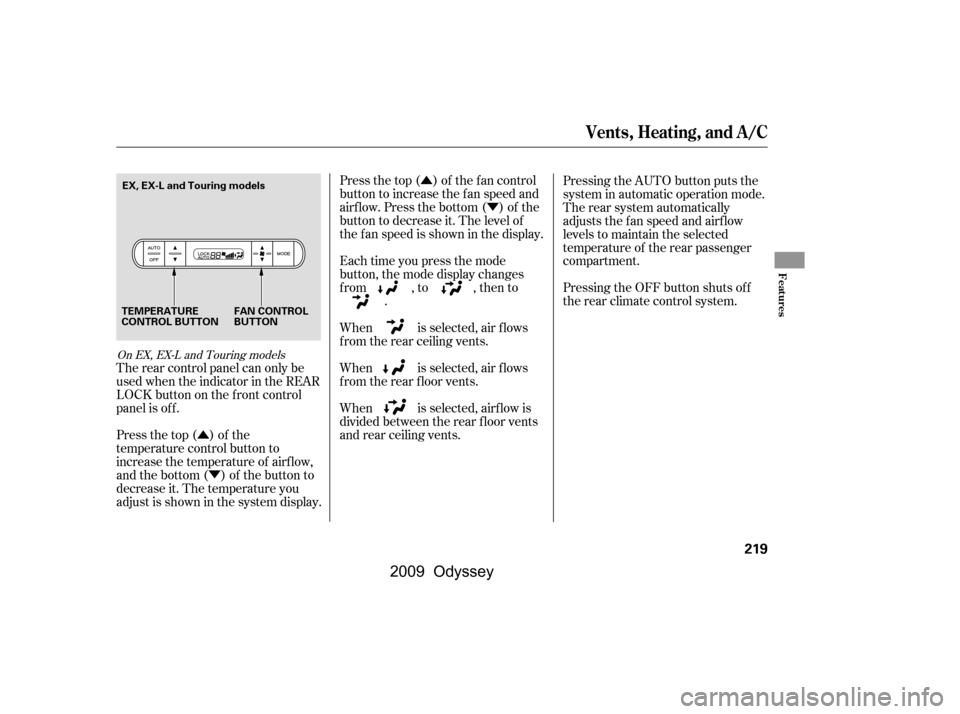

Press the top ( ) of the
temperature control button to
increase the temperature of airf low,
and the bottom ( ) of the button to
decrease it. The temperature you
adjust is shown in the system display.
On EX, EX-L and Touring models
Vents, Heating, and A/C
Features
219
TEMPERATURE
CONTROL BUTTON FAN CONTROL
BUTTON
EX, EX-L and Touring models
\f—\f—
y

y
(\fy\fy
2009 Odyssey

The direction and quantity of airf low
f rom each rear ceiling vent is
adjustable.
To adjust the direction of air coming
f rom a rear ceiling vent, move the
tab in the center of each vent back-
and-forth, and rotate the vent with
the tab. The lever next to each vent
can be opened and closed to regulate
the amount of airf low.Theclimatecontrolsystemhasthree
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. There is also a rear
sensor on the rear sidewall near the
exhaust vent. Do not cover the
sensors or spill any liquid on them.
On EX, EX-L and Touring models
Sunlight and T emperature
Sensors
Rear Ceiling Vents
Vents, Heating, and A/C, Climate Control Sensors
220
SUNLIGHT SENSOR TEMPERATURE SENSOR
TAB
LEVER
\f—\f—
y

\fy
(\fy\fy
2009 Odyssey

An audio system is standard on all
models. Read the appropriate pages
(as shown below) to use your
vehicle’s audio system.
On LX and Canadian DX models, see
pages through .
For vehicles without navigation
system, see pages through .
For vehicles with navigation system,
see pages through .
For vehicles with rear entertainment
system, see pages through .234251
252271 285317
222233
CONT INUED
Audio System
Features
221
EX and EX-L models
EX-L model with Rear Entertainment
System U.S. EX-L and Touring models with
Rear Entertainment System with
Navigation System
LX and Canadian DX models
