2009 FORD EXPEDITION Owners Manual

3. Press the RESET stem for the next SETUP MENU item or wait for
more than four seconds to return to the INFO MENU (“HOLD RESET
FOR SETUP MENU” will appear).

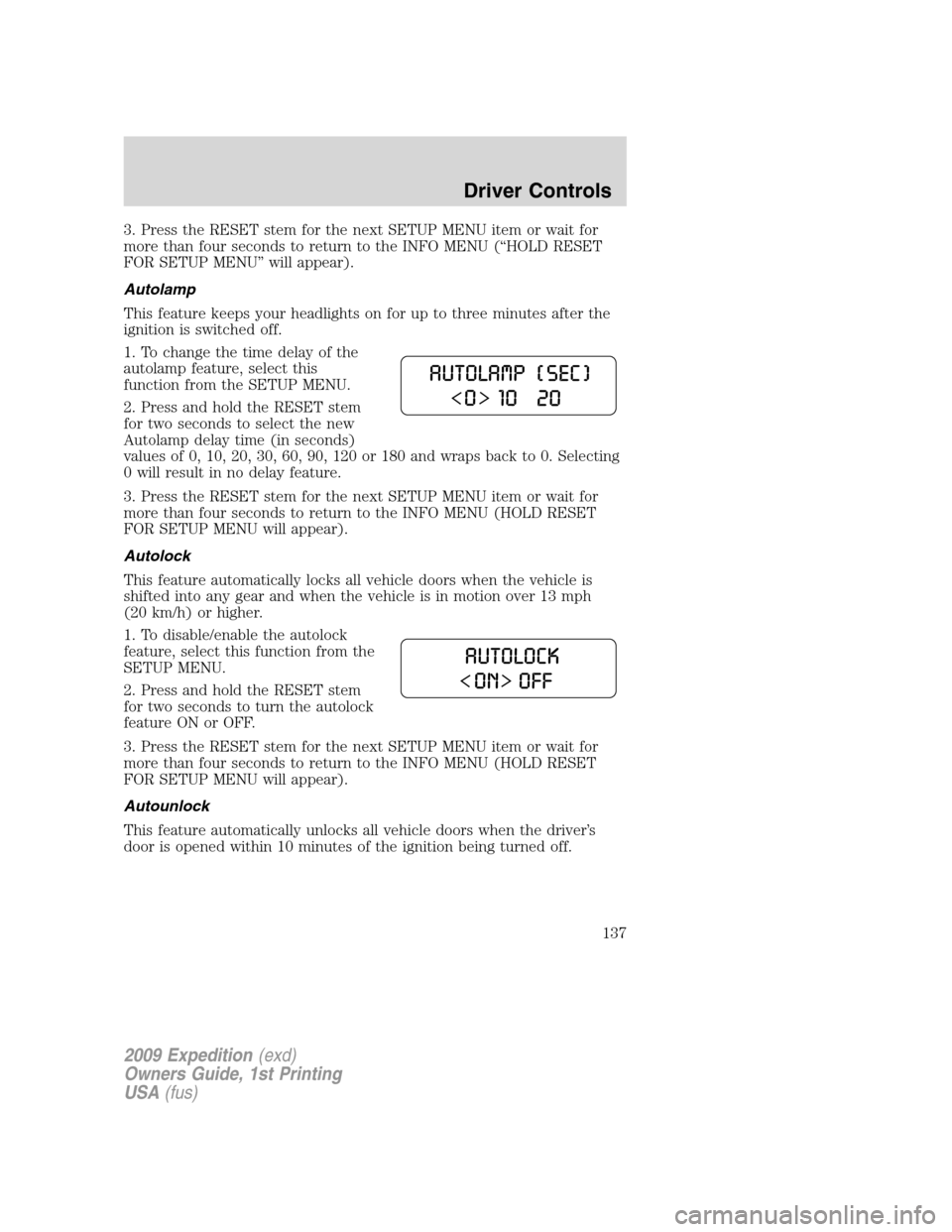

Autolamp
This feature keeps your headlights on for up to three minutes after the
ignition is switched off.
1. To change the time delay of the
autolamp feature, select this
function from the SETUP MENU.
2. Press and hold the RESET stem
for two seconds to select the new
Autolamp delay time (in seconds)
values of 0, 10, 20, 30, 60, 90, 120 or 180 and wraps back to 0. Selecting
0 will result in no delay feature.
3. Press the RESET stem for the next SETUP MENU item or wait for
more than four seconds to return to the INFO MENU (HOLD RESET
FOR SETUP MENU will appear).
Autolock
This feature automatically locks all vehicle doors when the vehicle is
shifted into any gear and when the vehicle is in motion over 13 mph
(20 km/h) or higher.
1. To disable/enable the autolock
feature, select this function from the
SETUP MENU.
2. Press and hold the RESET stem
for two seconds to turn the autolock
feature ON or OFF.
3. Press the RESET stem for the next SETUP MENU item or wait for
more than four seconds to return to the INFO MENU (HOLD RESET
FOR SETUP MENU will appear).
Autounlock
This feature automatically unlocks all vehicle doors when the driver’s
door is opened within 10 minutes of the ignition being turned off.
2009 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
137

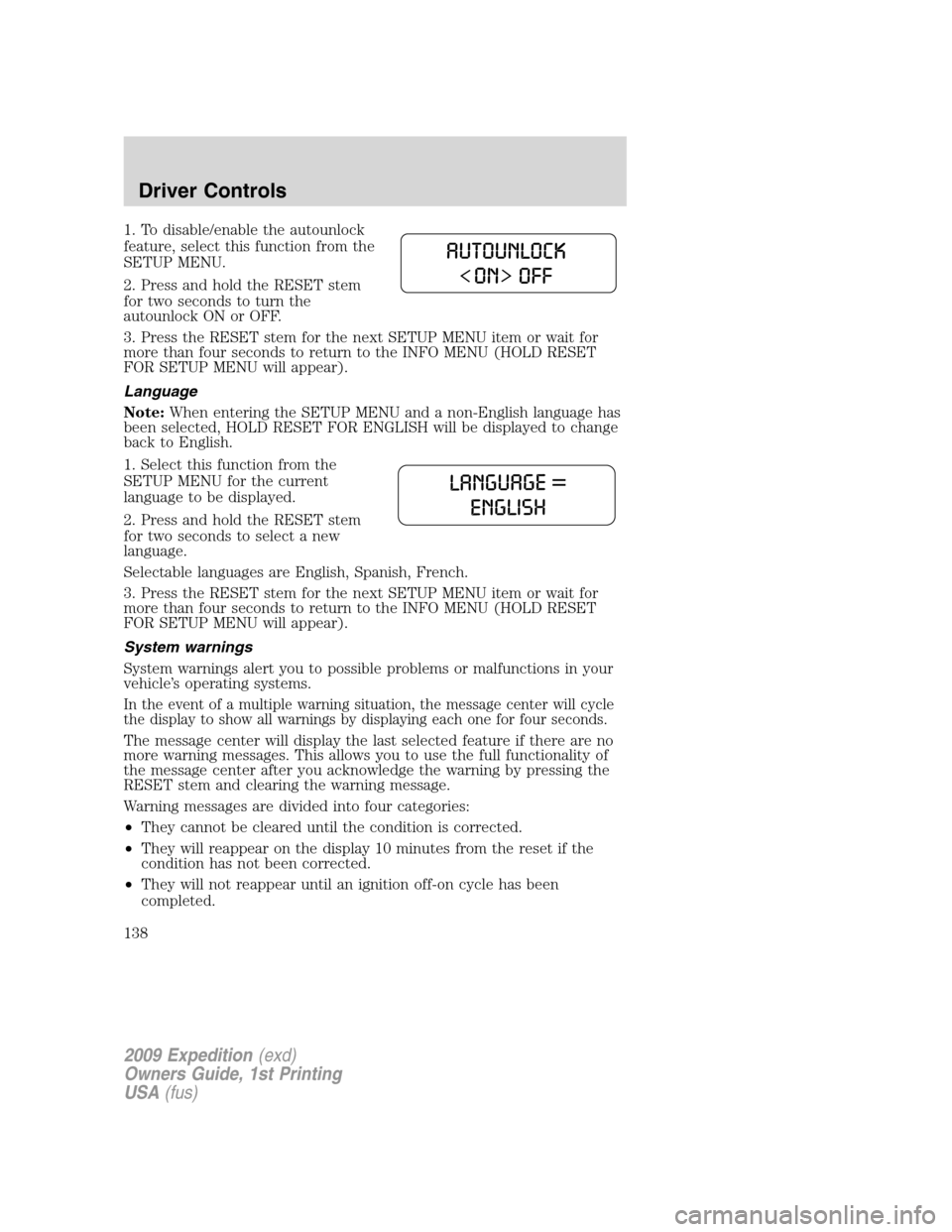

1. To disable/enable the autounlock
feature, select this function from the
SETUP MENU.
2. Press and hold the RESET stem
for two seconds to turn the
autounlock ON or OFF.
3. Press the RESET stem for the next SETUP MENU item or wait for
more than four seconds to return to the INFO MENU (HOLD RESET
FOR SETUP MENU will appear).
Language
Note:When entering the SETUP MENU and a non-English language has
been selected, HOLD RESET FOR ENGLISH will be displayed to change
back to English.
1. Select this function from the
SETUP MENU for the current
language to be displayed.
2. Press and hold the RESET stem
for two seconds to select a new
language.
Selectable languages are English, Spanish, French.
3. Press the RESET stem for the next SETUP MENU item or wait for
more than four seconds to return to the INFO MENU (HOLD RESET
FOR SETUP MENU will appear).
System warnings
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
In the event of a multiple warning situation, the message center will cycle
the display to show all warnings by displaying each one for four seconds.
The message center will display the last selected feature if there are no
more warning messages. This allows you to use the full functionality of
the message center after you acknowledge the warning by pressing the
RESET stem and clearing the warning message.
Warning messages are divided into four categories:
•They cannot be cleared until the condition is corrected.
•They will reappear on the display 10 minutes from the reset if the
condition has not been corrected.
•They will not reappear until an ignition off-on cycle has been
completed.
2009 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
138

•They reappear if the condition clears then reoccurs within the same
ignition on-off cycle.
This acts as a reminder that these warning conditions still exist within
the vehicle.
Warning display Status
Door ajar Warning can be reset. Will return if
reset and warning is cleared and
set again within the same ignition
cycle. Will return on ignition cycle. Liftgate/glass ajar
Check charging system
Check fuel fill inlet
Tire pressure sensor fault
Low tire pressure
Tire pressure monitor fault
4x4 shift in progress (if equipped)
Brake fluid level low Warning can be reset. Will NOT
return if reset and warning is
cleared and set again within the
same ignition cycle. Will return on
ignition cycle. Check park brake
Washer fluid level low
Oil life change soon
Oil change required
Check brake system Warning can be reset. Will return
after 10 minutes. If within the
10 minutes, the condition is
cleared and set again, it will not
return until the initial 10 minutes
is up. Will return on ignition cycle. XXX miles to E fuel level low
Park brake engaged Warning can be reset. Will return
after 10 minutes. If within the
10 minutes, the condition is
cleared and set again, it will return
immediately. Will return on ignition
cycle.
DOOR AJAR— Displayed when a door is not completely closed.
LIFTGATE / GLASS AJAR— Displayed when the liftgate or the
liftgate glass is not completely closed.
CHECK CHARGING SYSTEM— Displayed when the electrical system
is not maintaining proper voltage when the engine is running. If you are
2009 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
139

operating electrical accessories when the engine is idling at a low speed,
turn off as many of the electrical loads as soon as possible. If the
warning stays on or comes on when the engine is operating at normal
speeds, have the electrical system checked as soon as possible.
PARK BRAKE ENGAGED— Displayed when the manual park brake is
set, the engine is running and the vehicle is driven more than 3 mph
(5 km/h). If the warning stays on after the park brake is released,
contact your authorized dealer as soon as possible.
CHECK BRAKE SYSTEM— Displayed when the braking system is not
operating properly. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
CHECK FUEL FILL INLET— Displayed when the fuel fill inlet may
not be properly closed. Refer toEasy Fuel™ “no cap” fuel systemin
theMaintenance and Specificationschapter.
LOW TIRE PRESSURE— Displayed when one or more tires on your
vehicle have low tire pressure. Refer toInflating your tiresin theTires,
Wheels and Loadingchapter.
TIRE PRESSURE MONITOR FAULT— Displayed when the Tire
Pressure Monitoring System is malfunctioning. If the warning stays on or
continues to come on, have the system inspected by your authorized
dealer.
TIRE PRESSURE SENSOR FAULT— Displayed when a tire pressure
sensor is malfunctioning, or your spare tire is in use. For more
information on how the system operates under these conditions, refer to
Understanding your Tire Pressure Monitoring System (TPMS)in the
Tires, Wheels and Loadingchapter. If the warning stays on or
continues to come on, have the system inspected by your authorized
dealer.
4X4 SHIFT IN PROGRESS— Displayed on 4x4 vehicles only when
4x4 Low, 4x4 High or 4x4 Auto Range is selected. For further
information, refer toControl Trac four-wheel drive (4x4) operationin
theDrivingchapter.
BRAKE FLUID LEVEL LOW— Indicates the brake fluid level is low
and the brake system should be inspected immediately. Refer toBrake
fluidin theMaintenance and Specificationschapter.
CHECK PARK BRAKE— Displayed when the park brake is engaged. If
the warning stays on after the park brake is off, contact your authorized
dealer as soon as possible.
2009 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
140

XXX MILES TO E FUEL LEVEL LOW— Displayed as an early
reminder of a low fuel condition.
WASHER FLUID LEVEL LOW— Indicates the washer fluid reservoir
is less than one quarter full. Check the washer fluid level. Refer to
Windshield washer fluidin theMaintenance and Specifications
chapter.
OIL LIFE CHANGE SOON— Displayed when the engine oil life
remaining is 10% or less. When oil life left is between 10% and 0%, the
XX% OIL LIFE CHANGE SOON message will be displayed.
OIL CHANGE REQUIRED— Displayed when the oil life left reaches
0%, the OIL CHANGE REQUIRED message will be displayed.
OPTIONAL MESSAGE CENTER (IF EQUIPPED)
With the ignition in the on position,
the message center, located on your
instrument cluster, displays
important vehicle information
through a constant monitor of
vehicle systems.You may select
display features on the message center for a display of status preceded
by a brief indicator chime. The system will also notify you of potential
vehicle problems with a display of system warnings followed by a long
indicator chime.
Selectable features
Reset
Press this control to select and reset
functions shown in the INFO menu
and SETUP menu.
Info menu
This control displays the following
control displays:
•Odometer/Trip odometer
•Outside air temperature (if
equipped)
•Distance to Empty (DTE)
2009 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
141

•Average Fuel Economy (AFE)
•Instantaneous Fuel Economy
•Trip Elapsed Drive Time
•Blank Screen
Odometer/Trip odometer
Refer toGaugesin theInstrument Clusterchapter.
Outside air temperature (if equipped)
Press and hold the INFO button for
two seconds to display the outside
temperature. To switch from a blank
display to the temperature display,
hold the INFO button for two
seconds until the temperature is
seen in the display. To switch the temperature display to compass
display, hold the INFO button again for two seconds until the compass
heading is seen in the display
Distance to empty (DTE)
Selecting this function from the
INFO menu estimates approximately
how far you can drive with the fuel
remaining in your tank under
normal driving conditions.
Remember to turn the ignition off
when refueling to allow this feature to correctly detect the added fuel.
The DTE function will display XXX MILES TO E FUEL LEVEL
LOW
and sound a tone for one second when you have
approximately 50 miles (80 km) to empty. If you RESET this warning
message, this display and tone will return after 10 minutes.
DTE is calculated using a running average fuel economy, which is based
on your recent driving history of 500 miles (800 km). This value is not
the same as the average fuel economy display. The running average fuel
economy is reinitialized to a factory default value if the battery is
disconnected.
2009 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
142

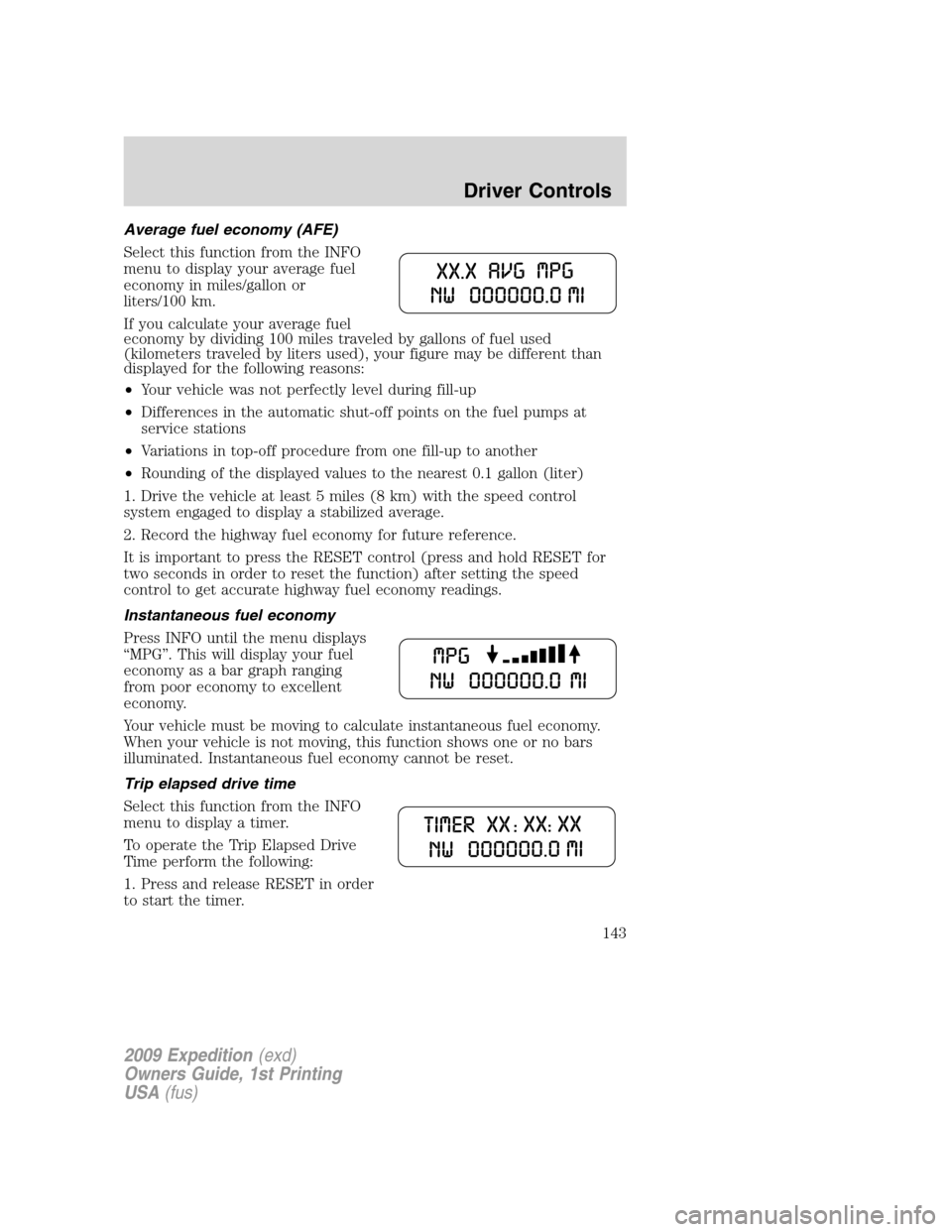

Average fuel economy (AFE)
Select this function from the INFO
menu to display your average fuel
economy in miles/gallon or
liters/100 km.
If you calculate your average fuel
economy by dividing 100 miles traveled by gallons of fuel used
(kilometers traveled by liters used), your figure may be different than
displayed for the following reasons:
•Your vehicle was not perfectly level during fill-up
•Differences in the automatic shut-off points on the fuel pumps at
service stations
•Variations in top-off procedure from one fill-up to another
•Rounding of the displayed values to the nearest 0.1 gallon (liter)
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to press the RESET control (press and hold RESET for
two seconds in order to reset the function) after setting the speed
control to get accurate highway fuel economy readings.
Instantaneous fuel economy
Press INFO until the menu displays
“MPG”. This will display your fuel
economy as a bar graph ranging
from poor economy to excellent
economy.
Your vehicle must be moving to calculate instantaneous fuel economy.
When your vehicle is not moving, this function shows one or no bars
illuminated. Instantaneous fuel economy cannot be reset.
Trip elapsed drive time
Select this function from the INFO
menu to display a timer.
To operate the Trip Elapsed Drive
Time perform the following:
1. Press and release RESET in order
to start the timer.
2009 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
143

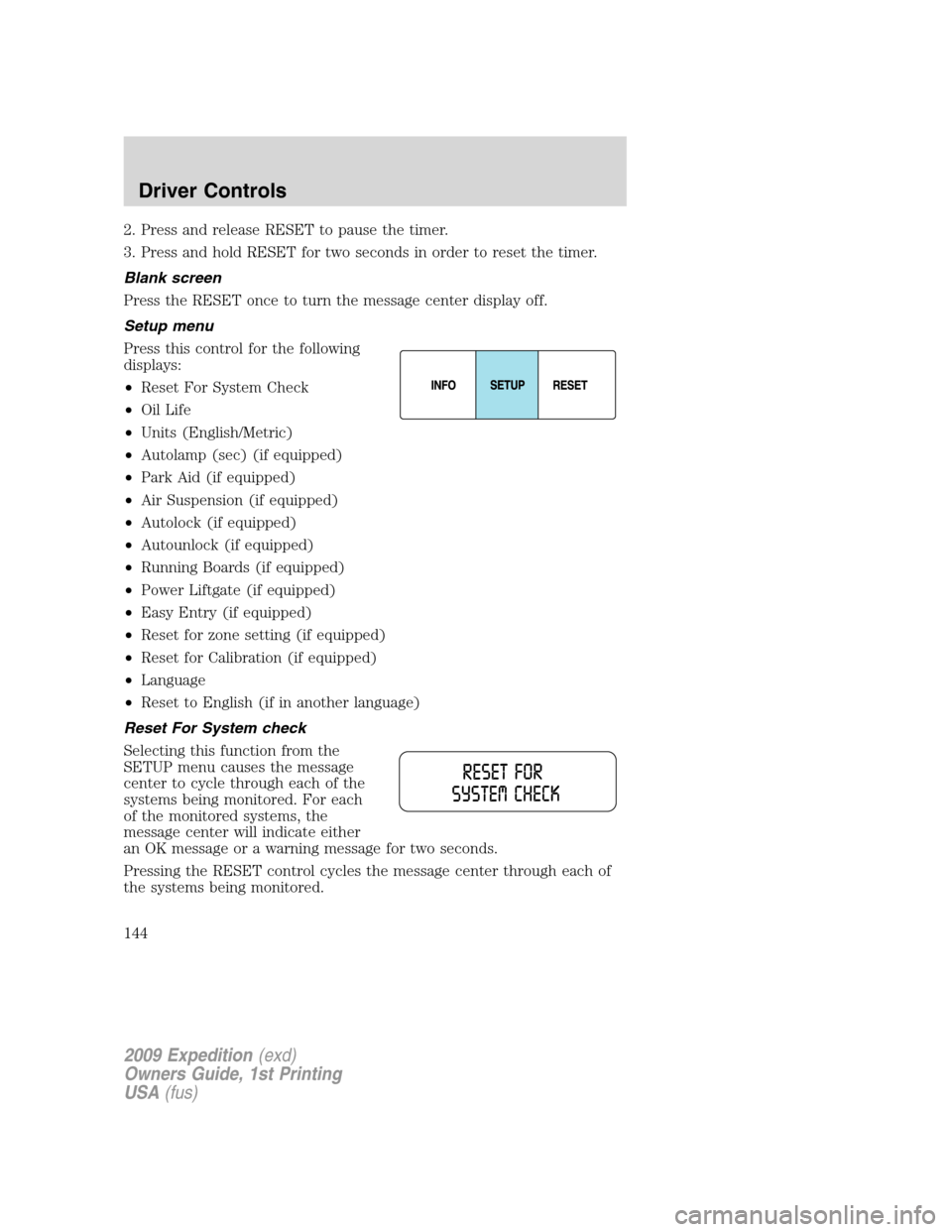

2. Press and release RESET to pause the timer.
3. Press and hold RESET for two seconds in order to reset the timer.
Blank screen
Press the RESET once to turn the message center display off.
Setup menu
Press this control for the following
displays:
•Reset For System Check
•Oil Life
•Units (English/Metric)
•Autolamp (sec) (if equipped)
•Park Aid (if equipped)
•Air Suspension (if equipped)
•Autolock (if equipped)
•Autounlock (if equipped)
•Running Boards (if equipped)
•Power Liftgate (if equipped)
•Easy Entry (if equipped)
•Reset for zone setting (if equipped)
•Reset for Calibration (if equipped)
•Language
•Reset to English (if in another language)
Reset For System check
Selecting this function from the
SETUP menu causes the message
center to cycle through each of the
systems being monitored. For each
of the monitored systems, the
message center will indicate either
an OK message or a warning message for two seconds.
Pressing the RESET control cycles the message center through each of
the systems being monitored.
2009 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
144
